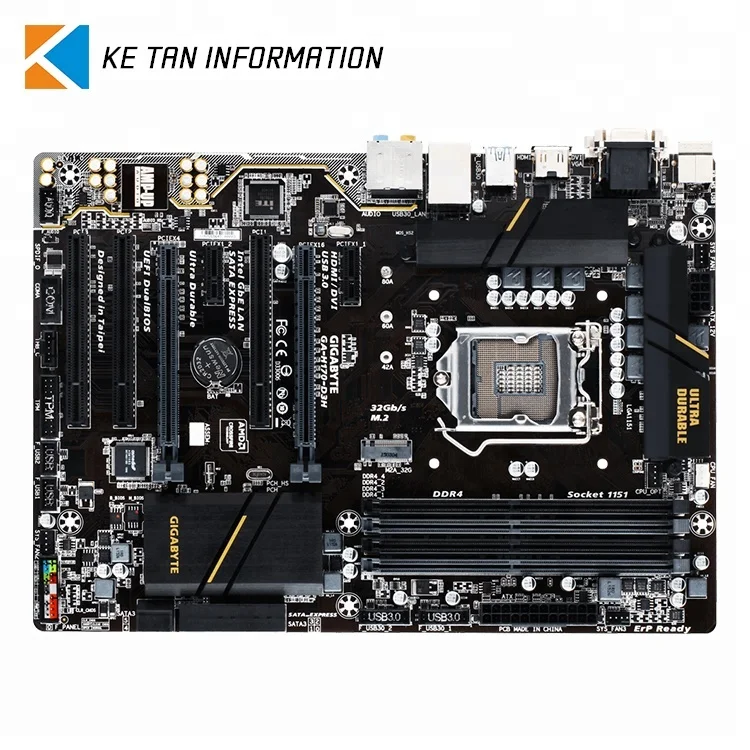

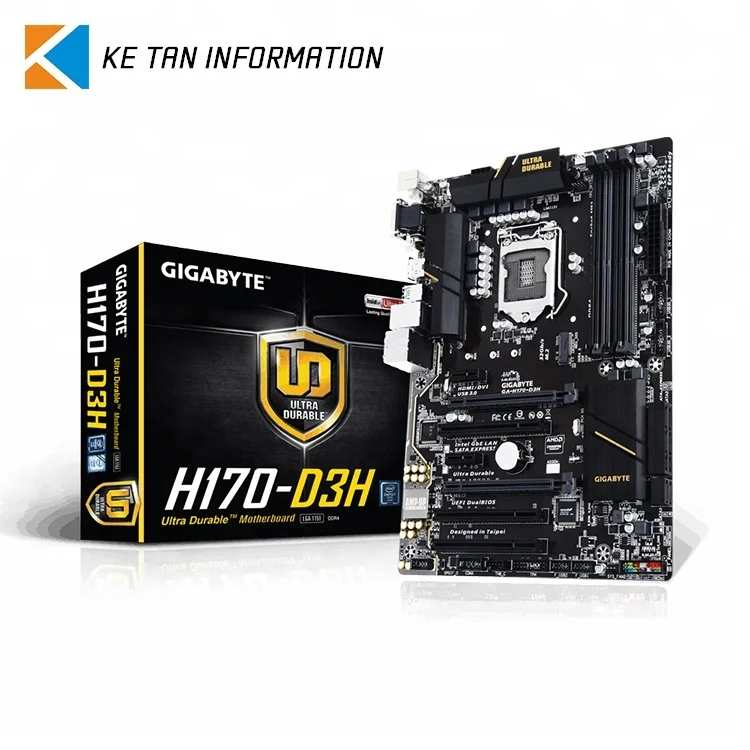

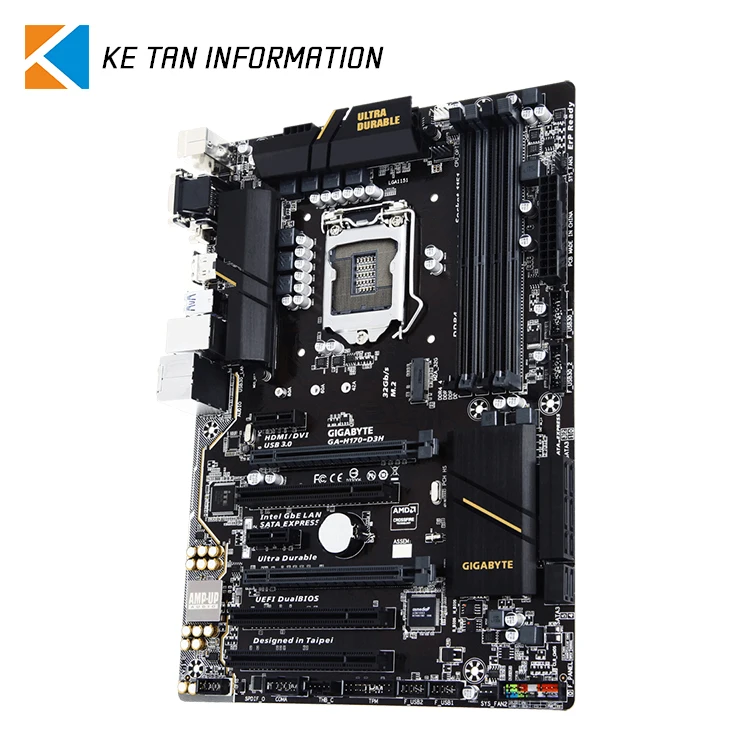

GIGABYTE GA H170 D3H Used Motherboard with LGA1151 Supports 7th / 6th Generation Intel Core Processors

Product Overview

Description



GIGABYTE GA-H170-D3H Used Motherboard with LGA1151 Supports 7th / 6th Generation Intel Core Processors



 Att:Page Price is Only for Reference, Actual Price is Subject to Our Confirmation.



Supports 7th / 6th Generation Intel® Core™ Processors

Dual Channel DDR4, 4 DIMMs

2-Way Graphics with Premium PCIe Lane

PCIe Gen3 x4 M.2 Connector with up to 32Gb/s Data Transfer (PCIe NVMe & SATA SSD support)

2 SATA Express Connectors for up to 16Gb/s Data Transfer

115dB SNR HD Audio with Built-in Rear Audio Amplifier

High Quality Audio Capacitors and Audio Noise Guard with Ambient LED Trace Path Lighting

Intel® GbE LAN with cFosSpeed Internet Accelerator Software

APP Center Including EasyTune™ and Cloud Station™ Utilities

GIGABYTE UEFI DualBIOS™ Technology

Support Intel® Small Business Advantage



CPU

Support for 7th/6th Generation Intel® Core™ i7 processors/Intel® Core™ i5 processors/ Intel® Core™ i3 processors/Intel® Pentium® processors/ Intel® Celeron® processors in the LGA1151 package

* For 7th Generation Intel® Core™ processors support need to update the latest BIOS.

L3 cache varies with CPU

(Please refer "CPU Support List" for more information.)



Memory

4 x DDR4 DIMM sockets supporting up to 64 GB of system memory

* Due to a Windows 32-bit operating system limitation, when more than 4 GB of physical memory is installed, the actual memory size displayed will be less than the size of the physical memory installed.

Dual channel memory architecture

Support for DDR4 2133 MHz memory modules

Support for ECC UDIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode)

Support for non-ECC UDIMM 1Rx8/2Rx8/1Rx16 memory modules

(Please refer "Memory Support List" for more information.)



Onboard Graphics

Integrated Graphics Processor-Intel® HD Graphics support

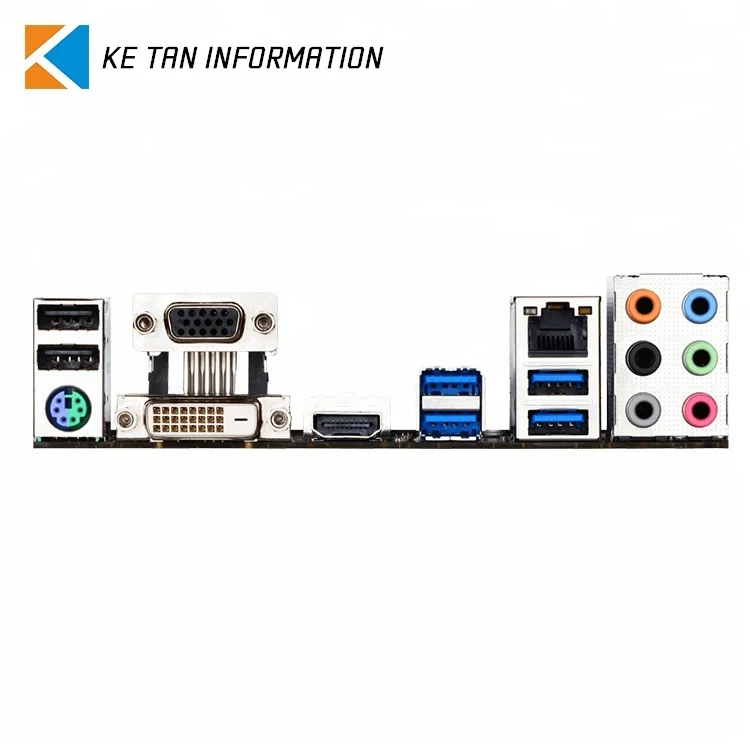

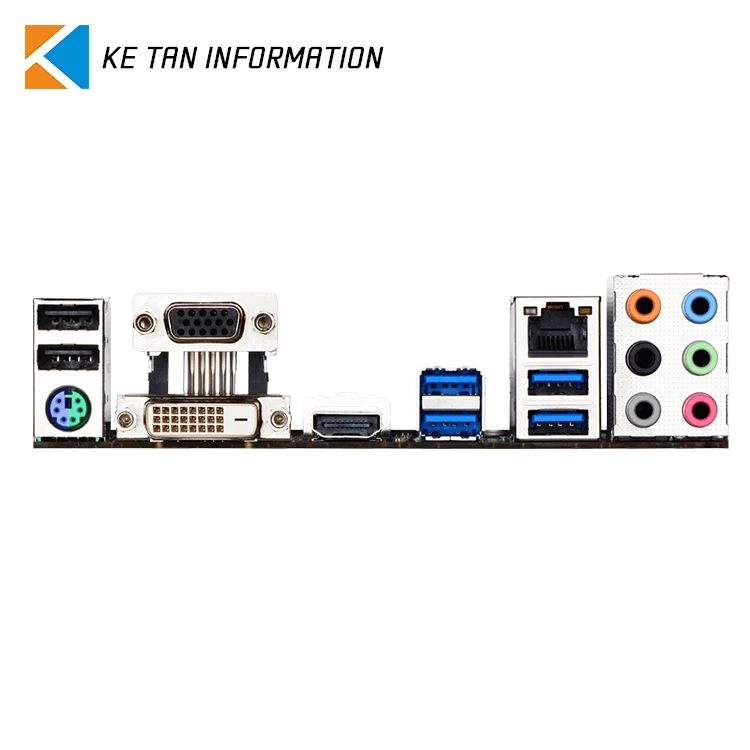

1 x D-Sub port, supporting a maximum resolution of 1920x1200@60 Hz

1 x DVI-D port, supporting a maximum resolution of 1920x1200@60 Hz

* The DVI-D port does not support D-Sub connection by adapter.

1 x High Definition Multimedia Interface port, supporting a maximum resolution of 4096x2160@24 Hz

* Support for High Definition Multimedia Interface 1.4 version.

Support for up to 3 displays at the same time

Maximum shared memory of 1024 MB



Expansion Slots

1 x PCI Express x16 slot, running at x16 (PCIEX16)

* For optimum performance, if only one PCI Express graphics card is to be installed, be sure to install it in the PCIEX16 slot.

1 x PCI Express x16 slot, running at x4 (PCIEX4)

2 x PCI Express x1 slots

(All of the PCI Express slots conform to PCI Express 3.0 standard.)

3 x PCI slots



Storage Interface

Chipset:

1 x M.2 Socket 3 connector (Socket 3, M key, type 2242/2260/2280 SATA & PCIe x4/x2/x1 SSD support)

2 x SATA Express connectors

6 x SATA 6Gb/s connectors

Support for RAID 0, RAID 1, RAID 5, and RAID 10

* Refer to "1-7 Internal Connectors," for the supported configurations with the M.2, SATA Express, and SATA connectors.
