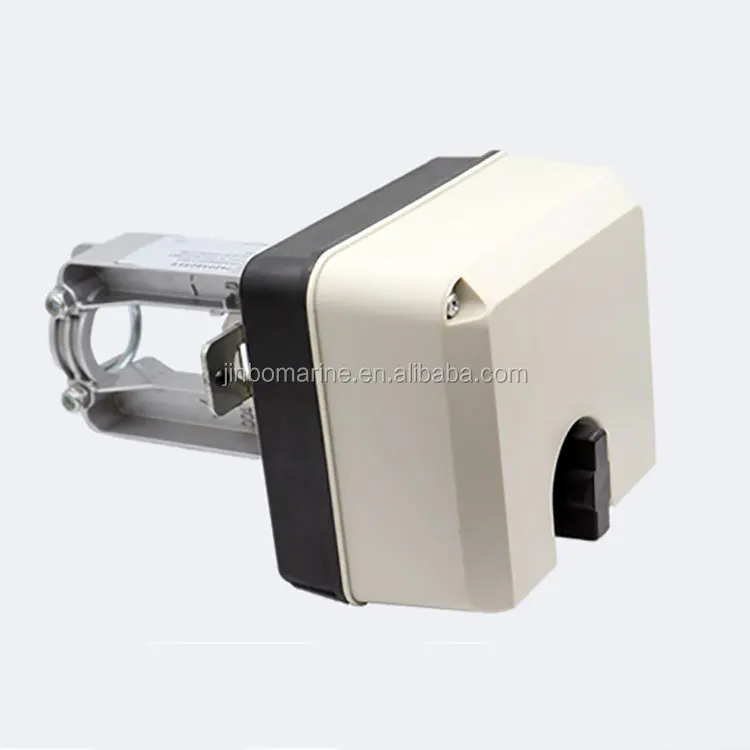

TE7420A Valves Electric Actuator
- Category: >>>
- Supplier: Chongqing Jinbo Marine Equipment Import & Export Co. Ltd.
Share on (60761386654):
Product Overview
Description
TE7420A Valves Electric Actuator:
TE7420A valves electric actuator is applies to SPDT. This valves electric actuator is compatible with valves of all heating ventilation air conditioning.
Specification:
| Model | Inch(mm) | 60Hz Run time(s) | Description |
| TE6421A | 3/4(20) | 95 | linear electric valve actuators |
| TE7421A | |||
| TE6421B | 1-1/2(38) | 175 | |
| TE7421B |
Weight: 5.1 pound (2.3 kg)
Input power: 24V AC (+10%, -15%), 60Hz
Power supply: Max 24V AC
TE7421:0~10Vdc or 2~10Vdc
Product shell: ABS plastic
Bases and Holders: Aluminium Die Casting
Thrust: 405lbf (1800N)
Cable interface: 2 pcs 1/2
Ambient temperature range:14~122 ℉(-10~50 ℃)
Storage Temperature Range:-40~158 ℉(-40~70 ℃)
Humidity range:relative humidity 5~95% no condensation
Installation is simple and quick
Free from adjustment
Type TE7421 with position feed back signal
limit switch of terminal power
With manual station
Synchronous motor
Corrosion-proof design
