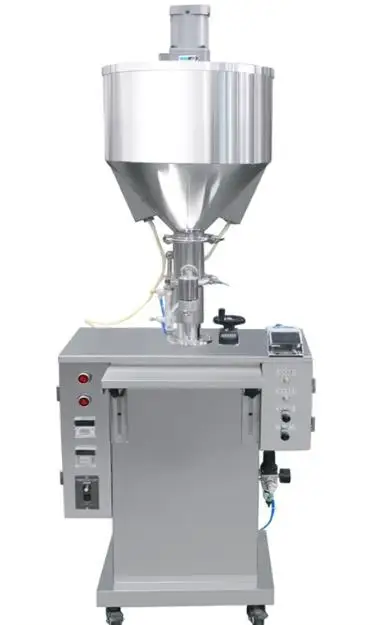

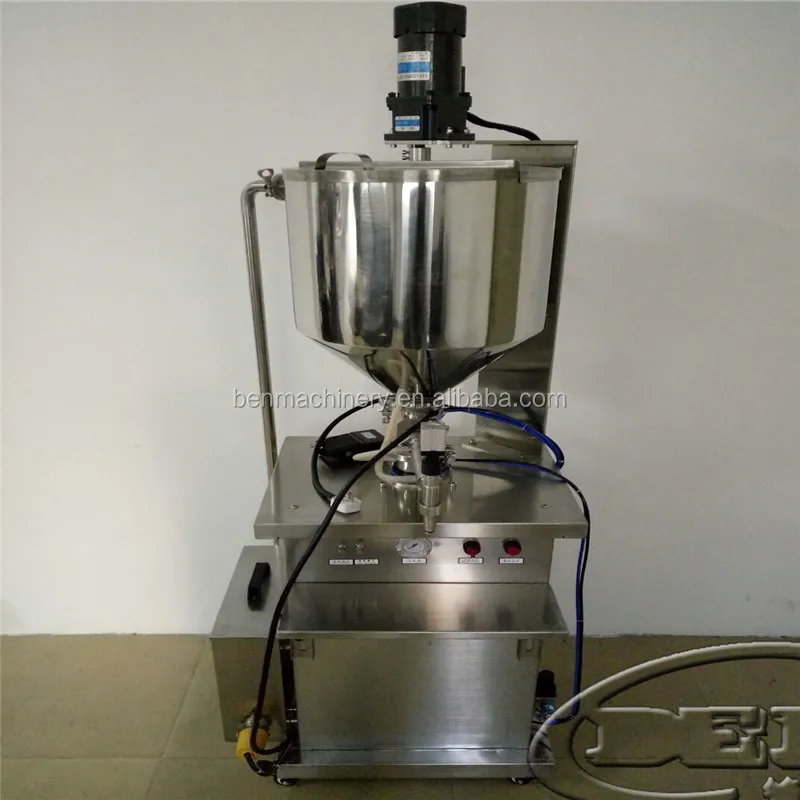

Vertical pneumatic semi automatic food carton tomato paste peanut butter filling machine With stirring and heating function
- Category: >>>
- Supplier: Guangzhou BEN Packaging Machine Co. Ltd.
Share on (60761417916):
Product Overview
Description
Product information

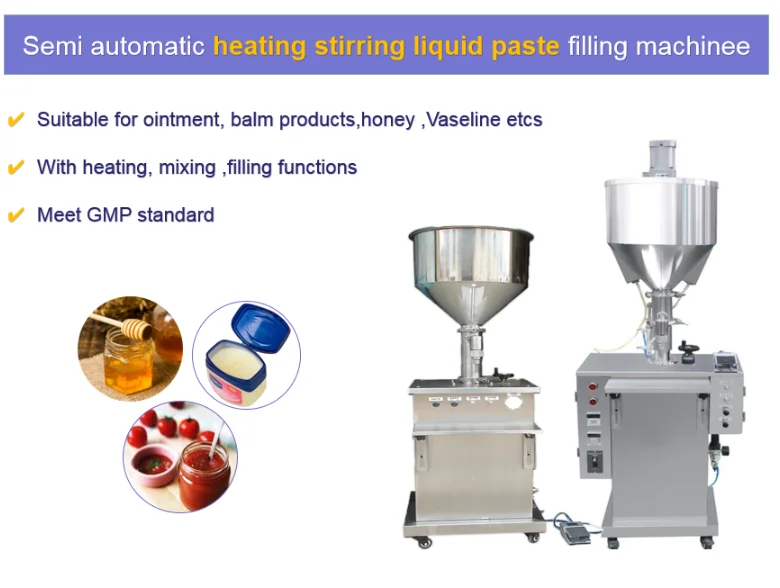

Semi automatic heating stirring liquid paste filling machinee
1、This filling machine with heating, mixing ,filling functions.
2、Suitable for cream products which need heated during the filling process.Such as ointment, balm products,honey ,Vaseline etcs.
3、The filling volume and heating temperature can be adjusted as needs.easy to operate and maintenance.
4、Filling machine stainless steel 304 material, meet GMP standard
5、All adopt pneumatic control besides hardware positioning, so they have high filling precision as the precision can be controlled within 0.5%.
6、Double layers hopper and material cylinder,filling part all have heating function
2、Suitable for cream products which need heated during the filling process.Such as ointment, balm products,honey ,Vaseline etcs.
3、The filling volume and heating temperature can be adjusted as needs.easy to operate and maintenance.
4、Filling machine stainless steel 304 material, meet GMP standard
5、All adopt pneumatic control besides hardware positioning, so they have high filling precision as the precision can be controlled within 0.5%.
6、Double layers hopper and material cylinder,filling part all have heating function
Dear customer！Collection our product links, you can contact us more quickly
Specification
Name | Automatic Roller Flat Surface Sticker Label Machine |
Type | FYJR-10 |
Mixing power | 220V 0.09(kw) |
Heating power | 5 kw |
Filling volume | 100-1000ml (can be adjusted as customer request)mer requirements) |
Hopper | Two layer |
Hopper volume | 50-100L |
Heat temperature | 100℃ max |
Filling precision | ±0.5% |
Air source pressure | 0.8Mpa |
Working pressure | not over 0.6 Mpa |
Capacity | 20-40bot/min |
G.W. | 60kg |
Shape size | 650×580×2100(mm) |
Filling volume | filling precision | Air Consumption | Air pressure | productivity |
5-150ml | ±0.2% | 23L/min | 0.2-0.8MPA | 20-50 BPM |
10-250ml | ±0.2% | 30L/min | 0.2-0.8MPA | 20-50 BPM |
30-500ml | ±0.2% | 44L/min | 0.2-0.8MPA | 20-40 BPM |
60-1000ml | ±0.2% | 87L/min | 0.2-0.8MPA | 20-30 BPM |
250-2500ml | ±0.2% | 160L/min | 0.4-0.8MPA | 20-30 BPM |
500-5000ml | ±0.2% | 300L/min | 0.4-0.8MPA | 10-25 BPM |
Note:
The above data are standard dimensions. If you have other needs, Click to contact us!
Product details
Double layers hopper with blender
Hot water circulates in the jacket to heat the product
Heating Filling Nozzle
Connect with a hose, automatic suction, suitable for fluidity materials
Working Table
Operation table adjustable for different bottles.
Movable tray
Convenient handling and flexible placement
Packing & Delivery
Service
Whenever you have technical question in using it, we will freely do our best to support you。
According to the customer's specific label requirements, first provide the customer with reasonable machine schematic diagram, quotation and similar videos.
Sales period:
1) 、 According to the customer's product and label position, carry out reasonable transformation on the basis of standard machine.
2) 、 Repeat for 20 hours to test the operation stability of the equipment.
3) 、 Strictly implement GMP certification of equipment and materials used in production process requirements and specifications.
4) 、 Payment: 30%TT in advance, 70% TT before shipment.
5) 、Validity: The quotation will be valid for 30 days.
after-sale service:
1）、 Provide systematic operation training for customer workers。
2）、In case of quality problems, the supplier shall provide technical support and timely provide vulnerable parts。
3）、We guarantee the quality of the main parts within 12 months. If the main parts go wrong without artificial factors within one year, we will freely provide them or maintain them for you. After one year, if you need to change parts, we will kindly provide you with the best price or maintain it in your site.
4）、The Manufacturer shall guarantee the goods are made of Manufacturer’s best materials, with first class workmanship, brand new, unused and correspond in all respects with the quality, specification and performance as stipulated in this Contract.
Pre sales:
According to the customer's specific label requirements, first provide the customer with reasonable machine schematic diagram, quotation and similar videos.
Sales period:
1) 、 According to the customer's product and label position, carry out reasonable transformation on the basis of standard machine.
2) 、 Repeat for 20 hours to test the operation stability of the equipment.
3) 、 Strictly implement GMP certification of equipment and materials used in production process requirements and specifications.
4) 、 Payment: 30%TT in advance, 70% TT before shipment.
5) 、Validity: The quotation will be valid for 30 days.
after-sale service:
1）、 Provide systematic operation training for customer workers。
2）、In case of quality problems, the supplier shall provide technical support and timely provide vulnerable parts。
3）、We guarantee the quality of the main parts within 12 months. If the main parts go wrong without artificial factors within one year, we will freely provide them or maintain them for you. After one year, if you need to change parts, we will kindly provide you with the best price or maintain it in your site.
4）、The Manufacturer shall guarantee the goods are made of Manufacturer’s best materials, with first class workmanship, brand new, unused and correspond in all respects with the quality, specification and performance as stipulated in this Contract.
Company Profile
FAQ
Q1. Your company is a trading company or manufacturer / factory?
Our company is a manufacturer / factory. Our factory is in Bai Yun District, Guangzhou, China. Welcome to visit our factory at anytime !
Q2. What materials of your machines are made of ?
Our machines are made of high class stainless steel 304, stainless steel 316 or 316 L, carbon steel, Al alloy, etc.
Q3. What brands of the electronics and pneumatic parts your machines adopt?
We can use both domestic brands, joint venture brands and world famous brands, such as, SIEMENS, SCHNEIDER, MITSUBISHI, TAMAGAWA, PANASONIC, SMC, AIRTAC, SICK, OMRON, SUNX, RED LION, and so on.
Q4. What power voltage do your machines work with?
Usually, our machines work with AC220V 1 phase, 50/60Hz, or AC380V 3 phases, 50/60Hz. But, we can also make the machine with the power voltage our clients required, such as, AC110V, AC240V, etc. Please tell us, what is the exact power voltage available in your city before you purchase our machines.
Q5. Do your machines work with compressed air?
Yes, some of our machines have to work with compressed air, the standard is, 0.6MPa to 0.8 MPa, consumption is various from 0.2 to 0.45 CBM per minute depends on the sizes of the machines.
Q6. What is the payment term your company accepts?
Usually, we accept T/T or in cash, 30% of the total payment as prepayment / deposit, the remaining 70% will be paid off before we deliver the machines.
Q7. How long it will take if I put an order of your machines?
The delivery date depends on the sizes and complexity of the machines you order, various from 5 to 50 working days after we receive the prepayment / deposit from our clients.
Q8. How do you pack your machines before transport / shipping?
Firstly, we clean the machines with anti-rust oil / grease, then, we wrap the machines with anti-moisture plastic film tightly,finally, we pack the machines with solid wood or timber cases that suitable for long distance or sea way transportation.
Q9. Do you provide the maintenance service?
Yes, we provide maintenance services, because regional difference, we can provide you the services by Email, telephone, express or internet online tools.
Q10. Is there a warranty and which period of validity does it cover?
We provide one year warranty for all of our machines, the validity time is from the day on which the machines leave our factory to your factory in one year.
Q11. If any part of the machines broken, how we can get the new replacements?
During the warranty period, if any part broken because of the quality defect or unqualified process, we will send the new replacements to you at our expense. If it exceeds the warranty term, or caused by users’ unreasonable operations, or irresistible factors, or any change unauthorized by our company, the users will have to pay for the new replacements.
Our company is a manufacturer / factory. Our factory is in Bai Yun District, Guangzhou, China. Welcome to visit our factory at anytime !
Q2. What materials of your machines are made of ?
Our machines are made of high class stainless steel 304, stainless steel 316 or 316 L, carbon steel, Al alloy, etc.
Q3. What brands of the electronics and pneumatic parts your machines adopt?
We can use both domestic brands, joint venture brands and world famous brands, such as, SIEMENS, SCHNEIDER, MITSUBISHI, TAMAGAWA, PANASONIC, SMC, AIRTAC, SICK, OMRON, SUNX, RED LION, and so on.
Q4. What power voltage do your machines work with?
Usually, our machines work with AC220V 1 phase, 50/60Hz, or AC380V 3 phases, 50/60Hz. But, we can also make the machine with the power voltage our clients required, such as, AC110V, AC240V, etc. Please tell us, what is the exact power voltage available in your city before you purchase our machines.
Q5. Do your machines work with compressed air?
Yes, some of our machines have to work with compressed air, the standard is, 0.6MPa to 0.8 MPa, consumption is various from 0.2 to 0.45 CBM per minute depends on the sizes of the machines.
Q6. What is the payment term your company accepts?
Usually, we accept T/T or in cash, 30% of the total payment as prepayment / deposit, the remaining 70% will be paid off before we deliver the machines.
Q7. How long it will take if I put an order of your machines?
The delivery date depends on the sizes and complexity of the machines you order, various from 5 to 50 working days after we receive the prepayment / deposit from our clients.
Q8. How do you pack your machines before transport / shipping?
Firstly, we clean the machines with anti-rust oil / grease, then, we wrap the machines with anti-moisture plastic film tightly,finally, we pack the machines with solid wood or timber cases that suitable for long distance or sea way transportation.
Q9. Do you provide the maintenance service?
Yes, we provide maintenance services, because regional difference, we can provide you the services by Email, telephone, express or internet online tools.
Q10. Is there a warranty and which period of validity does it cover?
We provide one year warranty for all of our machines, the validity time is from the day on which the machines leave our factory to your factory in one year.
Q11. If any part of the machines broken, how we can get the new replacements?
During the warranty period, if any part broken because of the quality defect or unqualified process, we will send the new replacements to you at our expense. If it exceeds the warranty term, or caused by users’ unreasonable operations, or irresistible factors, or any change unauthorized by our company, the users will have to pay for the new replacements.
