RJ45 Interface Ethernet LAN M22 IP68 Waterproof Connector 22cm Long Cable
- Category: >>>
- Supplier: Shenzhen Hengzhan Shidai Technology Co. Ltd.
Share on (60761471486):
Product Overview
Description

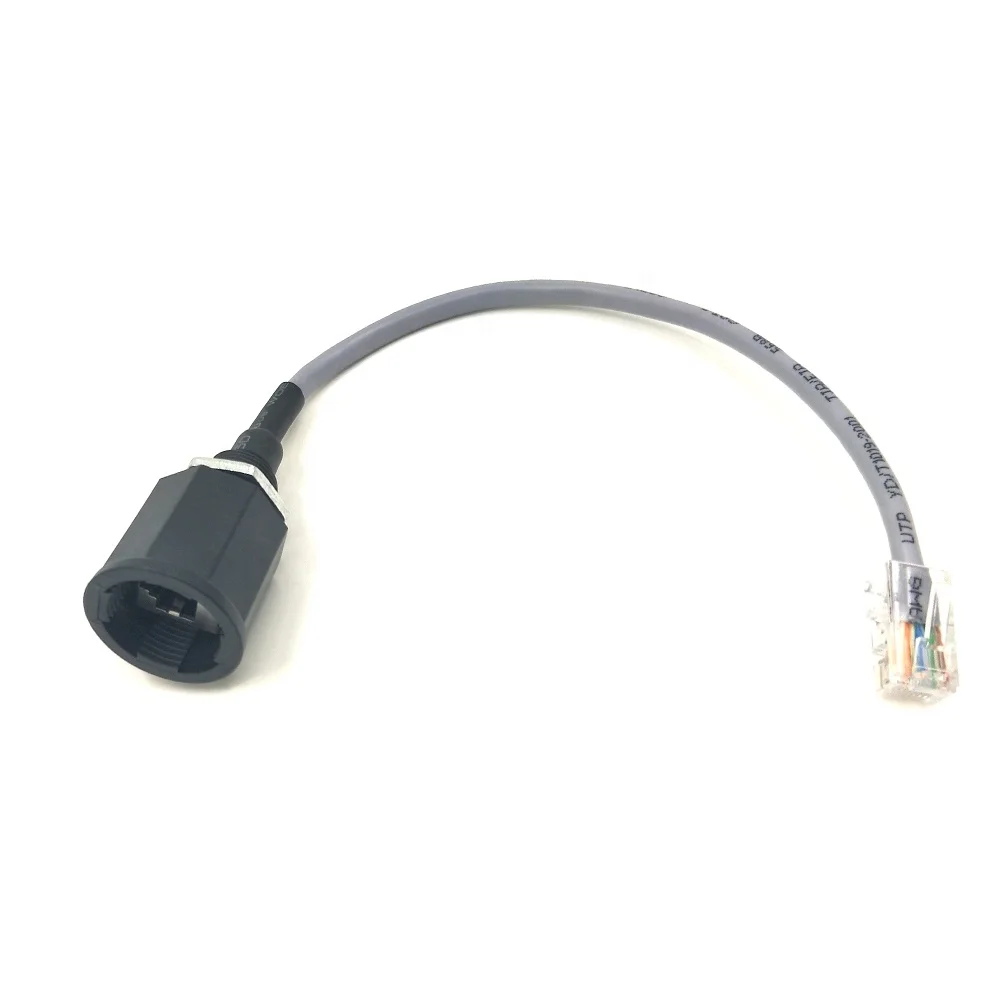

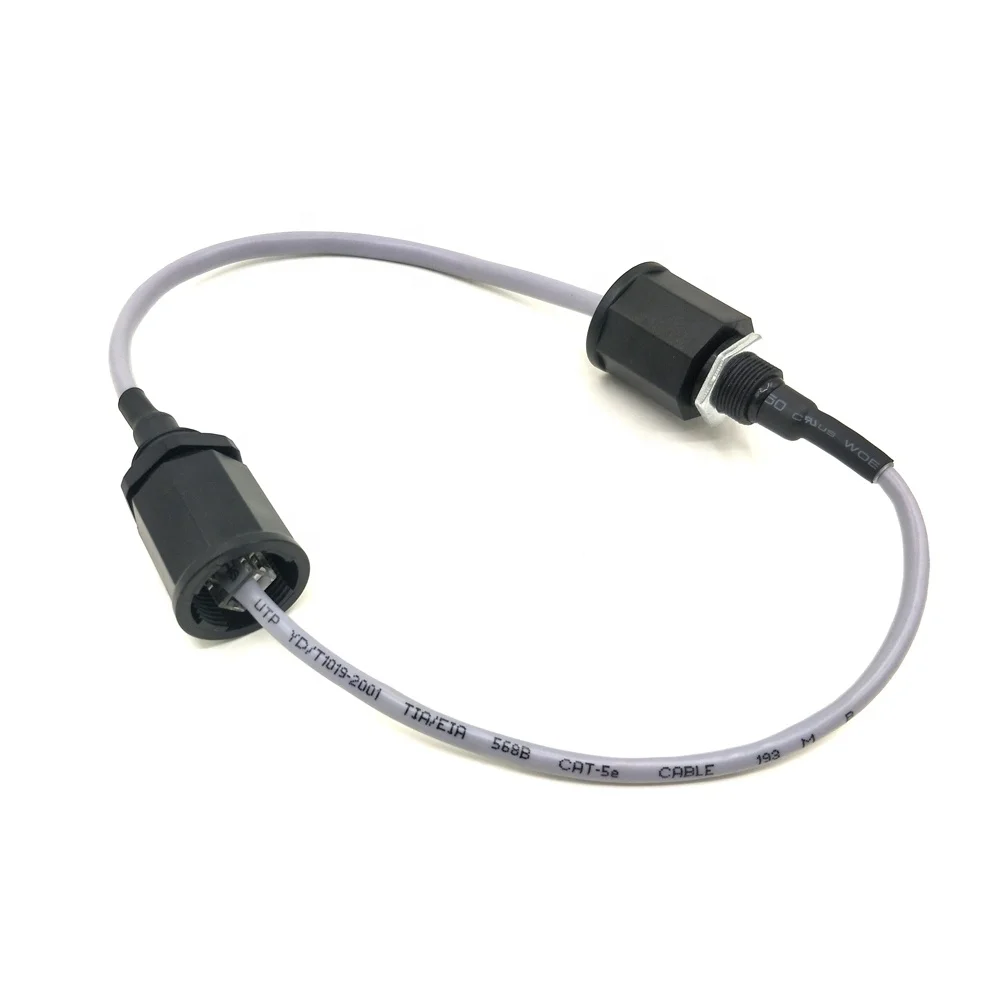

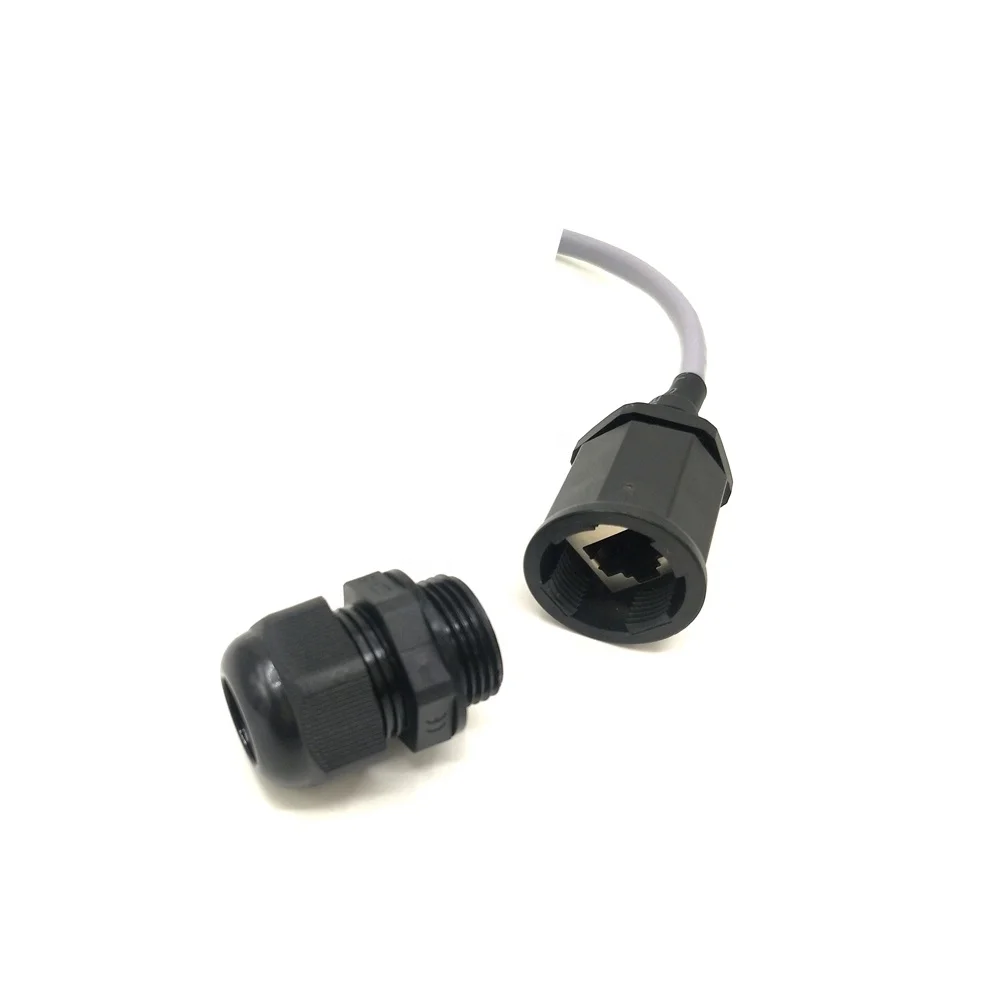

RJ45 Interface Ethernet LAN M22 IP68 Waterproof Connector 22cm Long Cable
Product Description
Product features
RJ45 socket for use in routing an Ethernet cable through a bulkhead
Eight-wire RJ45 connector
Requires 22 mm diameter hole in bulkhead
Locking nut secures socket to bulkhead
Socket cap for protection against dust and liquids when closed
Product description
This M22-RJ45-SA bulkhead interface provides an eight-wire RJ45 socket connection for use in routing an Ethernet cable through a bulkhead. The socket requires a 22 mm hole and has a locking nut to secure the socket to the bulkhead. A cap provides Ingress Protection (IP) 65 against dust and liquids in the closed position. This RJ45 bulkhead interface is suitable for outdoor use, such as for an internet connection.
1 | Model No. | RJ45 waterproof connector |
| 2 | Housing Material | Nylon(PA66)+GF UL94V-0 1/16'' |
| 3 | Contact Material | Brass with Gold Plated |
| 4 | Sealing Material | Silica Gel |
| 5 | Contact Number | 8 Pin |
| 6 | Contact Resistance | <10mΩ |
| 7 | Insulation Resistance | ≥500mΩ |
| 8 | Operating Temperature | -25℃ ~ +105℃ |
| 9 | Durability(Plug/Unplug) | 3000times |
| 10 | Waterproof Rating | IP67 |
| 11 | Screw Thread | M22*1.5 |
| 12 | Thickness of Opening Panel | 1.5mm-10mm |
| 13 | Cable Specification | 20AWG-26AWG |

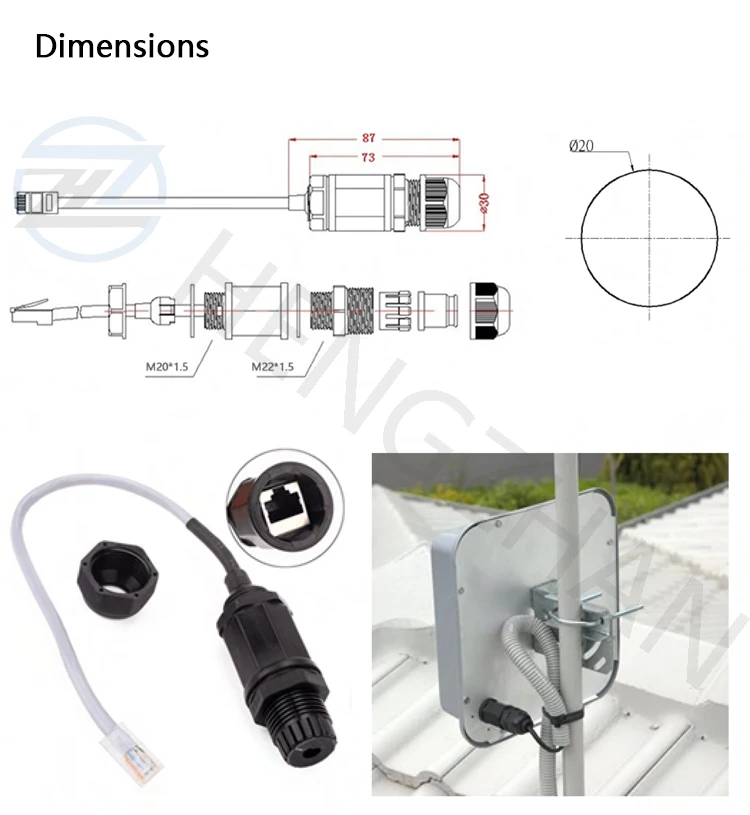

Size
Packaging & Shipping
Packaging Details: RJ45 interface ethernet lan M22 ip68 waterproof connector 22cm long cable will be packed in one small bag and then put in one box.If you need custom package, we will do as your requirest.
Delivery Detail: About 7 workdays after payments.
Applications
Our Services
We supply M8 M12 cable connector, RJ45 connector, heavy duty connectors, mil connector and other many kinds of connectors. If you need cable harness, we also can supply harness processing, you just need let us know the spec of the cable and the connectors, we will give you a cable harness drawing.
Company Information
FAQ
Q1.Are you a manufacturer?
A1: Yes, we are a experienced manufacturer with our own molds and production lines.
Q2.How about quality of products?
A2: Our technicians and QC teams test the products one by one using specail device and instruments.
Q3.How about price?
A3: We are a manufacturer and always offer our customers the most competitive factory price.
Q4.How to play an order?
A4: Contact with online service, or sent an email to us,we will confirm you with product price,specs,packing etc.
Q5.May I buy samples from you?
A5: Yes! You are welcome to place sample order to test our superior quality and services.
Q6.Can I visit your factory?
A6: Yes, welcome to our factory.
Q7.How can I make OEM or ODM orders?
A7: We have different print processing,different OEM orders please contact again or view more items on our alibaba page.
Q8.How do you ship the finished product?
A8: Based on the customer request, we can ship by customer's international express account like DHL,TNT,UPS,FEDEX or by our forwarder shipping.
