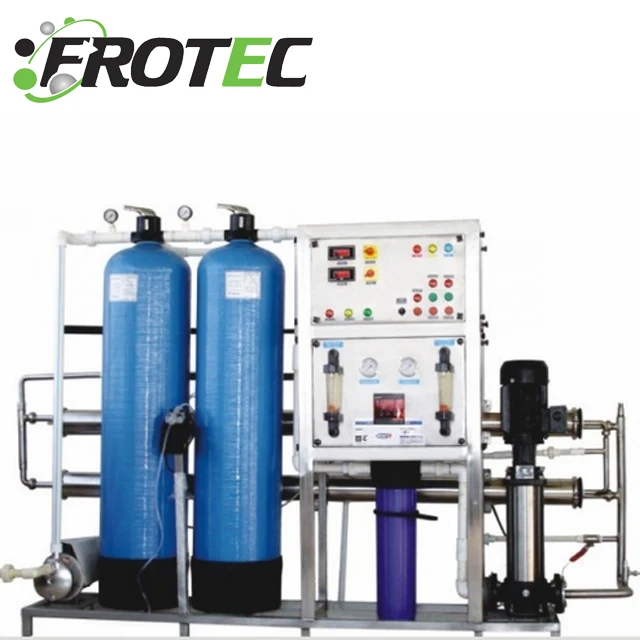

RO 500L/H drinking water system/Commercial Ro purification plant/500L ro system

Product Overview

Description





Water Purification RO System

♦ Part one: Frotec  RO Water Purification Plant Description



1.Brief introduction and Technical Specification



Water RO Plant is a system used to produce pure water for daily life and industrial production process.



Typical Process:

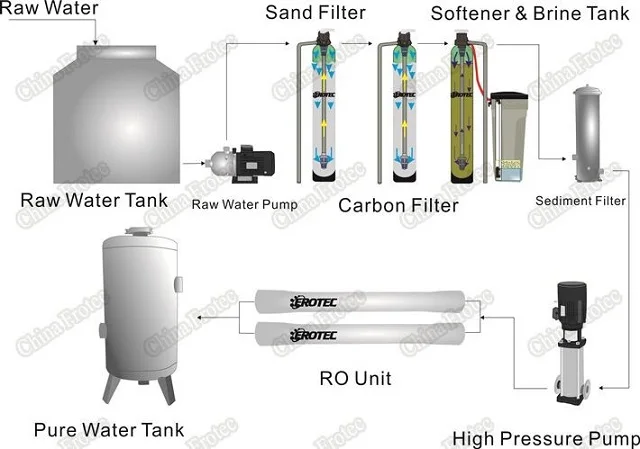

Raw water →raw water pump→ sand filter→ carbon filter→ softener filter→cartridge/security filter→high-pressure pump→ reverse osmosis part→ pure water tank

(PS: ozone generator or uv sterilizer can be chosen as disinfection system.)



Design basis and treated water standard

Raw water : Raw water quality analysis report( Better provide this to manufacture)

Raw water: Underground water

Produced water's application: Manufacture agrochemical

The capacity of produced water : 100L/H - 50000L/H

System Configuration : Pre-treatment + One Stage RO Water Purification System +Post Treatment

Designed Recovery : 65%

Rejection rate : ≥ 97%

Operation time up to 12hours per day and 350days per year

Installation condition:Interior systems installation;Temperature:5-45℃

Voltage : 220V/380v,50Hz/60HZ;

Effluent standards: Feed water conductivity ≤500μs/cm, water conductivity ≤10μs/cm (desalting rate is 98-99.8%).







Raw water source:Bore whole, river, well, mountain spring, lake, etc

Raw water pump/multi pump:Nanfang, Grundfos

Filter media:Quartz sand filter, active carbon filter, security filter( PP filter)

RO Membrane:Filmtec Dow,Hydranautics



Working process

1. Raw water pump-- provide the pressure to quartz sand filter/active carbon filter.

2. Multi-medium filter-- get rid of turbidity, suspended matter, organic matter, colloid, ect.

3. Active Carbon filter--Remove the color, free chloride, organic matter, harmful matter, ect.

4. Softener--exchange "ions" of calcium and magnesium with the most common and easiest method.

5. Micron filter--prevent large particles, bacteria, viruses into RO membrane, accuracy is 5um,

6. High pressure pump-- Provide the high pressure to RO membrane ro.

7.RO system-- main part of the plant. The RO membrane's desalting rate can reach 99%, removing over 99% ions.



Technical Data

Model	Capacity Of water (Ton/hour)	Electrical Power (50-60Hz)	Membrane (Pcs)
RO-100L/H	0.1	AC220V / 380V	4021*1
RO-250L/H	0.25	AC220V / 380V	4040*1
RO-500L/H	0.5	AC220V / 380V	4040*2
RO-1000L/H	1	AC220V / 380V	4040*4
RO-1500L/H	1.5	AC220V / 380V	4040*6
RO-2000L/H	2	AC380V	4040*8
RO-3000L/H	3	AC380V	8040*3
RO-4000L/H	4	AC380V	8040*4
RO-5000L/H	5	AC380V	8040*5
RO-6000L/H	6	AC380V	8040*6
RO-8000L/H	8	AC380V	8040*8
RO-10000L/H	10	AC380V	8040*10
RO-20000L/H	20	AC380V	8040*20
RO-30000L/H	30	AC380V	8040*30
RO-40000L/H	40	AC380V	8040*40
RO-50000L/H	50	AC380V	8040*50

Main Features

1. Automatic backwash and manual backwash
2. Automatic switch on when low water level, and switch off when high water level
3. This system occupy little space, easy to operate, wide application range.
4. Reverse osmosis desalting rate ≥99%, machine desalting rate ≥97%. 98% of organic matters, colloids and bacteria can be removed.
5. Finished water under good electric conductivity, one stage≤10μs/cm, two stage around 2-3μs/cm, EDI ≤0.5μs/cm

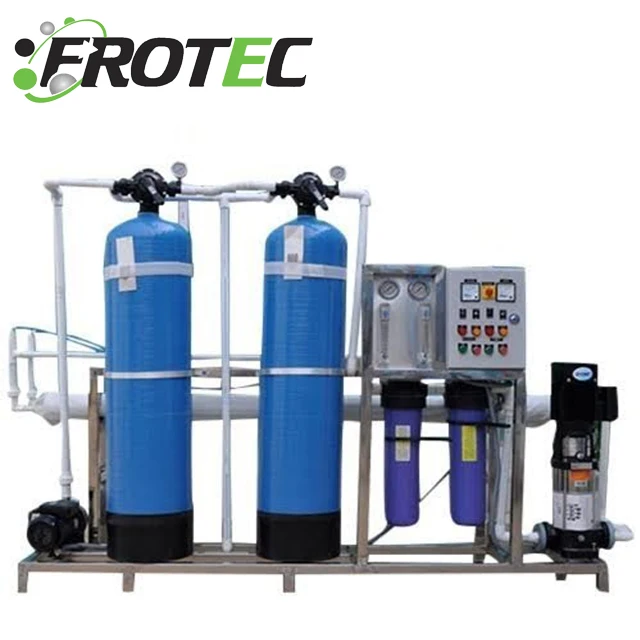

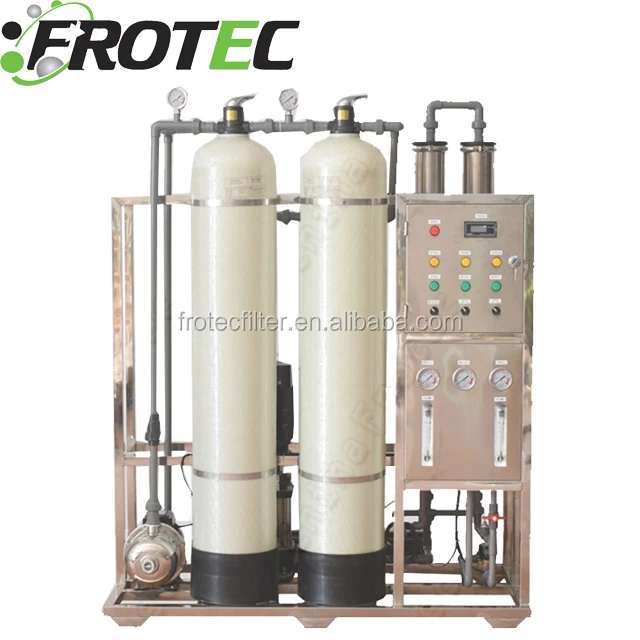

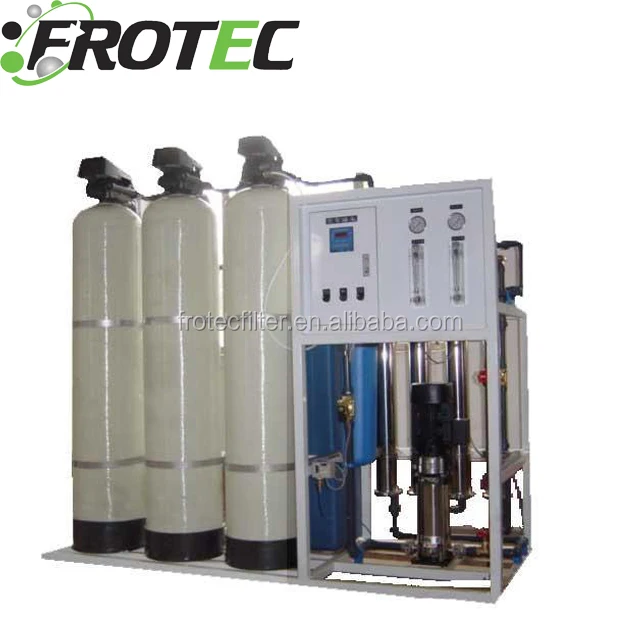

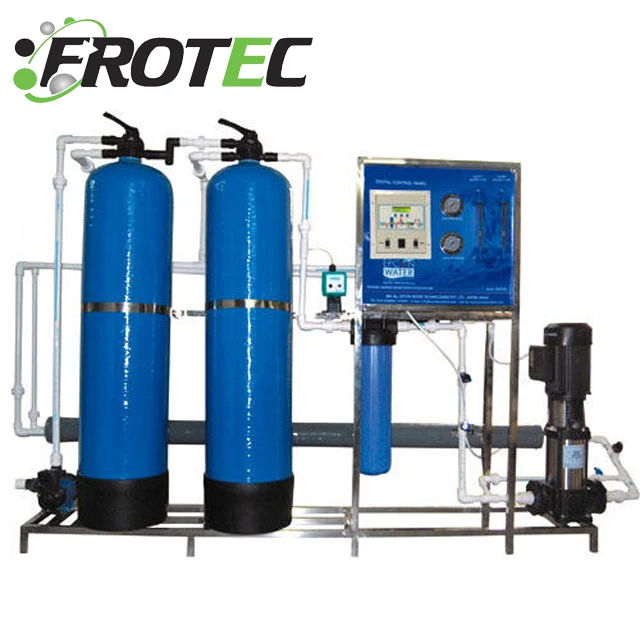

2. Product Show

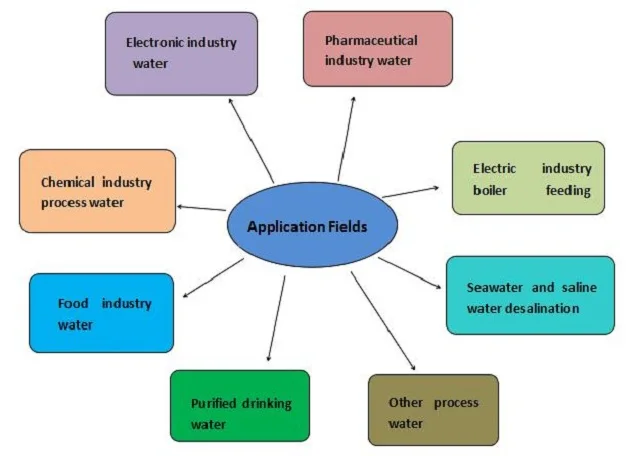

3. Application

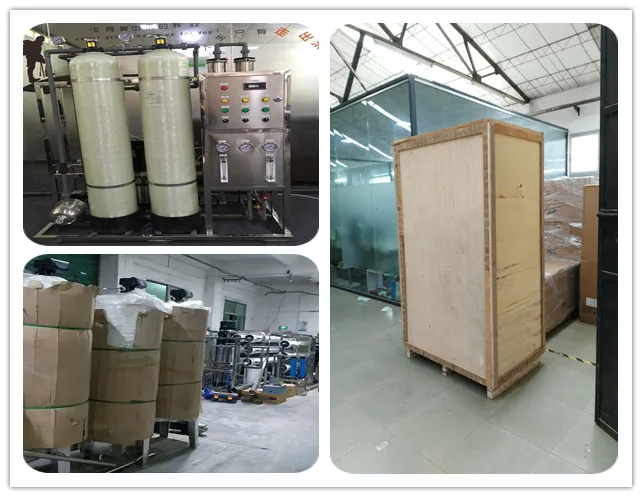

 ♦ Part two: Frotec  RO Water Purification Plant Packaging







 ♦ Part three: Frotec  Service



 1. Our Service

Welcome to your inquiry,you are promised to get our quotation withing 24 hours

We are pleased to send you a sample on you confirm

We promise that we will implement your order on time

You are promised to get the best quality at the best price with the best service



2.FAQ



a.OEM service available for filter cartridge?

Yes,  OEM service is available, but the Frotec brand price better than OEM



b.Payment Term

We can accept  L/C, T/T, Western Union, MoneyGram and paypal



c.Certicification

We had passed ISO9001



d.Shipping

If your order is not big enough , Door to Door Service is the best choice via UPS,FEDEX,DHL,EMS.

For big quantity, by air or by sea through your forwarder is one Normal Way , we also can provide cost-effective forwarder for your reference.



e. Lead  time

The normal lead time is 7-15 days, which depends on your quantity.
