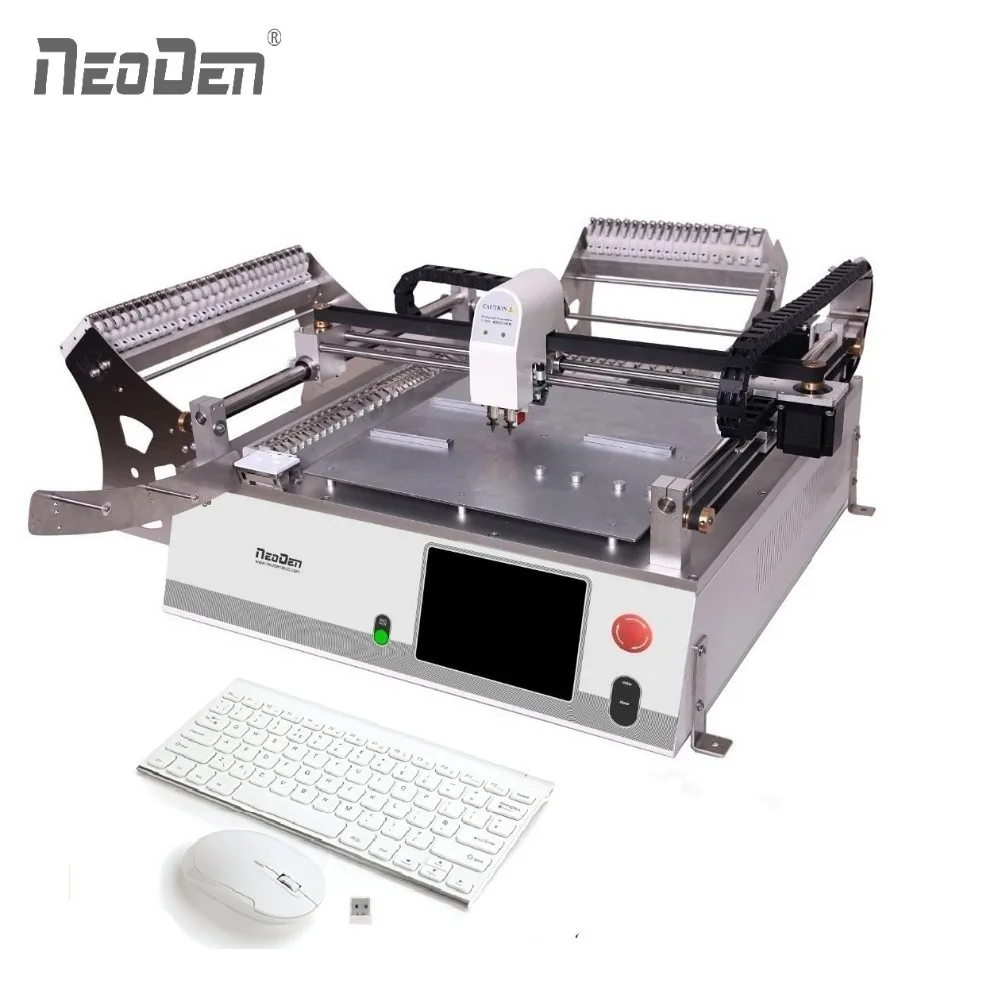

NeoDen3V is an upgraded version of TM245P series.
It features dual head, 44 feeder slots, vision system and flexible positioning system, which is suitable for prototyping, small-medium batch production with stable performance and affordable price.
Main features

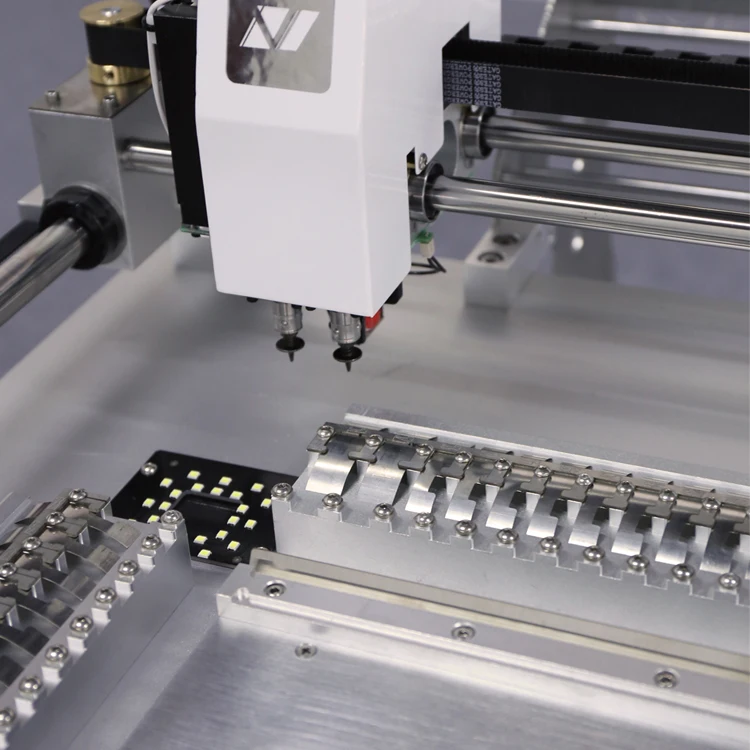

Full Vision 2 Head System

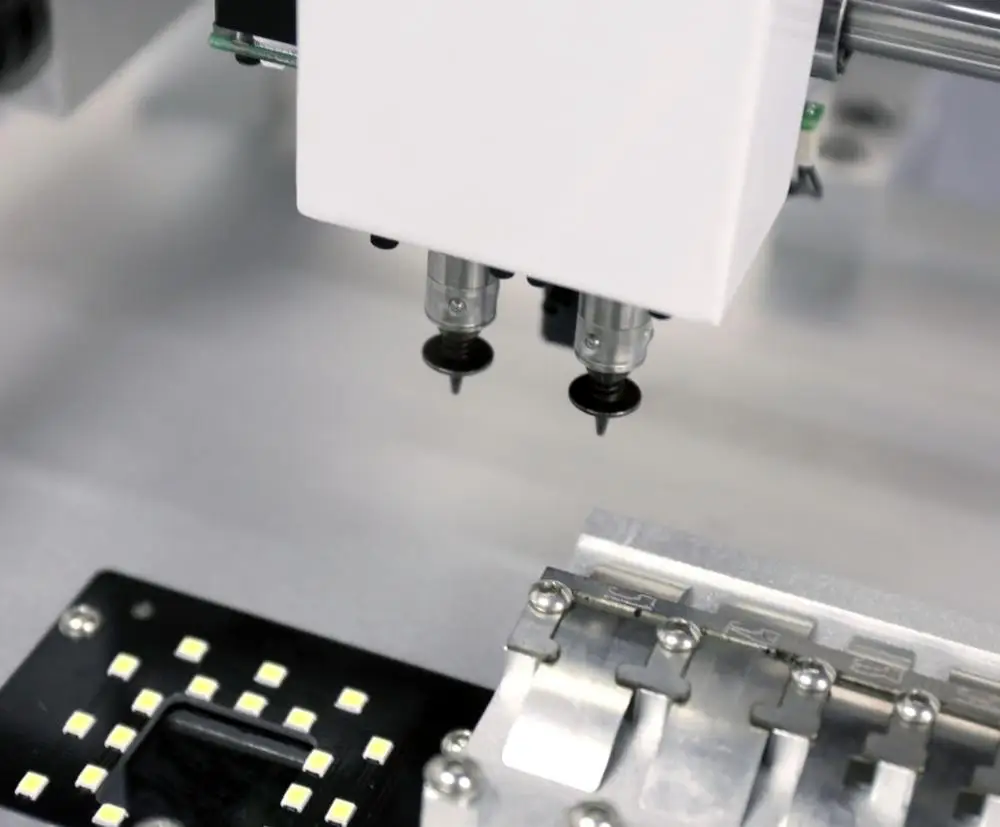

2 high-precision placement heads with ±180°
rotation could satisfy the need of wide range components.

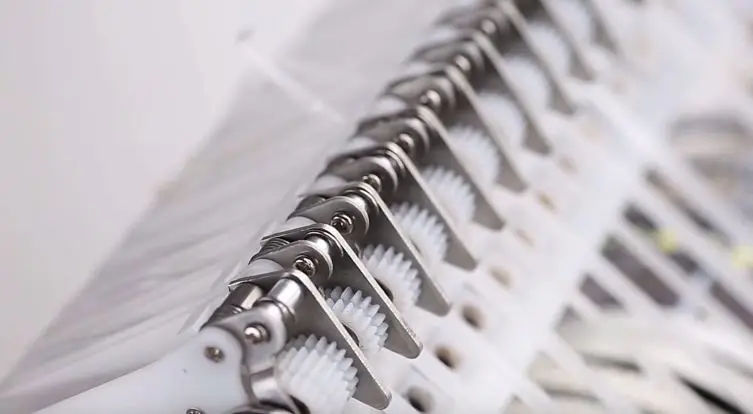

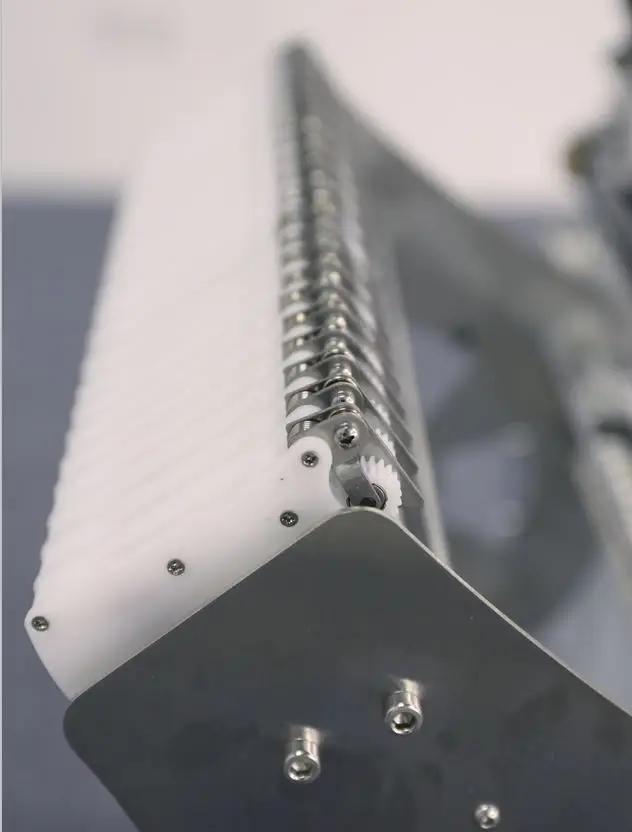

Patented Automatic Peel-box

Patented electromagnetic actuators, you don't need to
get rid of the wasted nylon film manually, which saves
you more time and effort.

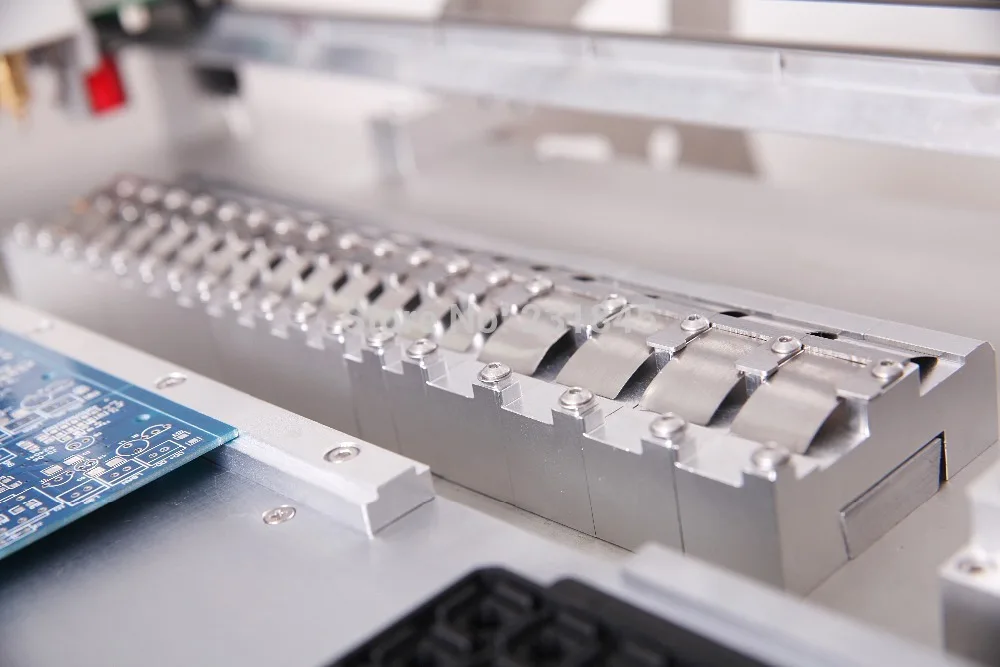

Flexible PCB positioning

By using PCB support bars and pins, wherever you want
to put the PCB and whatever the shape of your PCB is,
all can be handled well

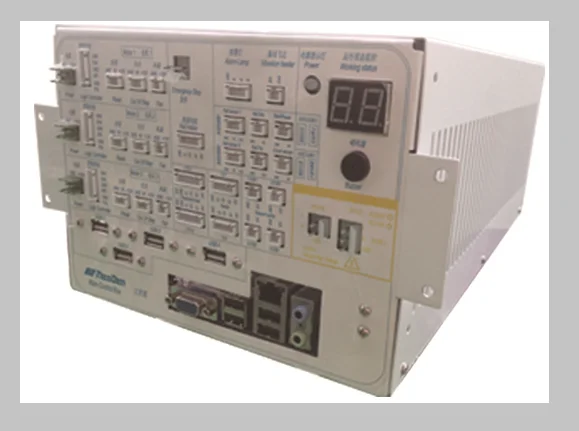

Integrated Controller

More stable performance and easier to do maintenance.

Specification
\t
Model
\t
NeoDen3V(Standard)
\t
NeoDen3V(Advanced)
\t
Number Of Heads
\t
2
\t
2
\t
Alignment
\t
Vision
\t
Vision
\t
Rotation
\t
±180°
\t
±180°
\t
Placement Rate
\t
5000CPH(without vision)；3500CPH(with vision)
\t
5000CPH(without vision)3500CPH(with vision)
\t

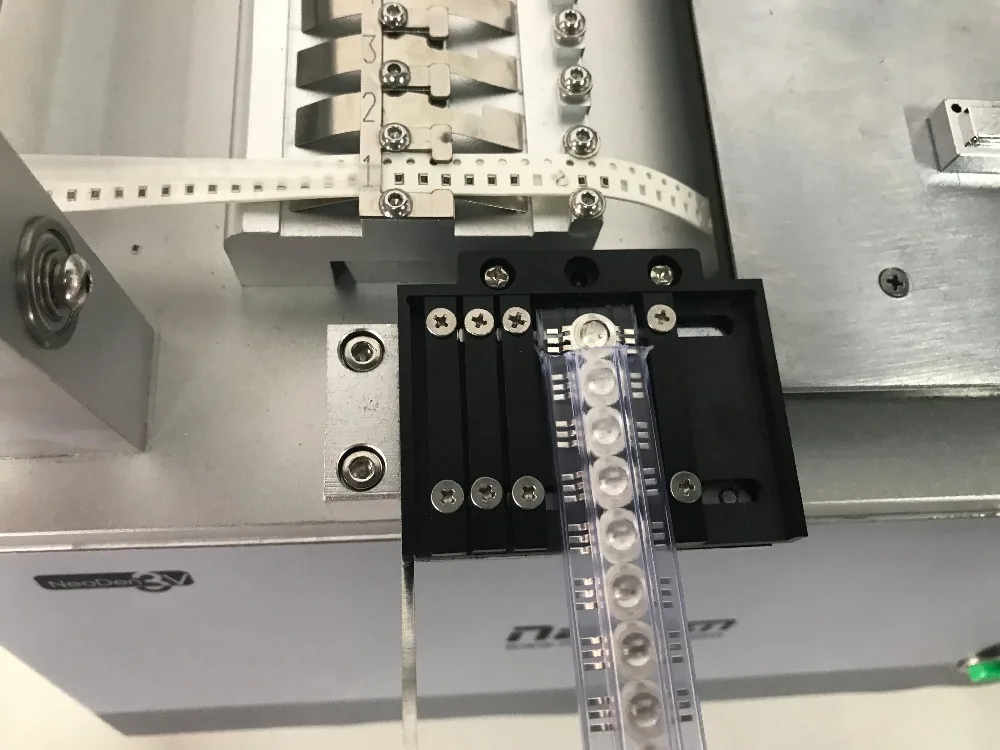

Feeder Capacity
\t
Tape feeder:24(all 8mm)
\t
Tape feeder:44(all 8mm)
\t
Vibration feeder: 0~5
\t
Vibration feeder: 0~5
\t
Tray feeder: 5~10(Customization supported)
\t
Tray feeder: 5~10(Customization supported)
\t
Board Dimension
\t
Maximum:320*420mm
\t
Maximum:320*390mm
\t
Component Range
\t
Smallest components:0402
\t
Smallest components:0402
\t
Largest components:TQFP144
\t
Largest components:TQFP144
\t
Max height:5mm
\t
Max height:5mm
\t
Numbers Of Pumps
\t
3
\t
3
\t
Placement Accuracy
\t
±0.02mm
\t
±0.02mm
\t
Operate System
\t
WindowsXP-NOVA
\t
WindowsXP-NOVA
\t
Power
\t
160~200W
\t
160~200W
\t
Electricity Supply
\t
110V/220V
\t
110V/220V
\t
Machine Size
\t
820(L)*650(W)*410(H)mm
\t
820(L)*680(W)*410(H)mm
\t
Packing Size
\t
1001(L)*961(W)*568(H)mm
\t
1001(L)*790(W)*568(H)mm
\t
Net Weight
\t
55kg
\t
60kg
\t
Gross Weight
\t
80Kg
\t
85kg

Accessories

1 Pick and Place Machine NeoDen3V: 1

2 PCB support bar: 4units

3 PCB support pin: 8units

4 Electromagnet: 1pack

5 Needle: 2sets

6 Allen wren set: 1

7 Tool box: 1unit

8 Cleaning needle: 3units

9 Power cord: 1unit

10 Double side adhesive tape: 1set

11 Silicon tube: 0.5m

12 Fuse(1A): 2units

13 8G flash drive: 1unit

14 Reel holder stand:1set

15 Nozzle rubber 0.3mm: 5units

16 Nozzle rubber 1.0mm: 5units

17 Vibration feeder: 1unit

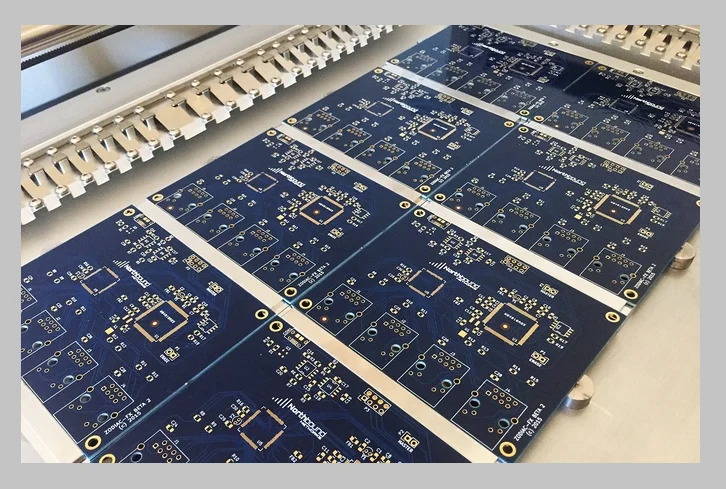

Placement effect
You May Like

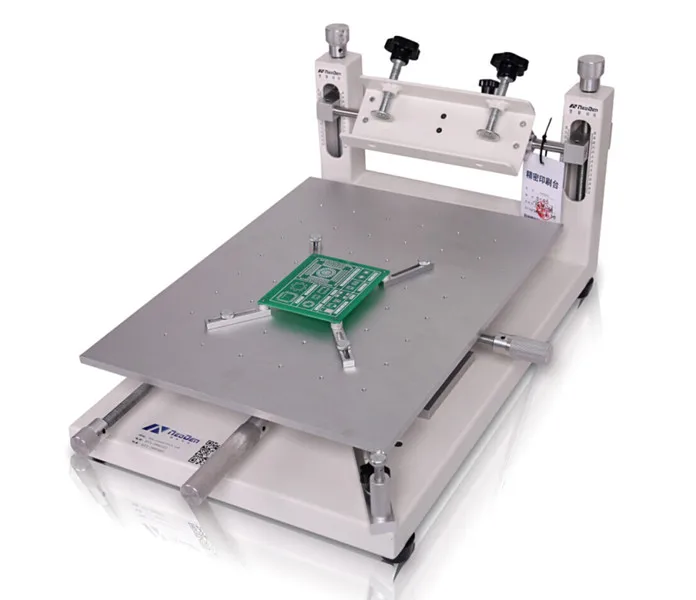

High precision printer PM3040
