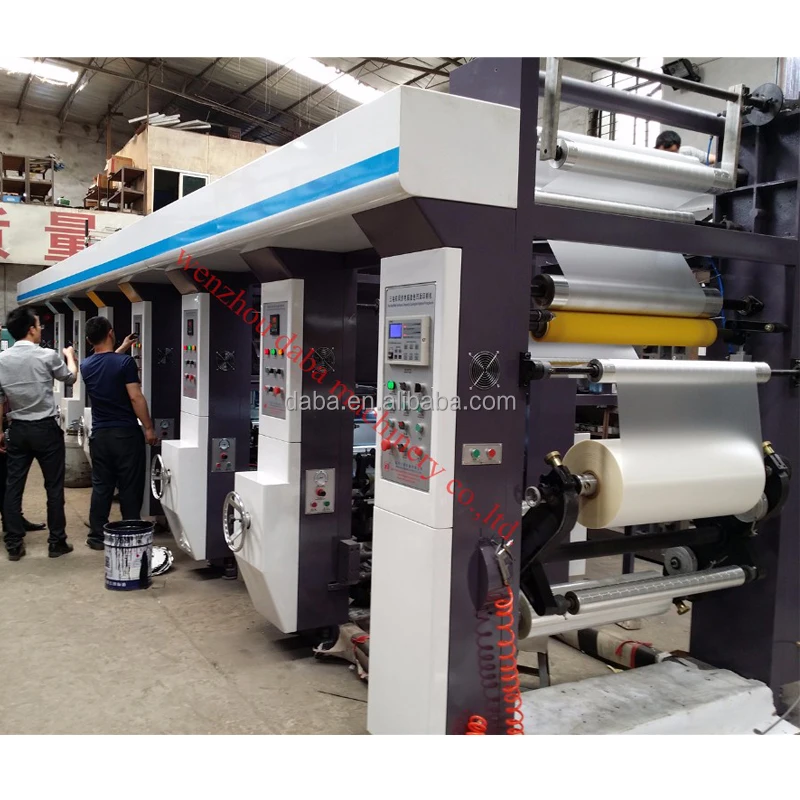

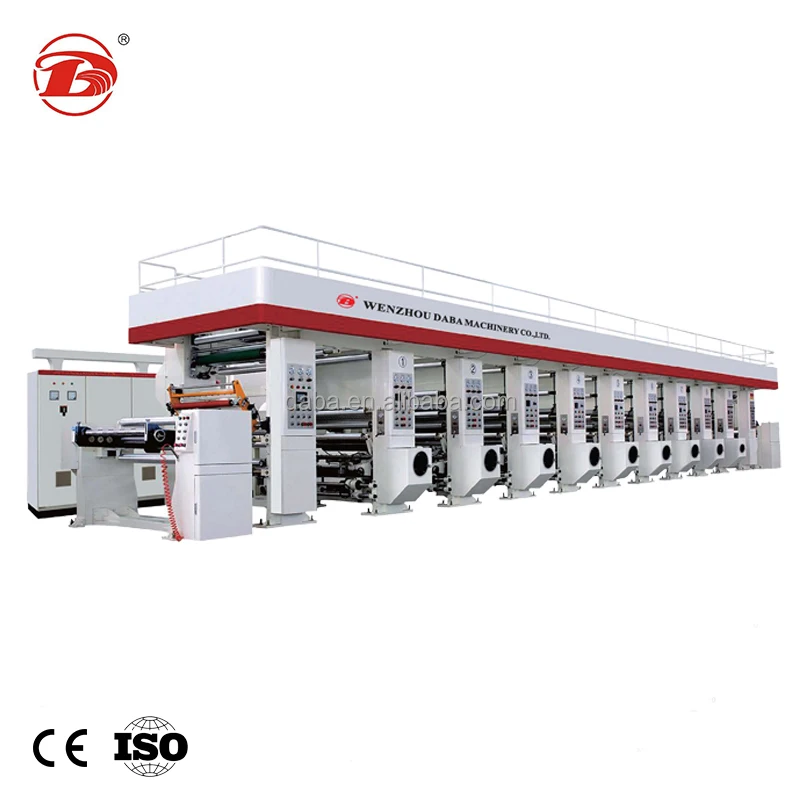

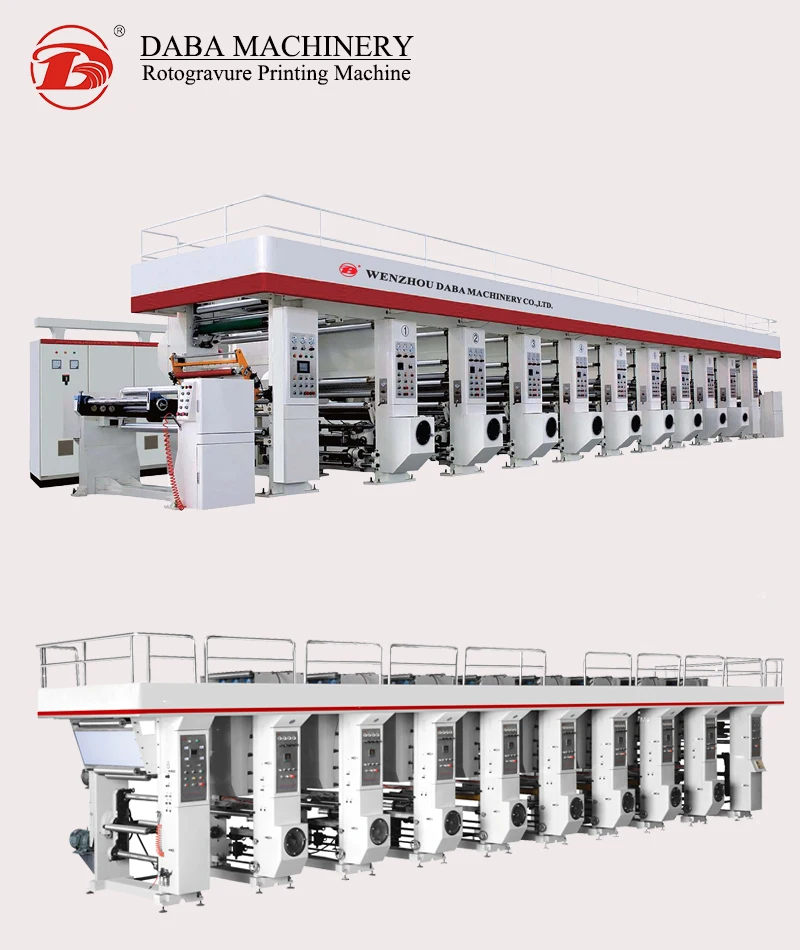

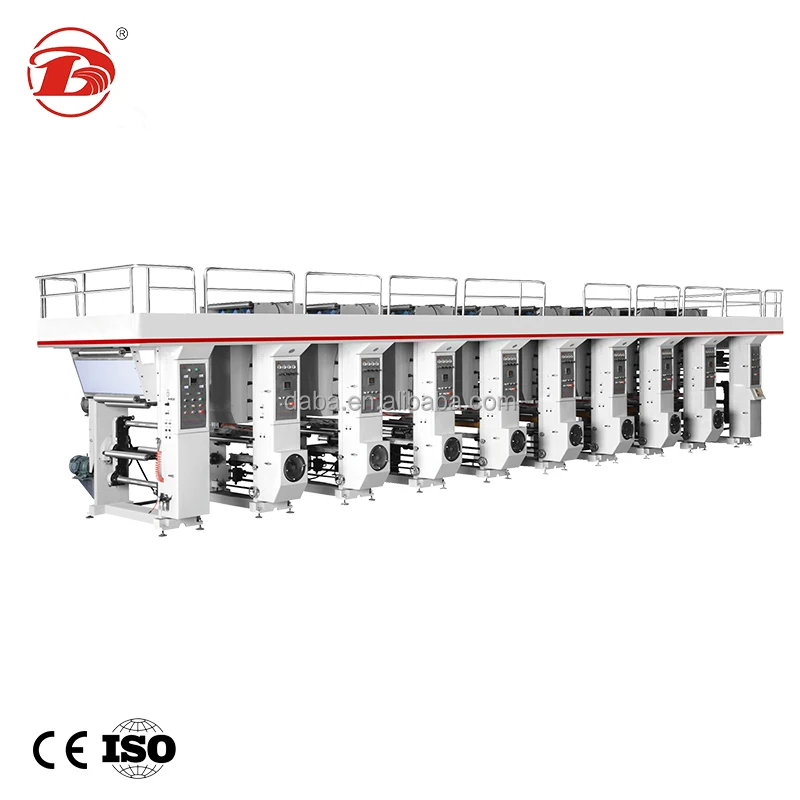

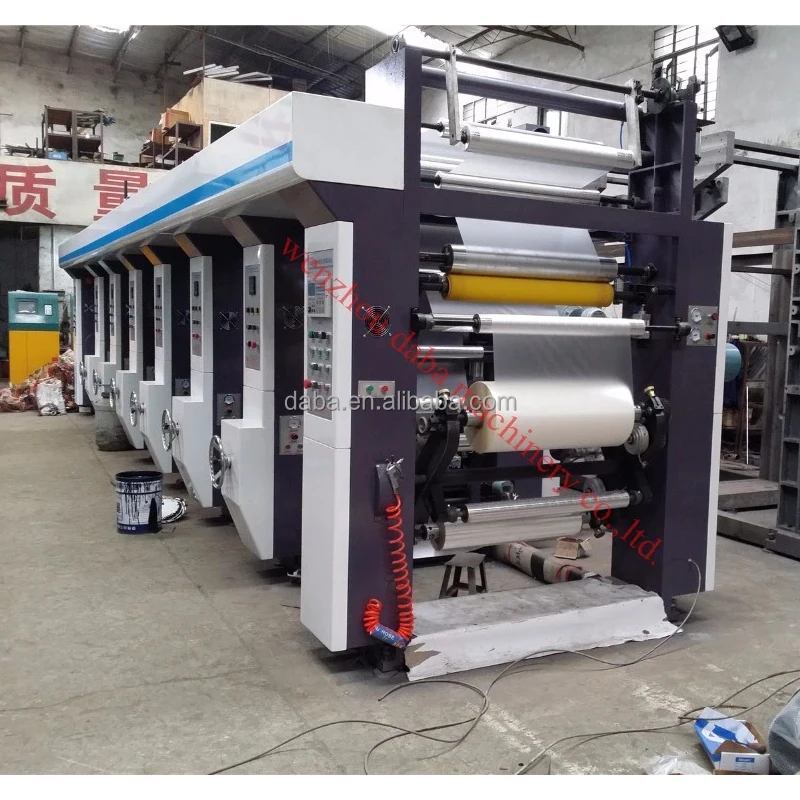

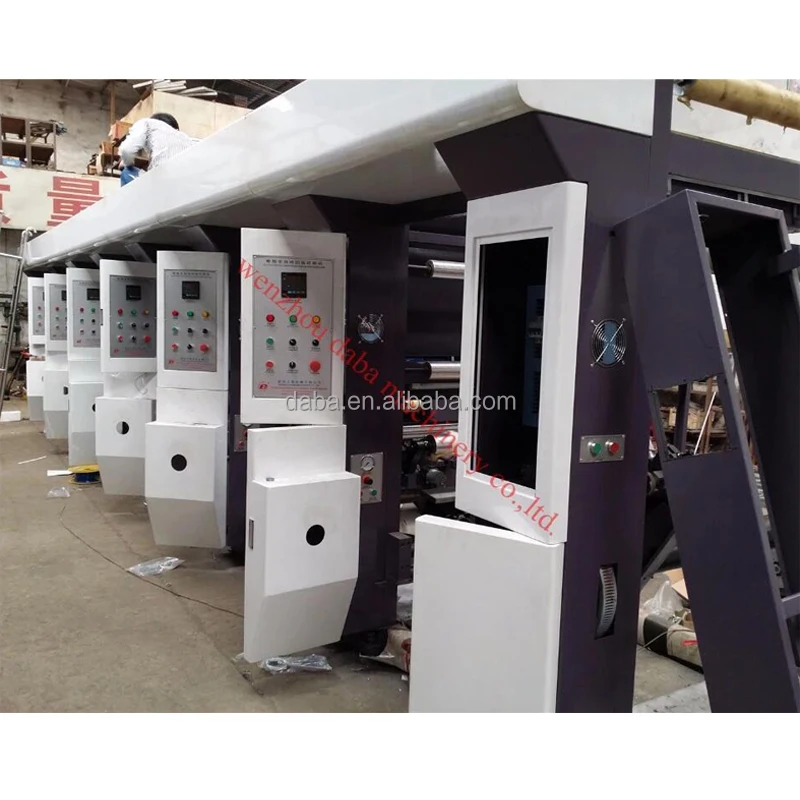

Высокоскоростная ротогравировальная печатная машина DABA
- Category: Rotogravure Printing Machines >>>
- Supplier: Wenzhou Daba Machinery Co. Ltd.
Share on (60761509232):
Product Overview
Description
Specification
Common matters | Printing Colors | 2-10 Colors(User Advice) |
| Model Type | DB-AY | |
| Suitable Material | BOPP,OPP,PE,PET,PVC,PAPER,NY,Aluminum foil, Composite film | |
| Raw material width | 630-1230mm | |
| Effective printing width | 600-1200mm | |
| Printing speed | 80-200m/min | |
| Machine speed | 100-220m/min | |
| Accurancy of computer registration | ±0.1mm | |
| Winder | Unwinding &rewinding part | 2-axis rotation type pr 1-axis center type |
| Film outer Dia | φ600mm,φ800mm,φ1000mm,φ1200mm | |
| How to connect raw material | Auto / Manual | |
| Splicing type and direction | Flying Arm(T/B) | |
| Air-Shaft fixing type | 3''Shaft + Adapter(AL or MC nylon)(User Advice) | |
| Dryer | Chamber inner temperature | Max. 200℃ (User Advice) |
| Hot blow injection type | Z-Nozzle (User Advice) | |
| Heating source | Electric heater ,gas burner,Themal Oil (User Advice) | |
| Unit Dryer length | 1.8m,2.2m,3m,4m (User Advice) | |
| Gravure printing | Copperplate removable mechanism | Shaftless/shaft |
| Copperplate Dia. | φ100mm~φ360mm(User Advice) | |
| Impressing Rubber Roller | φ125mm(Hardness A75°~70°) | |
| Pressure of Doctor Blade | 10~100kg (can be adjusted continuously) | |
| Doctor blade oscillation | ±3mm | |
| Accuracy of Color Register | Vertical direction(Y-Axis)≤±0.1mm(automatically) Horizontal direction(X-axis) ≤±0.1mm(Manual) |
Note:Custom-made machine is supported and just tell us your requirements. If you don't be clear about these specifications,you can send your samples to us then we will provide several solutions and explain to you.

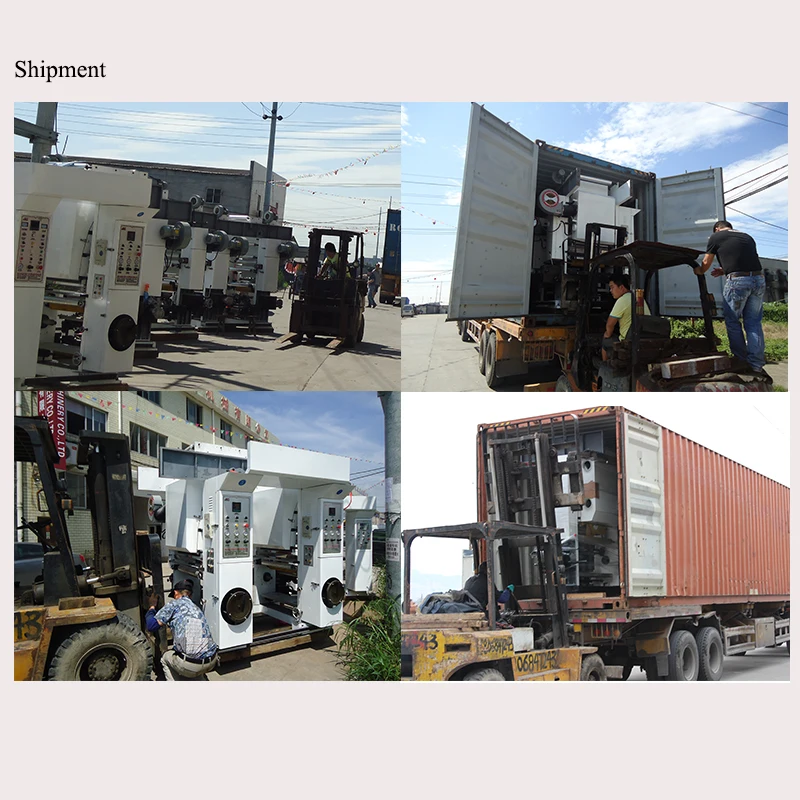

Packaging & Shipping
Company Information
Wenzhou Daba Machinery Co., Ltd., as a professional manufacturer of rotogavure printing machines & laminating machines. It consists of Technical Development Dept, Manufacturing Dept., Domestic and International Sales Dept & After - Sales Service Dept.
Our main products : High Speed Computerized Rotogavure printing machines, Coating Machine ,Laminating Machine,Slitting Machine,Pvc shirnkable lable machine(PVC sleeve sealing machine,PVS sleeve label inspection machine,label cutting machine), ect.
Our conpany is a very good quality supperlier in Chinese High Speed Rotogravure Printing Machinery area. Through our continuous research and development, advanced skills, and a strong commitment to customer service, Daba has firmly established itself as a dependable supplier of China. No matter whether you are looking for a single machine or a whole production line, you can get outstanding machines and know-how results from our technical department.
Every DABA machine is quality proven, superior in design and produced as per the highest quality standards. Before leaving our factory, it is tested and retested for performance, productivity and durability. Because of good quality and service, we have won a good reputation among domestic and international customers.
Our products sell well in Asia (such as India, Thailand, Vietnam, Indonesia, Malaysia, Sri Lanka), the Middle East (Iran, Pakistan), Europe (Russia, Bulgaria, Croatia, Rumania, Spain, Italy), Africa (Nigeria, Guinea, Congo), NorthAmerica and South America.
We hope to establish good and long-term business cooperation with customers from all over the world. If you have any inquiries about our machines, please feel free to contact us.
