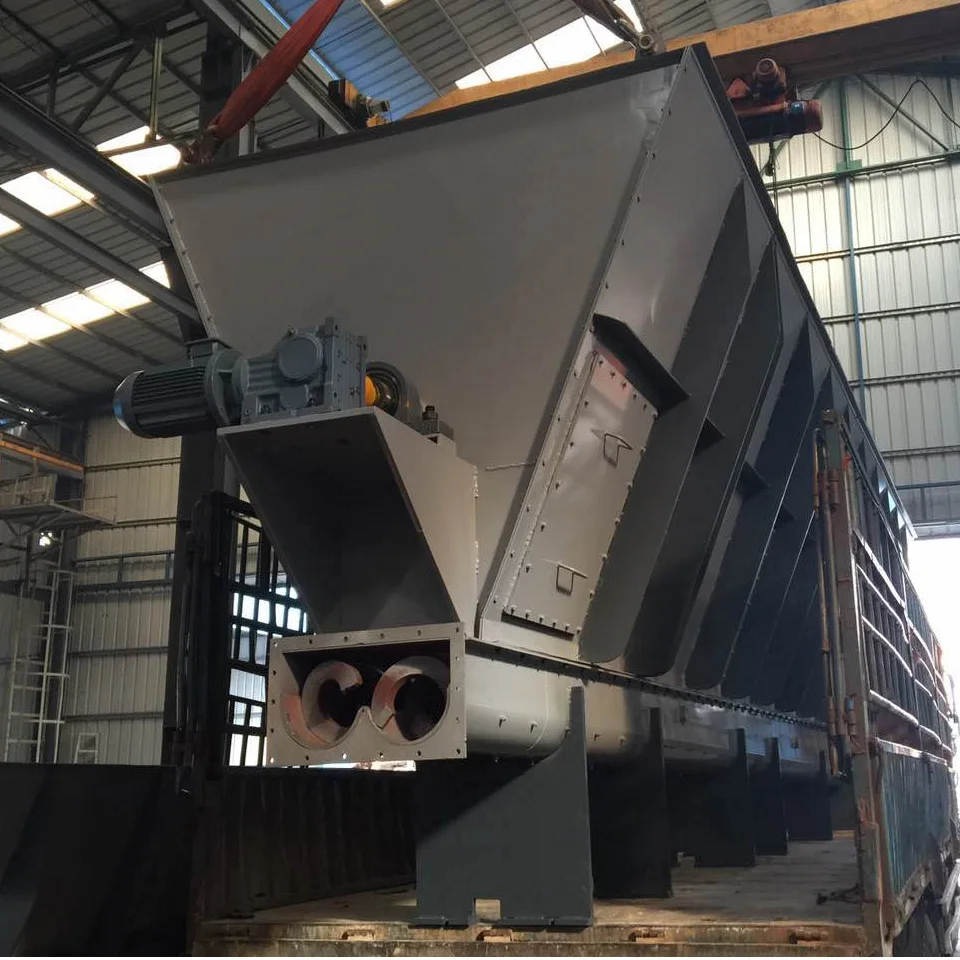

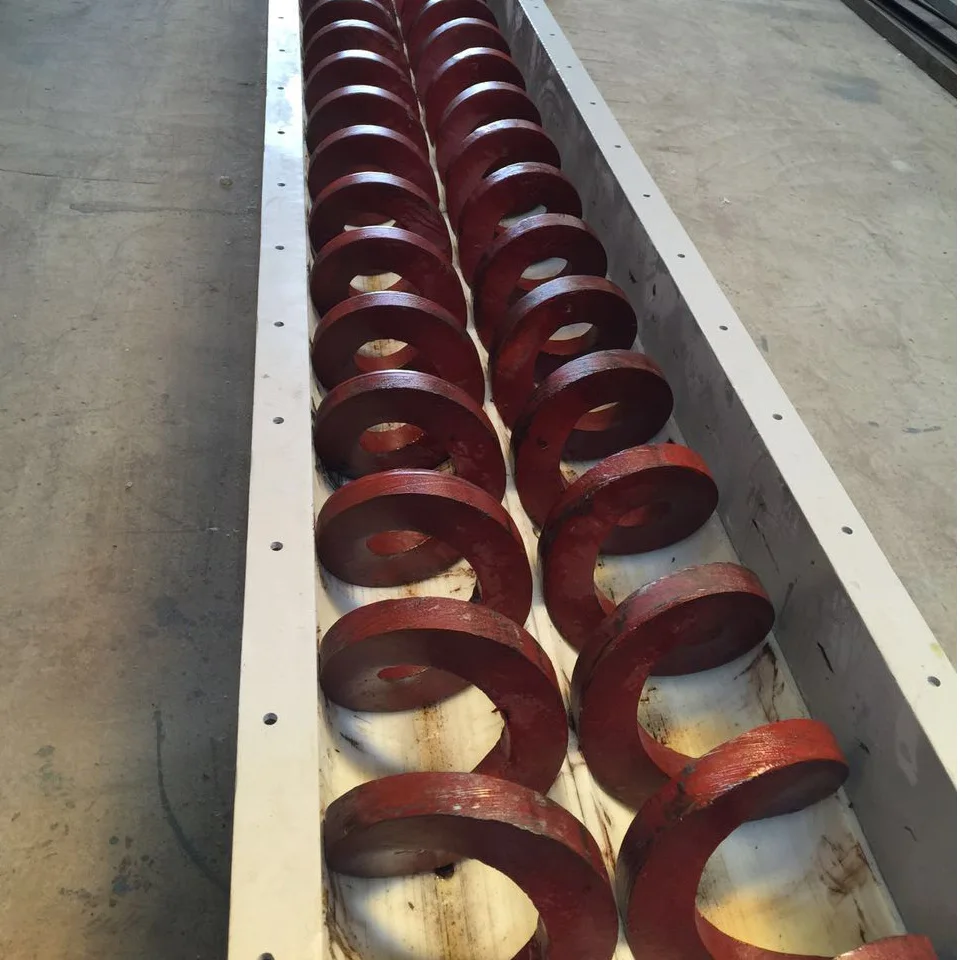

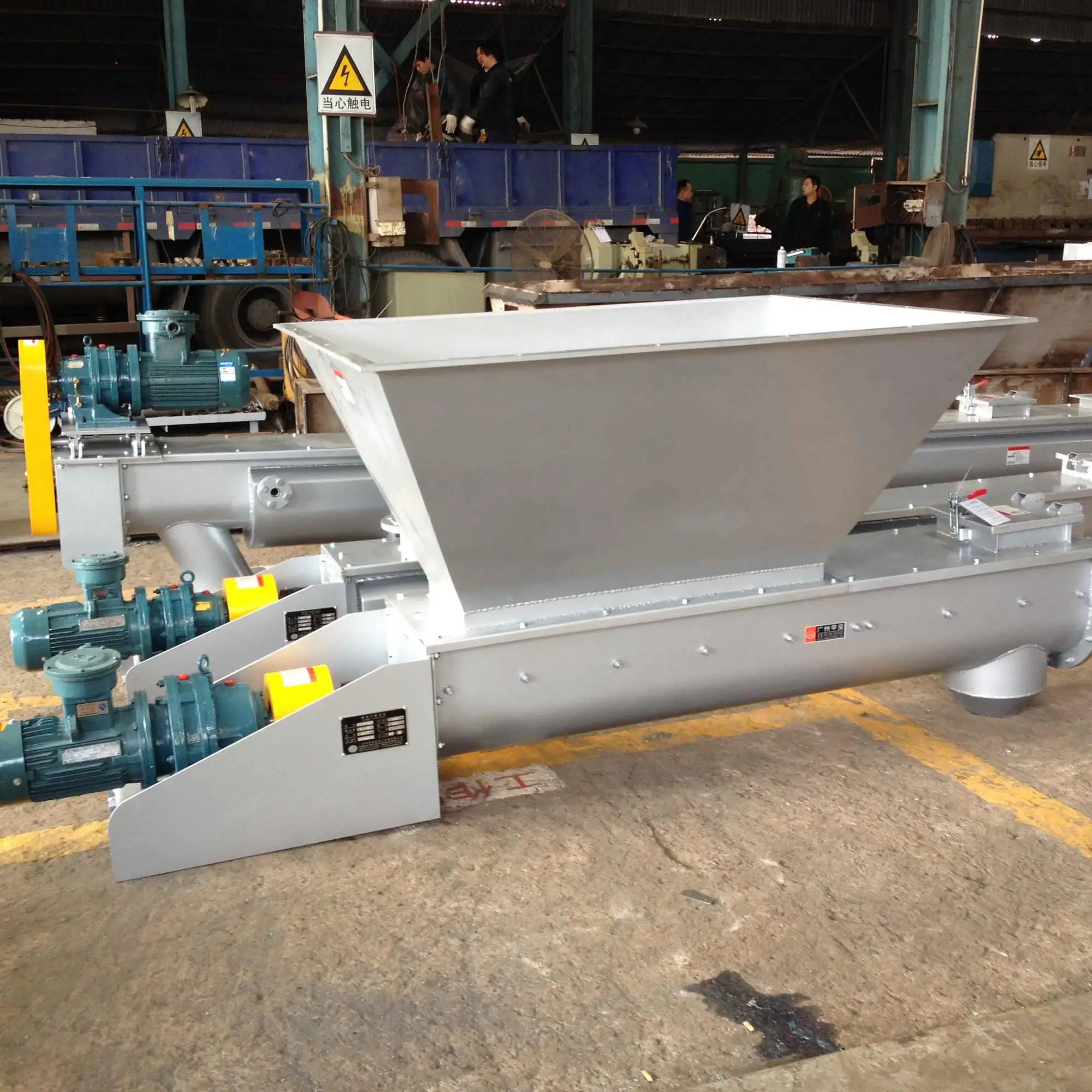

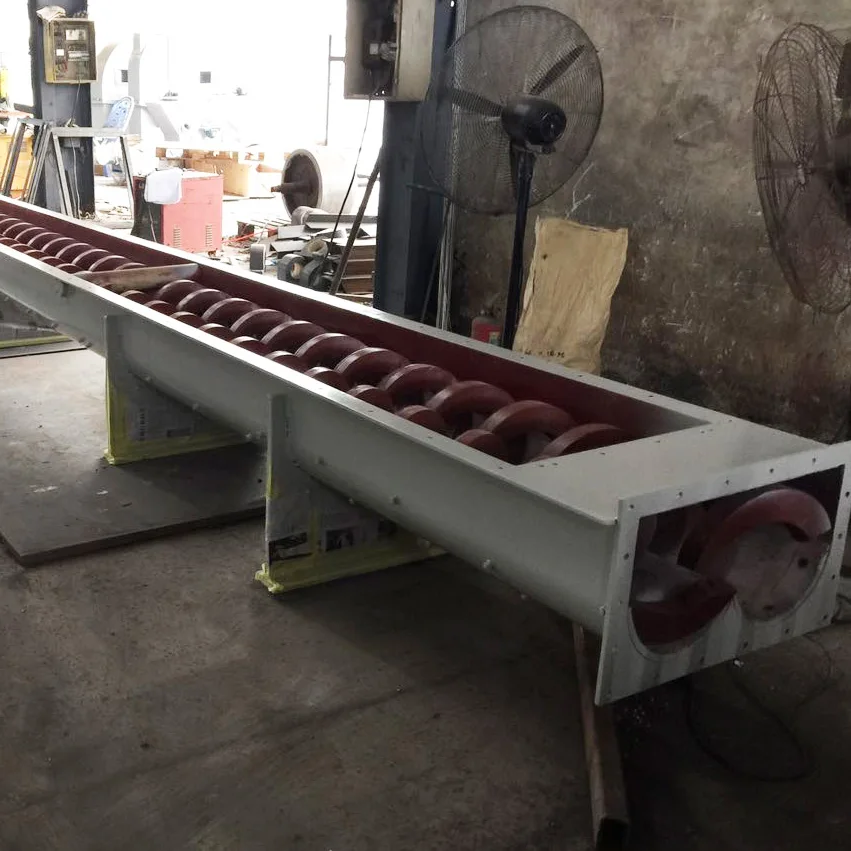

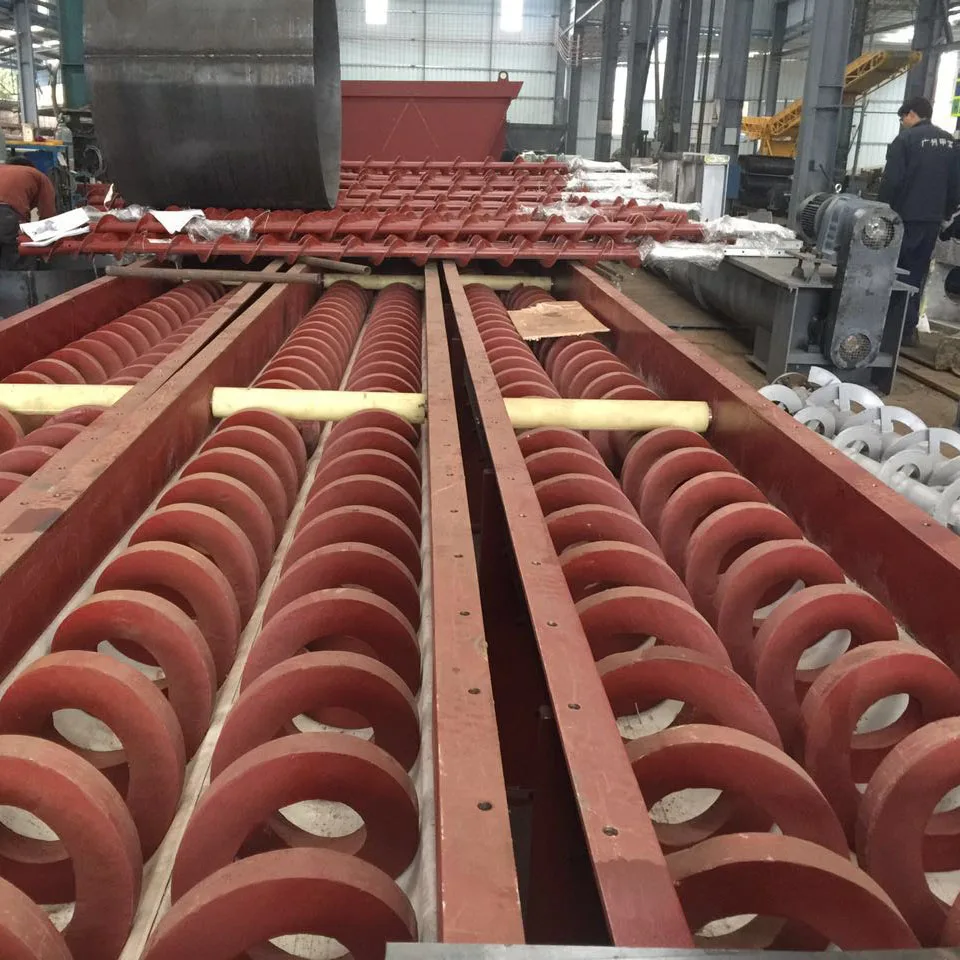

Carbon steel shaftless auger screw conveyor for sale

Product Overview

Description

Carbon steel shaftless auger screw conveyor for sale



Main technical parameters
Specifications and models	TW100	TW160	TW200	TW250	TW315	TW400	TW500	TW630	TW800	TW1000	TW1250
Screw diameter(mm)	100	160	200	250	315	400	500	630	800	1000	1250
Pitch(mm)	100	160	200	250	315	355	400	450	500	560	630
Speed of revolution (rpm)	140	112	100	90	80	71	63	50	40	32	25
Conveying capacity (m3/h)	2.2	7	13	22	39	62	92	145	200	300	380



Application:
The shaftless screw conveyor is widely used for environmental protection industry and wasters dispost industry. This conveyor was special used to transport wet and sticky matter which cant transport by normal conveyor.

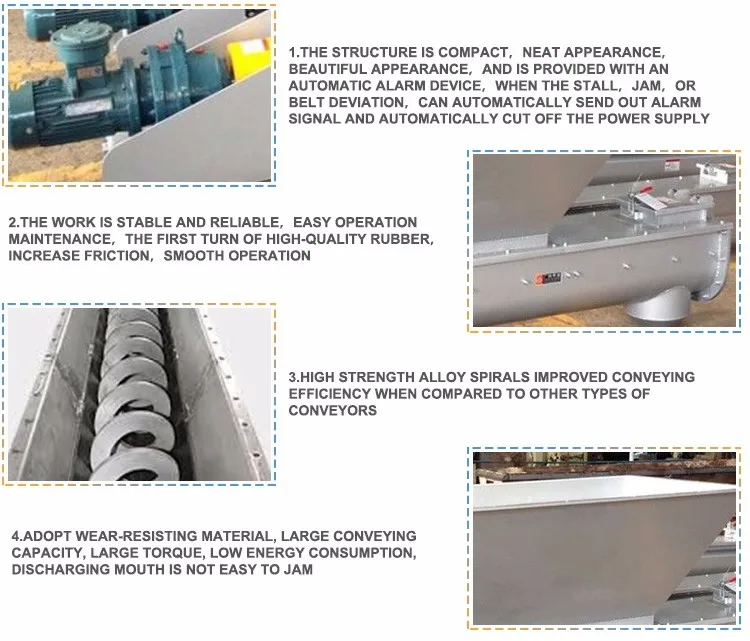

Features:
1.The motor reducer could be installed on the top or the bottom.
2.Conveyor has big transport capacity, long distance available.
3.Stable and controllable start, continuous and highly efficient operation.
4.The conveying could be the horizontal or the inclined.
5.The blade could be entity spiral
