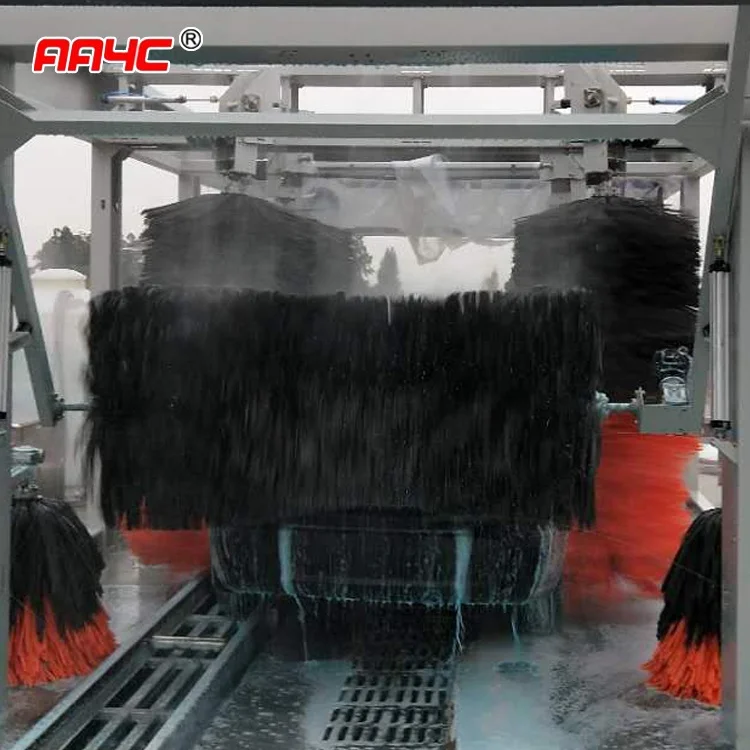

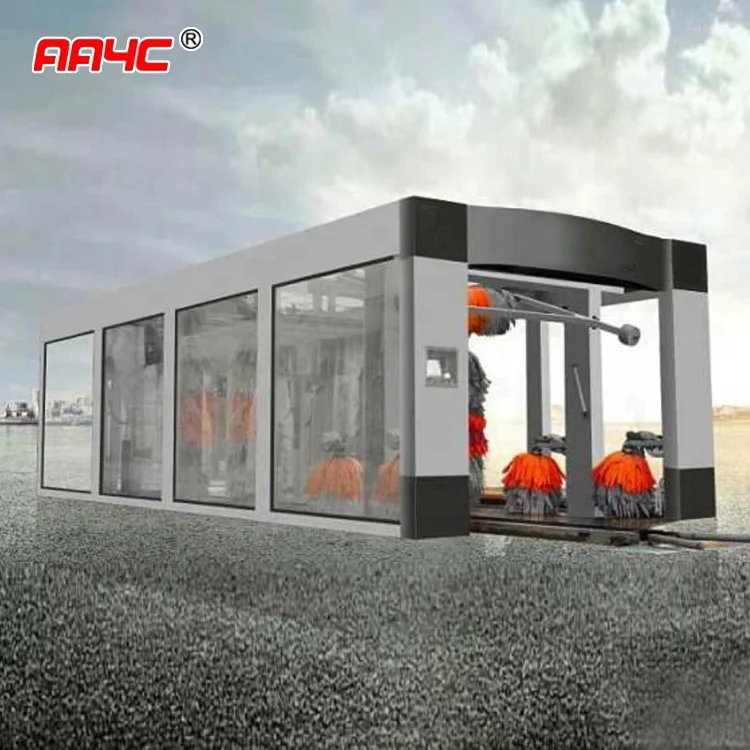

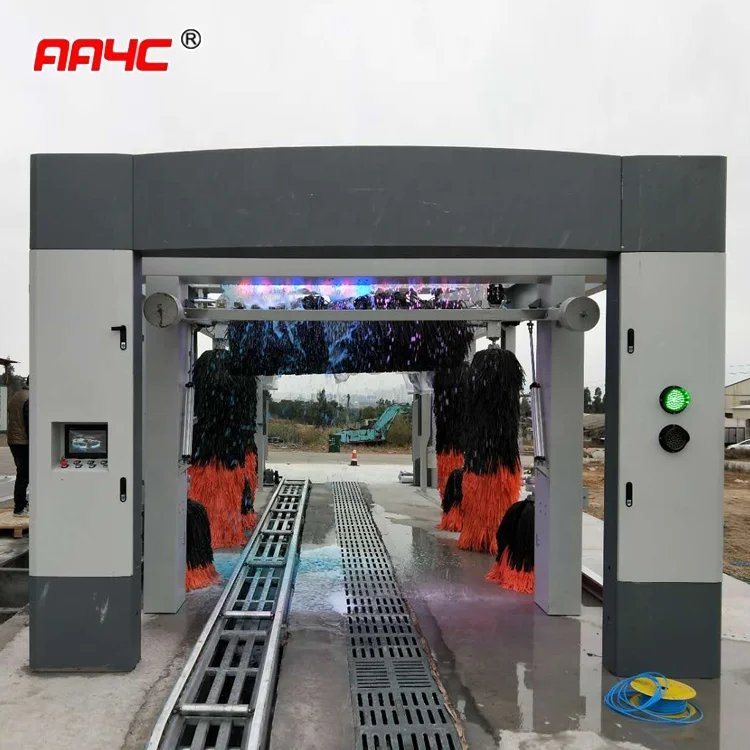

AA4C automatic tunnel car wash machine 9 brushes car washing machine system car washing machine system AA-CW9

Share on:

Price:RUB 1,967,820.00 - RUB 2,754,948.00
Price in USD:Details


Product Overview


Product Description






Machine Size :

11000*4000*3000MM (L*W*H)

Washing Car Size:

5300*2000*2200MM (L*W*H)

Wash for

Cars, mini bus, pickup,SUV,MVP

Washing Speed:

1-2 minutes/car

Water Consumption:

150-200 liter/car

Power Consumption:

0.5 kwh/car

Power Supply:

380 V, 50 HZ, 3 phases

Equipment Moving Speed:

10.5 meter/min

Install Size:

12500*4500*3500MM (L*W*H)

Foundation Size:

13000*4500*3500MM (L*W*H)


One top brush

Four side brushesFour small side brushes

Contouring dryer

Four blowers, 12KW

Total Power:


Water supply

DN25mm/Waterflow rate80L/min

Air pressure

0.75-0.9Mpa/Airflow rate0.1m³/min

Shampoo consumption


Water wax consumption


 Electronic Control System:

Electronic Control System.png

Water Configuration:Water Configuration.png


Product function:

1.This car washing machine is suitable for the car, jeep, and minibus to high pressure water washing, wax and drying. Can identify the car model with photoelectric sensor controlled by CPU.

2.Introduce advanced technology from Italy, European type stream line design ,not only good look but also with reliable safety.

3. ZAM alloy or hot-dip galvanized frame keep the machine long life use.

4.Chinese foam & super soft brushes, impossible to scratch lacquer, each set could be used for about 100,000 car-times. Inclinable side brush strengthens cleaning ability around the car.

5.The dovetail foam brush makes the car washing more quiet and clean.

6.Main components from world famous manufacturers ,high reliability ,long using life.

7.Fault Self-detect function.

8.Three function(Car wash, Inspection and management)to an operation panel

9.Automatic control and multi-function operation ,such as washing ,drying and wax.

10.Dried by four sets offans and car shape imitating dry system.

11.Long durable time: more than 10 years
