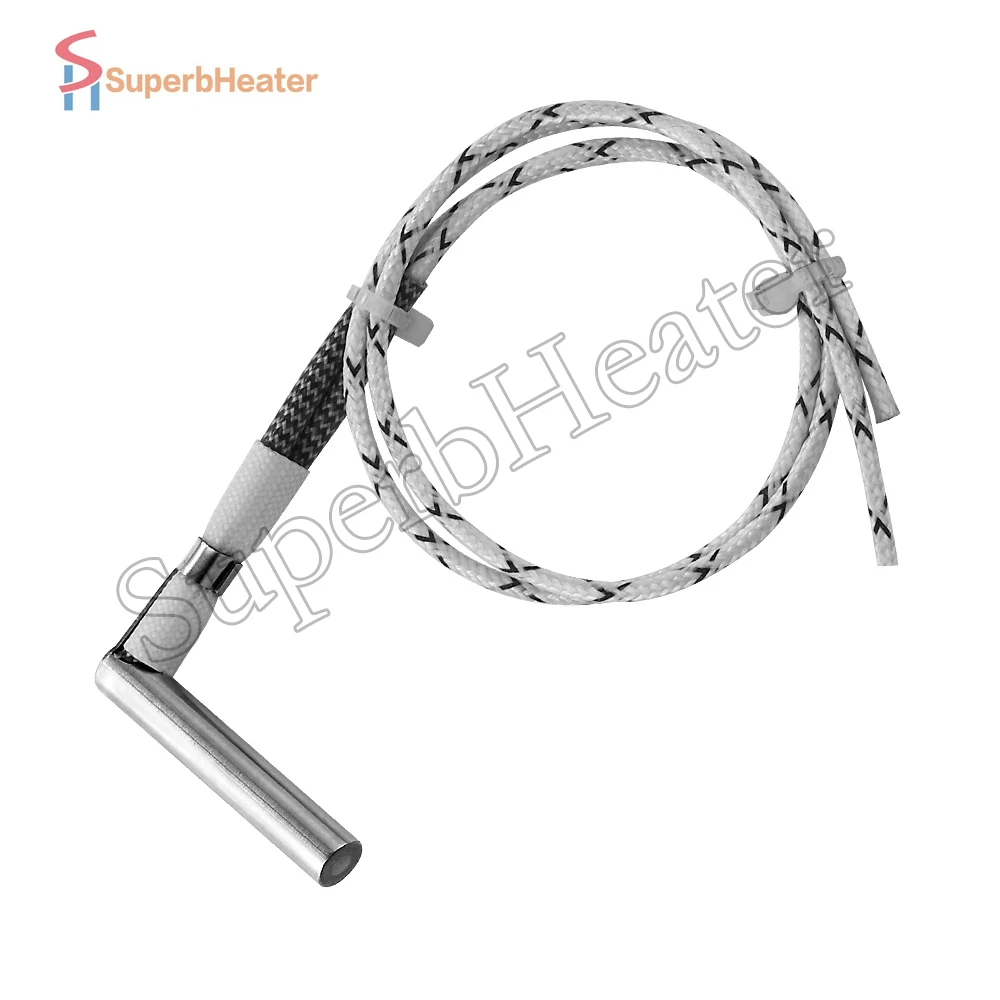

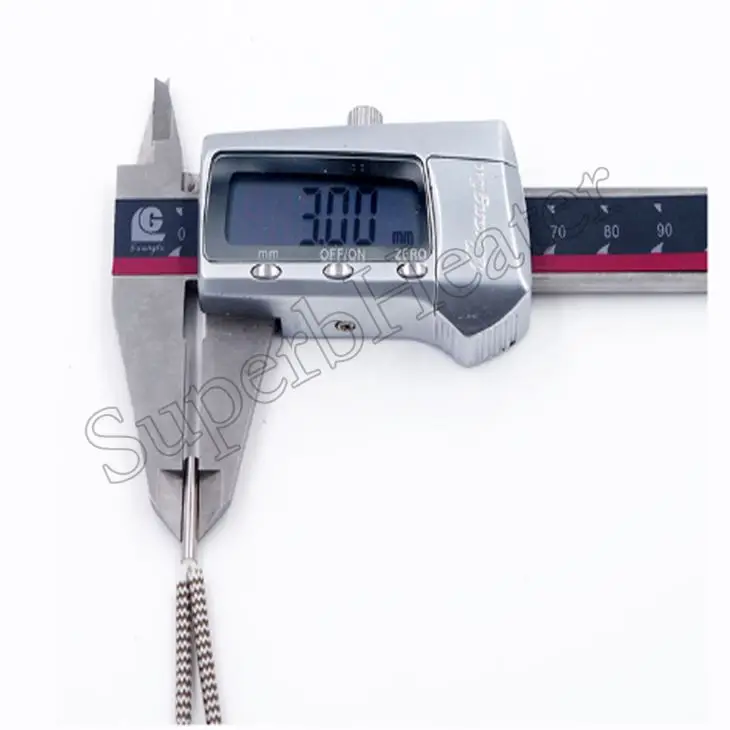

High Temperature Electronic Power Source Heating Element Rod 3mm Tiny Cartridge Heater

Product Overview

Description



High Temperature Electronic Power Source Heating Element Rod 3mm Tiny Cartridge Heater use metal tube as a sheath (including stainless steel, copper tube), which utilize resistance wiring close to the heater sheath for heating transfer ,isolated by a thin layer of compacted MgO insulation.
For this Industrial Electric Cartridge Heater Made By High Purity Mgo Rod For 3d Printer can also specify lead length and choose from a variety of lead options. Leads can be insulated with fiberglass or PTFE or protected by stainless steel braid or hose.
Industrial Electric Cartridge Heater Made By High Purity Mgo Rod For 3d Printer also have an option many others lack: the ability to have an internal J or K-type thermocouple located near the tip of the heater.

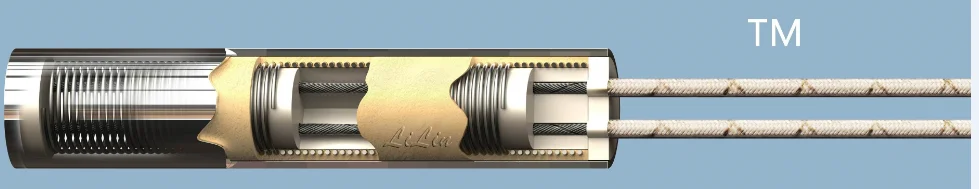

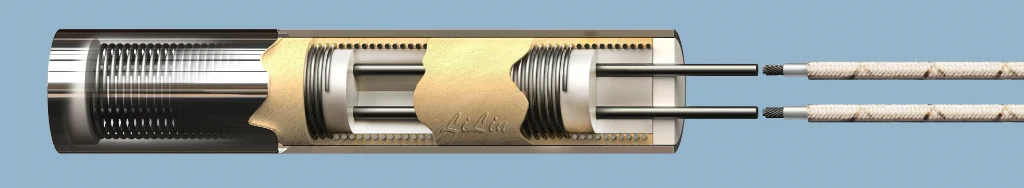

Lead type

Product Description

1. Sheath Material : Selection of German imports of high temperature precision stainless steel tube,Wall thickness uniform, fine workmanship, good physical properties.

2. Resistance wire: US imports of nickel-chromium alloy heating wire,High elongation, accurate resistivity, good physical properties.

3. MgO stick: 99.9% high purity magnesium oxide stick, good verticality, small tolerance

4. MgO: 99.9% pure magnesium powder, high purity, good particle size ratio, resistant to 1200 degrees

5. Lead: High temperature pure nickel glass wire, resistivity, high conductivity, resistance to high temperature of 800 degrees.



Product name:	High Temperature Electronic Power Source Heating Element Rod 3mm Tiny Cartridge Heater
Diameter:	From 2.8mm-35mm
Steamless tube:	SUS304 321 316L 310S incoloy 600 800 825 840
Maximun temperature:	850°C
Voltage:	Customized
Wattage:	50W/cm2
Length:	10mm-10000mm



Tolerance



Tolerance
Diameter
2.8-5mm	+0	-0.04mm
6-10mm	+0	-0.05mm
>10mm	+0	-5‰
Sheath Length
≤100 mm	±1mm
100-300mm	±1.5mm
≥300mm	±2mm
Wattage
≤6mm	±10%
Others	+5%	-10%
Resistance
≤6mm	±10%
Others	+10%	-5%

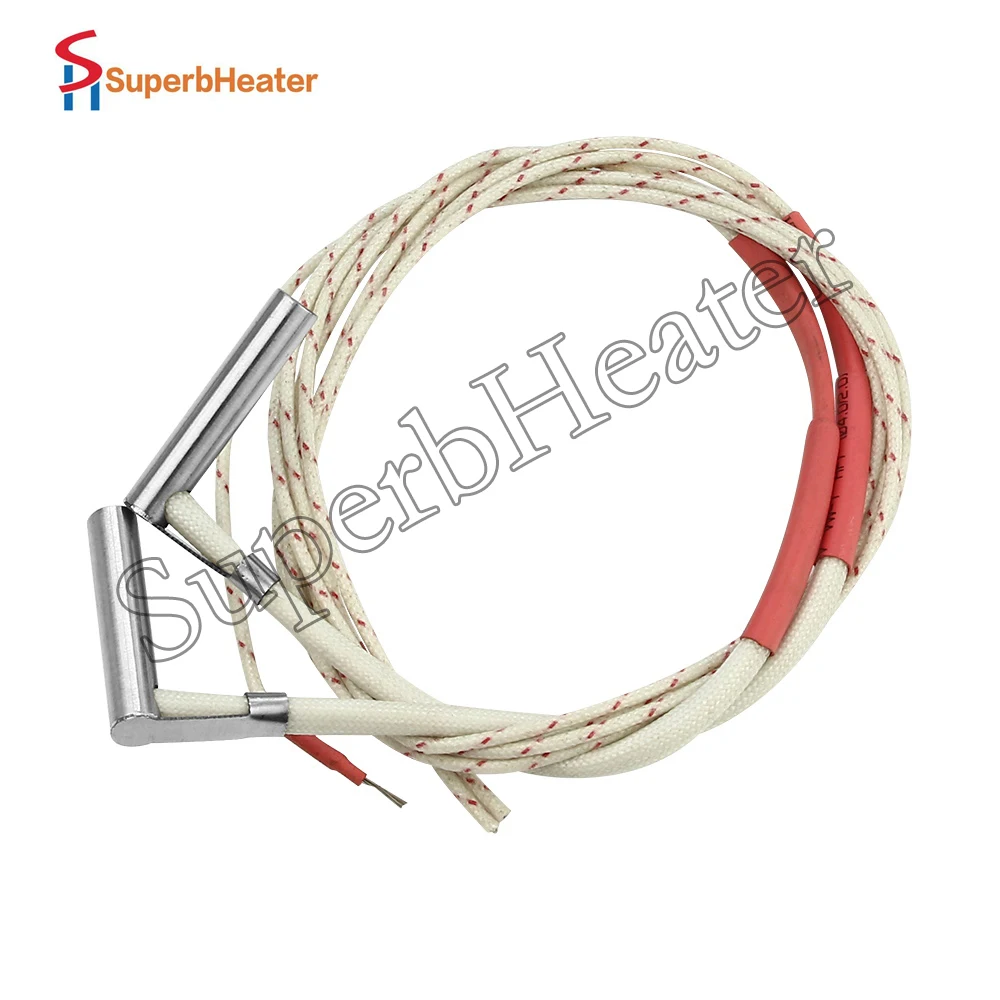

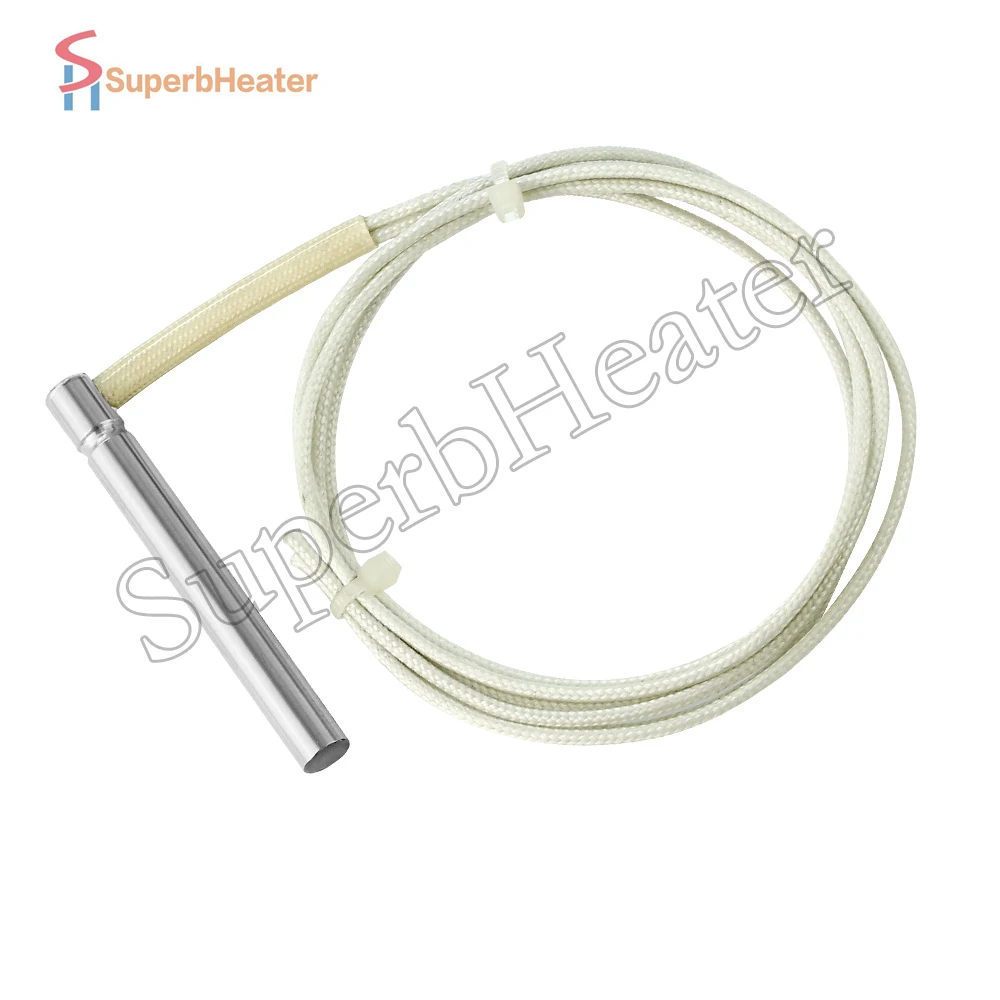

Other product we can provide

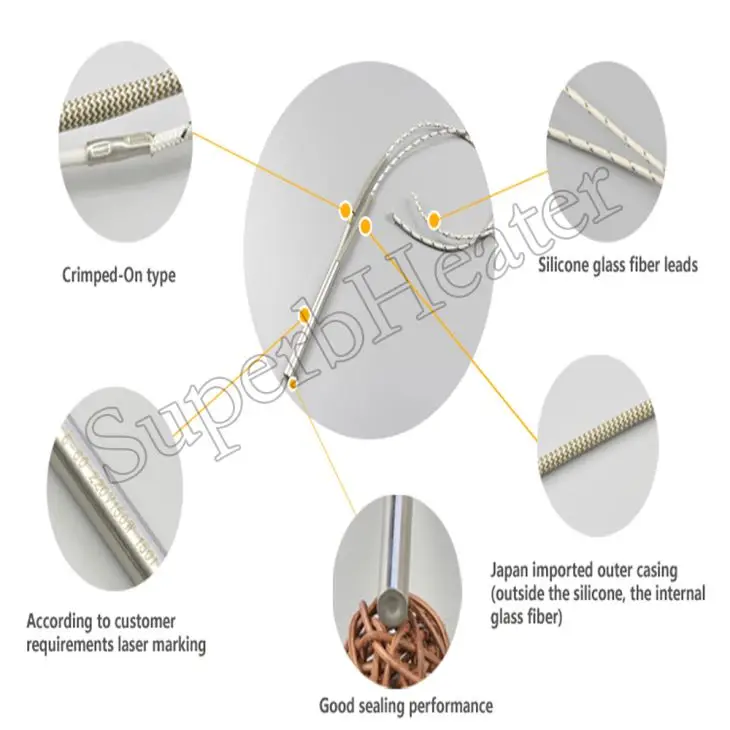

Product  detail:

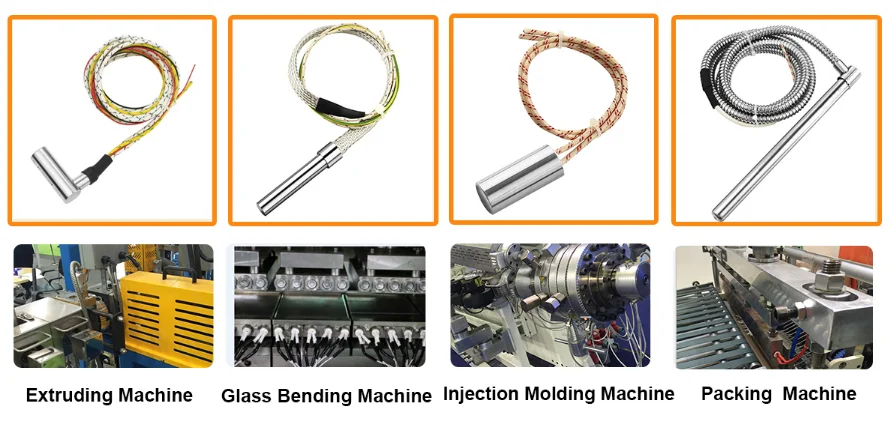

Applications

•  Injection moulding - Internal heating of nozzles


•  Hot runner systems - Heating of manifolds


•  Packaging industry - Heating of cutting bars


•  Packaging industry - Heating of hot stamps


•  Laboratories - Heating of analytical equipment


•  Medical - Dialysis, Sterilization, Blood Analyzer, Blood/Fluid Warmer, Temperature Therapy


•  Telecommunications - Deicing, Enclosure Heater


•  Transportation - Oil/Block Heater, Aircraft, Coffee Pot Heaters


•  Food Service - Steamers, Dish Washers


•  Industrial - Glass Bending Machine, Hole Punches, Hot Stamp.



Company Introduction

Our  advantage

.High quality raw materials:

Germany BGH Resistance Wire

UK UCM MGO Power

Japan Tateho MGO Rod



.Advancd equipment:

X-ray machine

Laser marking machine

Life tester etc



.One year warranty Period

Customer severice

Technology support

Fast delivery

After-sale severice





Inquiry Notes
1.Diameter
2.Width
3.Voltage
4.Walltage
5 qualifying method
6. The length of the outlet
7. Whether with a thermocouple

8.Use of the environment and temperature
