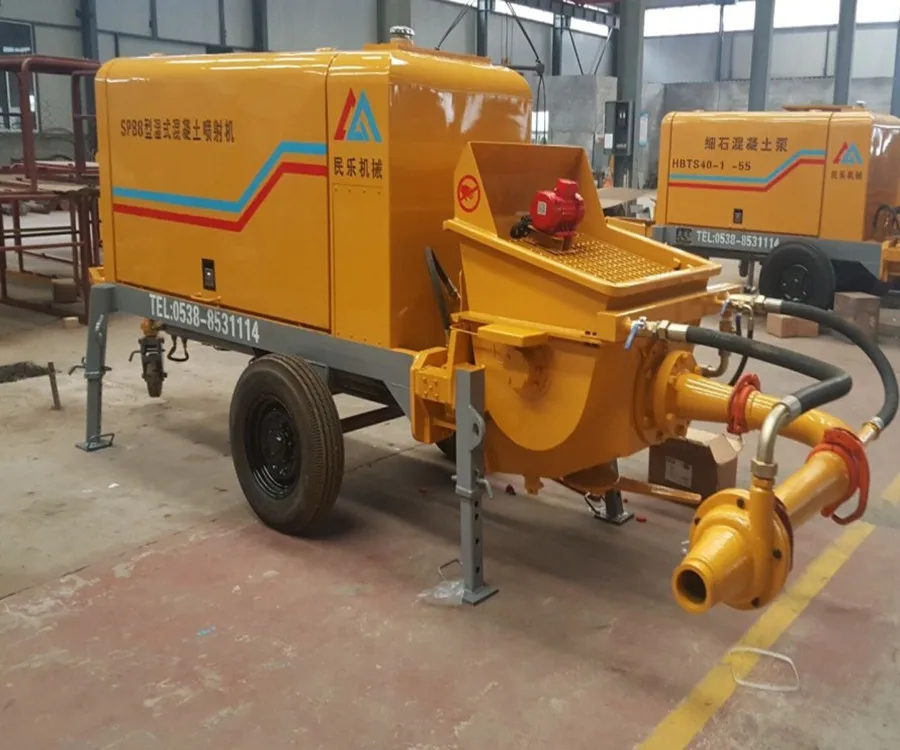

small shotcrete machine

Product Overview

Description

small shotcrete machine

CONTACT: SARA  MOBILE/WECHAT/WHATSAPP:86-15866001919

Choose MINLE as partner,let us make every effort to support your custruction works!



Advantages: shotcrete machine
1, High pumping pressure and long transmission distance.
2, High efficiency, large displacement.
3, Spare parts is not easy to loss, long service life.
4, Simple and environment
5, Multi-usage, it also can be used for wet spraying machine and concrete pump



Technical Parameter shotcrete machine



item	Diesel one
Theoretical Max output(m³/h)	15
Max. Pressure (Mpa)	7.8
Maximum theoretical delivery distance(m)	80
The type of distribution valve	S Tube valve
concrete cylinder(mm)	Φ140×1000
Main oil pump cylinder(mm)	Φ80×Φ55×1000
Outlet dia.(mm)	Φ100
Filling height(mm)	1080
Hopper capacity(L)	400
diesel power(Kw)	39
Main valve	Germany Bolseen
Hydraulic hose	Italy manuli
Electric elements	Schneider,Mitsubishi
Working wind presure(Mpa)	0.6-0.8
Air consumption(m³/min)	≥13
Hydraulic circuit type	open
Pumping system pressure(Mpa)	24
Distribution system pressure(Mpa)	14
Mixing system pressure(Mpa)	12
Hydraulic oil tank capacity(L)	200
Aggregates size(mm)	gravel≤10  pebble≤15
concrete slump(mm)	120-180
Delivery pipe dia(mm)	Φ64
Rebound Rate	≤10%
dust density(mg/m³)	≤6



1.Power system of small shotcrete machine

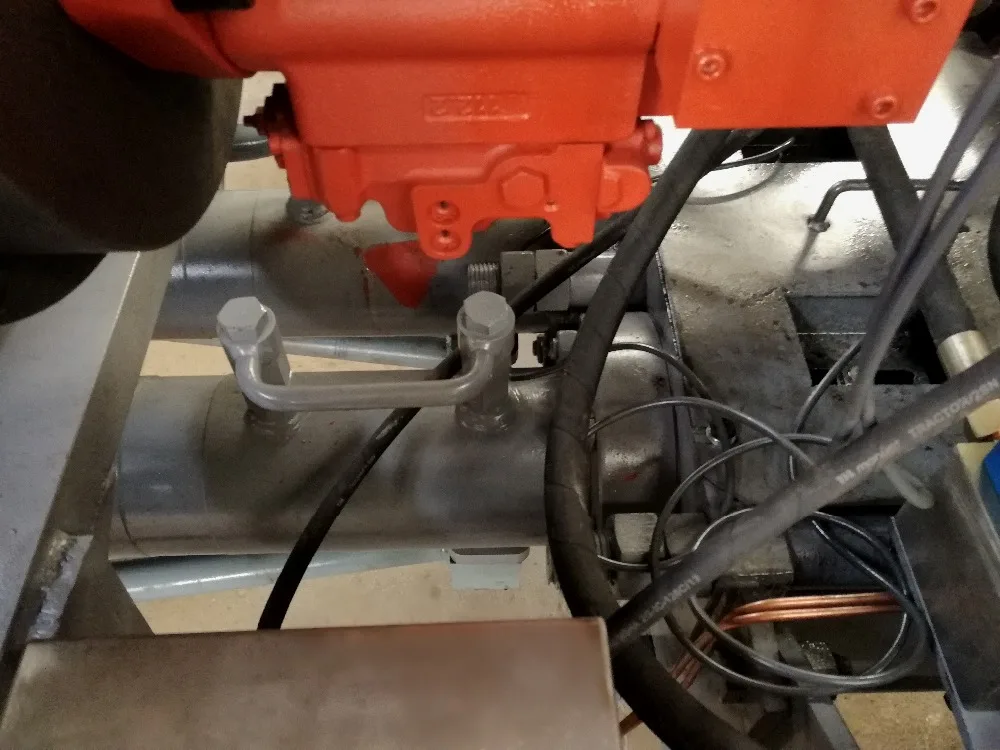

Hydraulic oil pump: Germany Rexroth or Japan Kawasaki are adjusted.
Diesel power: Germany Deutz, Weichai, Cummins, Dachai Deutz, Volvo, Perkins are adjusted.

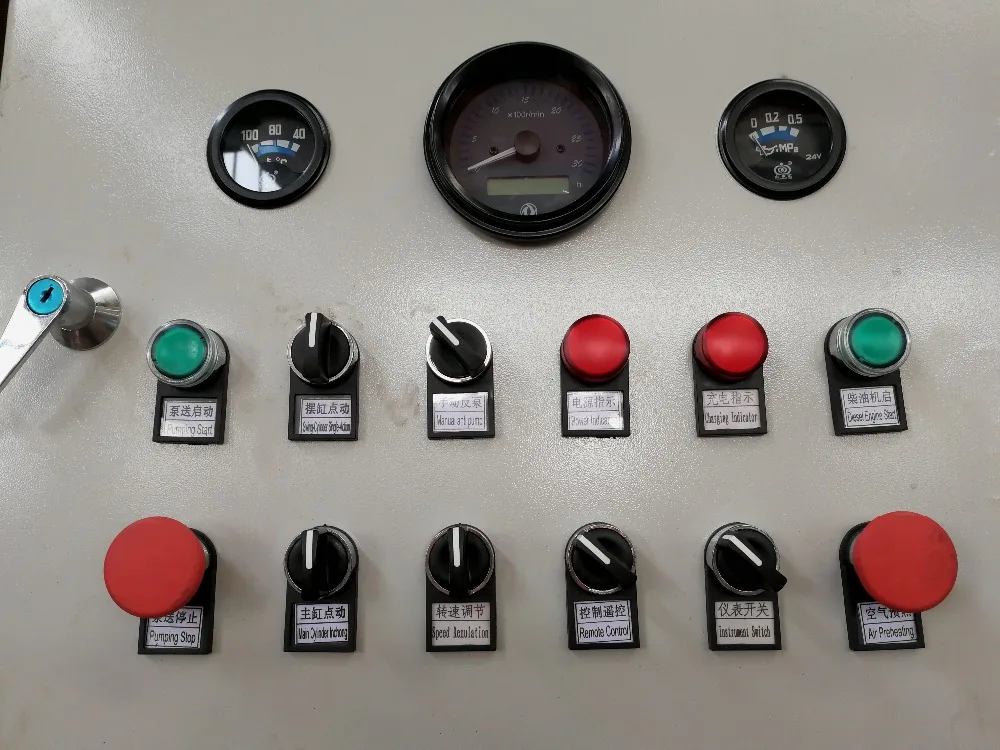

2.Electronic control system of small shotcrete machine

Japan Mitsubishi Programmable Logic Controller (PLC) electronic control system.

Main electric elements are imported original Schneider, Siemens, OMRON, LG etc.

The control mode: manual operation and wireless remote control

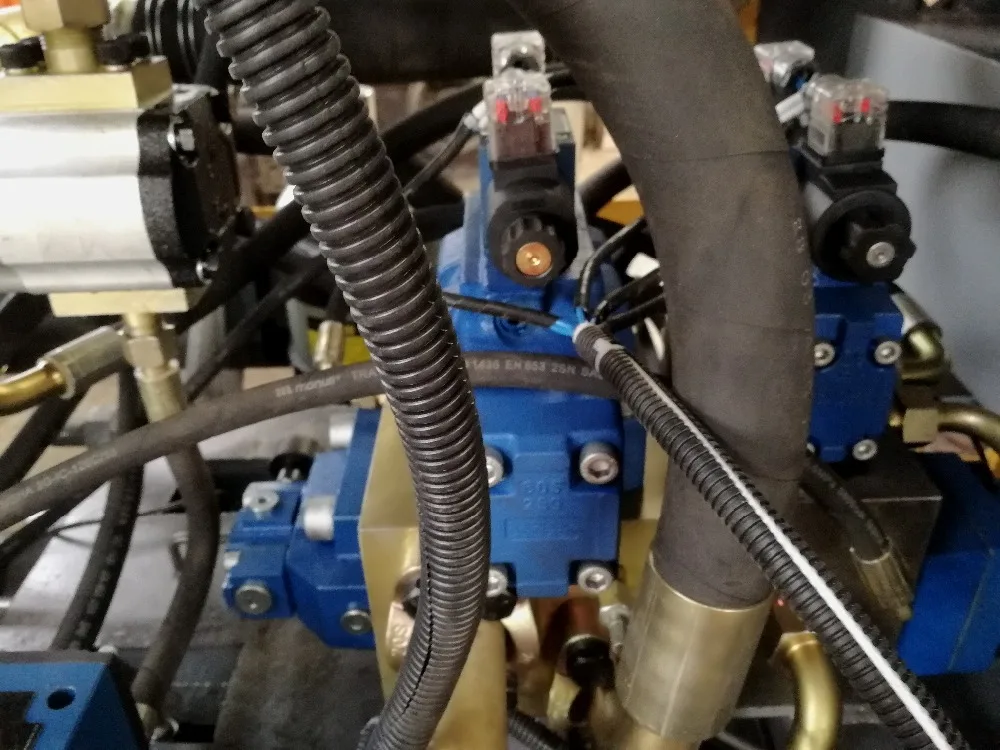

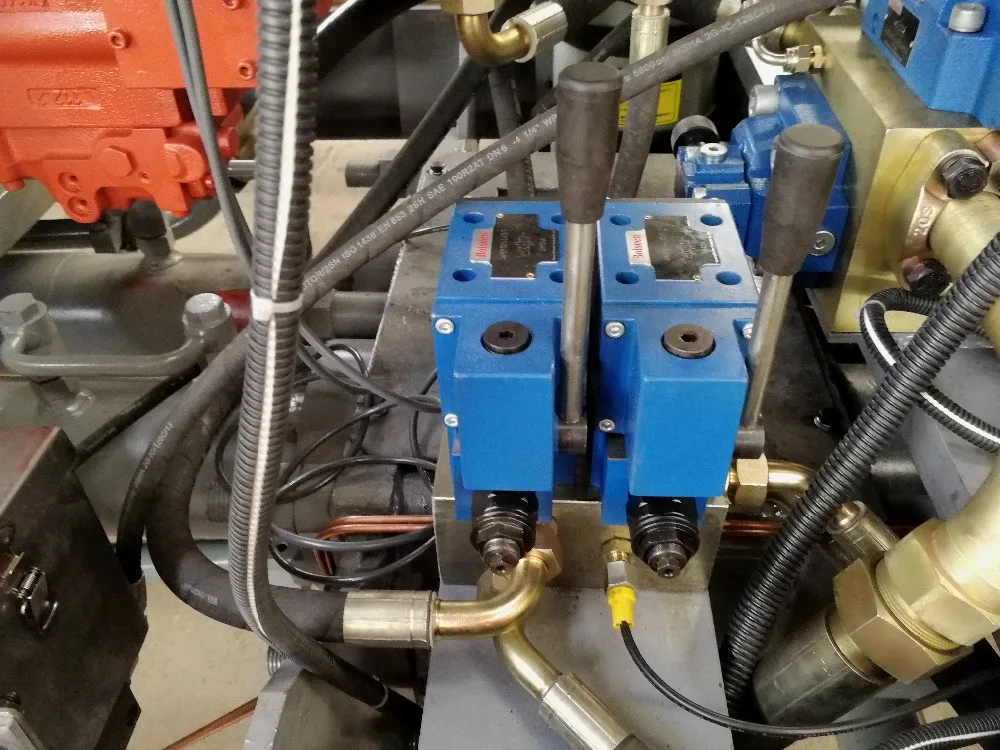

3.Hydraulic system of small shotcrete machine

The unique open hydraulic system and hydraulic cushion technology contribute to the smaller

 exchange impact and less heat of the system.
