Free Standing Pillar Mounted 360 Degree Rotating 10 ton Swing Arm Marine Jib Crane

TXK jib crane is a kind of small and medium-speed lifting equipment developed recently.
It is widely used in mines, workshop, warehouse , wharf,etc.

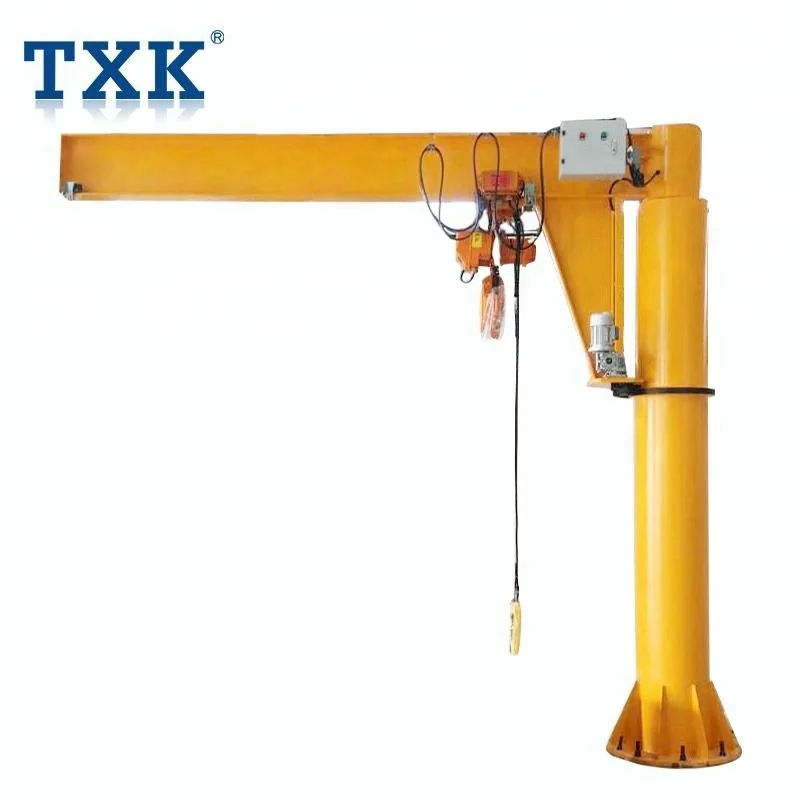

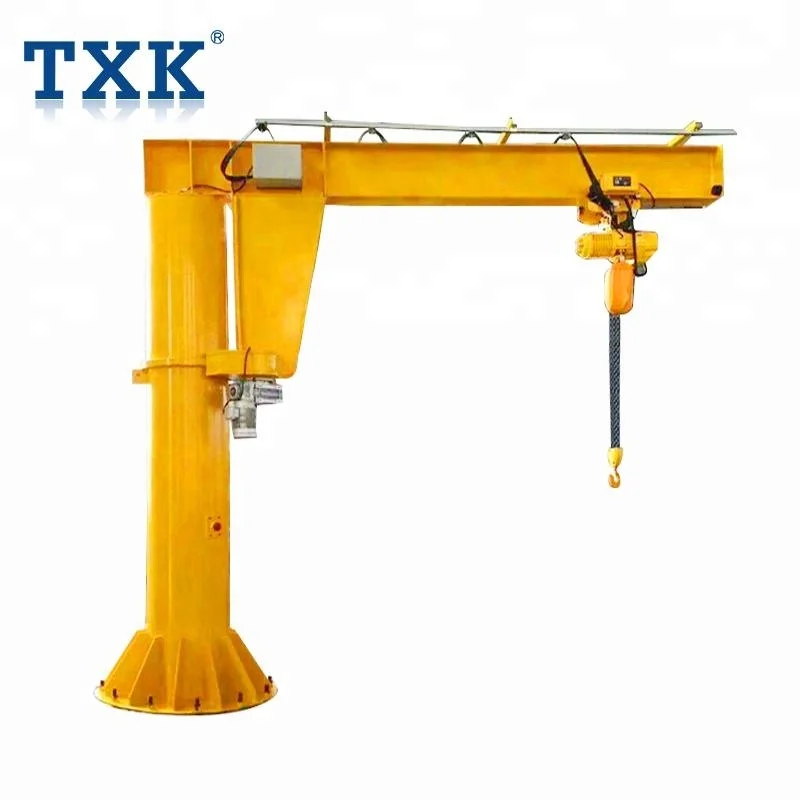

Column mounted jib crane work for light intensity, crane by post, rotating arm rotation drive device and electric hoist, column bottom through on the concrete foundation with anchor bolt, cantilever rotary driven by cycloidal pinwheel reducer, electric hoist on the cantilever beams as a straight line running from left to right, and lifting heavy objects.

Fixed column slewing jib crane is mainly composed of top column, low column, main girder, main girder pole, electric hoist, rotation mechanism and electrical system, etc.Normally control model of jib crane with remote control or pendent line with press button or both.

1. Rated Lifting capacity: 0.5~20t.

2. Arm length: 2~10m (Can be designed by customers)
3.Two types : BZ model(light medium) and BZD model(heavy duty medium)
4. Working Temperature: -25~+40°C
5. Lifting mechanism: Electric hoists or manual hoist
6. Slewing Mechanism: Electric motor or Manual control
7. Main Material: Q235B Mn Steel
8. Slewing angle are 90, 180, 270, 360 degree is optional

"TXK" was founded in 1997 and is a leading manufacturer of lifting and material handling equipments with almost 20 years experience. We provide quality, safe and stabe products to meet the highest industrial standards. We are ISO9001:2008 certified company, our products are GS,CE certified, serving all spheres of industry in the world.

Our brand "TXK" is well sold in more than 50 countries worldwide and has earned an enviable reputation for high quality products. With our Professional R&D team, we are able to provide customization services with the most professional quality and never stop meeting the highest standard of safety.

"TXK" will never stop being as an innovative manufacturer. We will continue to develop and extend our products range with high quality, safety standard and long life usage

TXK brand products abtain full Certificates such as CE,GS,TUV,ISO,SGS,etc.

Packaging Details: 1.Electrical parts and hoist are packed by plywood box

                                   2.Main beam,end beam,platform railing and others are packed in plastic woven cloth

Delivery Time:        Within 20~35 days after receive the money
