CFY40 2 explosion proof fluorescent light fitting 2x40w G13 lamp holder IP56

Product Overview

Description

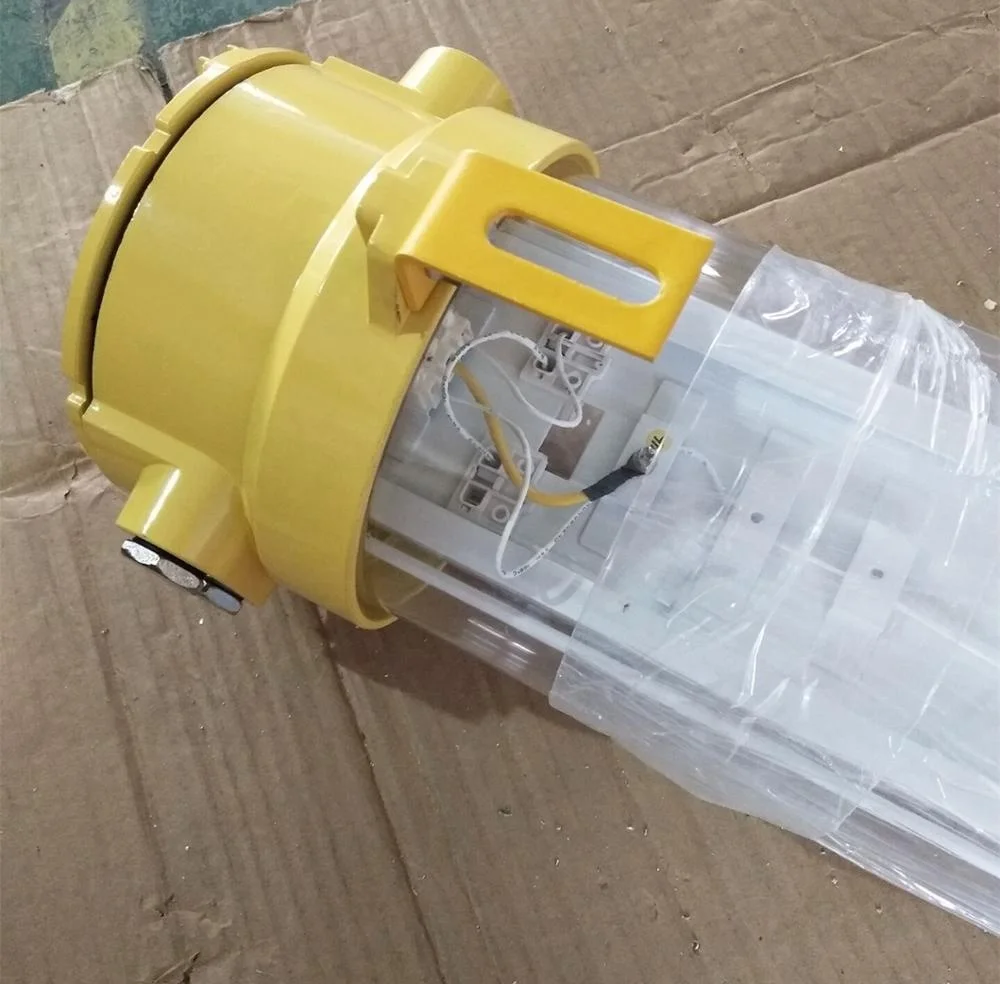

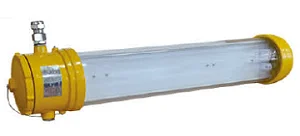

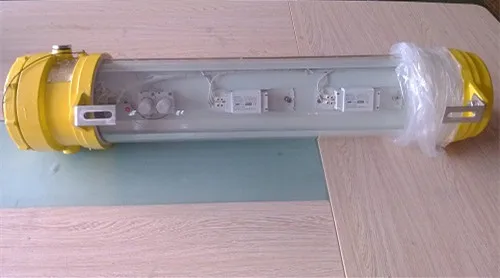

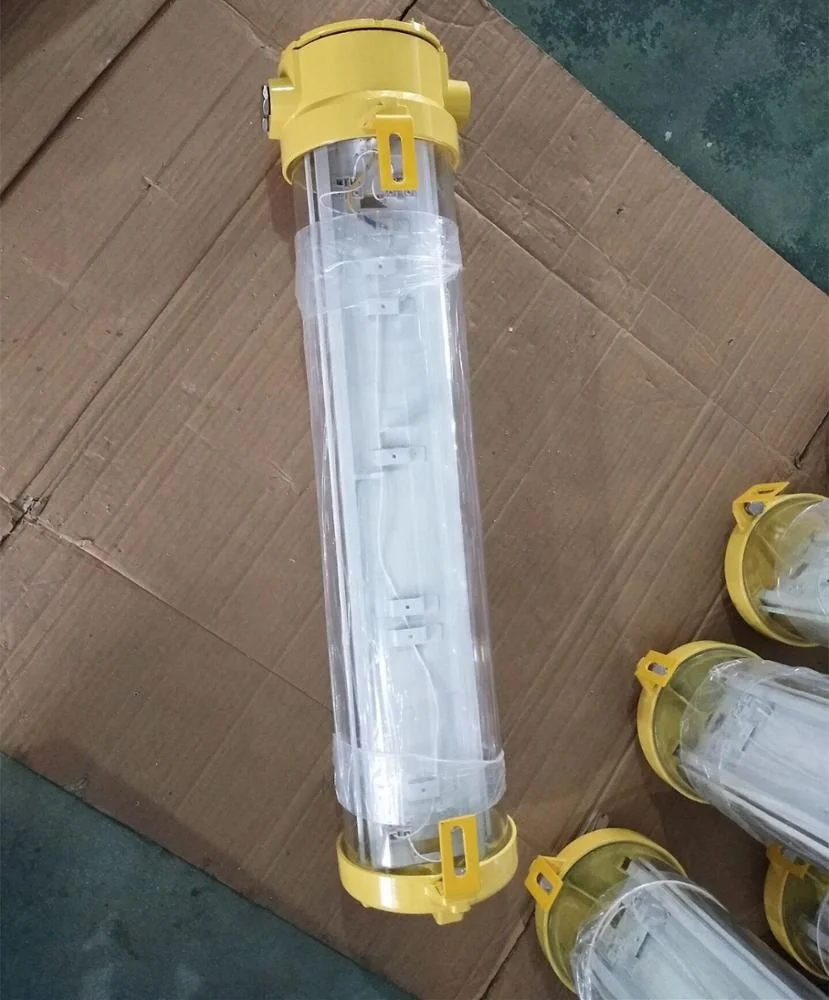

CFY40-2 Explosion Proof Fluorescent Light Fitting 2x40w G13 Lamp Holder IP56

The scope of application

1. The shell adopts good quality stainless steel, good quality PC lampshade, with two glands, adopt fluorescent lamp.

2. The light adopts hang-type installation, and it is convenient to replace the light-tube etc.

3. The lamp body adopts seal structure, has high waterproof performance and anticorrsion performance.

4. Conform to<GRADE ENTRY NORMS FOR STEEL SHIPS>and national standard GB3836- 2000, GB12045, En50014, En50018, En60079.

Specifications

Name(Type)	Voltage	Power	Lamp  holder	Protection  class	Cable  outside  diameter	Weight
CFY20-2 EXPLOSION-PROOF  FLUORESCENT LIGHT	220V/60Hz 220V/60Hz 110V/60Hz	2x20W	G13	IP56	φ13-φ14	11.5kg
CFY20-1 EXPLOSION-PROOF  FLUORESCENT LIGHT		1x20W
CFY30-2 EXPLOSION-PROOF  FLUORESCENT LIGHT		2x30W				13.5Kgs
CFY30-1 EXPLOSION-PROOF  FLUORESCENT LIGHT		1x30W
CFY40-2 EXPLOSION-PROOF  FLUORESCENT LIGHT		2x40W				15kg
CFY40-1 EXPLOSION-PROOF FLUORESCENT LIGHT		1x40W





Packaging Detail	Label + Inner Box + Export Carton
Common Packing	Label, Color Inner Box, etc
Delivery	By Courier, By Air, By Sea
Port	Ningbo, Shanghai, Guangzhou
