TXK Heavy Duty Manufacturer Electric Chain Hoist 20 ton with Wireless Remote
- Category: >>>
- Supplier: Jiali Machinery Co. Ltd.
Share on (60761669992):
Product Overview
Description
TXK Heavy Duty Manufacturer Electric Chain Hoist 20 ton with Wireless Remote
| Single Speed | Technical Parameters | ||||
| Model | 7.5-03S | 10-04S | 15-06S | 20-08S | 25-10S |
| Capacity(T) | 7.5 | 10 | 15 | 20 | 25 |
| Lifting Speed(M/Min) | 1.8 | 2.7 | 1.8 | 1.4 | 1.1 |
| Motor Power(Kw) | 3 | 3.0*2 | 3.0*2 | 3.0*2 | 3.0*2 |
| Rotation Speed(R/Min) | 1440 | ||||
| Insulation Grade | F | ||||
| Power Supply | 3P 220V-690V | ||||
| Control Voltage | 24V/36V/48V | ||||
| No. Of Chain | 3 | 4 | 6 | 8 | 10 |
| Spec. Of Load Chain | φ11.2 | φ11.2 | φ11.2 | φ11.2 | φ11.2 |
| Net Weight(Kg) | 176 | 300 | 382 | 482 | 503 |
| Dual Speed | Technical Parameters | ||||
| Model | 7.5-03S | 10-04S | 15-06S | 20-08S | 25-10S |
| Capacity(T) | 7.5 | 10 | 15 | 20 | 25 |
| Lifting Speed(M/Min) | 1.8/0.6 | 2.7/0.3 | 1.8/0.6 | 1.5/0.5 | 1.2/0.4 |
| Motor Power(Kw) | 3.0/1.0 | 3.0*2/1.0*2 | 3.0*2/1.0*2 | 3.0*2/1.0*2 | 3.0*2/1.0*2 |
| Rotation Speed(R/Min) | 2880/960 | ||||
| Insulation Grade | F | ||||
| Power Supply | 3P 220V-690V | ||||
| Control Voltage | 24V/36V/48V | ||||
| No. Of Chain | 3 | 4 | 6 | 8 | 10 |
| Spec. Of Load Chain | φ11.2 | φ11.2 | φ11.2 | φ11.2 | φ11.2 |
| Net Weight(Kg) | 215 | 380 | 455 | 545 | 579, |
Product Description
TXK Electric Chain Hoist
1. Aluminum alloy shell , light but hard .

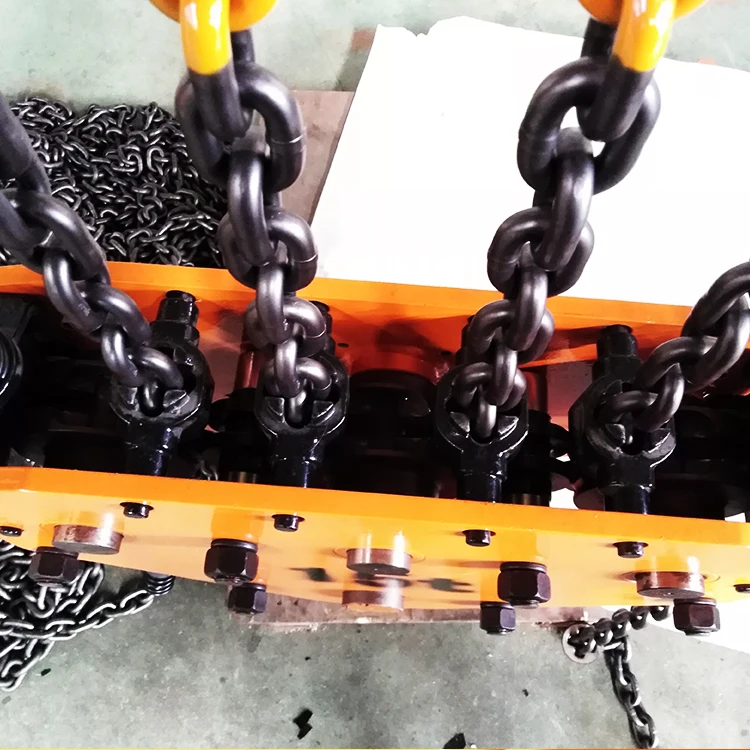

2. G80 Load chain or Japan or Germany FEC G80 load chain, can be used in poor invironment .

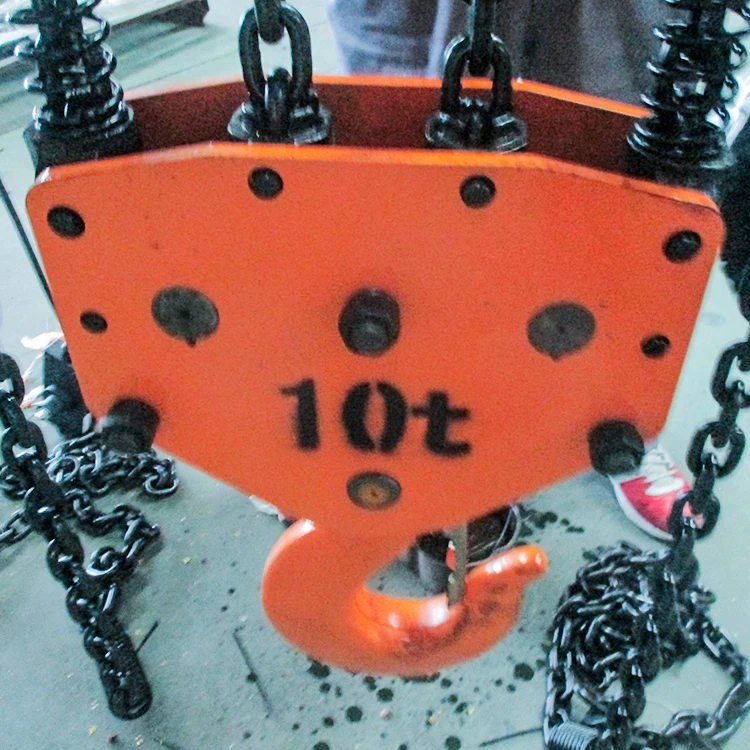

3. Hook: be hot forged with perfect strength , hard to break .

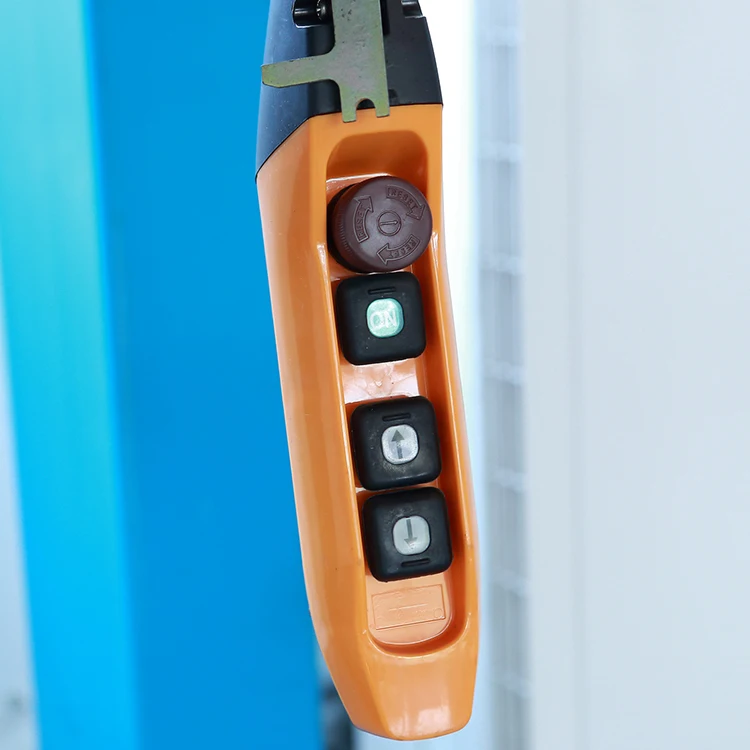

4. Push button, remote control : imported from Taiwan .
5. 3 phase electric chain hoist & Single phase electric chain hoist is optional
