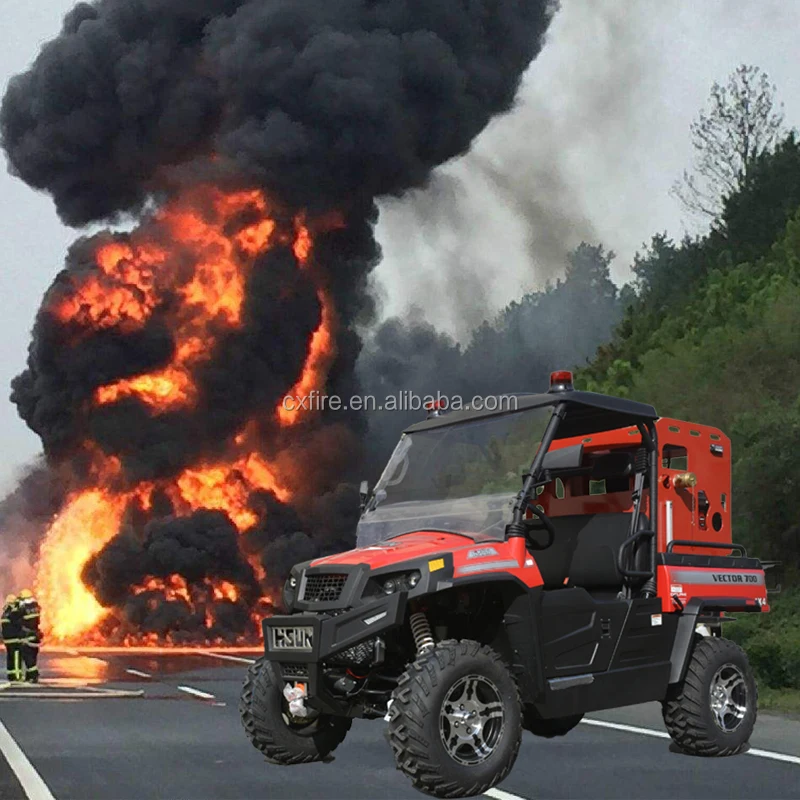

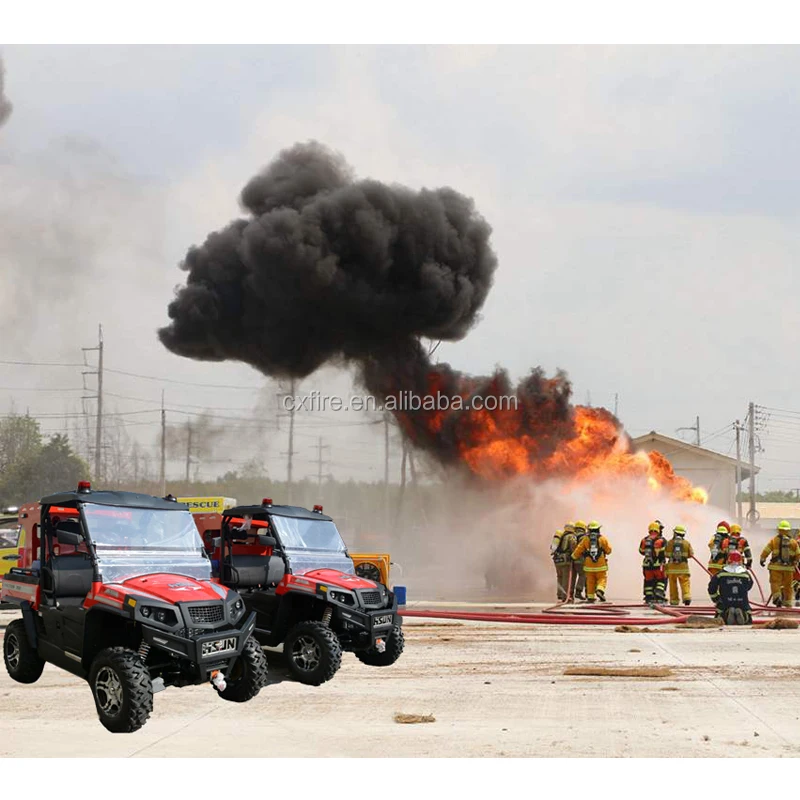

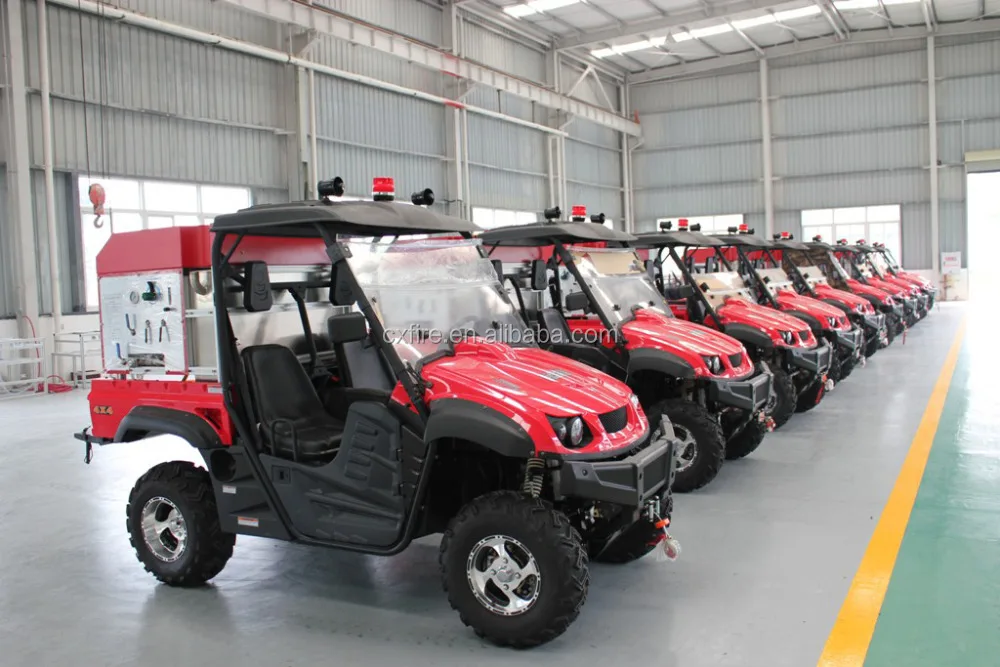

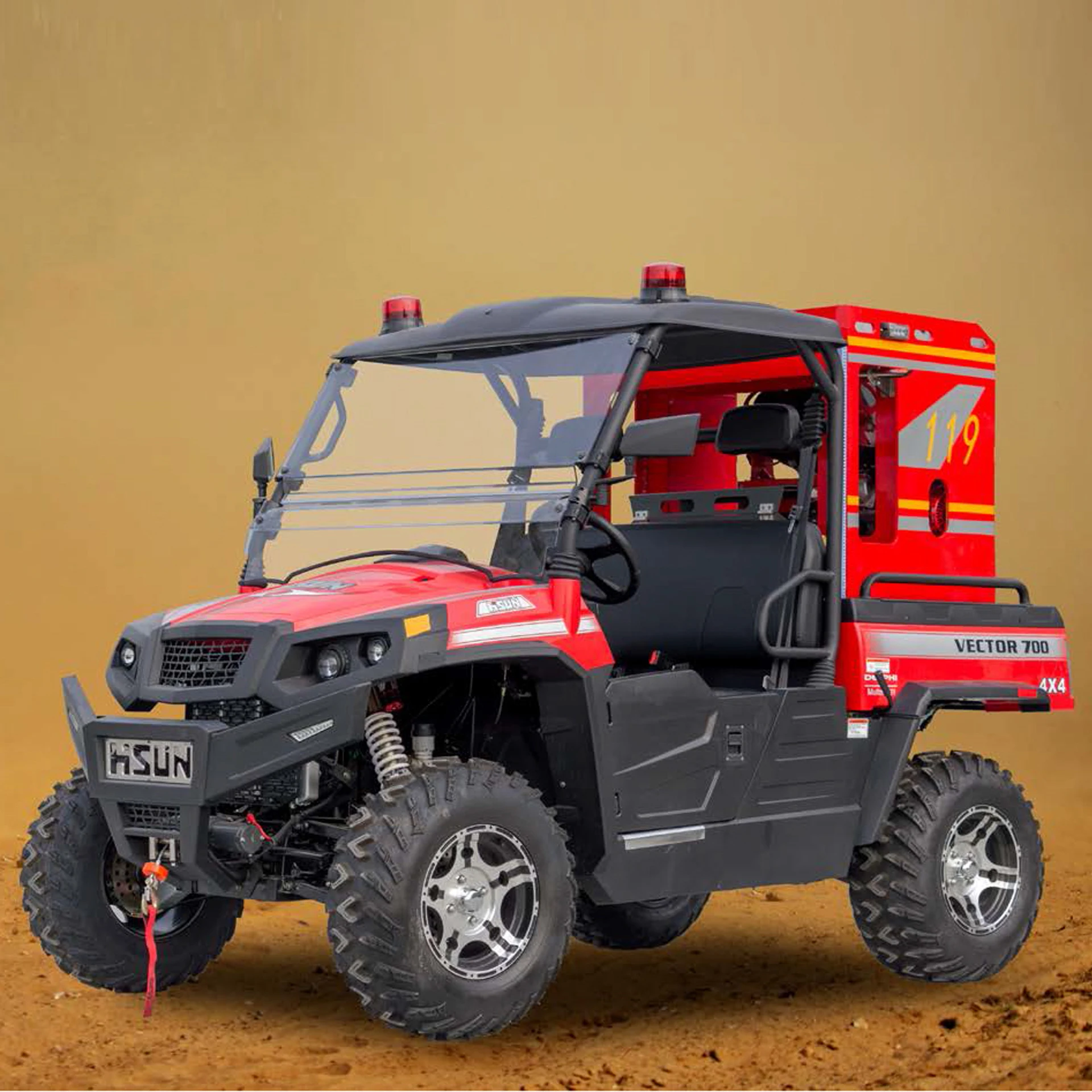

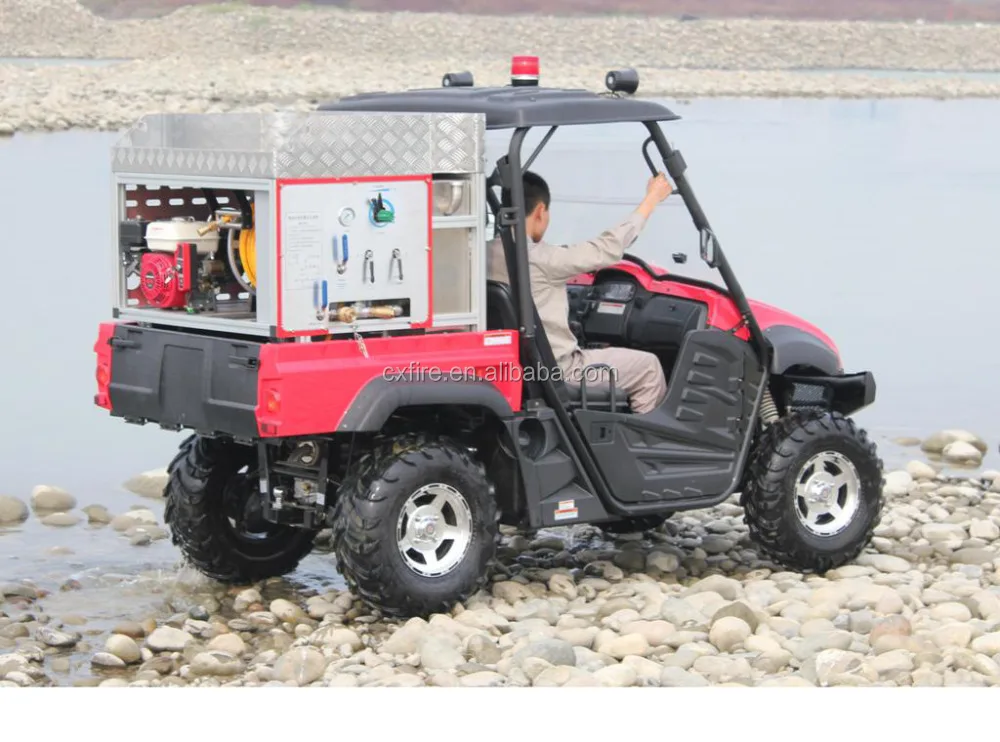

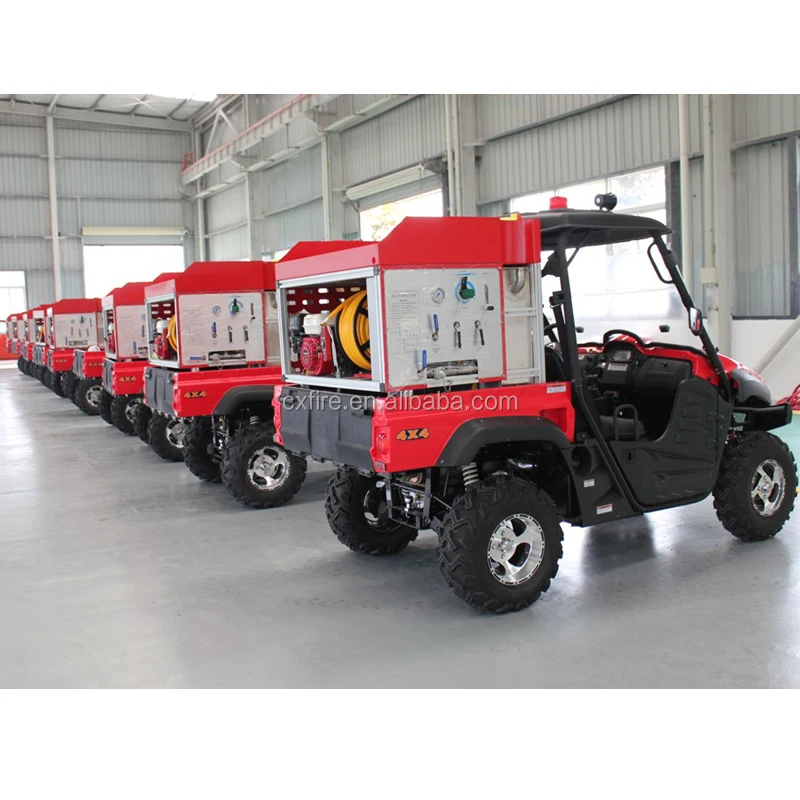

Fire Fighting Motorcycle
- Category: >>>
- Supplier: Sichuan Chuanxiao Fire Trucks Manufacturing Co. Ltd.
Share on (60761702451):
Product Overview
Description
1.Brief Introduction.
All Terrain Fire Motorcycles are mainly used for fire patrol in forest farms, forest scenic spots, large industrial parks, big specialized markets, cities and towns, ancient architecture community etc. These vehicles are the most ideal fire-fighting equipment for public security fire forces and enterprise fire brigades.
2. Detailed Specification:
|
4x4 All Terrain Fire Fighting Motorcycle (Fire Fighting ATV) |
|
|
Model |
700UTV |
|
Overall Dimension(mm) |
Approx. Length:3010, Width:1575, Height:2200 |
|
Total weight with full load (kg) |
Approx. 1130 |
|
Engine |
Gasoline, 686cc, water cooled, |
|
Max. Power |
32.4kw / 6000rpm |
|
Driving manner |
Front engine, four-wheel drive 4x4 |
|
Max. speed (km/h) |
60 |
|
Ground clearance (mm) |
280 |
|
Emission standard |
Euro IV |
|
Motor for water pump |
HONDA (Japanese Brand) |
|
Structure of motor |
Four-stroke, 1 cylinder |
|
Rated Power (KW) |
4 |
|
Starting method |
Electric |
|
Rotation speed (r/min) |
3600 |
|
Model of Water Pump |
KAPPA430 (Italy Brand) |
|
Flow rate of Water Pump (l/min) |
40 |
|
Work Pressure (bar) |
40 |
|
Self-suction function (m) |
5 |
|
Rotation speed (r/min) |
650 |
|
Model of Hose Reel |
JPL-13/19-CX-Y |
|
Length of hose (m) |
30 |
|
Test Pressure of hose (bar) |
100 |
|
Internal and external diameter (mm) |
13/19 |
|
Model of Water Nozzle |
GYQ30 |
|
Shot range of straight stream (m) |
15 |
|
Shot range of mist spray (m) |
7 |
|
Flow rate of water nozzle (l/min) |
30 |
|
Control rate of foam proportioner |
0.4~6% |
|
Flow rate (l/min) |
adjustable |
|
Water tank (L) |
180 |
|
Independent Foam Tank (L) |
20 |
