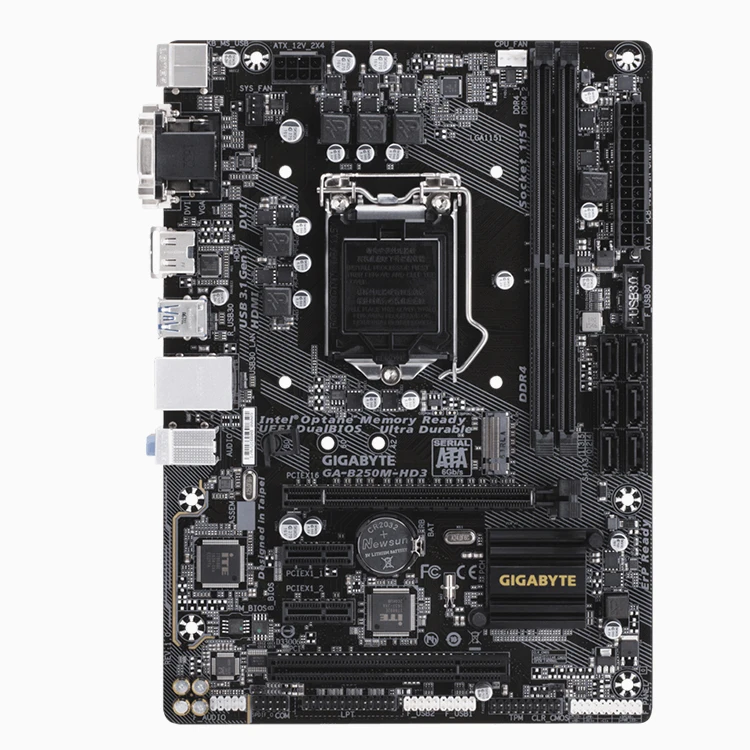

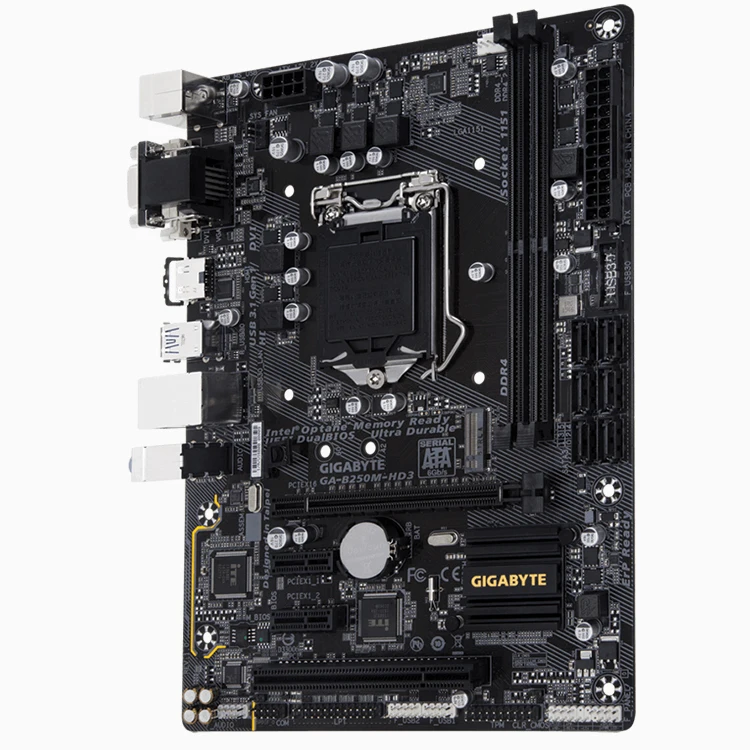

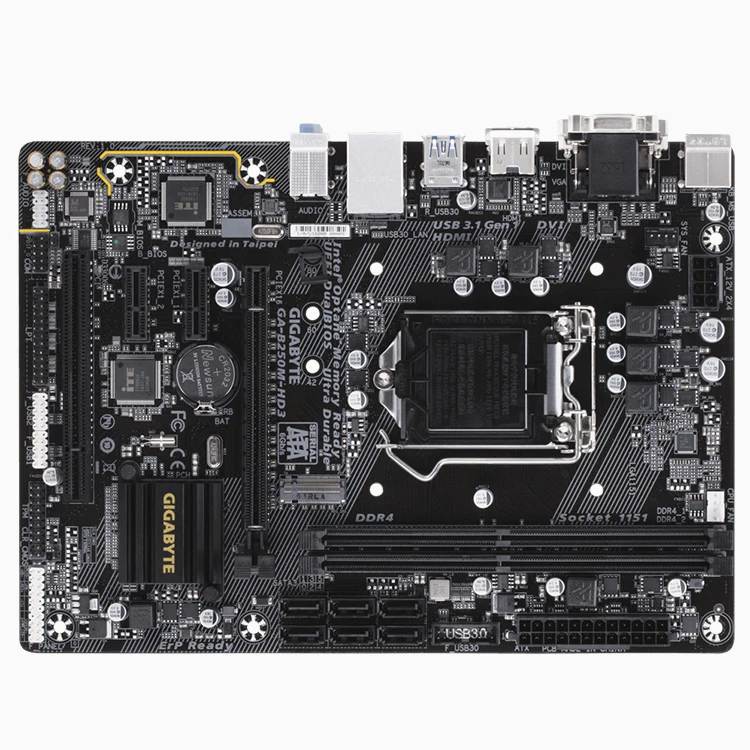

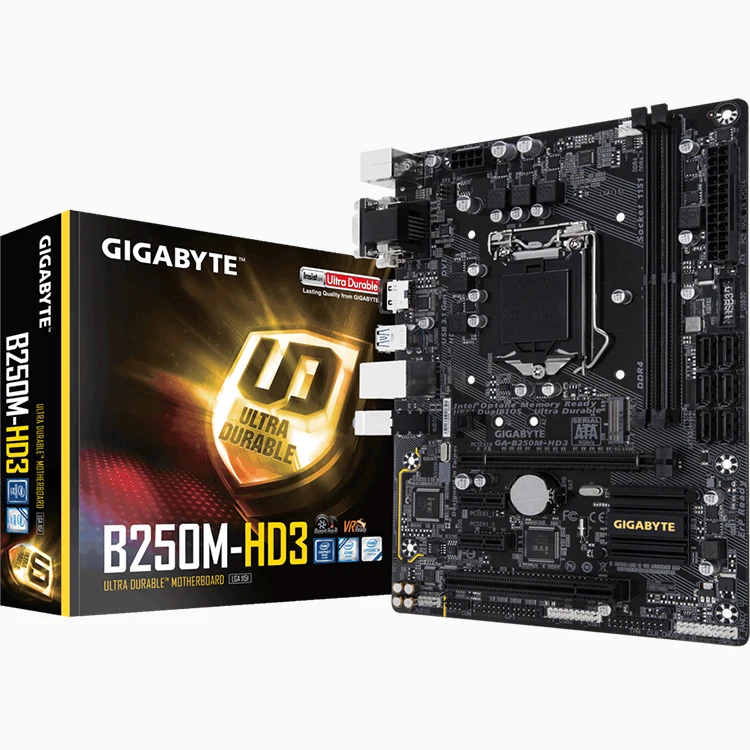

GIGABYTE GA B250M HD3 MATX Used Gaming Motherboard with LGA 1151 Socket Supports 7th/ 6th Generation Intel Core Processors

Product Overview

Description

GIGABYTE GA-B250M-HD3 MATX Used Gaming Motherboard with LGA 1151 Socket Supports 7th/ 6th Generation Intel Core Processors





Supports 7th/ 6th Generation Intel® Core™ Processors

Dual Channel Non-ECC Unbuffered DDR4, 2 DIMMs

Ultra-Fast M.2 with PCIe Gen3 x4 & SATA interface

Intel® Optane™ Memory Ready

Triple display interfaces including High Definition Multimedia Interface

High Quality Audio Capacitors and Audio Noise Guard with LED Trace Path Lighting

GbE LAN with cFosSpeed Internet Accelerator Software

Smart Fan 5 features Multiple Temperature Sensors and Hybrid Fan Headers

GIGABYTE UEFI DualBIOS™

APP Center Including Cloud Station™ Utility

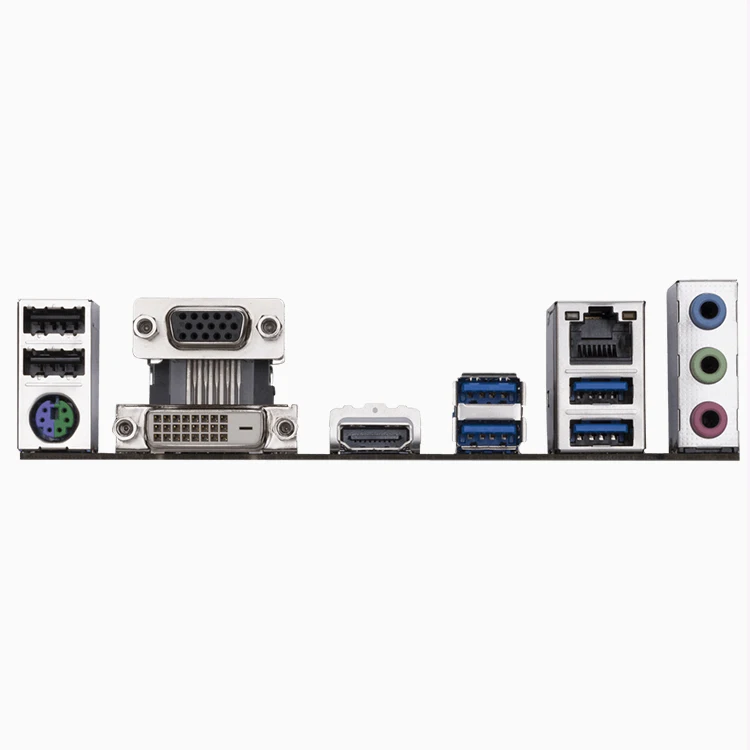

Onboard Graphics

Integrated Graphics Processor-Intel® HD Graphics support:

1 x D-Sub port, supporting a maximum resolution of 1920x1200@60 Hz

1 x DVI-D port, supporting a maximum resolution of 1920x1200@60 Hz

* The DVI-D port does not support D-Sub connection by adapter.

1 x High Definition Multimedia Interface port, supporting a maximum resolution of 4096x2160@24 Hz

* Support for High Definition Multimedia Interface 1.4 version.

Support for up to 3 displays at the same time

Maximum shared memory of 1 GB



Audio

Realtek® ALC887 codec

High Definition Audio

2/4/5.1/7.1-channel

* To configure 7.1-channel audio, you have to use an HD front panel audio module and enable the multi-channel audio feature through the audio driver.

Support for S/PDIF Out



H/W Monitoring

Voltage detection

Temperature detection

Fan speed detection

Overheating warning

Fan fail warning

Fan speed control

* Whether the fan speed control function is supported will depend on the cooler you install.



BIOS

2 x 64 Mbit flash

Use of licensed AMI UEFI BIOS

Support for DualBIOS™

PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
