PU double color shoe sole making machine

Product Application

4tanks, capacity of each tank: 160L or 250L
Can make two colors two density PU and transparent PU shoe sole at the same time

Characteristics:
1. Have two A tank and two B tank, can make different density and different color foaming outsole, by mix each A and B under requirement. Especially advantage in double pouring head can make transparent polyurethane outsole at same time.
2. Under different proportion of A and B raw material, can get different properties polyurethane sole material. The mix head with four needle which can work independently.
3. Heating system with electricity, make heating more fast and more efficient in power saving.
4. Self-developed PLC, with function of setting time, real-time monitoring and so on.
5. The speed of pump use frequency conversion control, with advantages of energy saving and keep the rotational speed when voltage instability.

1

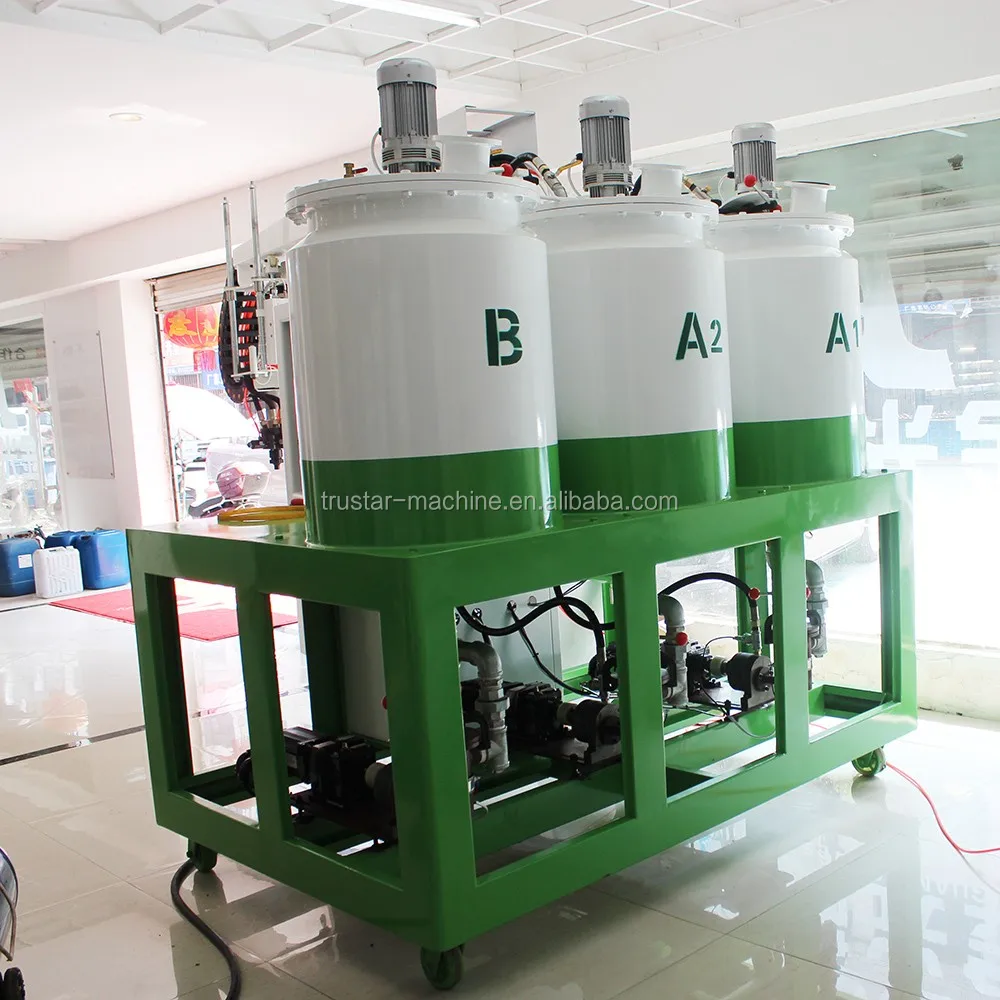

pu foam machine

adopting three layer storage tank,stainless liner ,sandwich type heating,outer wrapped with insulation , temperature adjustable,safe and energy saving

2

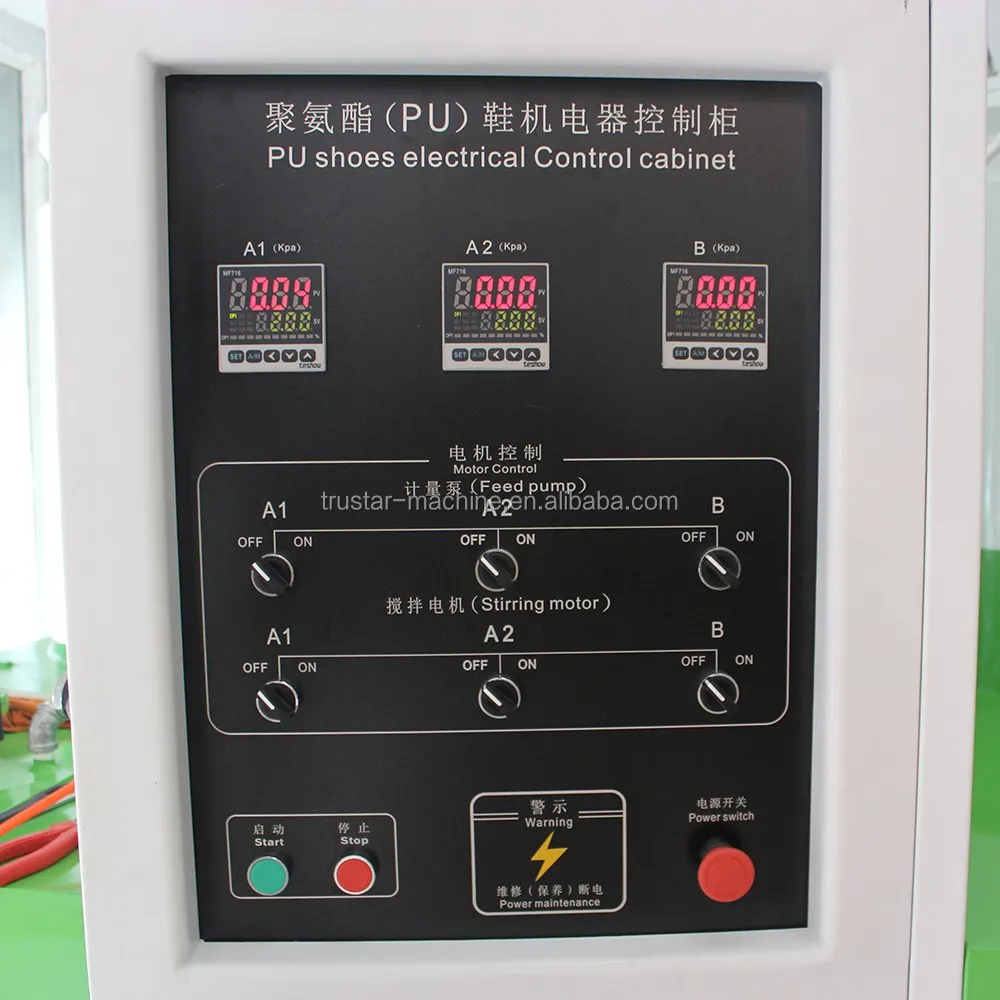

Siemens PLC
Touch screen man-machine interface control panel makes the machine easy to use ,the iperation is absolutely clear.

3

Servo motor
More accurate measurement; running more stable; no need the frequency converter, no need to set the metering pump speed

4

Ring production line
There are 60 stations in total, the length is 19 meters including drying tunnel of 16 meters in one side. The heating of drying tunnel can control by electricity or oil, the temperature can be control by automatic, running is stable and speed is variable.

5

pu sole mold

Bottle Moulding Machine
PET Bottle Making Machine is suitable for producing PET plastic containers and bottles in all shapes.

6

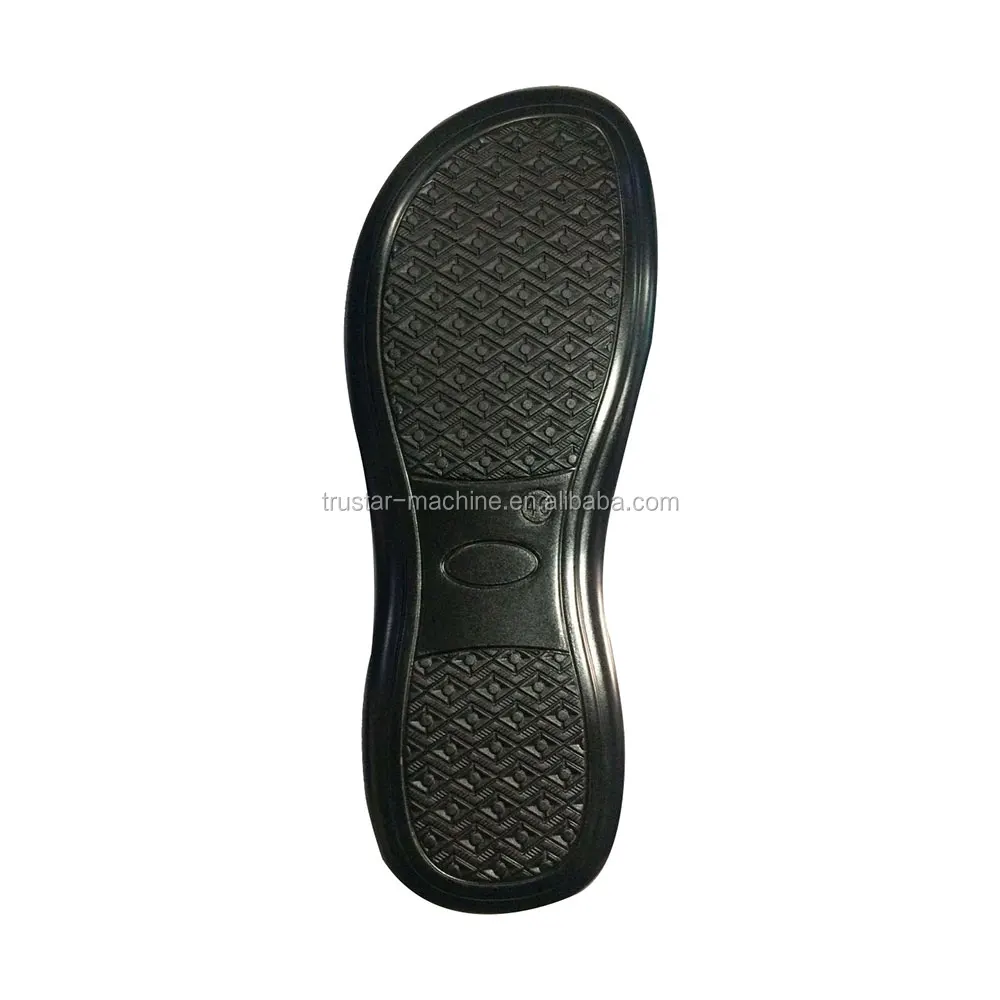

Shoes sample
