Automatic self priming home booster water pump

Product Overview

Description

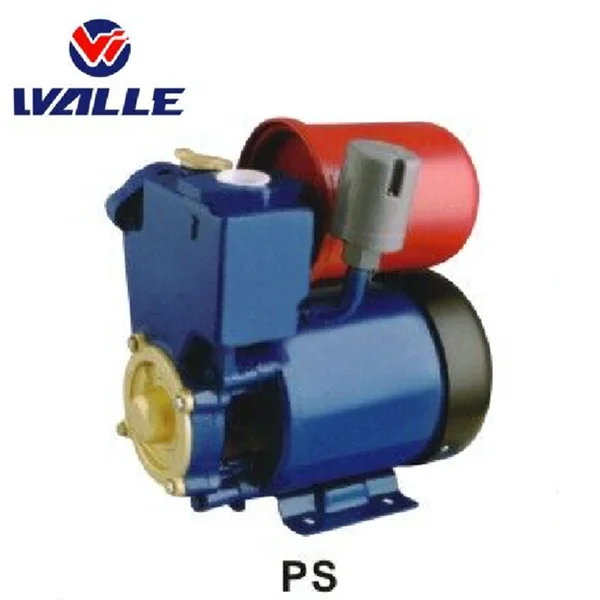

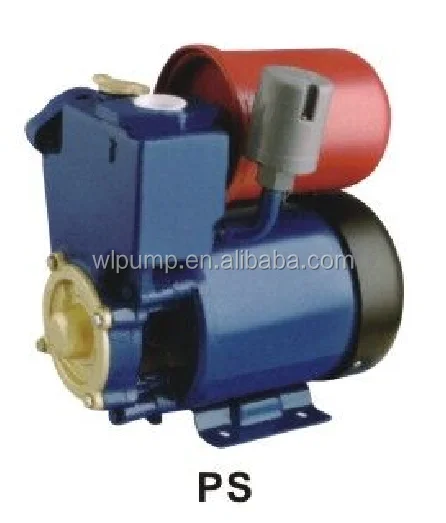

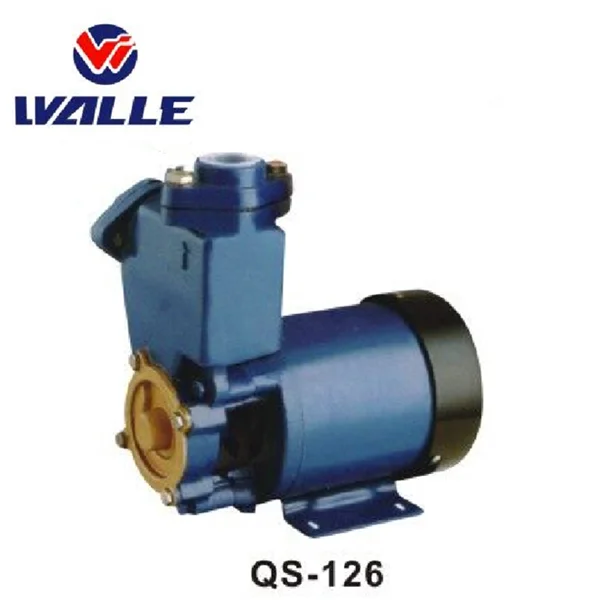

Automatic self priming home booster water pump



Aplication&Feature

QS series self-priming water pumps are suitable for pumping clean water,thinks to the specific shape of the impeller,peripheral pumps can reach high pressure.They are particularly suitable for domestic applications such as supply water from well,pool etc.The automatic distribution of water from surge tanks,and increasing of water pressure

Operating limits

• Suction lift up to 8m

• Fluid temperature to +60 degree

• Max.ambient temperature+40 degree

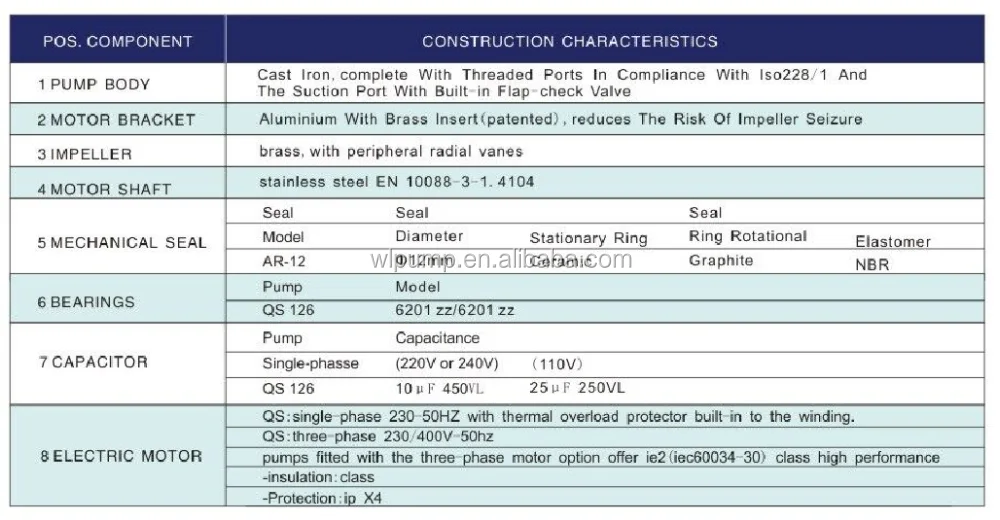

Standard data and equipment

Single phase 220V/50HZ,brass impeller,carbon steel motor shaft with thermal protector inside.Other model and material such as three phase,110V/60Hz,dual voltage,stainless shaft,etc,will be available upon request.

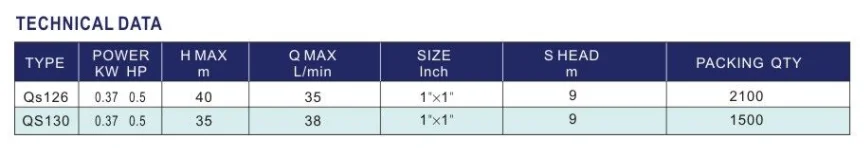

Technical data

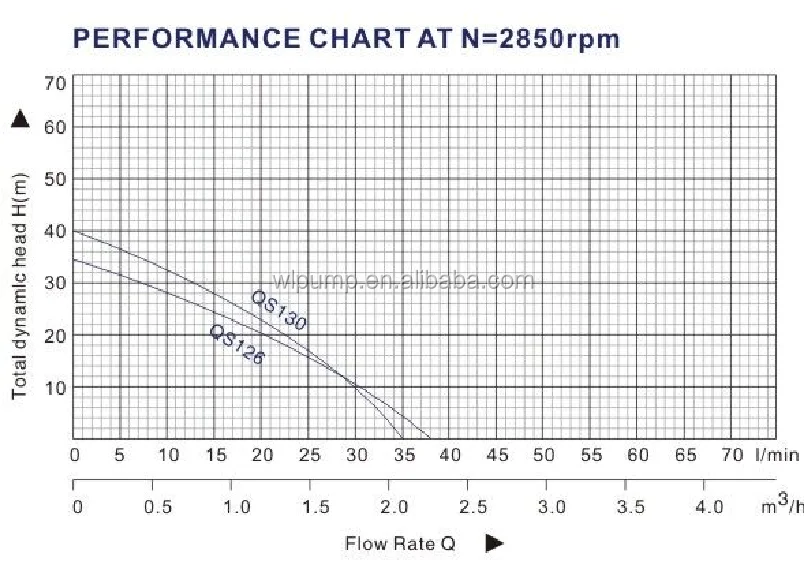

Performance chart

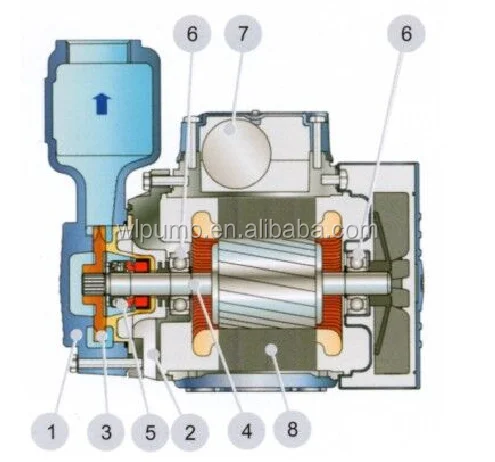

Explode picture

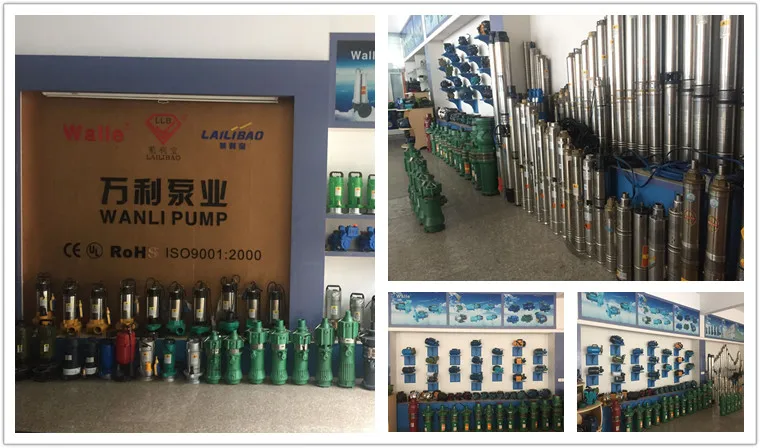

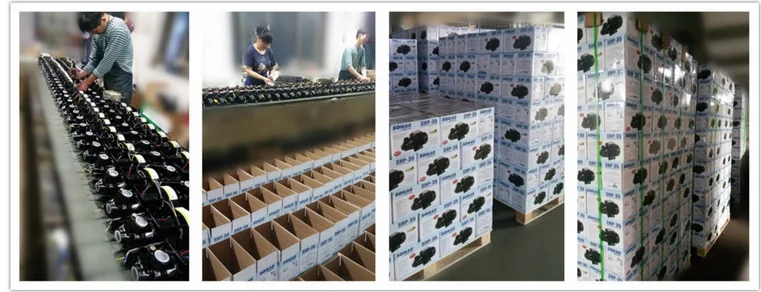

 OUR FACTORY ADVANTAGES

• Prompt delivery
• Timely delivery
• Pumps are100% tested
• Most spare parts are produced my ourself
• Strictly and perfect management is guaranteed for production
• Have ability to design the products based on Your samples.
