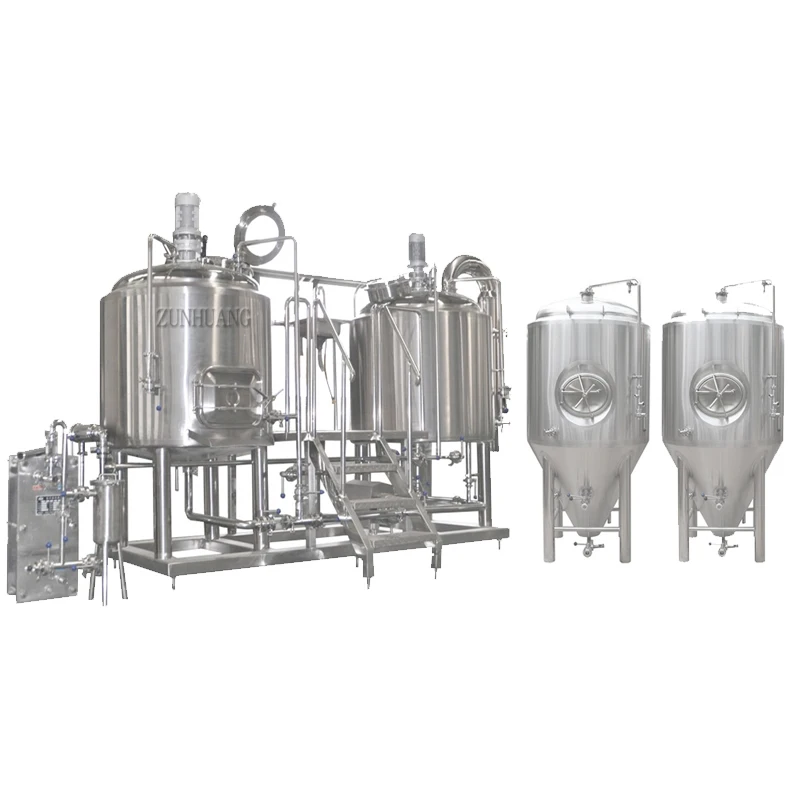

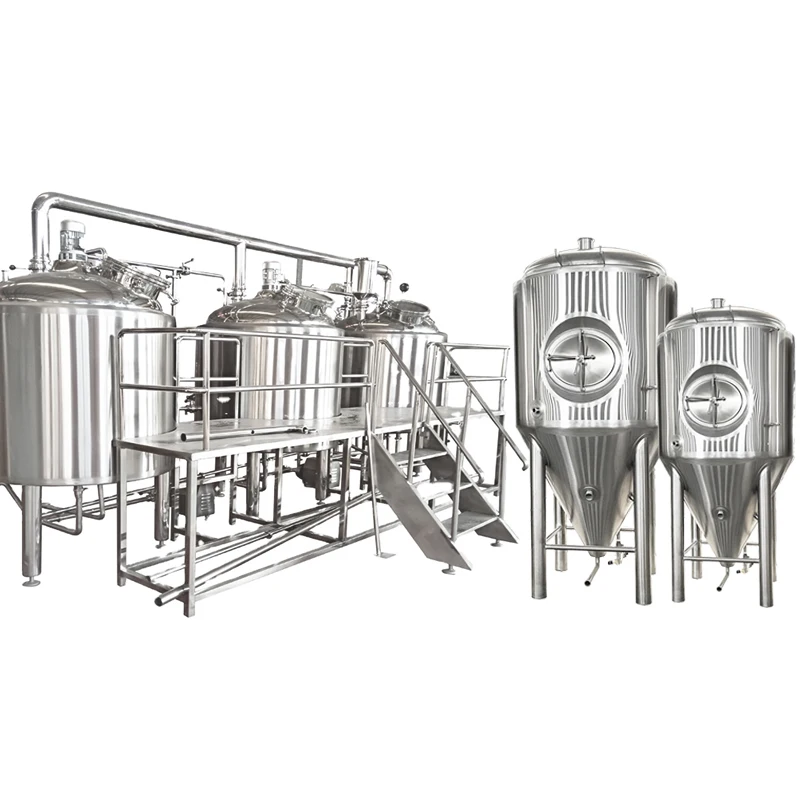

500L mini craft beer brewery machine micro beer brewing plant plant for sale

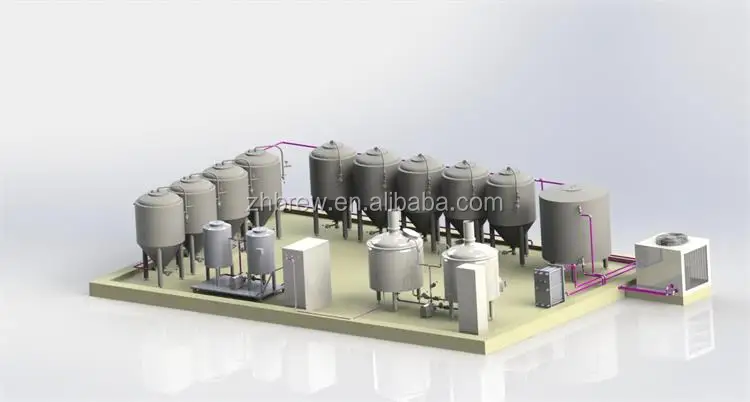

The whole beer equipment is consisted of Mash system,Fermentation system,Refrigeration system,Control system and CIP cleaning system. The tank of the system all adopts Red copper and S.S 304,and the system also have high automatic control capacity.

Simple operation ,PLC automatic control system ,PLC semi-automatic control system.

Equipments characteristics: small investment.quick effectiveness , high quality , lower prices  , the investment repayment is fast , the service life of equipment is long , easy operation , lower cost.Strong technical force.

At the same time  if  you have requirements, we could design and produce the products you need!

500L Equipment List

1: Malt Milling System

Malt crushing equipment used roller mill, distance adjustable. It is the most simple, a pair of drawing rollers, the two rollers during grinding relative rotation, the rotational speed of a roller is fixed, the other is adjustable. Operation to ensure malt evenly distributed over the entire roller, and feed rate is moderate, consistent feed rate.

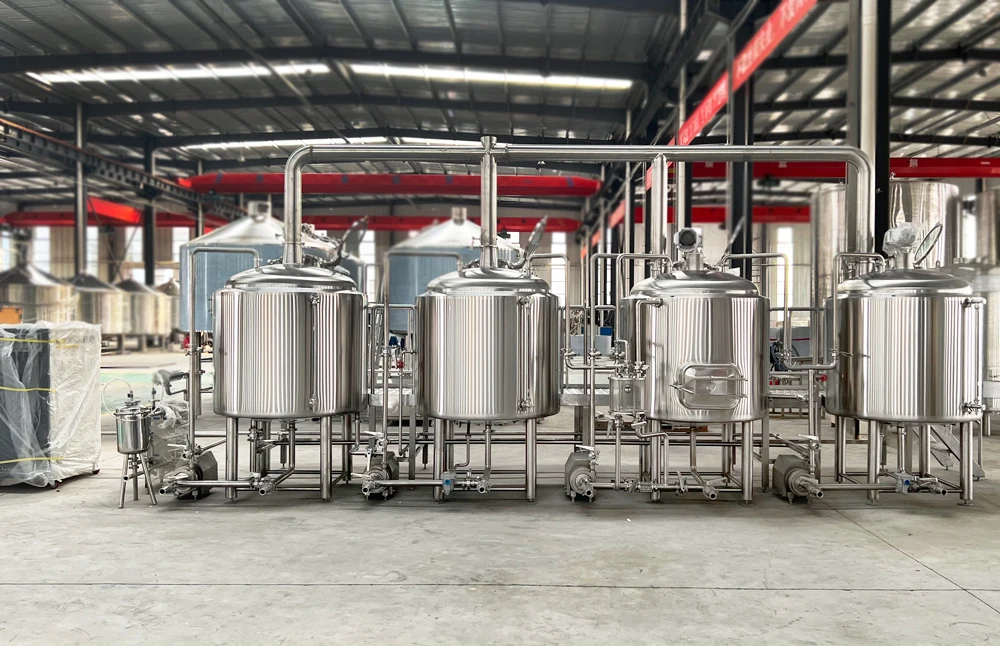

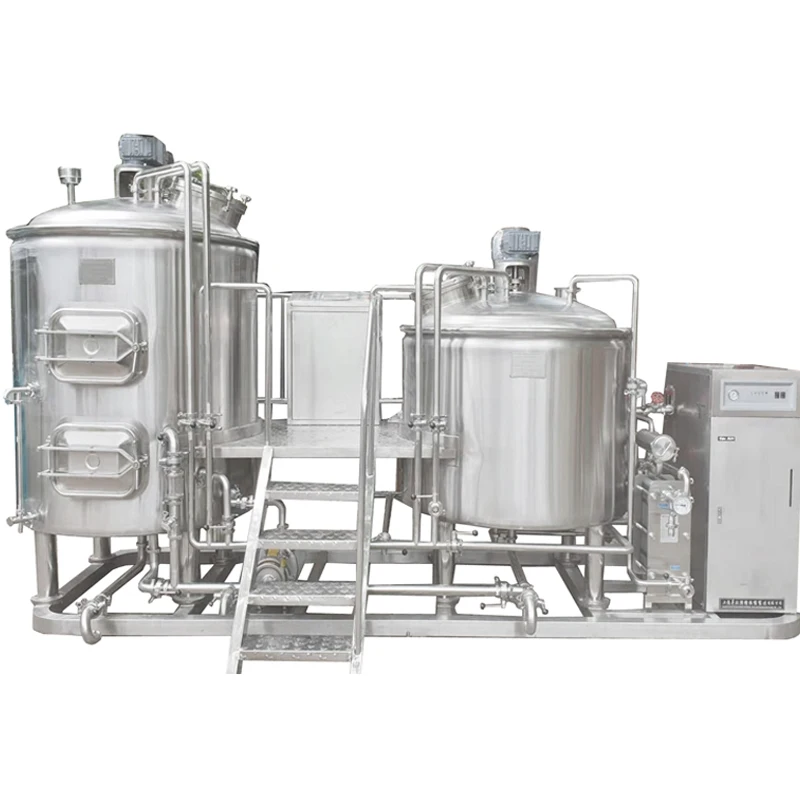

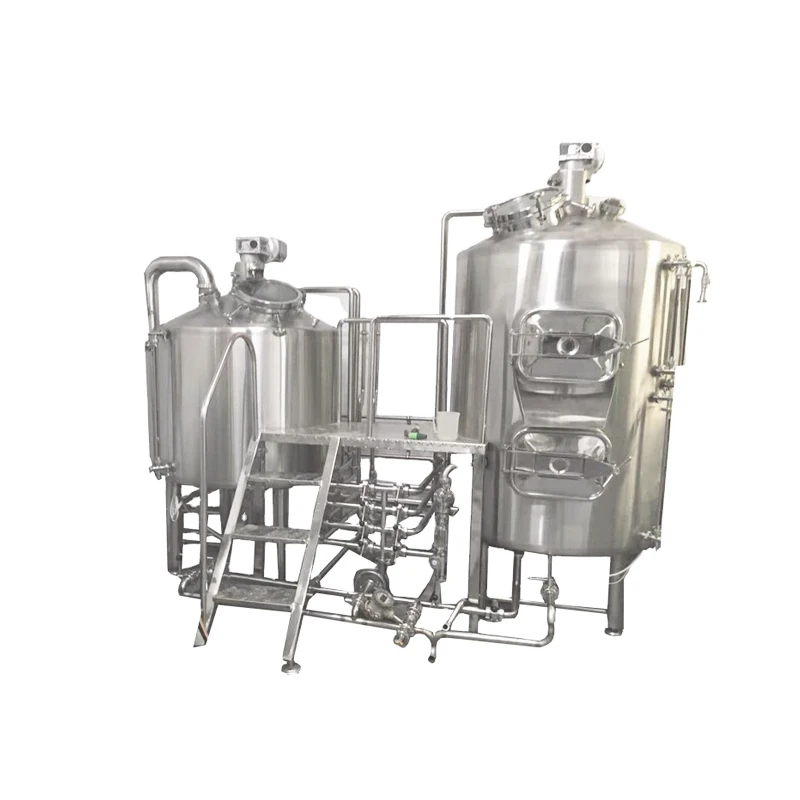

2: Mash system

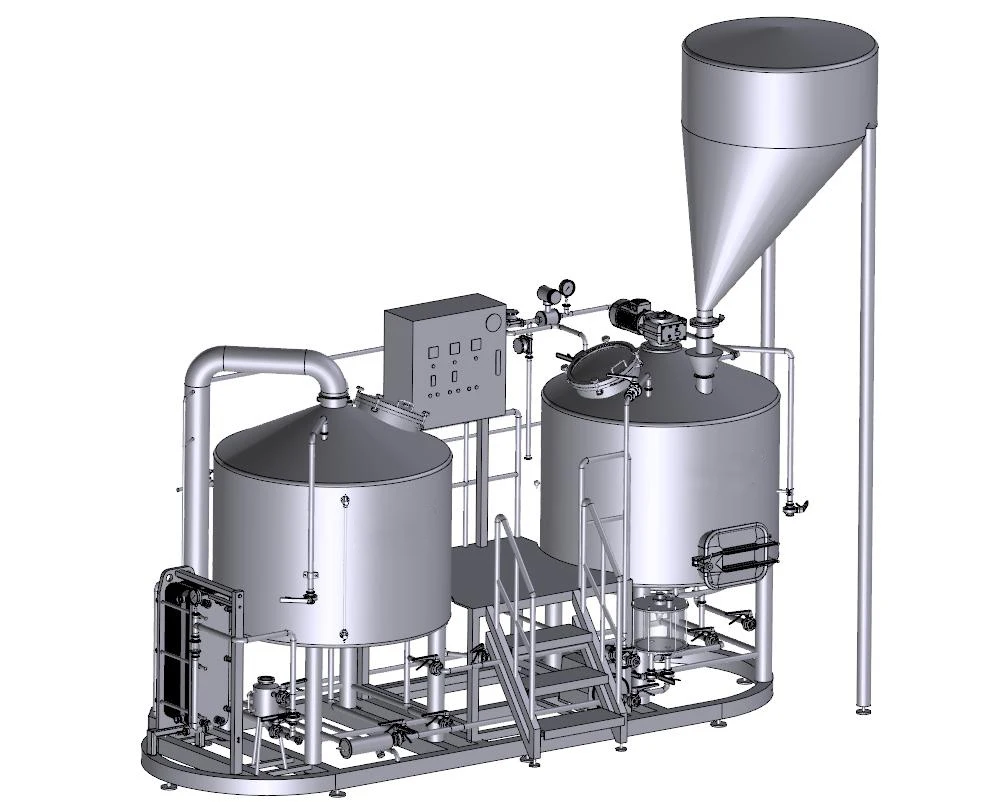

Zunhuang series mash system consist of 1 vessel mash system, 2 vessels mash system, 3 vessels and other design, mainly includes mash tank, brew kettle, lauter tank and whirlpool.

The main part of equipment in this system are made of SUS304, SS316 reaching international standard level.(Zunhuang company also can customized high quality copper equipment according to user place.

All the pipes and vales among the whole equipment are connected by sanitary joint for easy to connect, install, uninstall, move and alter.

Now Zunhuang equipment adopt electric heating, steam heating, gas heating and direct fire heating method on mash heating system.

German style: Mash tun/Brew kettle+Lauter/ Whirlpool.

HLT is optional.

Material: SS304/SS316/SS316L/Red copper/Titanium plate/Other material.

Heating method: Electric heating/ Steam heating/ Direct fire heating.

For mash system, beside these main tanks also with other auxiliary equipment such as pump,  plate heat exchanger, buffer tank, hop filter, platform, pipes and other necessary.

Support customization, please contact for more requirements!

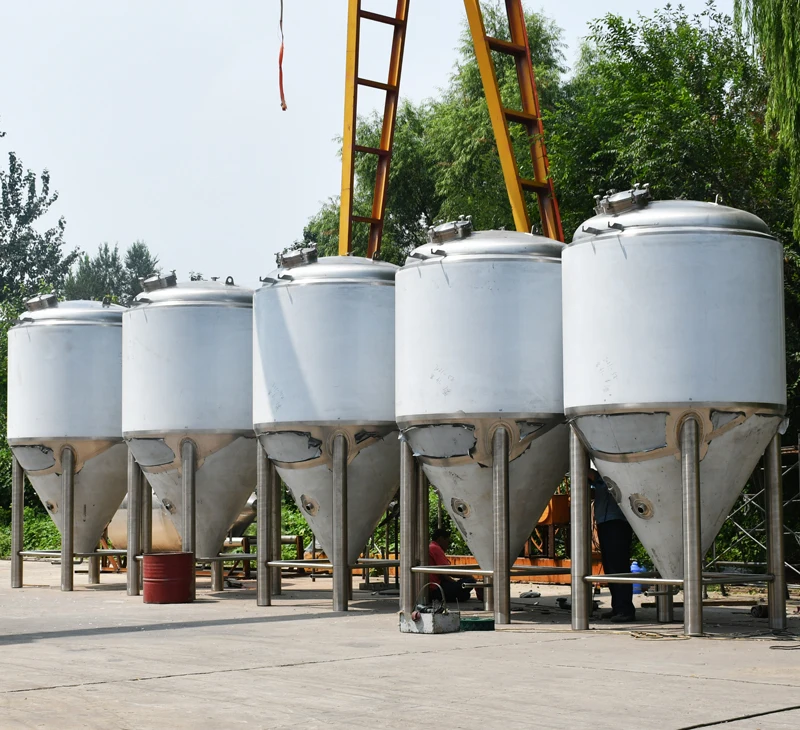

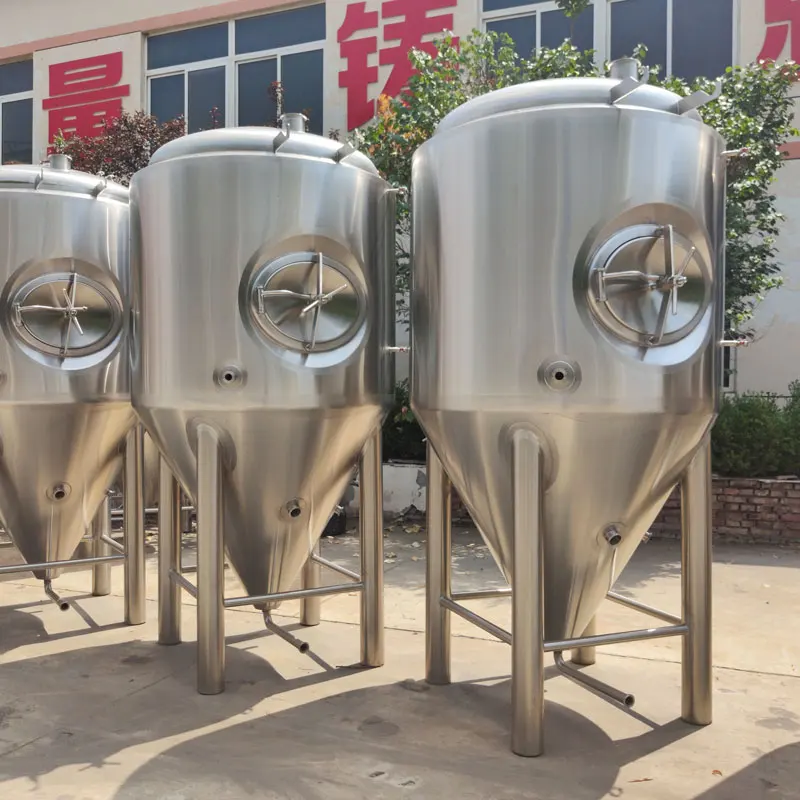

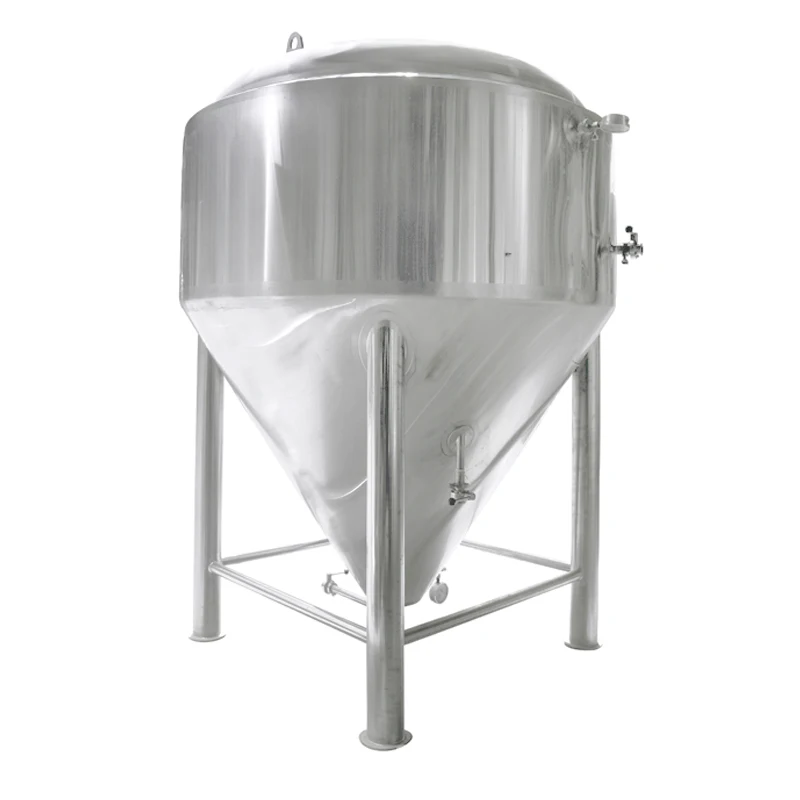

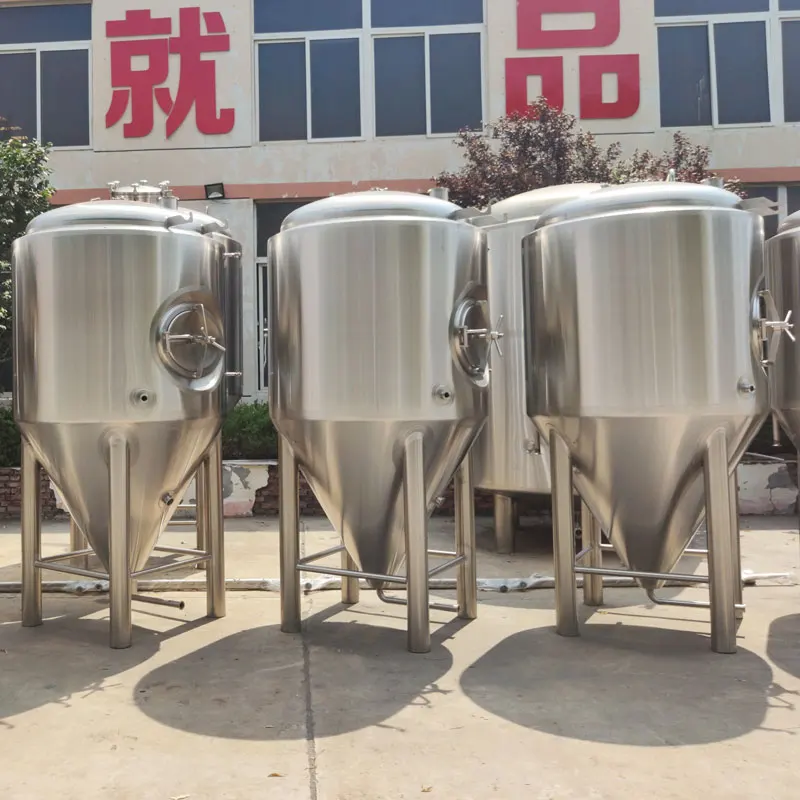

3: Fermentation System

Zunhuang company are generally use 12 days as fermentation to configured fermentor,high quality fermentation, fermented good quality beer,the right amount of good commodity market with a bright future.

The fermentation tank adopt cooling jacket and two-stage cooling refrigerant control mode at the cone and cylinder. So such design and cooling method to control the flow of the cooling liquid state in fermentation tank by the size of the two-stage cooling refrigerant flow. It will improve heat transfer efficiency and cooling rate, faster cooling, and reduce cooling costs and high economic efficiency equipment commercial operation.

Fermentation system:brewery complete

1. Capacity: 50L-30000L, 1bbl-100bbl, +25% Head space

2. Interior shell thickness 3-6mm, Exterior shell=2mm

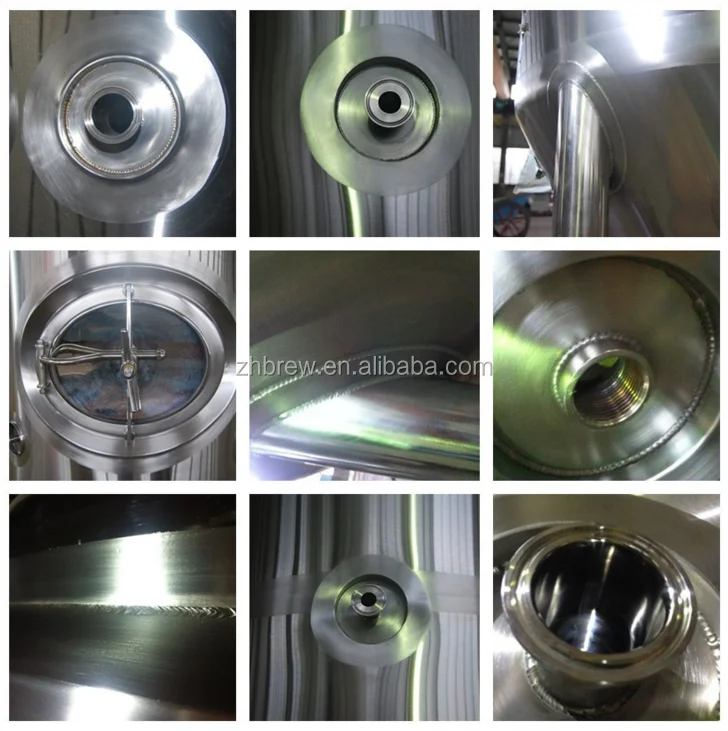

3. 100% TIG welding with pure argon gas shield

4. Interior finish: pickled and passivated, external polished, 80mm insulated

5. Test pressure 3 bar, working pressure 1.5 bar

6. Glycol zones (Both on side and concial/bottom)

7. 60°conical bottom for Fermener, Shadow less side man way

8. Racking arm, Sample valve, Pressure relief valve on the top, Dry hopping on the top

9. Mechanical relief valve 3 bar on CIP arm with pressure gauge

10.Adjustable tank leveling pads.

4: CIP Cleaning System

CIP cleaning system is consist of alkali tank, acid tank, sterilization water tank, disinfection tank, sanitary pump.

Accordingly the capacity of the equipment, Zunhuang company special manufactured small CIP cleaning trolley.

Feature: The CIP sterilizing trolley operates flexible, simple and high efficiency, which can use for various types of small brewer equipment cleaning and disinfection that can disinfect thoroughly and have no dead angle.

5: Cooling System brewery brewing system

Cooling system mainly includes Ice water tank, glycol water tank, plate heat exchanger, refrigeration unit, cooling pipelines and vales and control system.

Zunhuang select the imported compressor refrigerator, safe operation, low failure rate to solve the user's worries. All the piplines systems used in sanitary and without welding dead, high quality polyurethane insulation, effectively reducing the heat loss.

6:Control System

Control system is the core part in the whole beer production line, including: malt mash, mash, fermenting, cooling, temperature control, pressure control and other auxiliary. It can achieve the part control or whole PLC automatic control.

Ten provide to service you:

1. After-sale Service for the whole life.

2. 24h service for you, solve your urgent problem first time.

3. 3 years warranty for the main products.

4. Free design for your brewery layout for 2D or 3D.

5. Spare parts replacement and repair service provided.

6. Engineer going abroad for installation, debugging and technical training if you need.

7. Provide the Form E, CO, etc..others necessary reduce import Tax files for you.

8. To provide update information about brewing equipment technology once we test.

9. Help you send the goods if you have others company order, then send to you together.

10. Door to Door service, if you need any brewing parts.

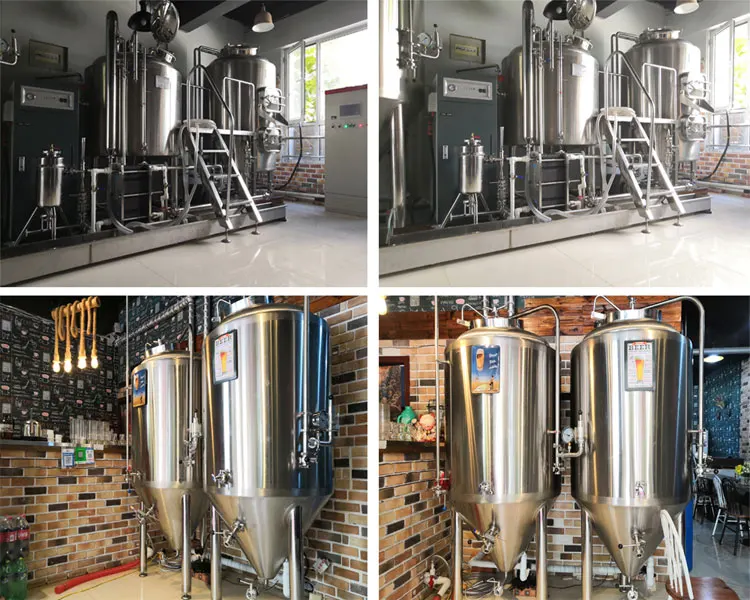

Company and client visit

1:Shandong Zunhuang Brewing Equipment Co., Ltd is the domestic integrated industrial and trade comprehensive enterprise dedicated in research, manufacturer, development, sales and after-sale service, until now have the 16 years produce experience, company focuses on beer brewing system full set production line, micro brewery turnkey project.,fruit wine equipment.our company purpose: “Quality first, customer highest”, use the short period provide direct and comprehensive service, and improve the products’ value and market competitive. brewery brewing equipment

2:Shandong Zunhuang Brewing Equipment Co.,Ltd established in 2012, factory covering area 8000 square kilometer. we have first-class scientific research and development personnel,first-class production and technical personnel,advanced processing equipment,established a perfect after-sale service and security system with good ability of equipment supply and services, Our engineer can go abroad installation and personnel training, remove all your worries and let you have a smoothly brewery project,our professional team will be your strong backing and protect your brewing journey.

Certification

Zunhuang technology has been internationally recognized, obtained ISO9001:2008 and CE international quality system certification. We accept the third-party inspection of ASME, CE adn AS1210 and successfully obtain a number of national product patents, so that our roducts are always in line with the latest technology and quality requirements of international products. brewery brewery
