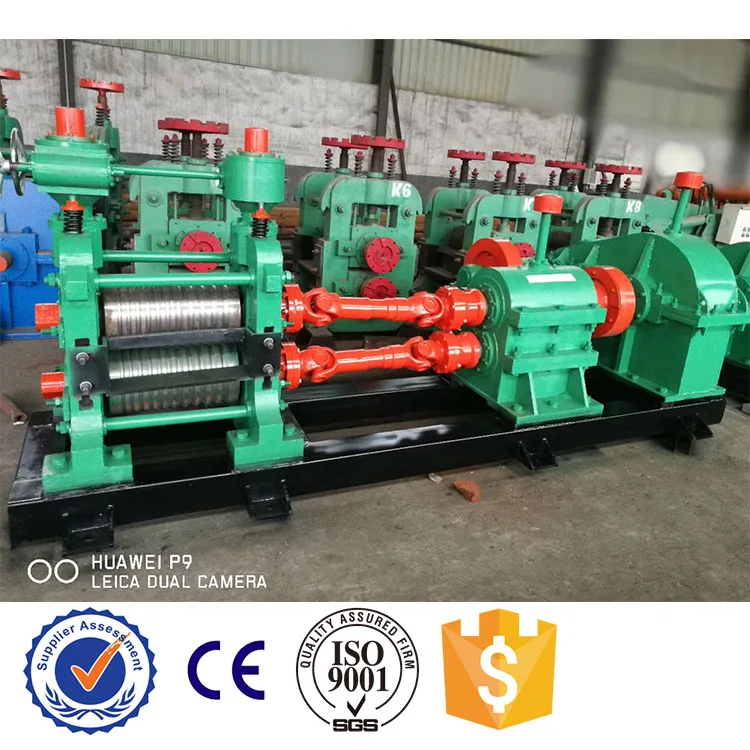

produce 8 32mm steel bar rebar 1 3T/Hour steel rolling mill machinery line
- Category: Rolling Mill >>>
- Supplier: Luoyang Hongteng Electrical Equipment Co. Ltd.
Share on (60761874611):
Product Overview
Description
Produce 8-32mm steel bar 1-3T/Hour
steel rolling mill machinery

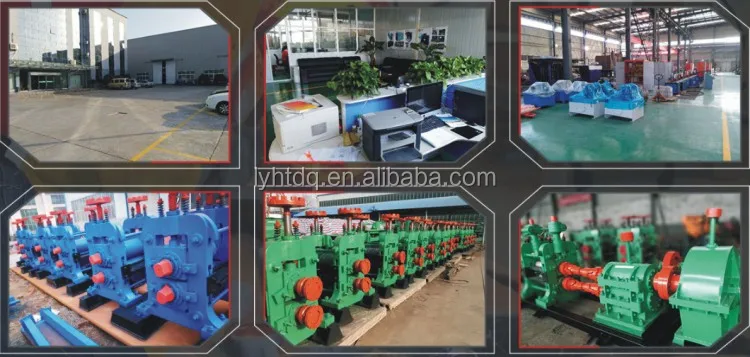

About Us
Our company production of various types of melting furnace, rebar production line ,induction of billet heating furnace, the billet heating furnace, hot rolled steel bar production line, steel bar production line, aluminum ingots and other production line
Product Description
Steel barrebaring mill machinery
produce 8-32mm steel bar rebar 1-3T/Hour steel rolling mill machinery line
1) rough rolling

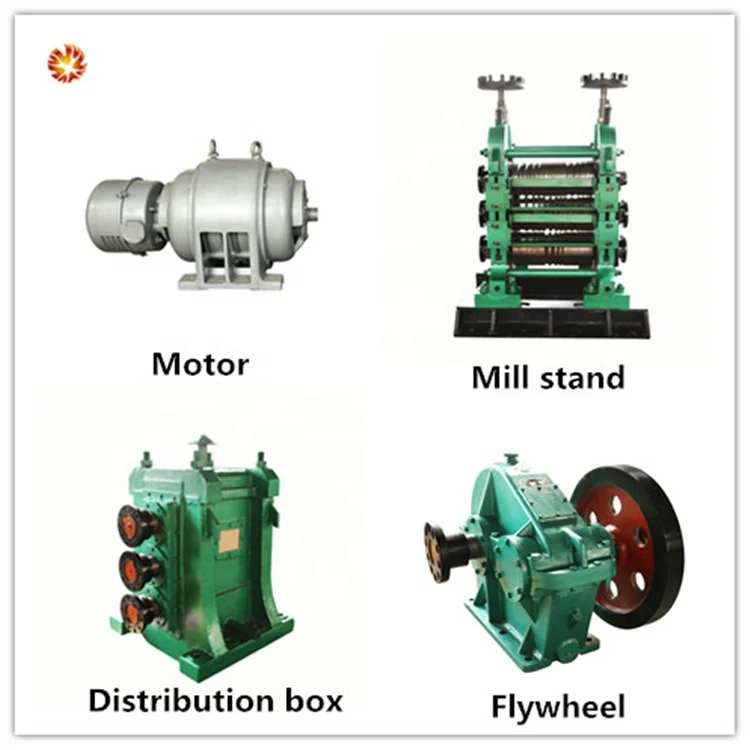

The steel billet heated by the heating furnace is pushed out by the tapping machine one by one, and is fed into the Φ250 three-high mill through the exit roller path and the front working roller path. After seven passes of rolling, the reduction is 1.35. The roughing mill is driven by an AC motor. The motor speed is 8 poles adjustable, and the motor power is 280 KW. To avoid the impact of the excessive current during rolling on the motor, the roughing mill is equipped with a 3 ton flywheel set. After rough rolling, it is necessary to flush the rolled piece with high-pressure water, so that the scale on the surface of the rolled piece falls off, creating a condition for subsequent rolling.
2) The middle mill was set up as two Φ250×2 two-high mills. After the rough rolling, the round billet is sent to the fixed cutting head via the end table roller path and enters a group of Φ250 two-high rolling mills for 1 pass. After that, it enters the subsequent Φ250 two-high rolling mill for 1 pass, which passes through 2 passes. After the secondary rolling, the diameter of the rolling section is Φ-mm, and the rolling reduction is 1.35.
3) Finishing mill
After rolling, the rolling stock enters the finishing train after rolling. The finishing train consists of a Φ250 two-high rolling mill. The final cross-section diameter of the final product after one finishing mill is Φ10mm.
We supply the whole rillbed steel rebar production line
1.steel rebar diameter:8--32mm.square bar:50*50, 60*60,70*70, 90*90,100*100,150*150,length:3000-6000mm
2.CNC control system,six zones:(Melting zone,casting zone,heating zone,rolling zone,cooling zone,collecting zone)
3.Service part
--Providing plant design,make proposal,manufacture,shipment,installation service and commisioning service
--Providing plant design,overall equipment layout,process design,electric and wire layout,foundation layout,design rolling machine etc service.
--After machine arrival,dispatch technical staffs to supply installation service.finish all service till customer satisfied
--Long time technical service support
--Super long time machine warranty support
Rebar production line procedure:
Waste steel ----melting---- casting----mold unloading----sorting-----deliver to heating furnace----heating to 1150 degree to 1200 degree----- come out furnace----- rolling----- finished product ----packing---- sales
Our advantages supply steel rolling mill machinery:
1.We are a manufacturer in China. So we can control the cost well.
2. We use the top material in our furnace, imported ceramic fiber and accuracy temperature controller.
3. We supply good service after sale, you can be assured about that
produce 8-32mm steel bar rebar 1-3T/Hour steel rolling mill machinery line

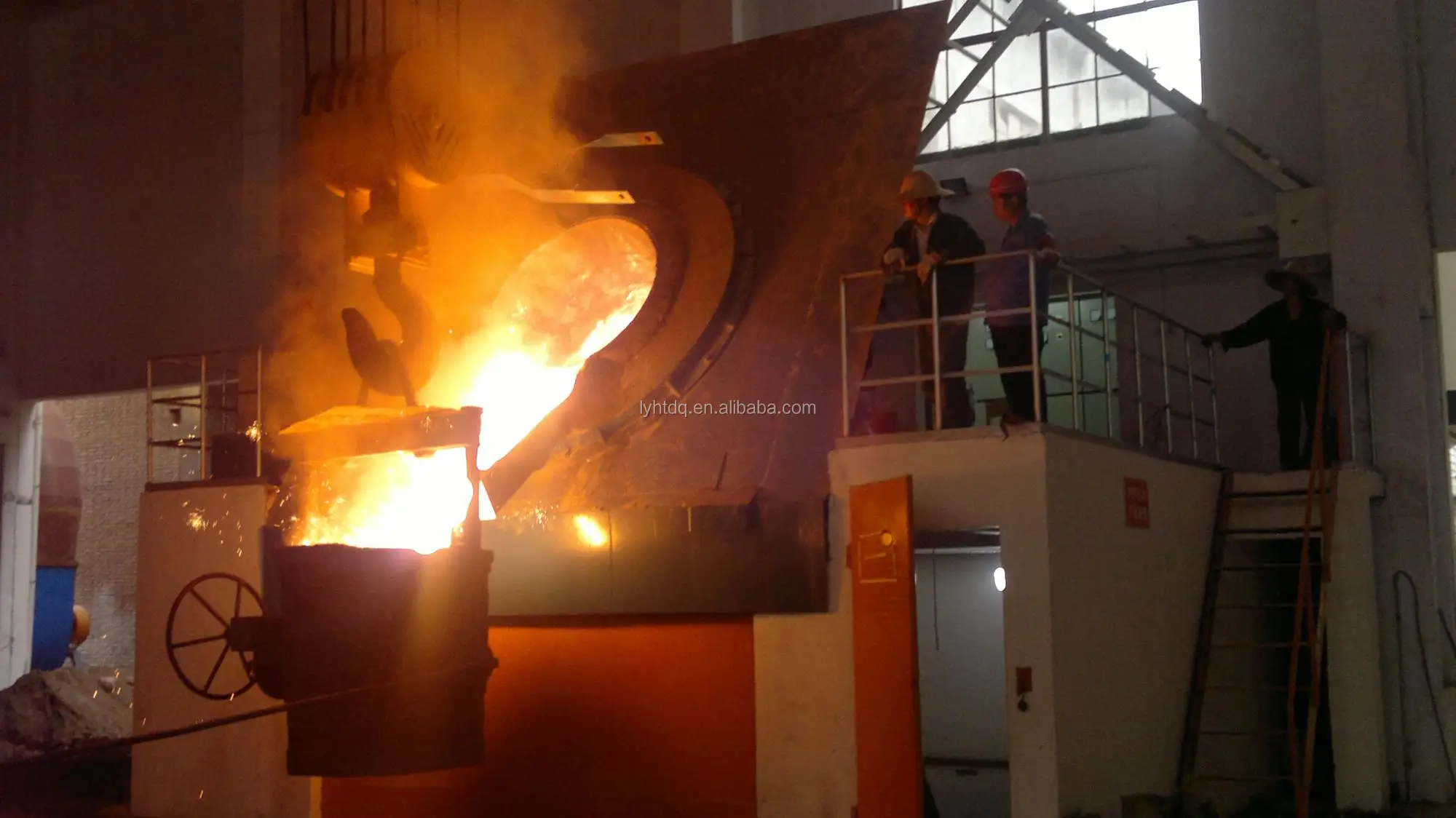

Melting furnace
Technical parametes of induction melting furnace
Model GWT-2000 | Technical parameters |
Rated power | 2000KW |
Input voltage | 950V |
Phase quantity | 6 phase |
Furnace rated voltage | 2500V |
Rated current | 1800A |
Rated frequency | 500HZ |
Rated temperature | 1800℃ |
Generator specification | KGPS-2000-0.5 |
produce 8-32mm steel bar rebar 1-3T/Hour steel rolling mill machinery line
Continuous casting machine
Smallest capacity CCM has 4T,5T,6T/hour
melting furnace, need 1T/Hour, 4 sets
Laddle furnace 1T,2 set
make 50*50 steel billets

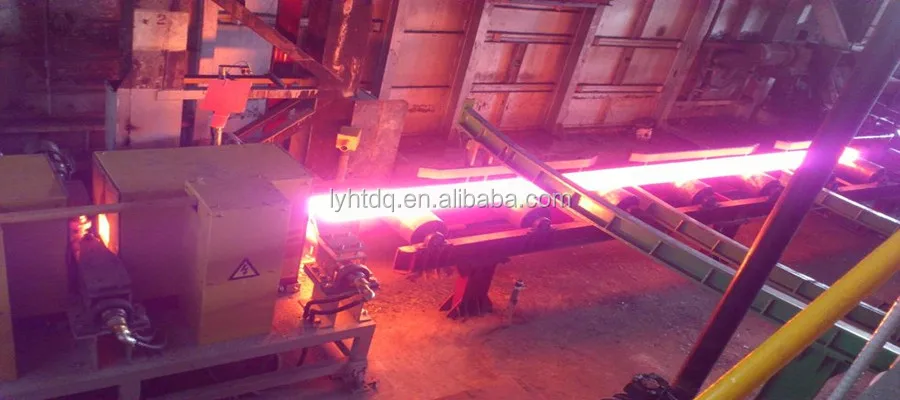

Medium frequency KPGS induction furnace also can be used for reheating steel billets ,befor it goes into rolling mills

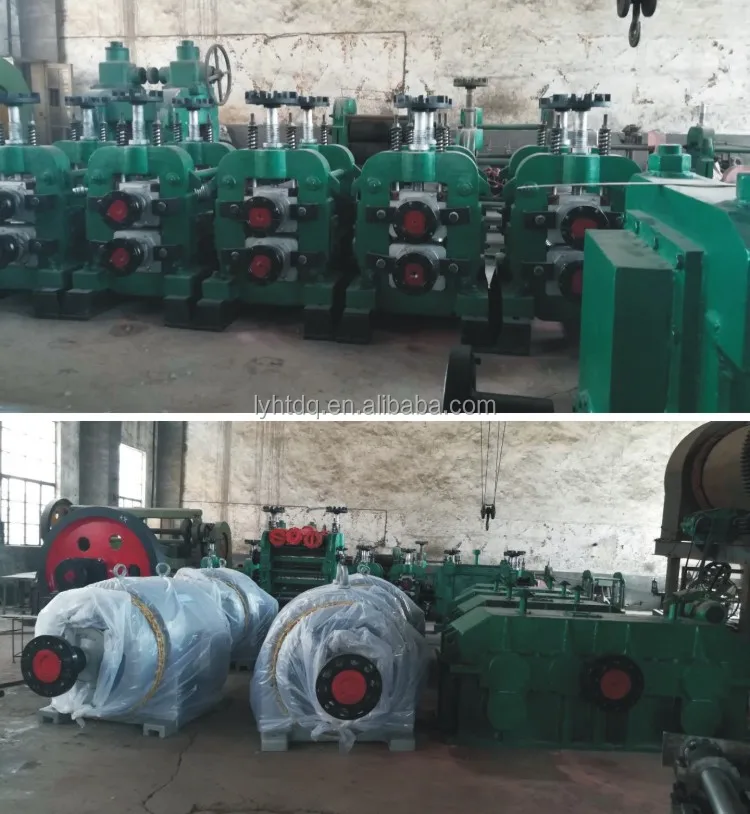

Rolling mill machine

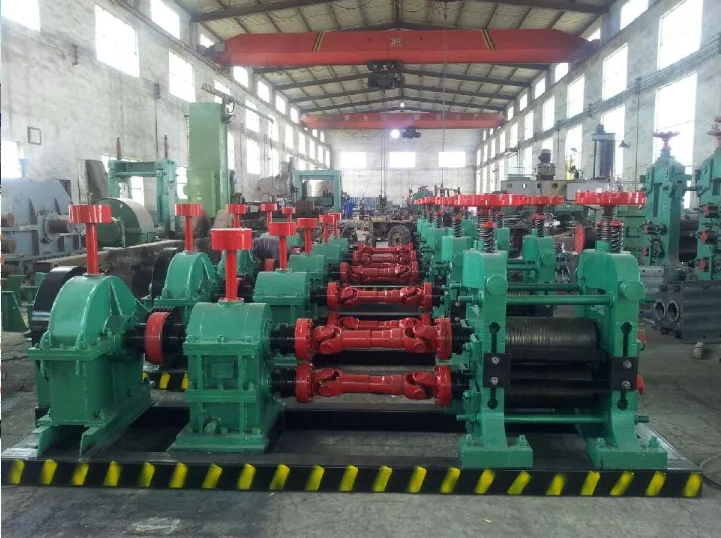

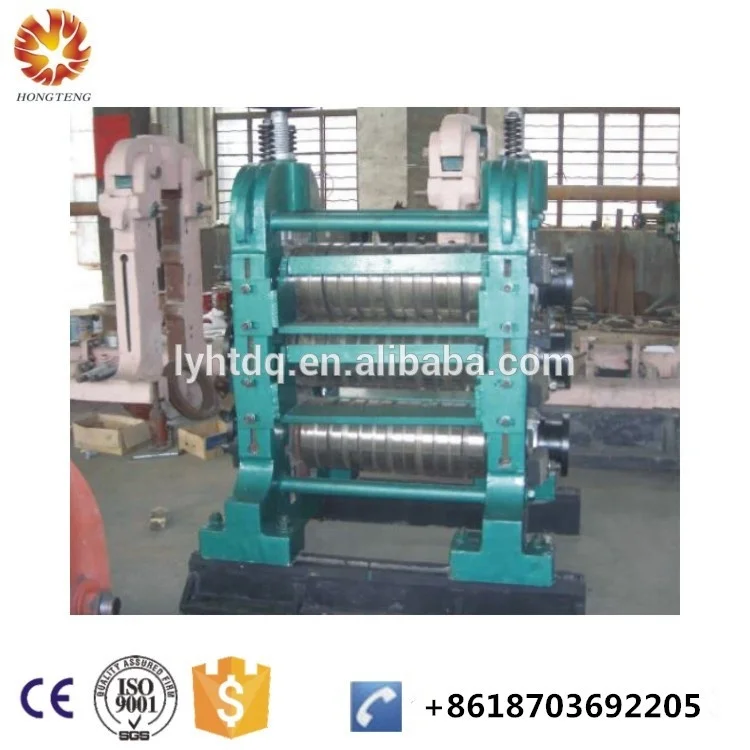

Hot Rolling mill machine
Rolling mill is mainly used in steel factory which produce deformed bar, wire rod, channel steel , flat bar,steel plate or other products.
Deformed bar hot rolling line is divided into continuous rolling and semi-continuous rolling.For continuous rolling, rolling type is double-groove single-line.
Billet hot charging and directly rolled reduces the billet storage procedure compared with traditional production type. It reduces storage area, as a result factory area is reduced and investment is saved, cash flow is increased at the same time. Billet hot charging and directly rolled make cold billet heating procedure before rolling unnecessary; it increases yield rate, reduces energy consumption and lower the production costs to attain better economic benefits. It also reduces scale generated in heating furnace by secondary heating and increases 0.3-0.5% yield rate.
Machine model | Deformed bar rolling mill |
Production ability | Custom made |
Deformed bar range | 8mm-36mm |
Final product specification | deformed bar, angle steel, wire rod,strip steel,steel plate,steel sheet ,section steel |
Raw material | Billet or scarp steel |
Rolling type | full continuous rolling or half continuous rolling/automatic machine or self-automatic machine |
Cooling method | Cooling bed |
Bar out method | Bar transfer machine |
Color | Depending on customers requirement |
Delivery time | Around 3/4months (without busy schedule) |
Steel Rebar production line

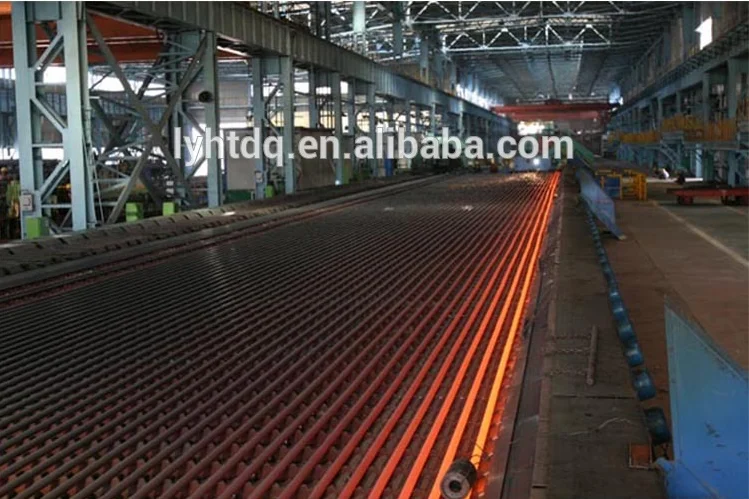

Stepping Cooling bed

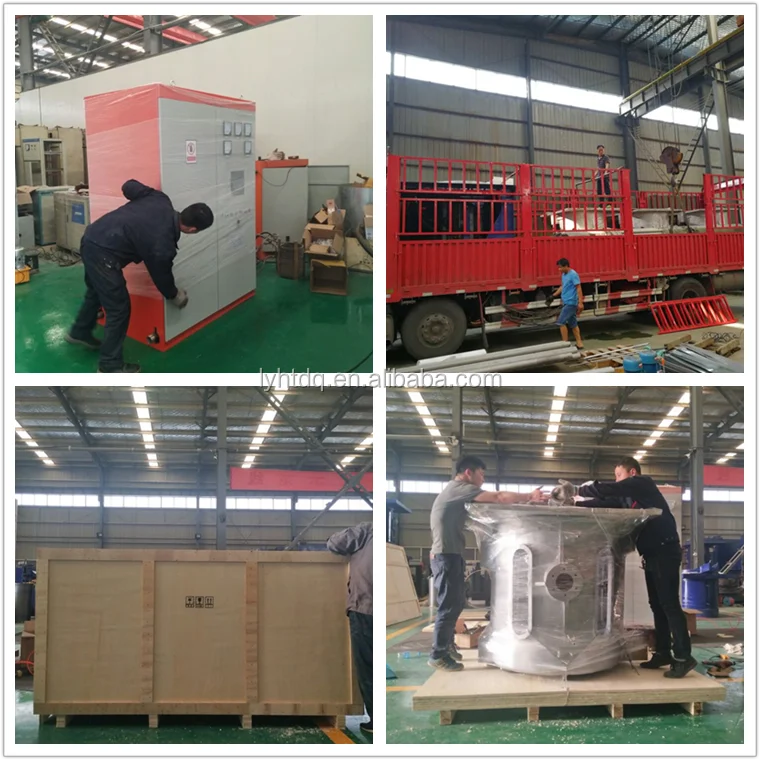

Packaging & Shipping
(plywood) Wooden cases for packing steel rolling mill machinery
Small indution heating system will be packed by standard plywood case for exporting ;if your order is large or the furnace you need with large capacity, we will deliver it by 20GP or 40GP container ,even by top open container .
Our Services
Before sales
We will carefully confirm customer’s requirements,check customer’s parts drawings & workshop design.Our professional technical will recommend and customized the right machines under customer's requirement.
Sales following
During machine production, Our QC person watching the machine quality and testing machine.and take pictures or make video for customer following check.we will also supply one account number for our customer to watch their order on his phone.
After Sales
We will dispatch our technical go to customer’s workshop,supply installation and debugging machines till machine normal production.
We will also training workers to operate & daily maintenance & normal repair.
Overseas After Sales Service Center
We have after-sell service center in Vietnam and Indonesia,We have after sell service person to supply all life-time machine maintance and repair service. '
FAQ
Q1: Our workers are not professional on the induction furnaces, how can we solve that?
A1:Don’t worry, when the induction furnaces arrive at the clients’ plant, our engineer will go and assist in installation, commission, and training until the workers can operate by themselves.
Q2:Which kind of power supply do you supply? Electricity or gas?
A2:Electricity.
Q3:What about your package? If damages happen, how do you solve?
A3:We take container loading, wire fixing. If damages occur, we will send the spare parts for you.
Q4:How can I trust your company and machine?
A4:Our factory have been in induction equipment ,induction furnace and product parts for around 15 years , entering alibaba for ads .And our machine have exported to East Asia, South Asia, the middle East Asia, Africa etc. areas and have a good feedback with no complaints.
Q5: Is it all right to make customer's own brand name?
A5: Sure, with your authorization of brand. We accept OEM service.
Q6: How do you control the quality?
A6: We have QC team comply with TQM to ensure the quality. Each step is in compliance to the standards. At the same time, we will take photos and shoot video for you if you need.
Q7: How long is your delivery time?
A7: Generally it is 7-14 days if the parts are in stock. or it is 25-30 days if the parts are not in stock, it is according to quantity.
Contact Us
contact us:Jane
Phone/whatsapp/wehcat:+8618703692205
We provide 3T/H, 5T,7T,10T,15T/Hour steel rolling mill machinery , please feel free to contact us !
Thank you for your reading !
