HBJ D 1200 Paper Carton Erecting Machine

Product Overview

Description

HBJ-D1200 Automatic Paper Carton Erecting Forming Machine

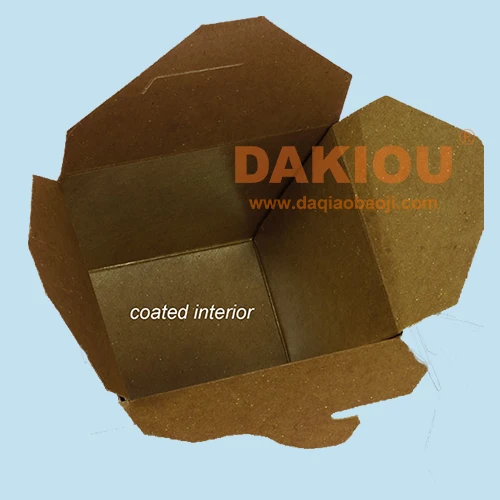

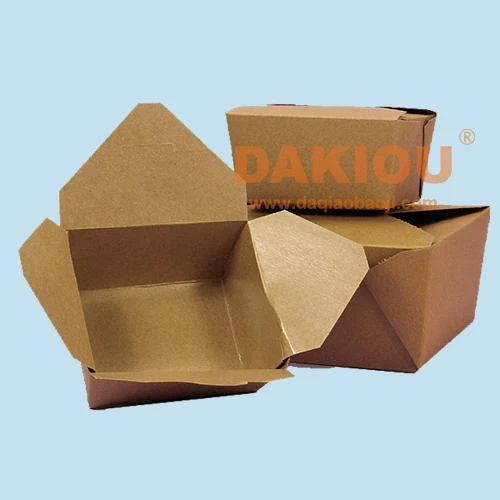

HBJ-D CARTON ERECTING MACHINE is an ideal choice to produce hamburger boxes, chips boxes, takeout container, etc. It adopts micro-computer, PLC ,alternating current frequency converter ,the vacuum-sucking paper feeding, auto gluing, automatic paper tape counting, chain drive. All of these main parts and electric control system adopts imported brand to guarantee steady working, precise positioning, smooth running, safety and reliability operation.



Technical Specification

Model	HBJ-D800 single lane carton erecting machine	HBJ-D1200 Double lanes carton erecting machine
Production capacity	60-160 pcs/min	120-300 pcs/min
Suitable Material:	160-600g/m2 card paper,  corrugating max 1.5mm
length:	L100-480mm, degree:5°-40°
width:	B100-600mm Seal height H15-200mm	B100-485mm Seal height H15-200mm
Total Power:	4.75KW	6.25KW
Total Weight:	2.2T	2.5T
Overall Dimension:	3600 x1400 x 1600 mm	3600 x 1800 x 1600 mm
power source	380V 50HZ



Main Features:



1.The carton erecting machine is highly efficient. The working speed is 160-300pieces per minute and finished produces are automatically counted. It can do different size and shape boxes through changing mold.



2.The machine adopts chain drive to guarantee smooth running, hard-wearing. the chain drive of every unit are separated to reduce noise and workload, increase the stability.



3.Automatic gluing system controlled by reduce motor from Taiwan. Gluing point is made of sponge and adjusted convenient.



4.Every parts of forming and collecting system can be adjusted according to the size of mold. The whole collection system can be opened to change mold and install the forming parts conveniently.



5.It adapts paper tape counting equipment. Quickly and efficiently adjusting, accurately counting and product undamaged.

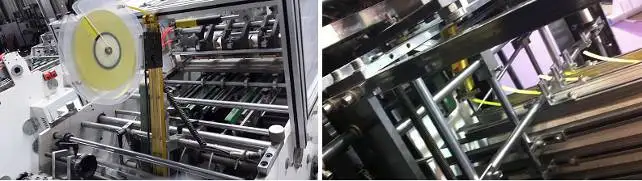

countiing system and paper tape



Components Brand:

Motor	Main motor	CHINA FAMOUS BRAND
	gluing  motor	JSCC(TAIWAN)
Electric elements	PLC	(SIEMENS)
	Frequency converter	(SIEMENS)
	HMI	(SIEMENS)
	All other electrical parts	(SIEMENS)
	Photoelectric switch	AUTONICS(KOREA)
Pneumatic	Main air cylinder	CHINA FAMOUS BRAND
Belt	paper feeding belt	EP(USA)
	convey belt	TIGER(ITALY)
