1 ton 3m electric stacker DC motor economical full automatic stacker with 3 stage mast
- Category: >>>
- Supplier: Guangzhou Sunrise Machinery Equipment Co. Ltd.
Share on (60761918036):
Product Overview
Description
pallet stacker
Product Description

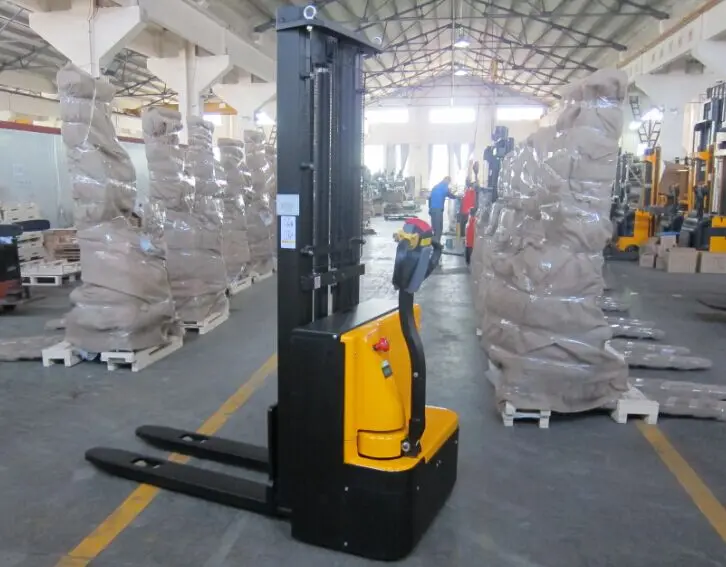

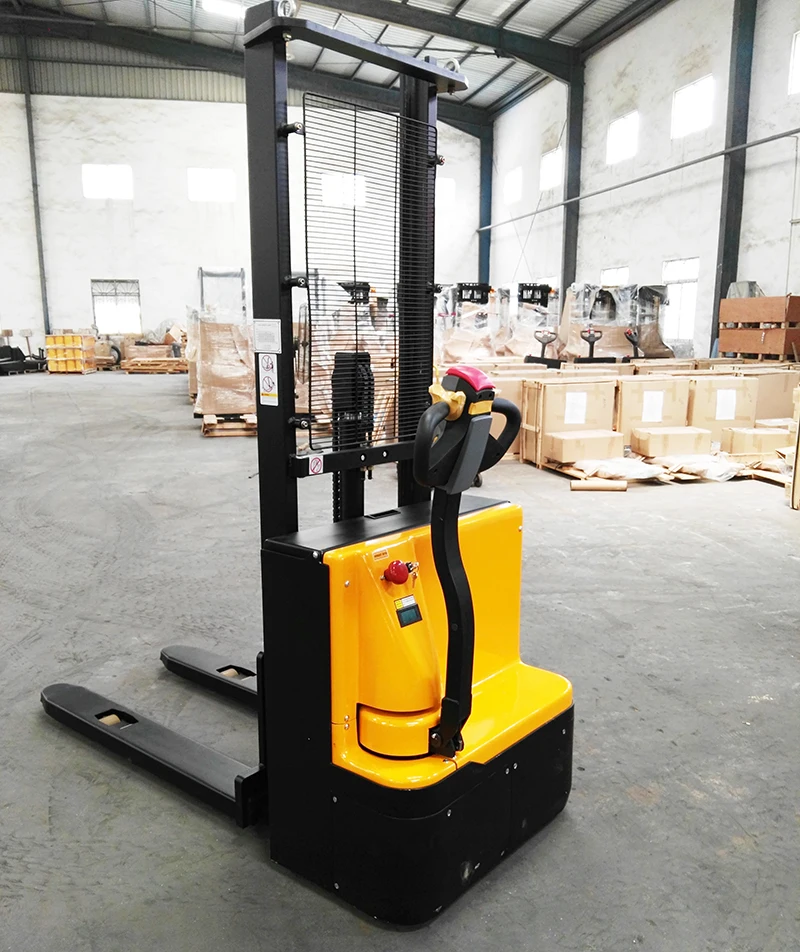

electric stacker
- Ride-on platform desgin.
- Quiet,safety,durable,reliable and efficient
- A green product, no pollution.
- High tensile German mast steel to provide long term safety and durability.
- Capacity is 2000KG
- Lifting Height:3500MM
- Easy to operate

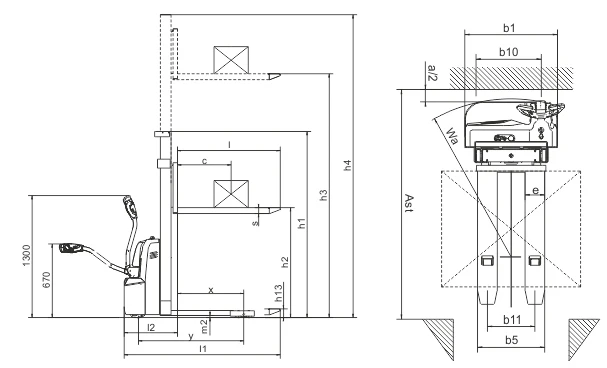

Data for electric stacker
| Model | LES10 | LES12 | |
| Drive type | electric | ||
| Operation type | pedestrian | ||
| Load capacity | Q(kg) | 1000 | 1200 |
| Load centre distance | c(mm) | 600 | |
| Load distance, centre of drive axle to fork | x(mm) | 697 | |
| Fork height,lowered | h13(mm) | 90 | |
| Wheelbase | y(mm) | 1335 | |
| Tyres | polyurethane | ||
| Height, mast lowered | h1(mm) | 2087/1837/2087/2237 | |
| Max.lift height | h3(mm) | 1600/2500/3000/3300 | |
| Height,mast extended | h4(mm) | 2087/3087/3587/3887 | |
| Overall length | l1(mm) | 1965 | |
| Overall width | b1(mm) | 820 | |
| Fork dimensions | s/e/l(mm) | 60/170/1070(1150) | |
| Width overall forks | b5(mm) | 580/695 | |
| Aisle width for pallets 1000×1200 crossways | Ast(mm) | 2400 | |
| Aisle width for pallets 800×1200 lengthways | Ast(mm) | 2370 | |
| Turning radius | Wa(mm) | 1525 | |
| Tracel speed,laden/unladen | Km/h | 5.3/5.6 | |
| Service brake | Electromagnetic | ||
| Battery voltage,nominal capacity K5 | V/Ah | 24/120 | |
| Service weight(with battery) | kg | 700/730/750 | 710/740/760 |
