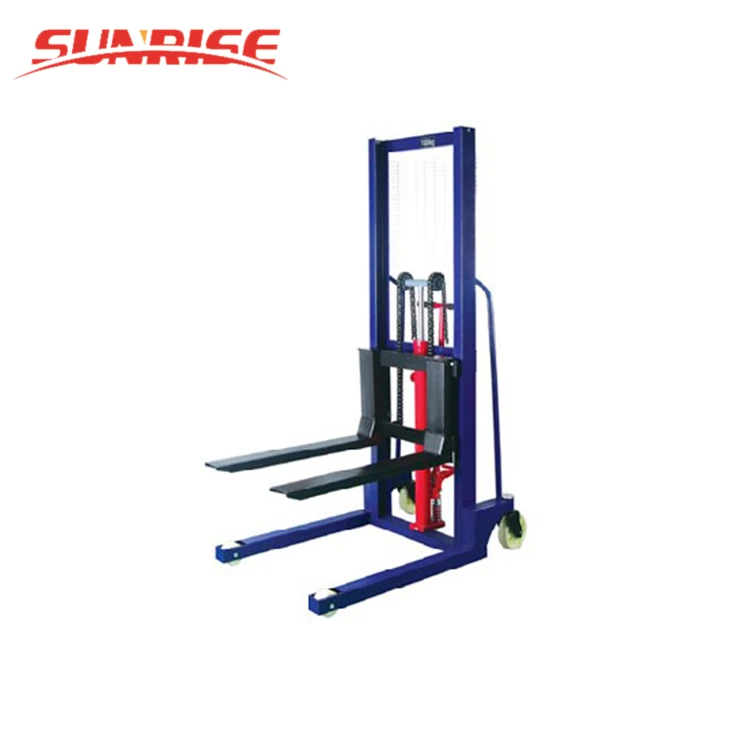

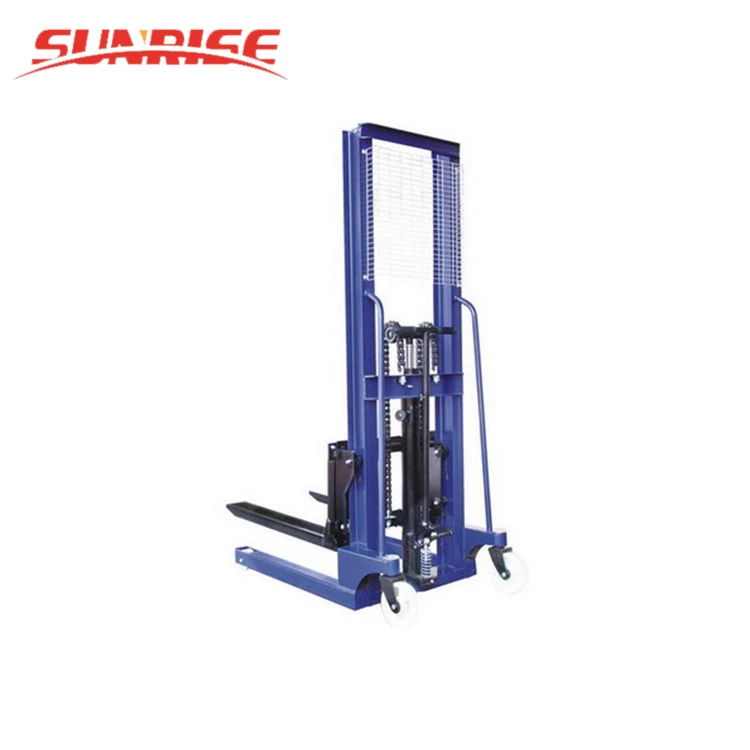

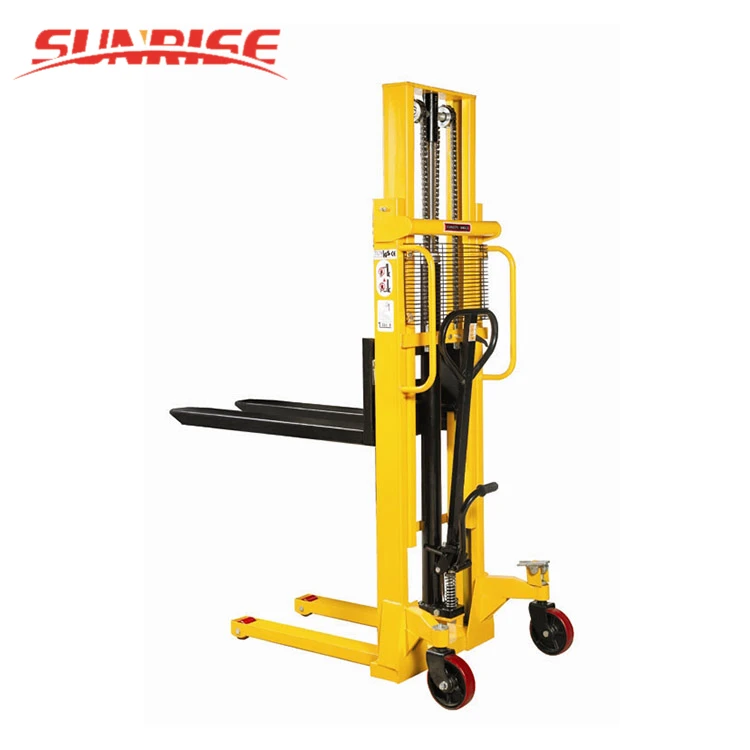

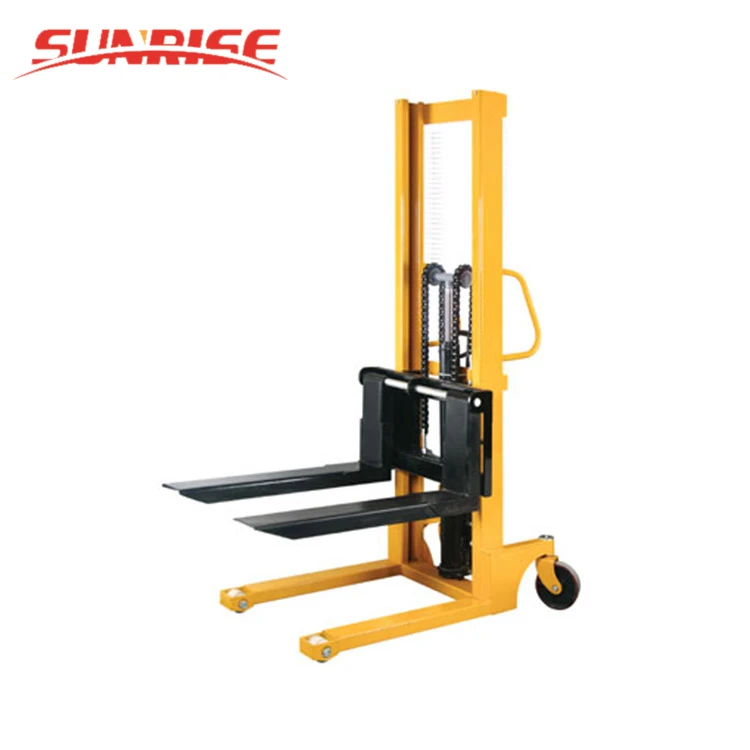

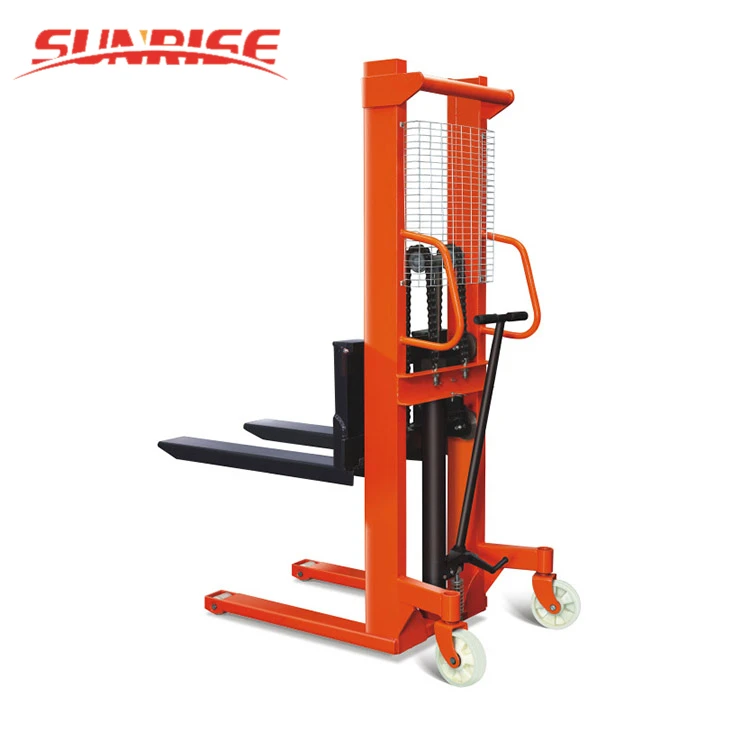

1 ton manual hand forklift pallet stacker jack truck

Product Overview

Description

Model Number		MS05-16	MS10-16	MS15-16	MS 20-16	MS10-25	MS10-30
Rated Capacity(Q)	kg	500	1000	1500	2000	1000
Load Center(C)	mm	400				400
Min.Fork Height	mm	85	90			90
Max.Fork Height	mm	1600				2500	3000
Fork Length(H)	mm	800	900			900
Fork Width(L)	mm	750	950			220-900
Min.Turning Radius(E)	mm	1110	1250			1250
Wheel Base(R)	mm	996	1100			1100
Front-Wheel Distance(Y)	mm	213	178			210
Overall Length (X)	mm	1280	1380			1340
Overall Width (A)	mm	800	1000			950
Overall Heigth (B)	mm	1980	2100			1810	2060
Overall Net Weight(H1)	kg	155	255	265	290	355	370
