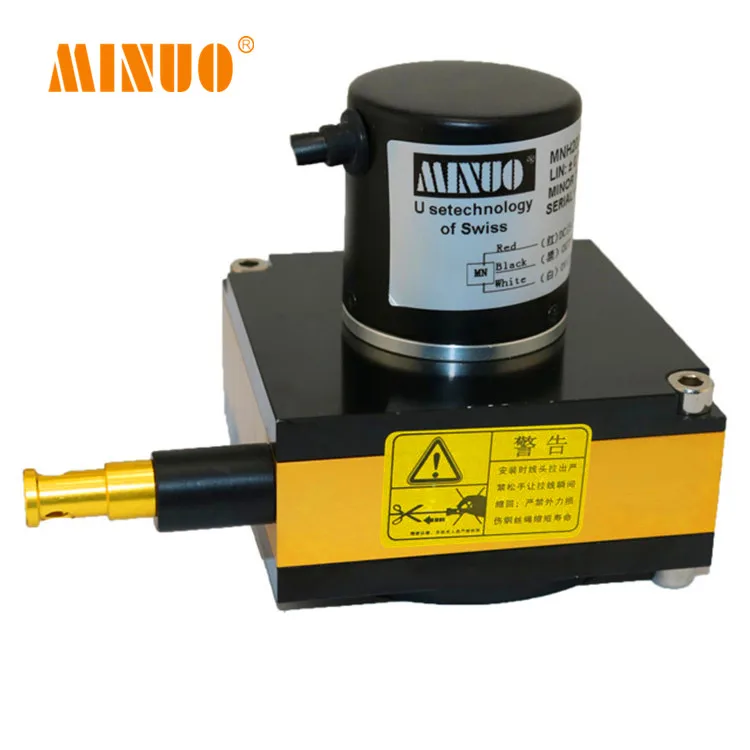

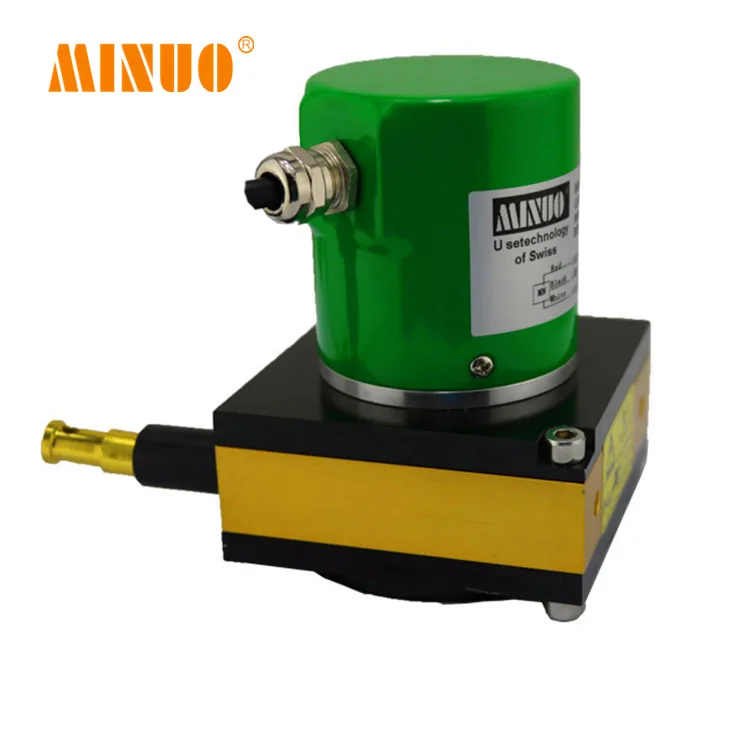

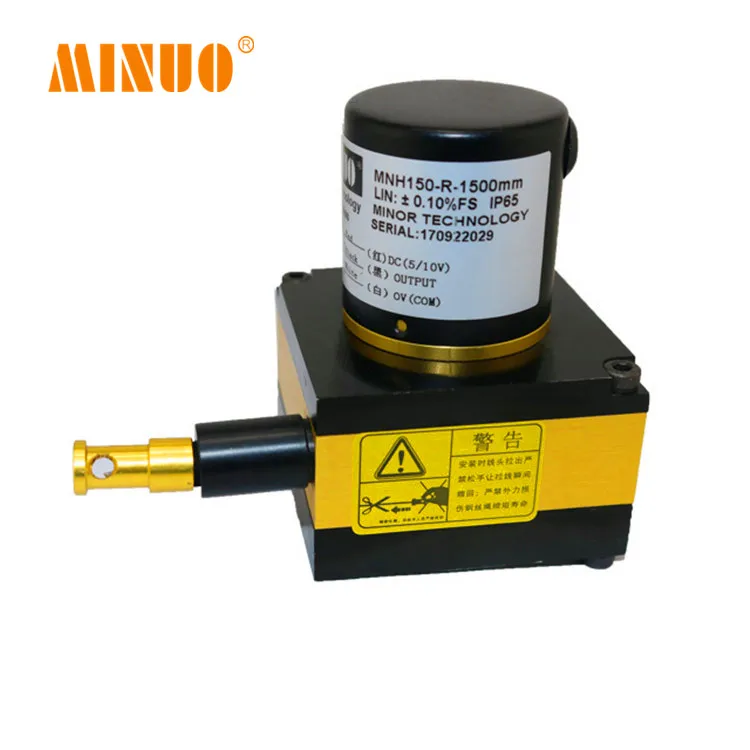

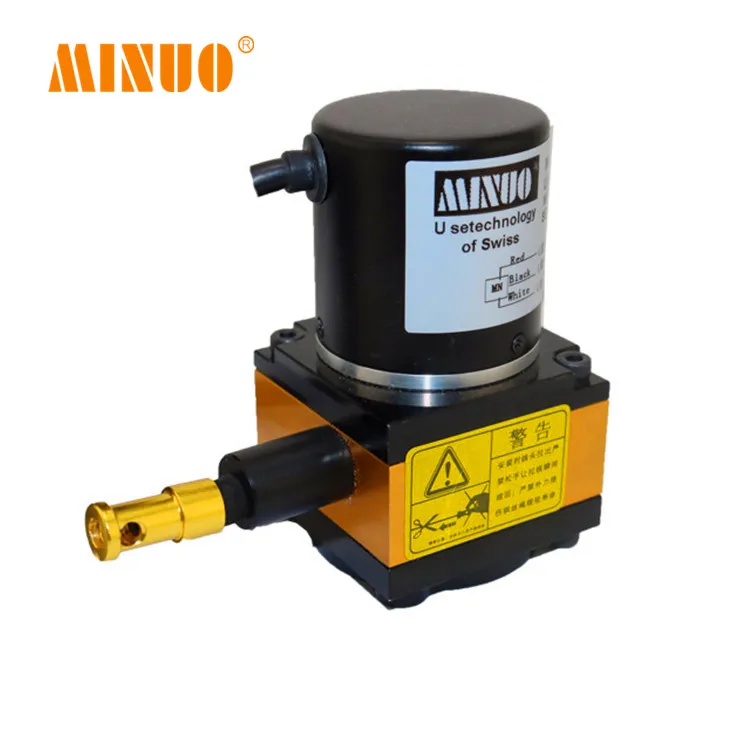

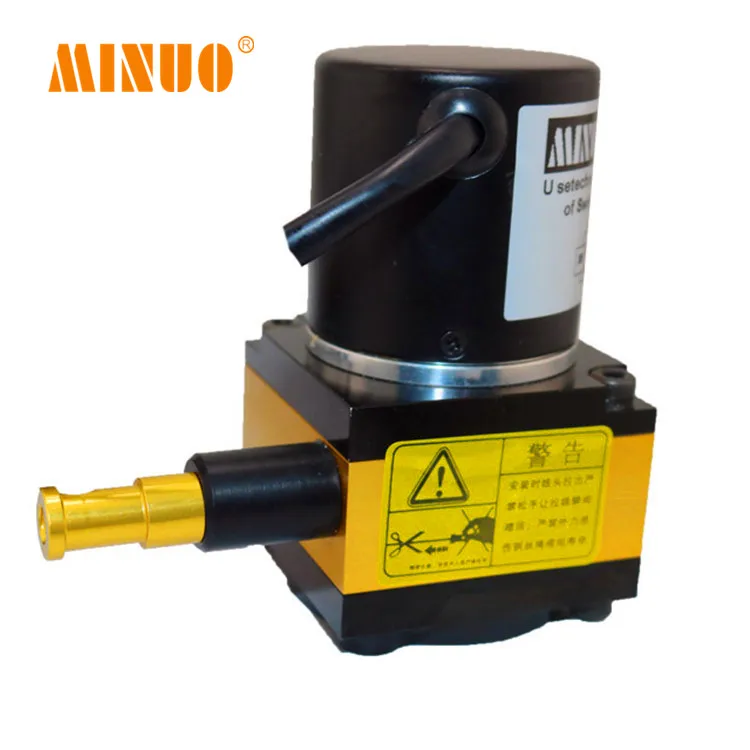

MINUO MNH 40 pull rope (pull wire) displacement sensor linear potentiometer 10k wire displacement sensor

When pull the Draw wire position sensor,it will output a settled pulse, for photoelectric encoder output pulse and encoder grating engraved liness the same,when it need to improve resolution, available A and B two way signal frequency or replace the high resolution encoder, The starting point of position can be arbitrary set,and can realize the multiturn unlimited accumulation and measurement (depending on the maximum stroke),you can also turn each signal of a pulse Z,as a reference for mechanical parts. With absolute value encoder wire displacement sensor when pull rotation (week), there are one-to-one with other displacement position code (gray code, binary, BCD) output, from the change in the code size, then you can judge the positionof the forward and reverse and the spindle. it doesn' t need the direction judgment circuit

SHENZHEN MINUO ELECTRONICS CO.LTD was founded in 2004,The company has the top bump type of conductive plastic potential sensor resistance  rail research and development and manufacturing and  the core technology. It is the earlier high-tech enterprises engaged in the electrically conductive plastic potentiometer(Angle) of research and development and production in China.We have obtained several patents,MINUO product therefore won the good market reputation and industry brand awareness.

  We with one-pointed,focus,focus,professional industry workman for the enterprise development concept.Continue to participate in future industrial 4.0 sensor core technology research and development,strive to build the world industrial automation engineer preferred displacement (perspective) sensor.Continuously improveproductqualityandservicequalitiosatistpesoaliztie

  MINUO main production and sales of conductive plastic displacement sensor(electronic rule),Rotary displacement sensor,Draw wire position sensor,transmitter, magnetostrictive displacement sensor,Digital display intelligent meter,grating scale , Range from 0mm-30mm ,the precision of products are 0.1% 0.05%,5um,1um,0.5um.The varieties, complete specifications and models, range range service life and accuracy in the leading position in the industry.

  Products are widely used in aviation, military industry, machinery, engineering machinery, engineering,automation control system requires accurate measurement of displacement.
