Product Overview

Description



Product Parameter


Product Name
Continuous blow down flash tank for boiler steam drum blow down
Applied Area
Hot water boiler, steam boiler
Shell Plate Material
- Carbon Steel : Q245R, P265GH, SA516-Gr.60/65/70
- Alloy Steel : Q345R, 15CrMoR, P355GH
- Stainless Steel : 304
Nozzle Tube Material
As per design
Standard
China GB, ASME
Manufacturer Grade
China III Grade, ABS Certificated, TUV Certificated
Pressure Vessel Class
Class I (acc. to China GB150 code)
Capacity
for 1 - 150 t/h boiler use
Working Temperature
< 290 ℃
Design Temperature
290 ℃
Working Pressure
0.5 MPa
Design Pressure
0.6 MPa
Steam & Water Separation
Expansion & Evaporation
Water Tank Diameter
Φ500 ~ Φ2,100 mm
Water Tank Height
As per Customer requirements
Welding
Automatic GMAW, GTAW(TIG)
Welding NDT
100% RT, 100% PT


Standard Model


Standard Model Parameters



Main Parameters and Product weight (approx.)



Model
Number
Medium
Effective Volume
Working Pressure
Working
Temperature
Weight
approx.
Matched Boiler
LP-0.75
Steam & Water
0.75 m3
0.2 MPa
< 250℃
580 kg
< 10 tph
LP-1.0
1.0 m3
0.5 MPa
< 290℃
650 kg
10 ~ 25 tph
LP-1.5
1.5 m3
750 kg
25 ~ 45 tph
LP-2.0
2.0 m3
1100 kg
45 ~ 75 tph
LP-2.5
2.5 m3
1300 kg
75 ~ 90 tph
LP-3.0
3.0 m3
1580 kg
90 ~ 130 tph
LP-5.5
5.5 m3
2400 kg
130 ~ 150 tph




Nozzle tube dimension (unit : DN (mm))



Model
Water Inlet
Water Outlet
Steam Outlet
Safety Valve
Level Gauge
Manhole
LP-0.75
50
40
50
50
20
Handhole
LP-1.0
50
50
80
65
20
Handhole
LP-1.5
50
50
125
65
20
400
LP-2.0
65
65
100
80
20
400
LP-2.5
80
80
100
100
20
400
LP-3.0
100
100
150
100
20
450
LP-5.5
150
125
150
150
25
450


Customization Design


Design as you need

1. Nozzle Customization on basis of Standard Models. Adding /adjusting / removing any nozzle tube as your requirements.

2. Customized models for boilers larger than 150 tph.



Product Show

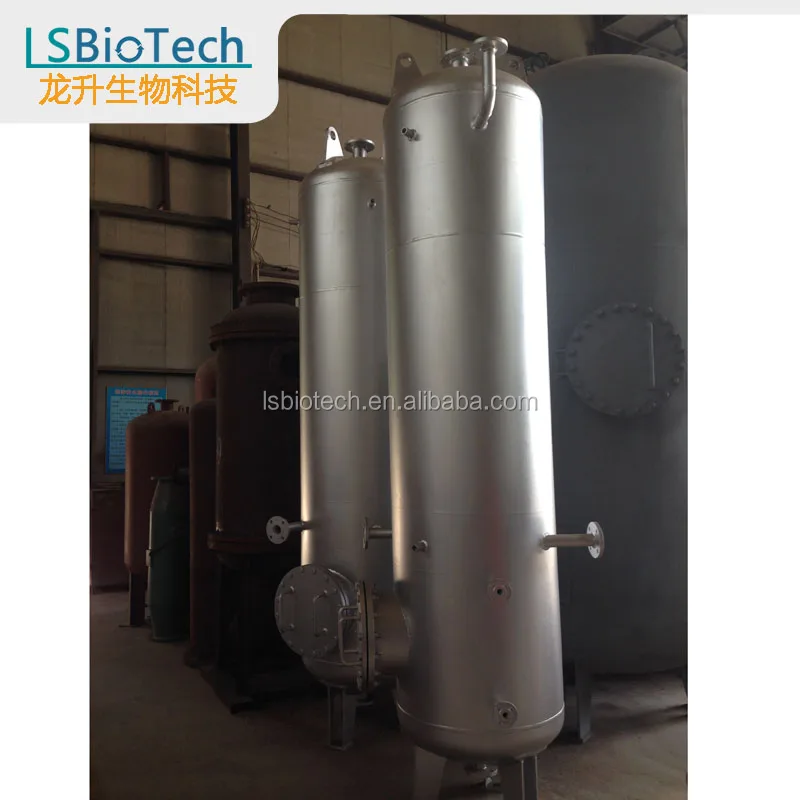

Standard Model

LP-x.x

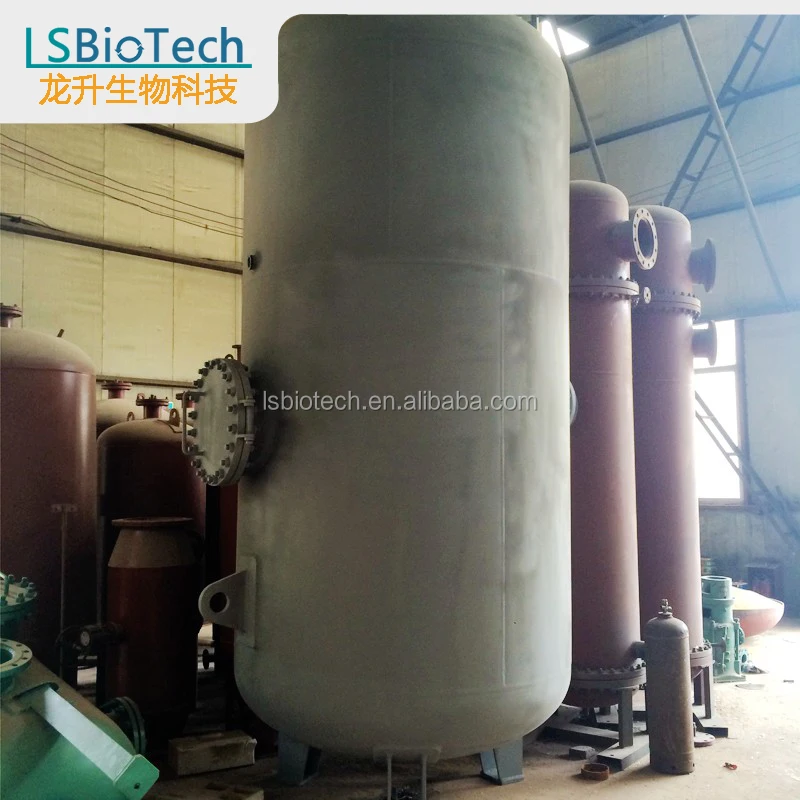

Customized Design






Factory Show & QA










Packing & Delivery


Packing

Different packing methods are chosen depend on transportation type.



1. Plywood Protection
for special material protection
2. Plywood Box Packing
for small and high value product
3. Steel Frame Packing
for general product


4. Steel Frame Packing
for general product
5. Steel Frame Packing
for general product
6. Steel Frame Packing
for general product


FAQ


Q: How long is your delivery time?

A: General small equipment will be ready for shipment  in 20-25 days if the materials are in stock, or in 35-40 days if the materials are not in stock.

Large equipment delivery time should be determined after technical discussion. Please contact our sales.



Q: Do you provide samples ? Is it free or extra ?

A: Yes, we could offer the sample tube or sample materials for free charge, but the cost of freight should be paid by Customer.



Q: What is your terms of payment ?

A: General small equipment, the 100% of contract price should be paid after signing.  Alibaba third party guarantee is available.

Large equipment payment schedule, please contact our sales.



Q: How long is the warranty period?

A: General small equipment we guarantee 12 months from the date of shipment departure.

Large equipment warranty period is 12 months from the date of commissioning or 18 months from the date of shipment departure which occurs earlier.
