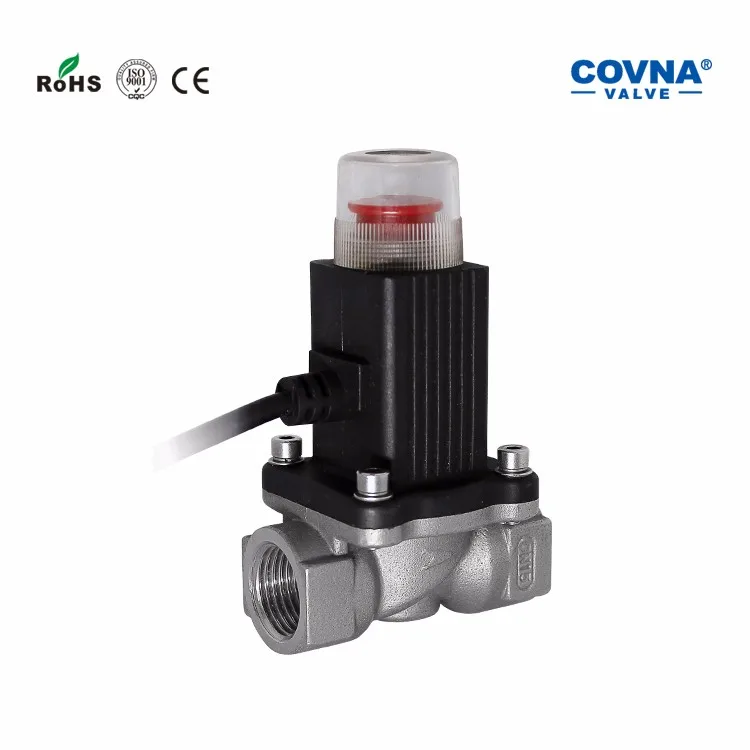

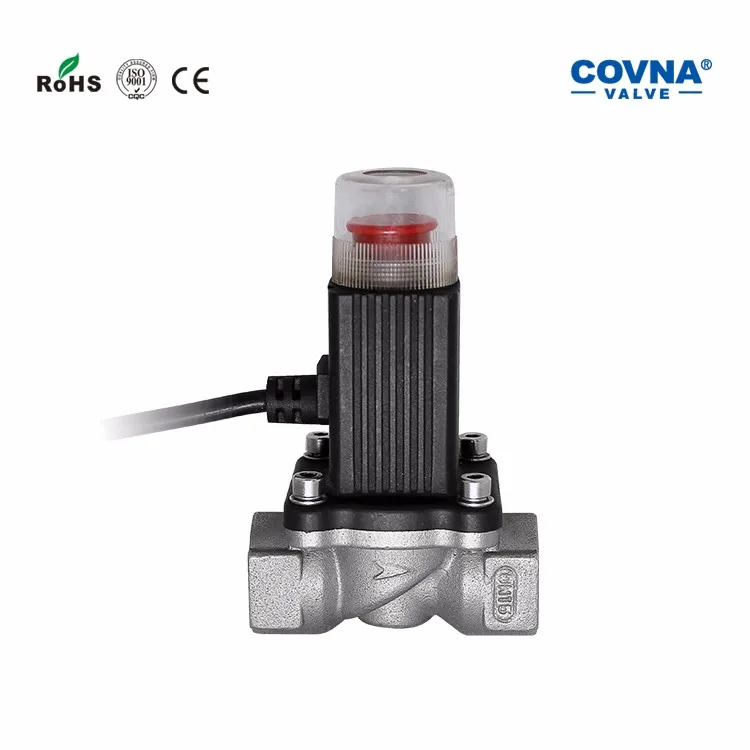

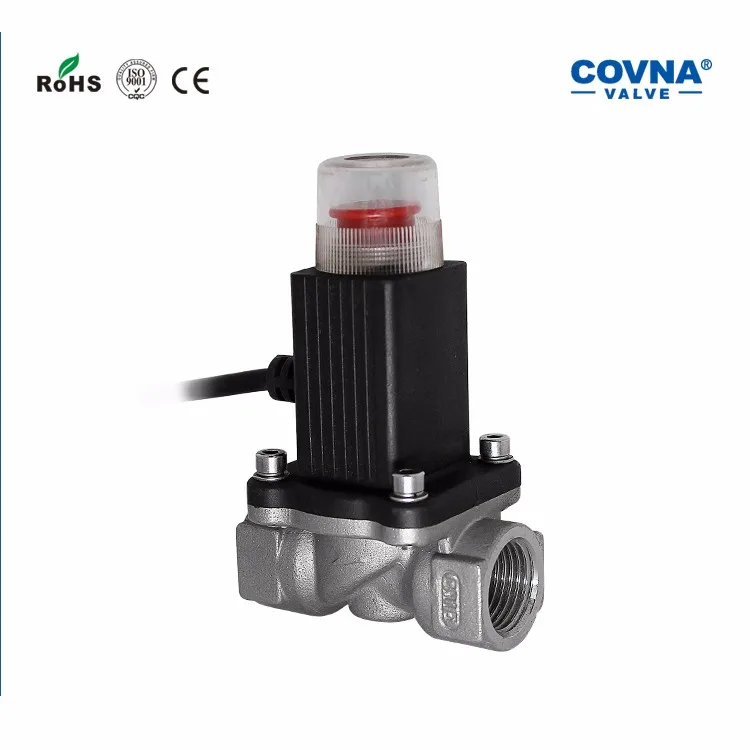

24 Volt DC Diesel Fuel Shut Off Solenoid Valves
- Category: >>>
- Supplier: Dongguan Chuancheng Pneumatic Components Co. Ltd.
Share on (60761947187):
Product Overview
Description
Specification
Features:
1. Safety control for gas pipelines
2. Normally open design to save the power
3. Using pulsed power to save the power and more safety
4. Manual open more safety
5. Large caliber startup, diaphragm type
COMPACT STRUCTURE | HIGH ACCURACY | WATER-PROOF | LONG SERVICE LIFE |
Item | 24 Volt DC Diesel Fuel Shut Off Solenoid Valves | ||||
Size Range | DN15 to DN50, 1/2" to 2" | ||||
Operating Pressure | Low Pressure, 0 to 1.0MPa (0 to 150PSI) | ||||
Number of Ways | 2/2 Valve, Two Ways Two Positions | ||||
Valve Operation Type | Normally Closed (NC), Opens When Energized | ||||
Body Material | Brass, Stainless Steel are Available | ||||
Sealing Material | NBR, EPDM, FKM (VITON), PTFE | ||||
Structure | Direct Acting | ||||
End Connection | Female Thread | ||||
Coil Voltage | DC24V (±10%), AC110-220V, 50/60Hz | ||||
Applicable Media | Control of Water, Air, Gas, Oil, Liquid, Steam | ||||
Temp. of Media | Range from -10 to +80°C (14 to 176°F) with NBR Sealing | ||||
Ambient Temp. | Range from -20 to +60°C (-4 to 140°F) | ||||
Protection Class | IP67, Explosion-protected Construction are Available | ||||
Application | Food & Beverage, Water & Wastewater, Ultra Pure Water, Desalination, Chemical, Textile, Pharmaceutical, Pulp & Paper, Mining, Boiler and Power Industries | ||||
Production
#ALIBABA SELECTION SUPPLIER WITH 17 YEARS MANUFACTURING EXPERIENCE | ||||||
QUALITY CONTROL
COVNA havs invested in quality assurance, state-of-
the-art machining and testing facilities in order to assist customers in safely controlling their processes.
FIVE CHECKS IN THE WHOLE PROCESS
All products have to pass strict inspection before they go out, covering raw material check, in production check, semi-finished product check, sampling check and pre-delivery inspection.
About COVNA
COVNA from Dongguan, China is a professional manufacturer of fluid control valves provides performance, safety and long service life products which have to reliably handle the most aggressive of substances, our products stand the test of time in food & beverage, water & wastewater, ultra pure water, desalination, chemical, textile, transportation, pulp & paper, mining, boiler and power industries.
COVNA give comprehensive service from start to finish, encompassing consultation through to after sales service, full support in every respect and ensure that you are accompanied at each stage of your project.
Together with continual feedback from our customers as well as our experience in manufacturing and quality control, COVNA aims to provide our customers the best quality products with the most competitive pricing，on-time delivery and full warranty service
Our competitive advantage:
● Consistent product quality and reduction of defective rate
● Improved manufacturing process and better productivity
● Significant cost reduction versus competitors
This is COVNA - solve your technical questions with solid experience.
COVNA give comprehensive service from start to finish, encompassing consultation through to after sales service, full support in every respect and ensure that you are accompanied at each stage of your project.
Together with continual feedback from our customers as well as our experience in manufacturing and quality control, COVNA aims to provide our customers the best quality products with the most competitive pricing，on-time delivery and full warranty service
Our competitive advantage:
● Consistent product quality and reduction of defective rate
● Improved manufacturing process and better productivity
● Significant cost reduction versus competitors
This is COVNA - solve your technical questions with solid experience.
Certifications
COVNA were awarded both nationally and internationally and it's certified TUV SGS RoHS ISO 9001 for the entire process of design and manufacture of valves.
Factory Views
Packing
Packing: Electric valves packed with foam in carton.
Delivery Time: 7-10 working days after payment confirmed.
