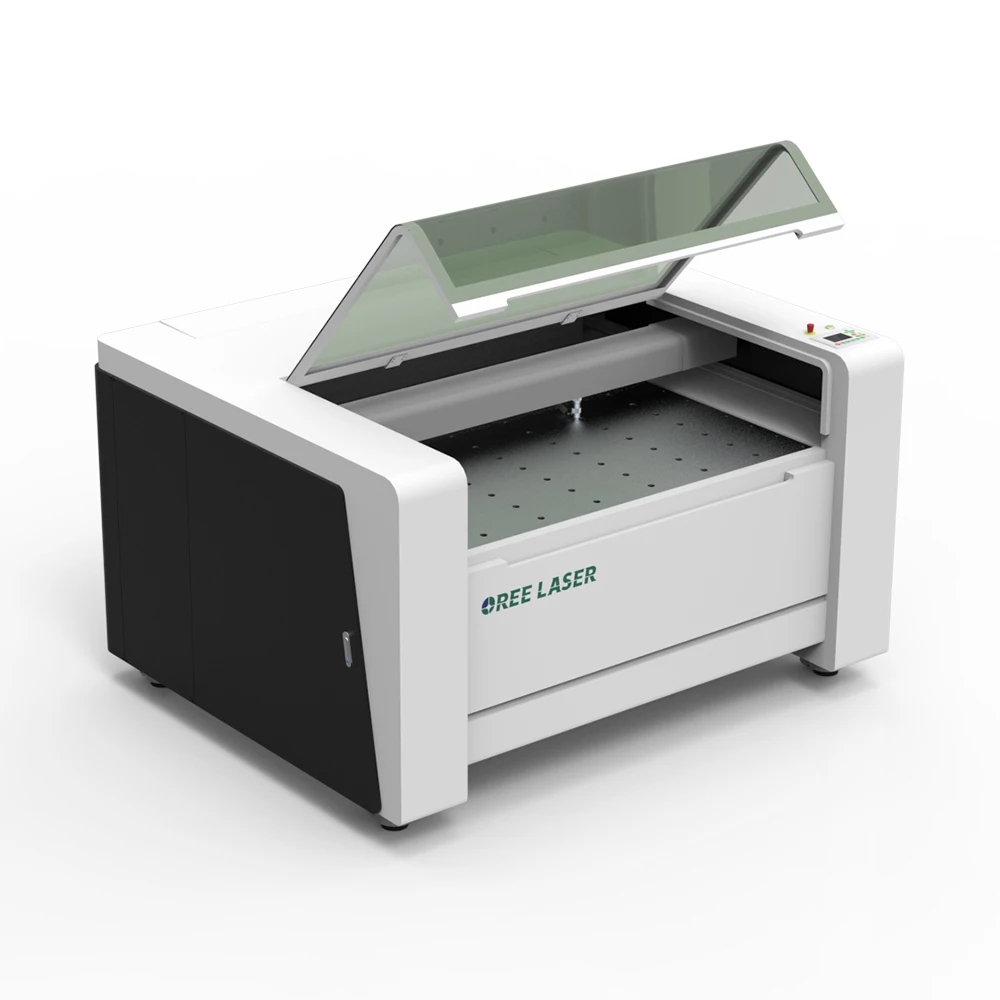

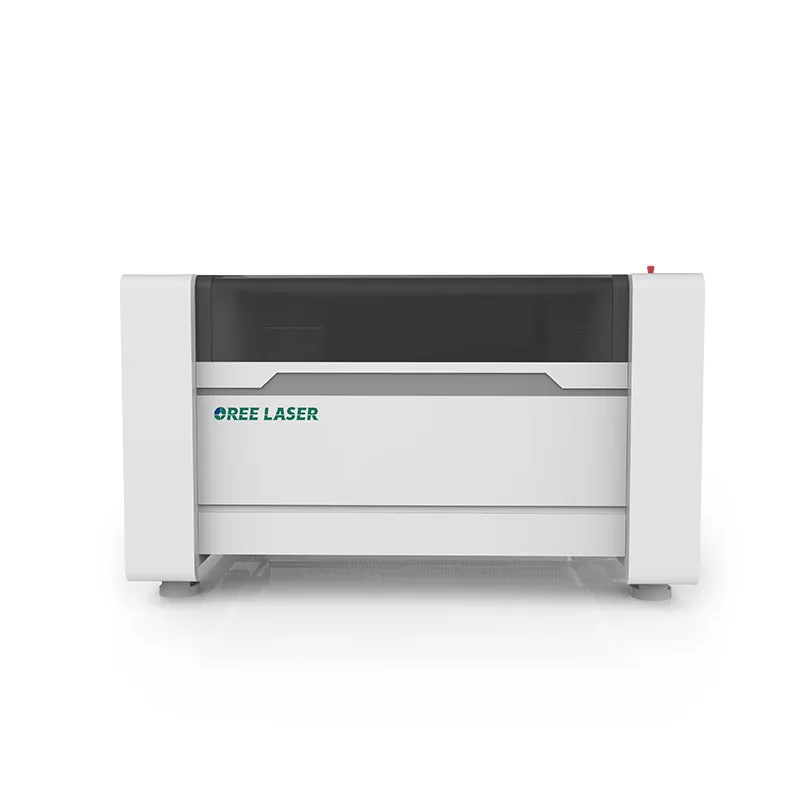

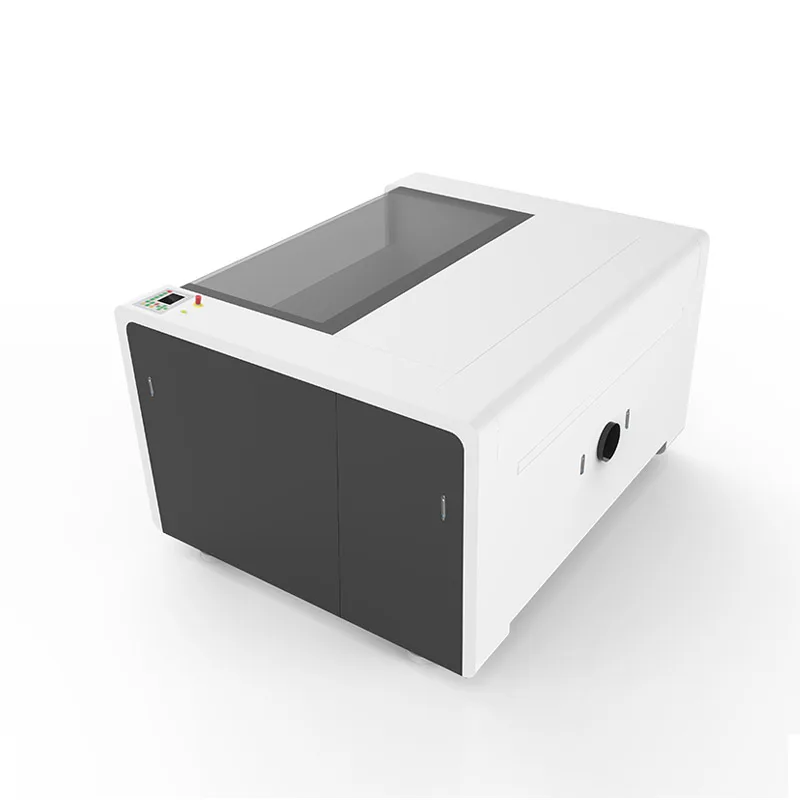

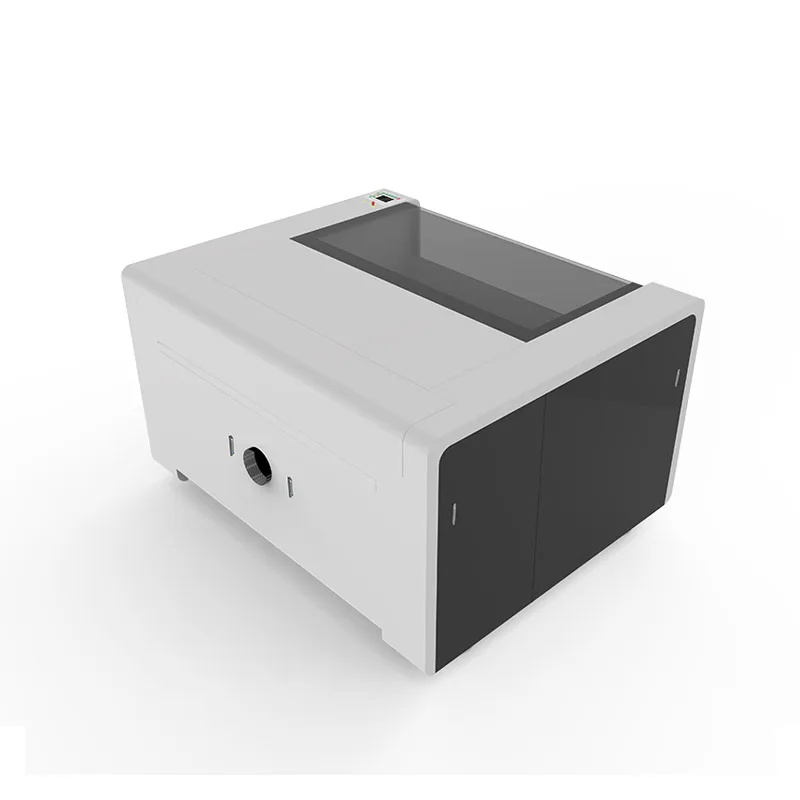

1309 Co2 Laser Engraving Cutting Machine Sealed CO2 Glass Tube Elegant White and Green 100w in Free Laser O C1309 0 30mm
- Category: >>>
- Supplier: Shandong Oree Laser Technology Co. Ltd.
Share on (60761966497):
Product Overview
Description
Product Description
· Has been grantted of the patent designed in appreance and technology;
· Interlocking door with auto-shutdown protection device;
· Optional rotary attachment for round bottles engraving;
· Red Cross accurate positioning, convenient and quick in finding working position. Three-mirrors and one focal lens path system to deliver outstanding finishing effect;
· Equipped with manual focused laser head, flexible and accurate, the machine can adjust the focus
position according to engraving and cutting alternation and the material characteristics and thickness of the plank, to ensure sculpture quality;
· Open software interface, compatible with DXF, AI, PLT, DST, DSB and vector file such as BMP, JPG, GIF,
PNG, MNG, equipotential graphic format;
· Equipped with water chiller, better protection of laser tube, prolong the service life of laser
· Universal wheels and adjustable feet with feet switch make the machine moved more convenient;
· Elegant appearance design with the industrial grade steel structure, the thicker base can make the
machine running stable and smoothly;
· Patent technology: unique automatic convulsions smoke dust removal system blow air protection.
Model | O-C 1006 | O-C 1309 | O-C 1610 | O-C 1812 | |||
Working Area | 1000*600mm | 1300*900mm | 1600*1000mm | 1800*1200mm | |||
Laser Power | 80W/100W/120W/150W/180W | ||||||
Laser Type | CO2 Sealed Laser Tube, 10.6μm | ||||||
Cooling Type | Water Cooling | ||||||
Engraving Speed | 0-20000mm/min | ||||||
Laser Output Control | 0-100% Set by Software | ||||||
Min. Engraving Size | Chinese: 2.0mm*2.0mm; English Letter: 1.0mm*1.0mm | ||||||
Highest Scanning Precision | 2500DPI | ||||||
Locating Accuracy | ≤+0.01mm | ||||||
Controlling Software | DSP Control System | ||||||
Graphic Format Supported | DST,PLT,BMP,DXF,DWG,AI,LAS,etc | ||||||
Compatible Software | TAJIMA,CORELDRAW,PHOTOSHOP,AUTOCAD,ALL TYPE OF AUTOCAD SOFTWARE IN CLOTH | ||||||
Drive System | High-precision Stepper Motor | ||||||
Auxiliary Equipments | Exhaust Fan and Air Exhaust Pipe | ||||||
Power Supply | \t\t AC110V/220V±10%, 50HZ/60HZ \t | ||||||
Working Environment | Temperature: 0-45℃, Humidity5-95%(No Condensate Water) | ||||||
Option | Up&Down Table, Blade Worktable, Honeycomb Worktable, Rotary Device, Red Dot Position System, Auto-focus Device | ||||||
Related Products
Detailed Images
WIFI Control
Convenient - Wireless control.
High efficiency - One PC can control several machine at one time.
CORELDRAW&CAD
Advanced working software which can be imbedded into CORELDRAW and CAD, use can operate the machine by CORELDRAW or CAD software directly.
Control Pannel
Direct check and edit make the process easier.
Door Sensor Interlock
Safety Operation.
Universal Caster, Adjustable Feet
Move easily, stable and reliable.
OMRON Electronic Components
Sensitive, security and longer service life.
High-precision Step Motor Driver
High torque, low vibration, low heat, more reliable.
Taiwan Square Rail
High speed and precision, high load capacity and rigidity.
Packing & Delivery
1. Whole film packaging machine;
2.Anti-collision package edge;
3.Fumigation-free plywood wooden box with iron binding belt.
7-15 DAYS AFTER PAYMENT
Application
Material | Cut | Engrave |
Acrylic, Plexiglass, PMMA, Perspex,Organic Board, Double Color Plate | √ | √ |
Plastic, PP, PET, PC, PMMA, PS, PES, PA, Plastic Foils&Films, Polycarbonate, Polyester or Polyimide Membrane Keyboards | √ | √ |
Wood, Bamboo, Veneer, MDF, Blasa Wood, Plywood | √ | √ |
Leather, Pig Leather, Cow Leather, Sheep Leather | √ | √ |
Textile, Cotton, Silk, Felt, Lace, Synthetic&Technical Textiles, Aramid, Polyester, Fleece | √ | × |
Foam&Filter, Mats Polyester(PES), Polyethylene(PE), Polyurethane(PUR) | × | × |
Neopren | × | × |
Paper, Cardboard, Chipboard, Press Board | √ | √ |
Stone, Ceramic, Granite, Marble, Natural Stone, Pebble Stone, Slate | × | √ |
Rubber Stamps, Synthetic&Silicone Rubber, Natural Rubber, Microporous Foam | √ | √ |
Silicone Rubber, Synthetic Rubber | √ | √ |
Glass, Pressed Glass, Float Glass, Crystal Glass, Mirror Glass | × | √ |
laser engraving cutting for acrylic laser engraving cutting for plastic laser engraving for glass laser engraving for USB disk
laser engraving for leather laser engraving for bottle laser engraving cutting for paper laser engraving cutting for wood
FAQ
Q: What's the package?
A: We have 3 layers package. For the outside, we adopt wood craft case. In the middle, the machine is covered by foam, to protect the machine from shaking. For the inside layer, the machine is covered by thickening plastic bag for waterproof.
Q: Will the package damaged during transportation?
A: Our package is considerate all the damage factors and make it to be safe, and our shipping agent have full experienced in safe tranportation. We have exported to 80 countries worldwide. So please don't worry, you will receive the parcel in good condition.
Q: How to install and run the machine?
A: Our technician have installed the machine before shipping. For some small parts installation, we will send detail training video, user's manual along with the machine. 95% customers can learn by themselves.
Q: How can I do if the machine goes wrong?
A: If confronted with such problems, please contact us asap and do not try fix the machine by yourself or someone else. We will response within 24 hours as quick as we can to solve it for you.
Q: Are you factory or trading company?
A: We are an OEM factory with many experience, annual productivity can reach 5,000 sets.
Q: What's your MOQ?
A: We don't have MOQ. No matter 1set order or 100sets order, we will give you support with our heart and soul.
Q: How do your factory do regarding quality control?
A: Quality is priority. Each OREE laser machine will be tested by 24 items. After all the 24 items passed, then our QC do 48~72 hours reliability test. Our laser machines has gained CE, FDA authentication.
1. 12 languages 24 hours Quick Feedback;
2. Free provide global regional training services;
3. Plenty of technical support online is available;
4. Quick Back-up Parts Available & Technical Assistance;
5. "Training Video", "Instruction Book", and "Operation Manual" will be offered;
6. cnc laser cutting machine warranty is 2 years
2. Free provide global regional training services;
3. Plenty of technical support online is available;
4. Quick Back-up Parts Available & Technical Assistance;
5. "Training Video", "Instruction Book", and "Operation Manual" will be offered;
6. cnc laser cutting machine warranty is 2 years
Our Service
OREE LASER and the United States, Russia, Czech Republic, Slovenia, Italy, Poland, Romania, Bulgaria, Belgium, Ireland,Britain,Greece, India, Mexico, Colombia, Ukraine, Saudi Arabia and other countries in Asia, Europe, North America have reached long-term Cooperation strategy. Products are well received in various countries.
OREE LASER welcomes customers from all over the world, you are welcome to visit.
OREE LASER welcomes customers from all over the world, you are welcome to visit.
INNOVATION IS THE MOTIVATION OF EVERY
OREELASER
QUALITIES ARE AT THE HEART OF EVERY
OREELASER
SATISFACTION AND HONEST ARE THE PRINCIPLE OF EVERY OREELASER
