high quality high frequency high efficient 1kva to 5kva hybrid solar inverter with mppt charge controller
- Category: >>>
- Supplier: Shenzhen Sunray Power Co. Ltd.
Share on (60761974834):
Product Overview
Description
Product Description
High quality high frequency high efficient 1kva to 5kva hybrid solar inverter with mppt charge controller
Features of 24V/48VDC solar power inverter
1.Pure sine wave inverter
2.Built-in MPPT solar charge controller
3.Selectable input voltage range for home appliances and personal computers.
4.Selectable charging current based on applications
5.Configurable AC/Solar input priority via LCD setting
6.Compatible to mains voltage or generator power
7.Auto restart while AC is recovering
8.Overload and short circuit protection
9.Smart battery charger design for optimized battery performance
10.Cold start function
11.Parallel operation with up to 4 units only available for MKS 4K/5K
Product Parameters
| Model No. | MPS 1K-24 | MPS 3K-24 | MPS 5K-48 | |||
| Rated power | 1000VA/800W | 3000VA/2400W | 5000VA/4000W | |||
| Input | voltage | 230VAC | ||||
| selectable voltage range | 170-280VAC (for personal computers) 90-280VAC (For home appliances) | |||||
| Frequency range | 50Hz/60Hz (auto sensing) | |||||
| Output | AC voltage regulation (Batt.mode) | 230VAC±5% | ||||
| Surge power | 2000VA | 6000VA | 10000VA | |||
| efficiency (peak) | 90%-93% | 93% | ||||
| transfer time | 10ms(for personal computers); 20ms (for home appliances) | |||||
| waveform | pure sine wave | |||||
| Battery& AC charger | battery voltage | 24VDC | 24VDC | 48VDC | ||
| floating charge voltage | 27VDC | 27VDC | 54VDC | |||
| overcharge protection | 31VDC | 31VDC | 60VDC | |||
| maximum charge current | 10A/20A | 20A or 30A | 10A/20A/30A/40A/50A/60A | |||
| MAX PV array power | 600W | 600W | 1500W | 3000W | 4000W | |
| MPPT range@ operating voltage | 30-66VDC | 30-66VDC | 60-115VDC | 60-115VDC | ||
| maximum PV array open circuit voltage | 75VDC | 75VDC | 145VDC | 145VDC | ||
| maximum charging current | 25A | 25A | 60A | 60A | 80A | |
| maximum efficiency | 98% | |||||
| standby power consumpsion | 2W | |||||
| Physical | Dimension, D*W*H(mm) | 128x272x355 | 140x295x540 | |||
| Net weight (kgs) | 7.4 | 8 | 10 | 11.05 | 13.5 | |
| operating Environment | humidity | 5%-95% relative humidity ( non-condensing) | ||||
| operating temperature | 0℃-55℃ | |||||
| storage temperature | -15℃-60℃ | |||||
| Model | MPS 1K-24 | MPS 3K-24 | MPS 5K-48 | |||
| inverter power | 800W | 2400W | 4000W | |||
| pmax generated from solar charger | 25Amp,600W | 25Amp,1500W | 60Amp,3000W | 80Amp,4000W | ||
| best panel configuration | 500Wp (250Wp*2pcs) | 1500Wp ( 250Wp*6pcs) | 3000Wp (250Wp*12pcs) | 4000Wp (250Wp*16pcs) | ||
Product Link Skretch
Packaging & Shipping
Our Services
Why Choose Us
Company Information

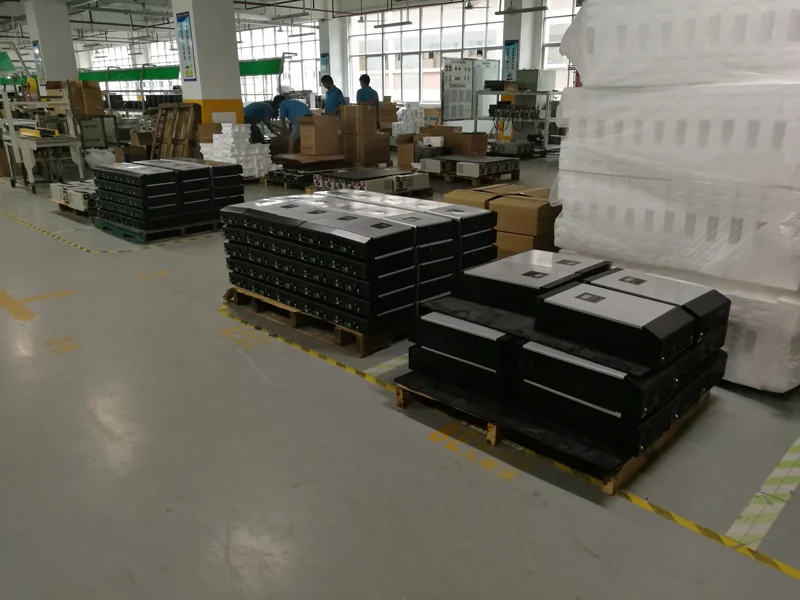

Product Processing
