3' 76mm 12v 24v small water pump dc motor

Product Overview

Description





BELOWS ARE ONLY SOME TYPICAL MODELS, WE CAN MAKE CUSTOME MOTORS, INCLUDING DIMENSION AND PERFORMANCE



Permanent Magnet Brush DC Motor 76ZYT01A

Motor Specifications

Shaft materials 3Cr13, HRC 36~40

High quality ball bearing

Hard ferrite magnet, 2- poles

Protection class IP 54

Insulation class: F, operating temperature range:-40℃~+140℃

CE and ROHS certified

Options

Customized voltage, winding, shaft, mounting, and lead configurations

EMI/RFI suppression circuit; Thermal protection, high temperature Class H insulation



Model	76ZYT01A
Rated voltage	V dc	12	24	40
Continuous rated speed	rpm	2600	2600	2600
Continuous rated torque	N.m	0.3	0.3	0.3
Continuous current	A	9.5	4.70	2.80
Starting torque	N.m	1.62	1.62	1.62
Starting current	A	49	24	13.7
No load speed	rpm	3200	3200	3200
No load current	A	0.6	0.4	0.3
Weight of motor	g	1500	1500	1500
Motor length	mm	98	98	98

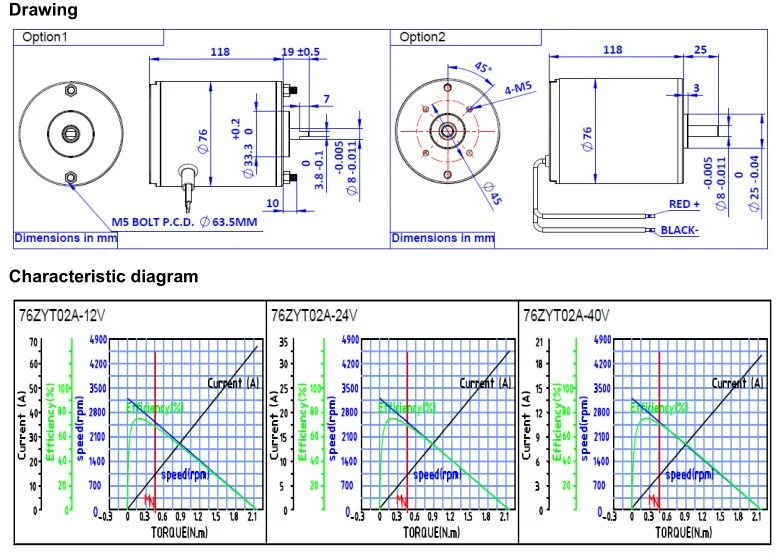

Permanent Magnet Brush DC Motor 76ZYT02A

Motor Specifications

Shaft materials 3Cr13, HRC 36~40

High quality ball bearing

Hard ferrite magnet, 2- poles

Protection class IP 54

Insulation class: F, operating temperature range:-40℃~+140℃

CE and ROHS certified

Options

Customized voltage, winding, shaft, mounting, and lead configurations

EMI/RFI suppression circuit; Thermal protection, high temperature Class H insulation



Model	76ZYT02A
Rated voltage	V dc	12	24	40
Continuous rated speed	rpm	2600	2600	2600
Continuous rated torque	N.m	0.46	0.46	0.46
Continuous current	A	13	6.5	3.9
Starting torque	N.m	2.6	2.6	2.6
Starting current	A	68	34	20.5
No load speed	rpm	3200	3200	3200
No load current	A	1.0	0.6	0.3
Weight of motor	g	2000	2000	2000
Motor length	mm	118	118	118















Permanent Magnet Brush DC Motor 76ZYT03A

Motor Specifications

Shaft materials 3Cr13, HRC 36~40

High quality ball bearing

Hard ferrite magnet, 2- poles

Protection class IP 54

Insulation class: F, operating temperature range:-40℃~+140℃

CE and ROHS certified

Options

Customized voltage, winding, shaft, mounting, and lead configurations

EMI/RFI suppression circuit; Thermal protection, high temperature Class H insulation



Model	76ZYT03A
Rated voltage	V dc	12	24	40
Continuous rated speed	rpm	2600	2600	2600
Continuous rated torque	N.m	0.65	0.65	0.65
Continuous current	A	20.5	10.1	6.1
Starting torque	N.m	3.51	3.51	3.51
Starting current	A	104	50	30
No load speed	rpm	3200	3200	3200
No load current	A	1.5	1.0	0.6
Weight of motor	g	2500	2500	2500
Motor length	mm	138	138	138

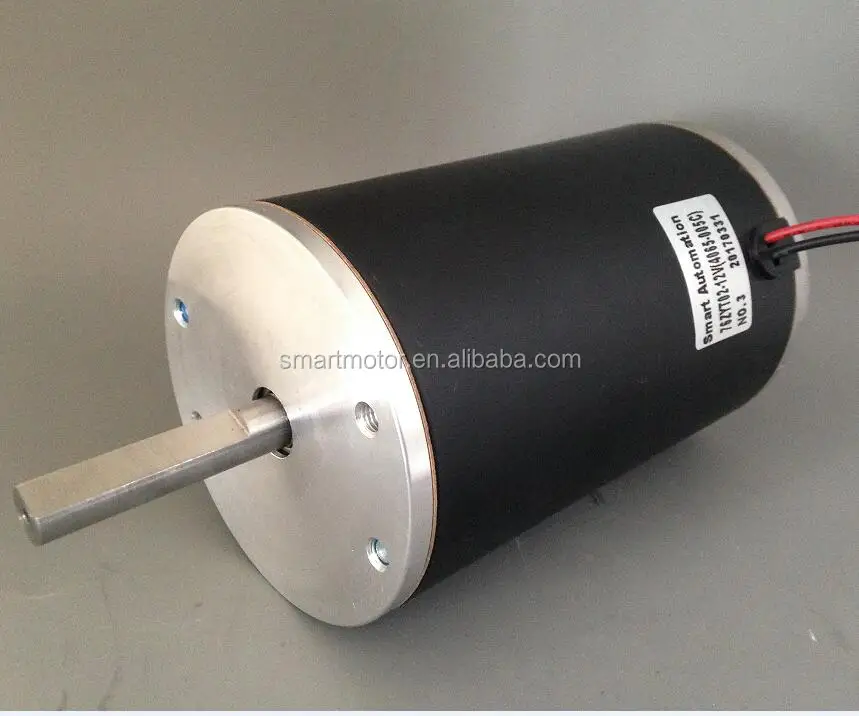

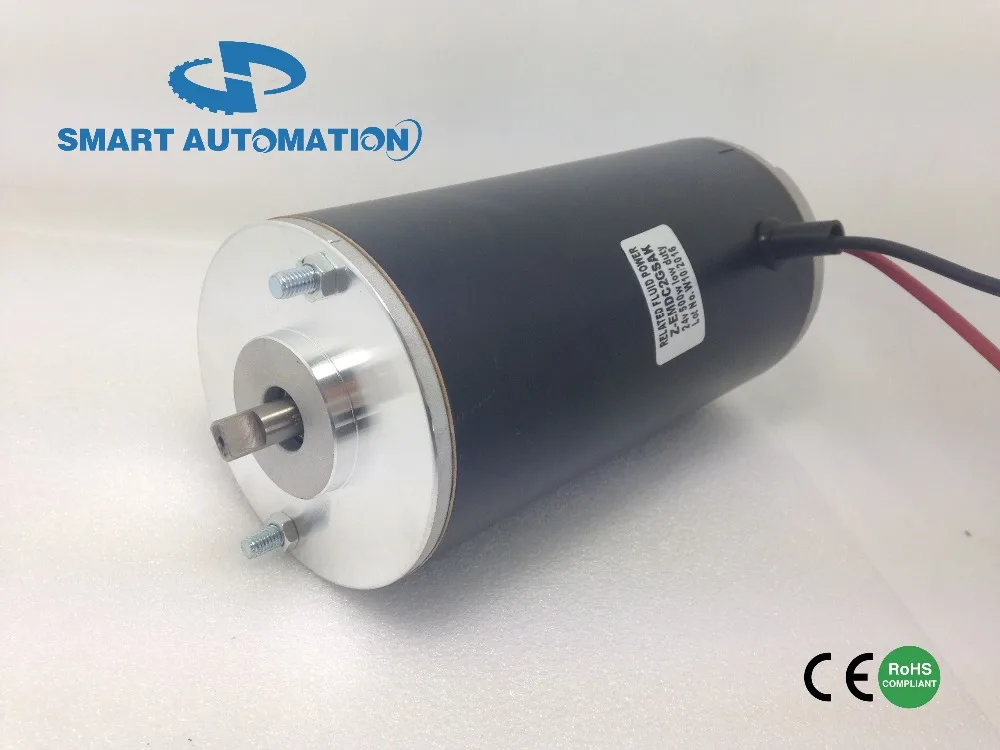

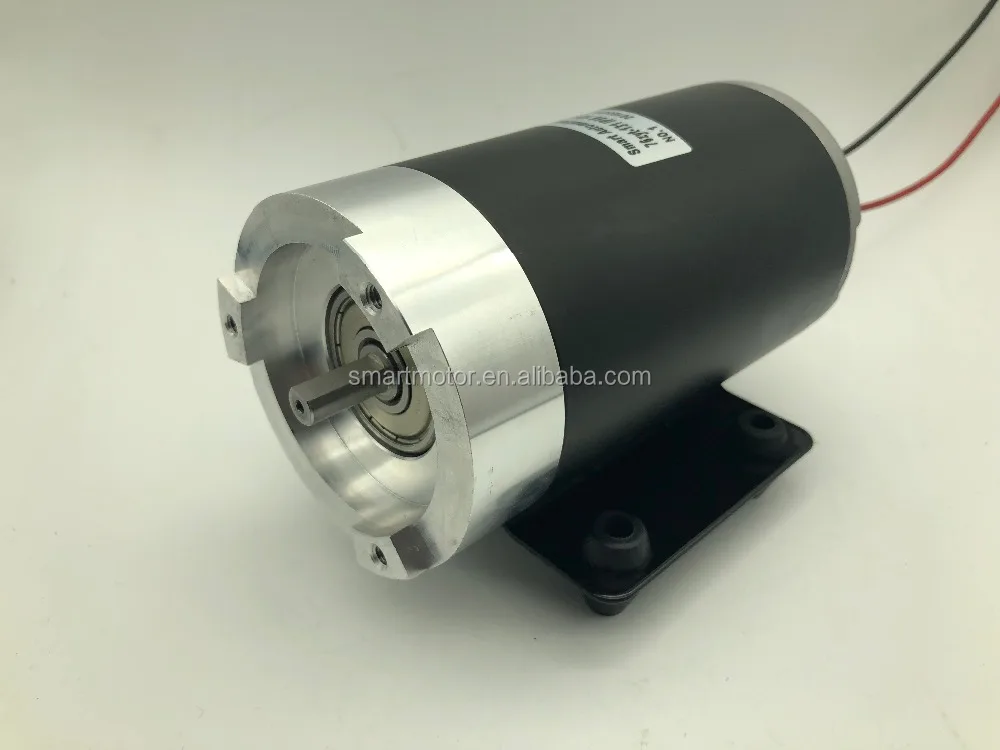

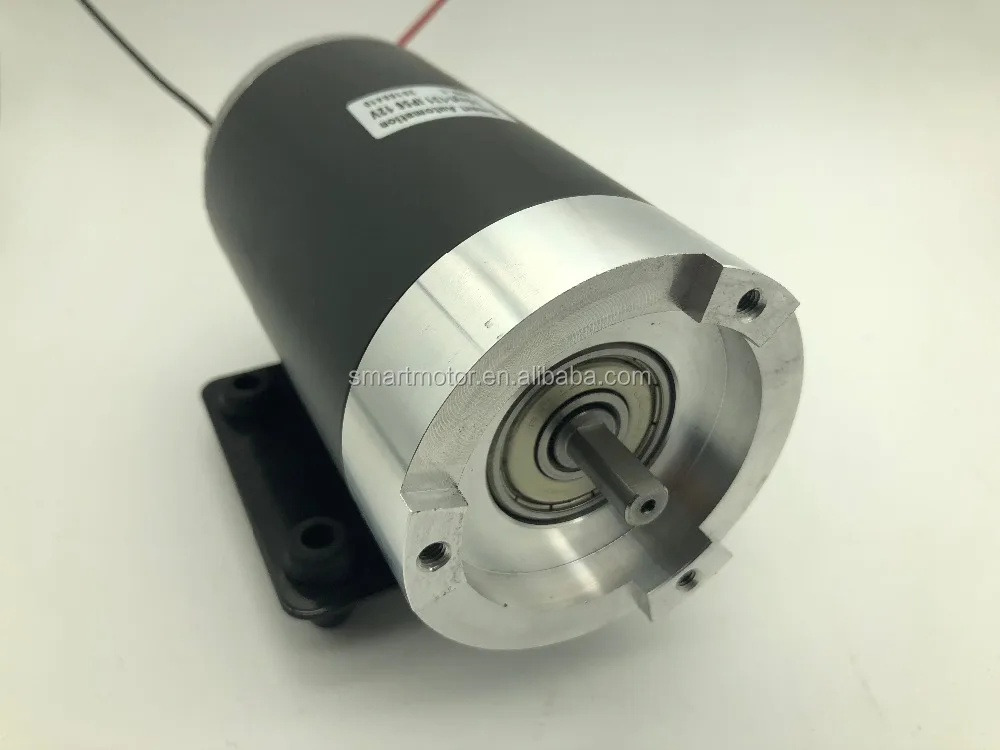

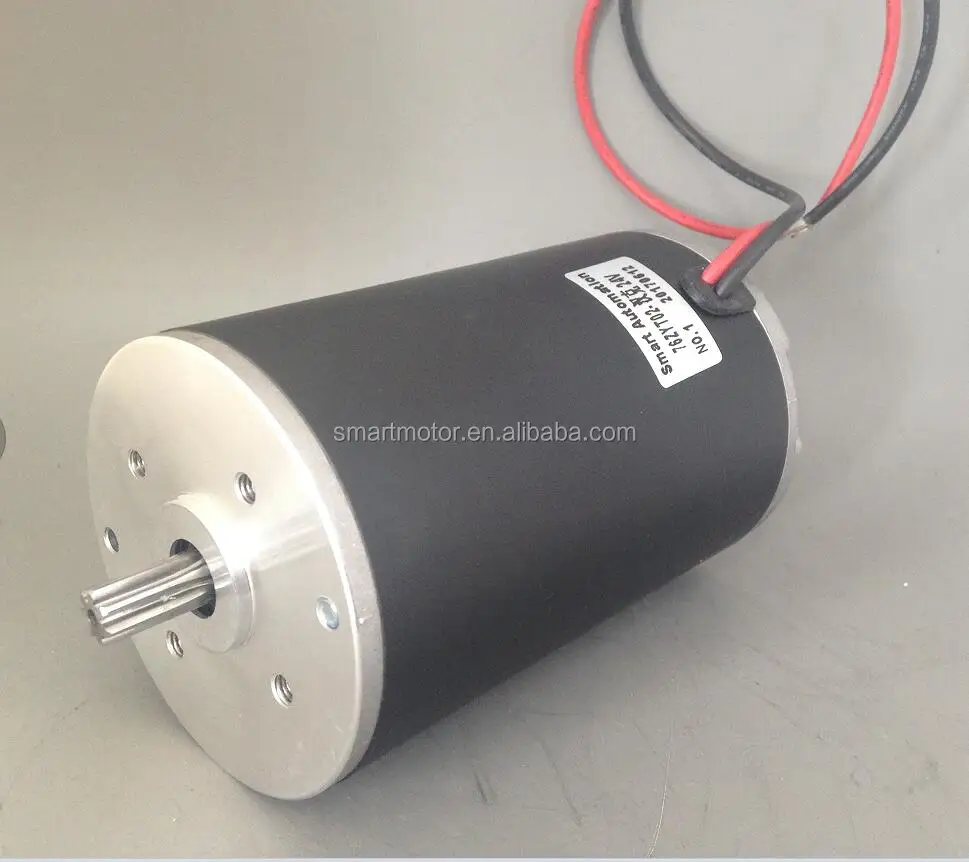

DIFFERENT MODELS, MOTOR PICTURES
