7 inch 1024*600 lvds lcd displayinterface TFT lcd display screen with EK79001AF Driver IC panel
- Category: >>>
- Supplier: Shenzhen Amelin Electronic Technology Co. Ltd.
Share on (60762132302):
Product Overview
Description
Product Description
7 inch 1024*600 LVDS interface TFT lcd display screen with EK79001AF Driver IC panel

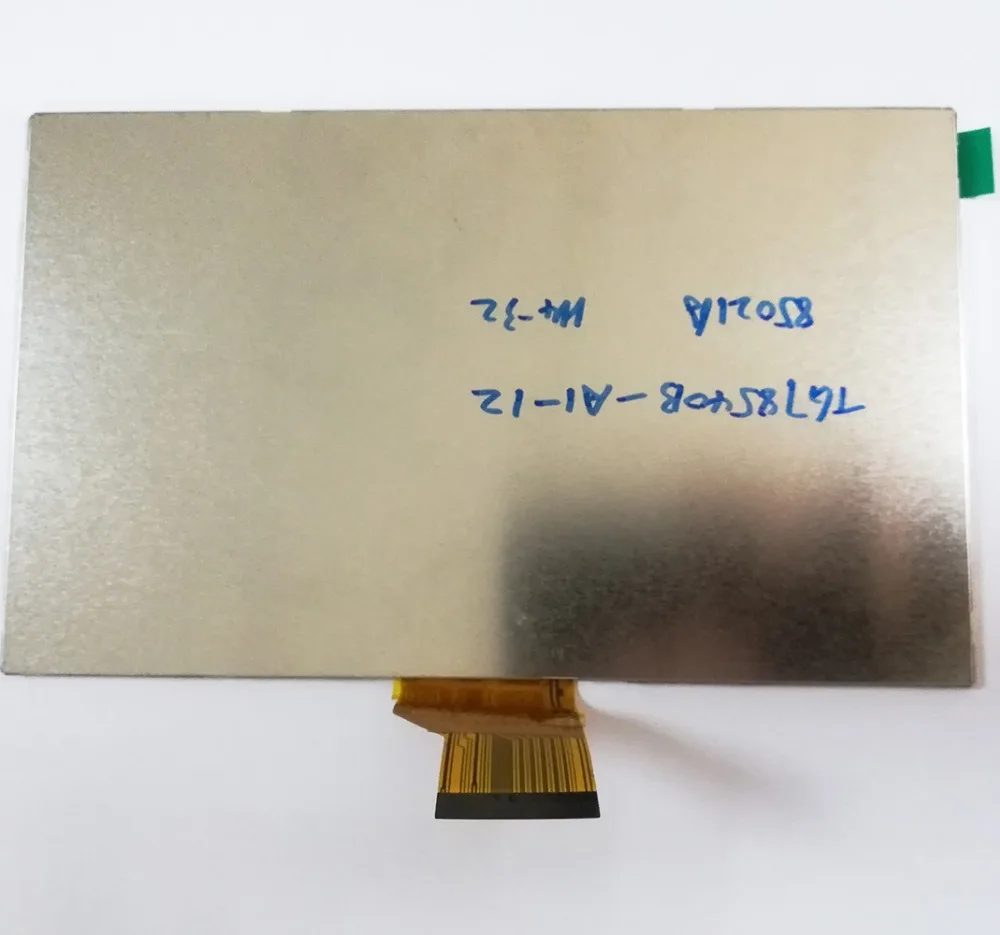

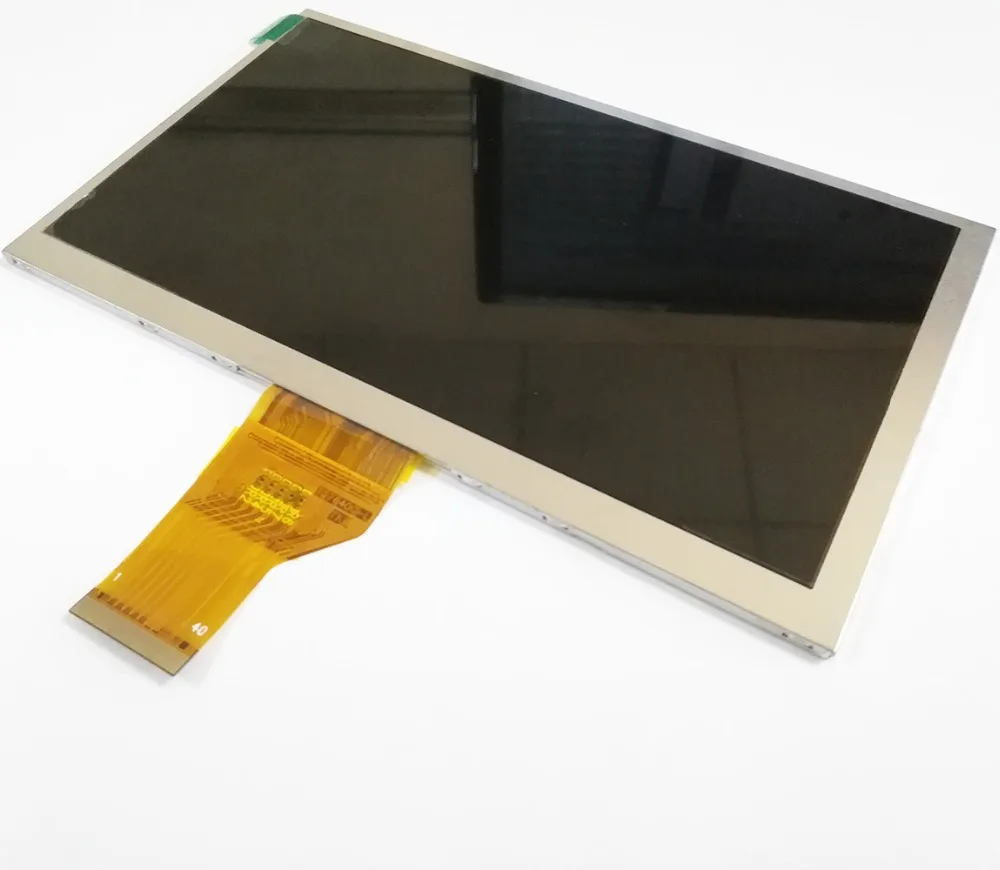

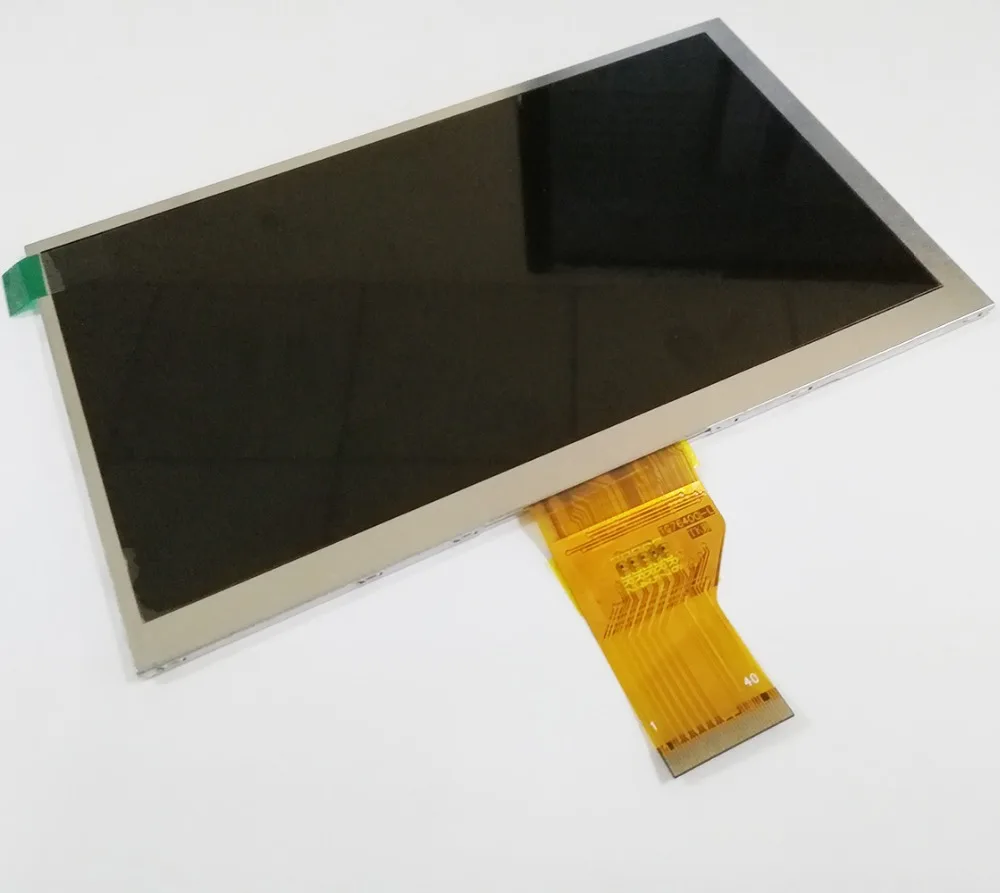

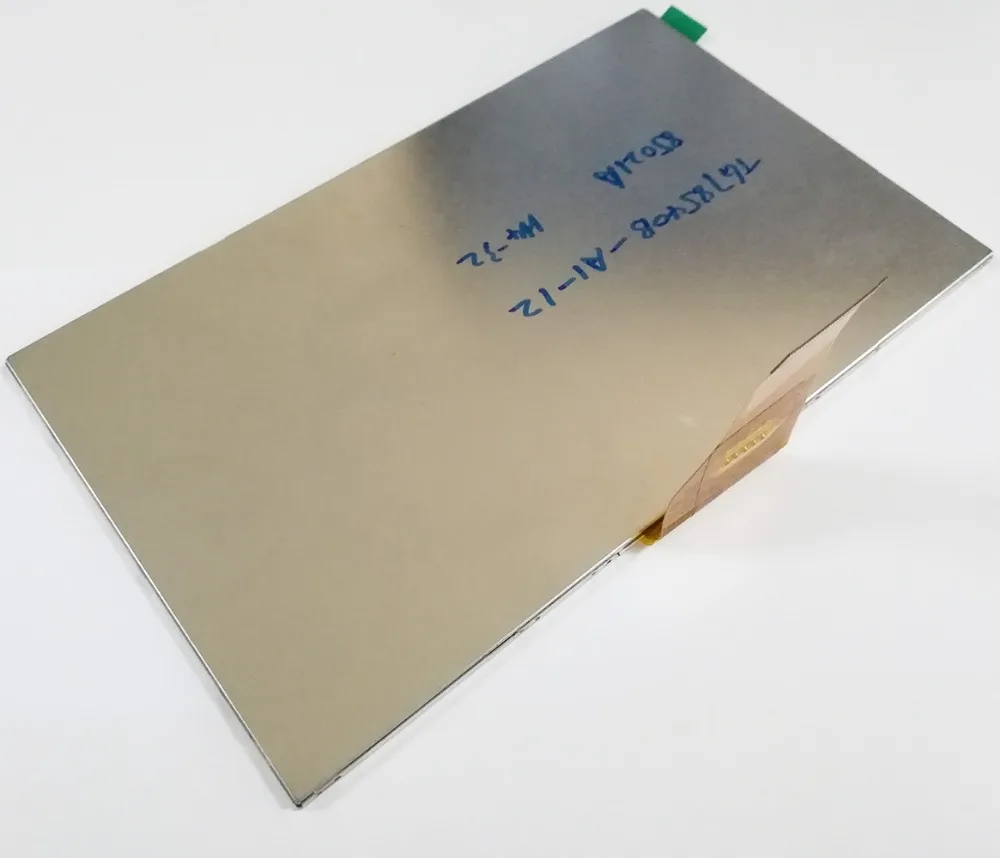

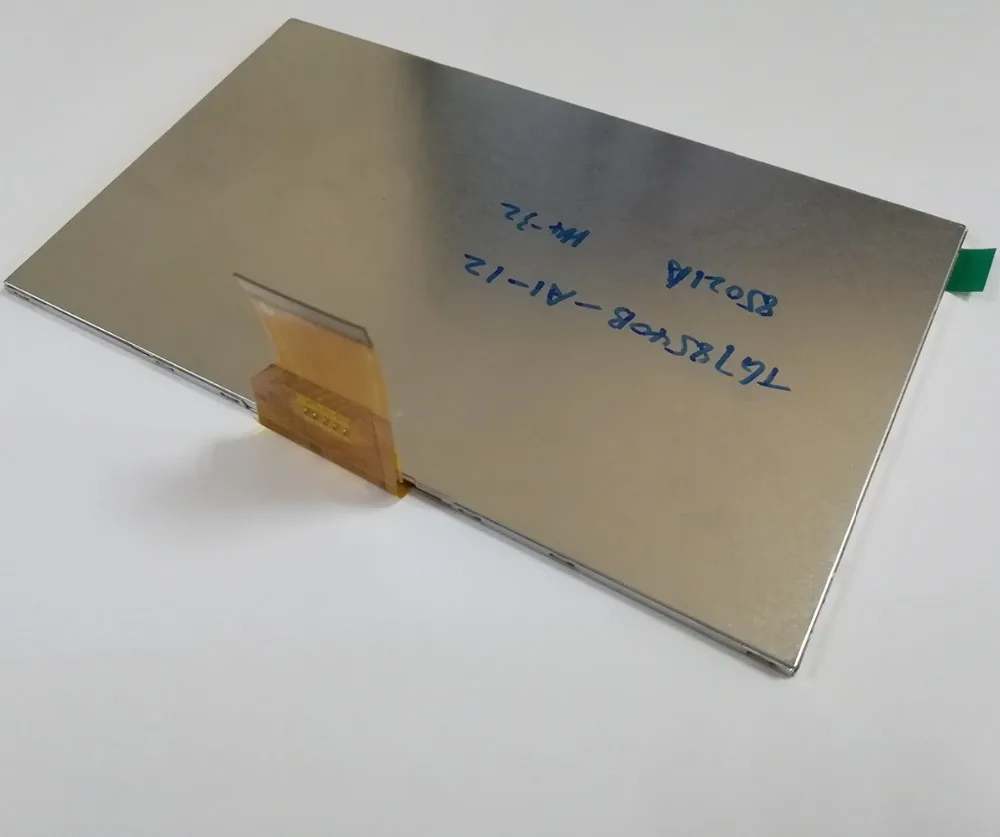

Pictures in kind
General Description
| ITEM | STANDARD VALUES | UNITS |
| LCD type | 7.0’’TFT | -- |
| Dot arrangement | 1024×(RGB)× 600 | dots |
| Driver IC | EK79001AF | -- |
| Module size | 163.9(W) ×102.9(H)×3.5(T) | mm |
| Active area | 154.21(W) ×85.92(H) | mm |
| Dot pitch | 0.1506*0.1432 | mm |
| Operating temperature | - 10 ~ + 50 | ℃ |
| Storage temperature | - 20 ~ + 60 | ℃ |
| Back Light | 18 white leds 9.6V /120mA | -- |
| Weight | TBD | g |

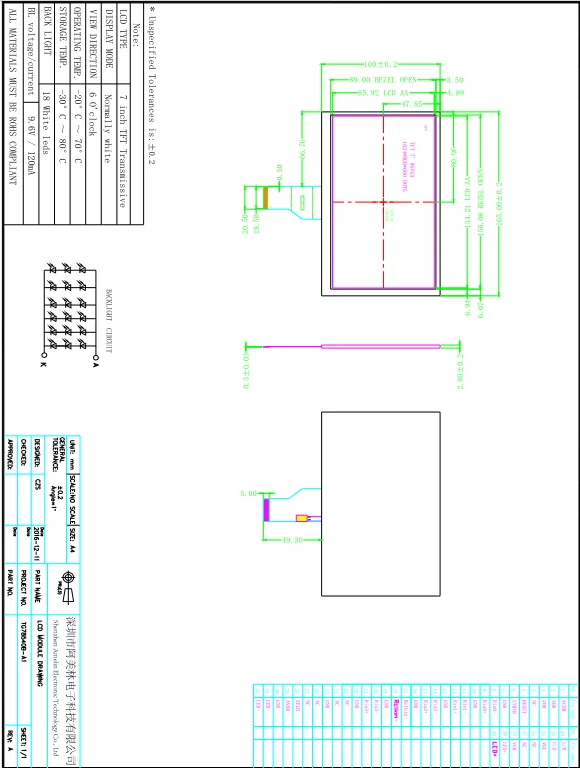

Outline Drawing
Our Services
100% product testing and inspection before shipment.
100% free replacement for defective product.
Lead time
Lead time
| quantity | lead time |
| 1-20(pieces) | Within one working day |
| 21-100(pieces) | Within two working days |
| 101-500(pieces) | Within three working days |
| 501-1000(pieces) | Within a week |
| 1000-3000(pieces) | Within two weeks |
| 3000-5000(pieces) | Within three weeks |
| 5000+ | Within four weeks |
VI
Production process
The above is only a partial product display, and our company's products include but are not limited to 0.66 "~65" inch display modules, touch screens, and related kits. Welcome to contact us for more product and style information. Thank you!
