Product Overview

Description



Product  name:

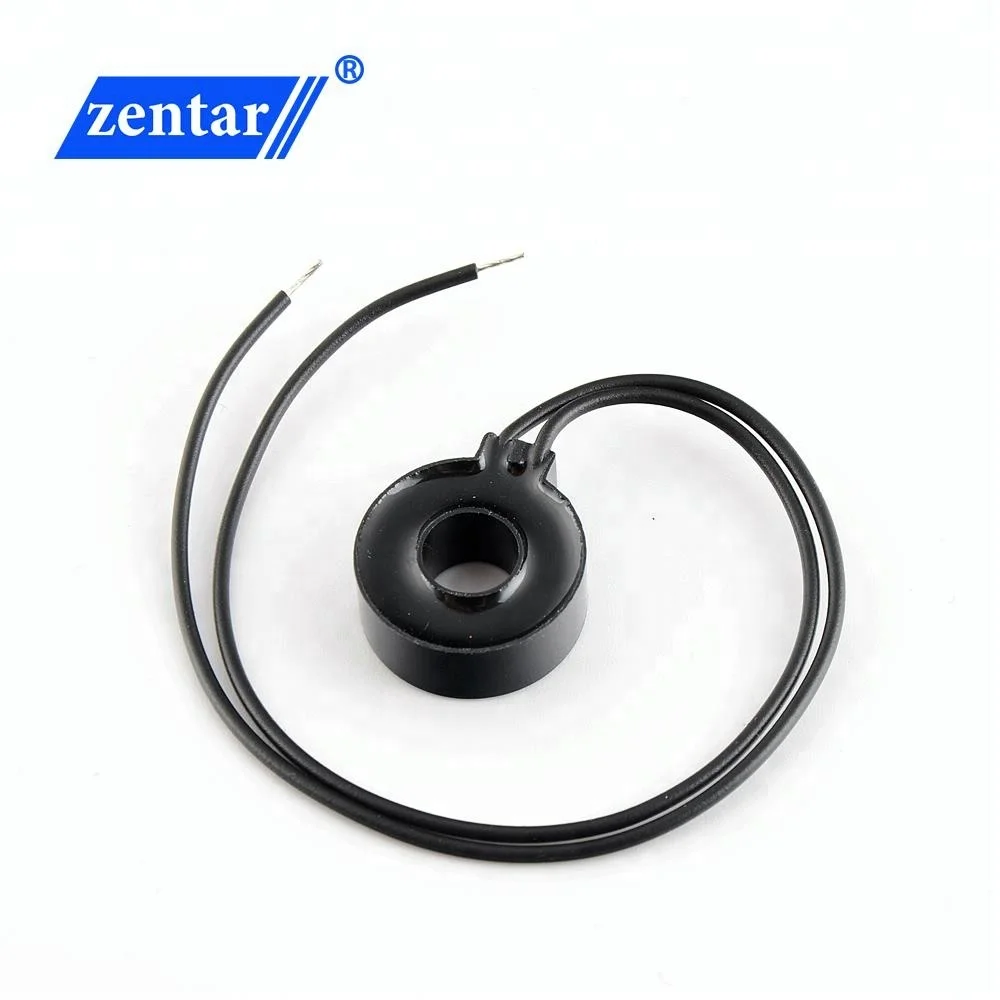

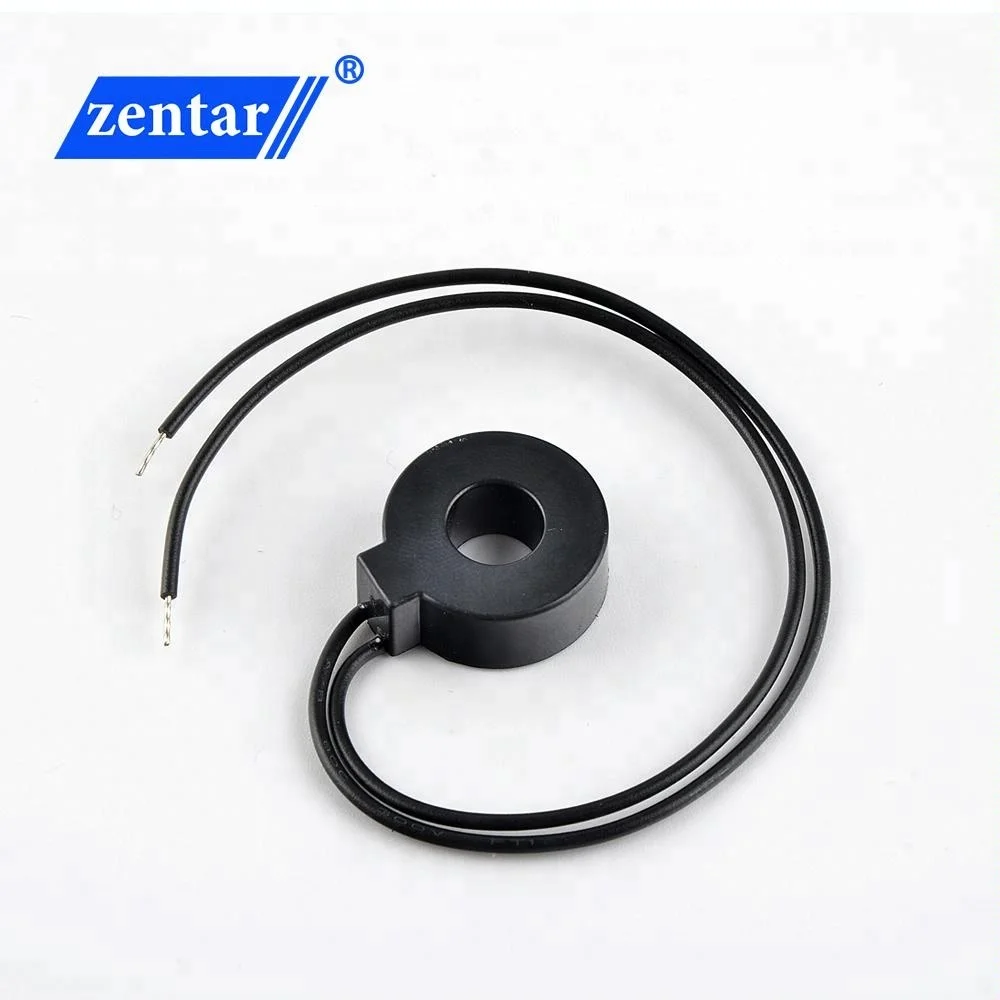

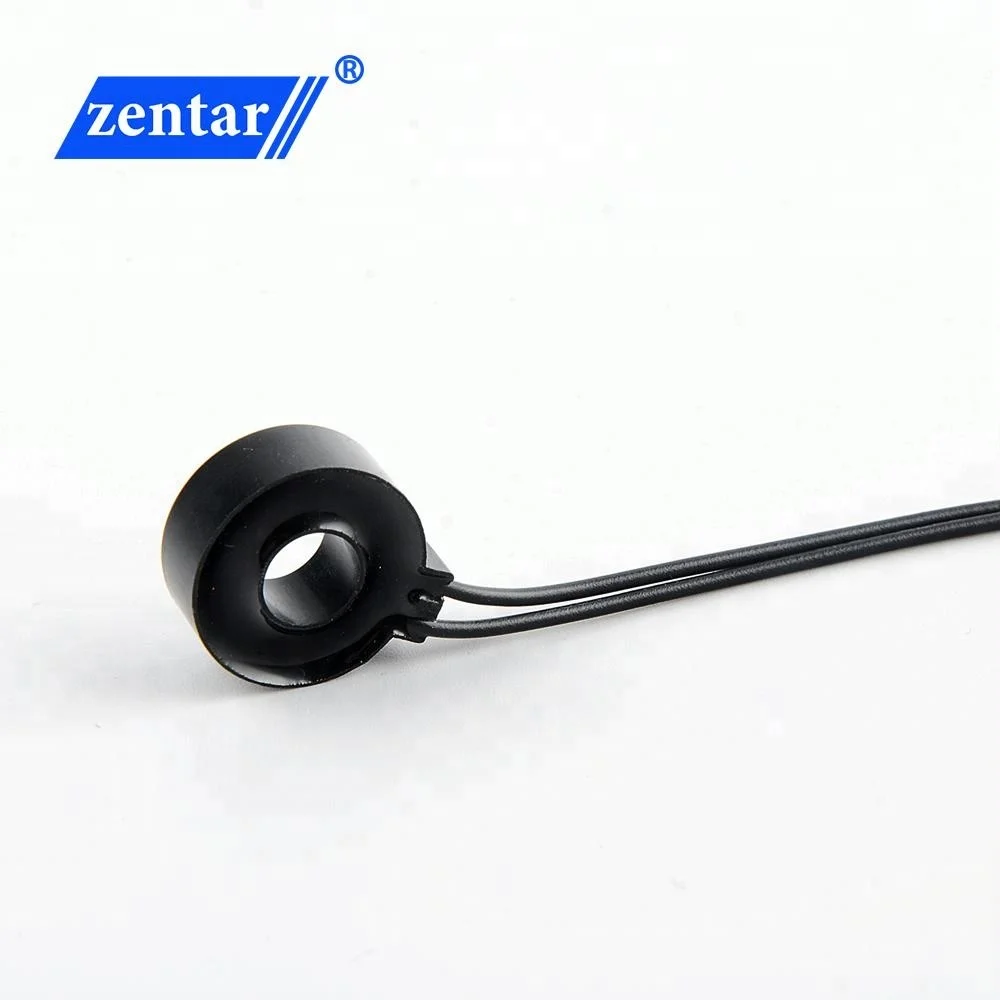

Zentar 30A Cheap Zero Sequence Zero Phase Current Transformer ZCT

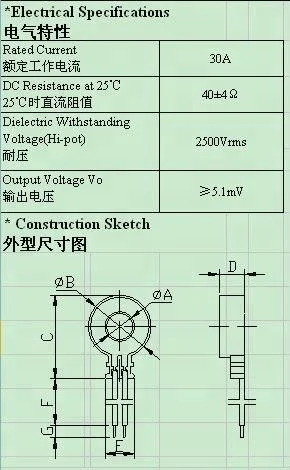

Rated Output :10~12.5 mVRated current : 30A

Operating frequncy : 50Hz/60Hz
Dielectric withstanding voltage(Hi-pot): 2500Vrms (between outside/sec.)
Accuracy(0.1A-60A): linearity:0.5%

DC resistance: 40+4 ohms



APPLICATIONS

-Residual current circuit breaker

-Earth Leakage protection switch

-Leakage circuit protection Breaker

-Leakage circuit protection plug (Appliance Leakage Circuit Interrupter -ALCI)



Features:

Epoxy encapsulated and has a polypropylene resin case

RoHs compliant

-High sensitivity
-Close to zero load shift and zero phase shift
-Excellent in balance
-Perfect in temperature stability
-Small change in output voltage
