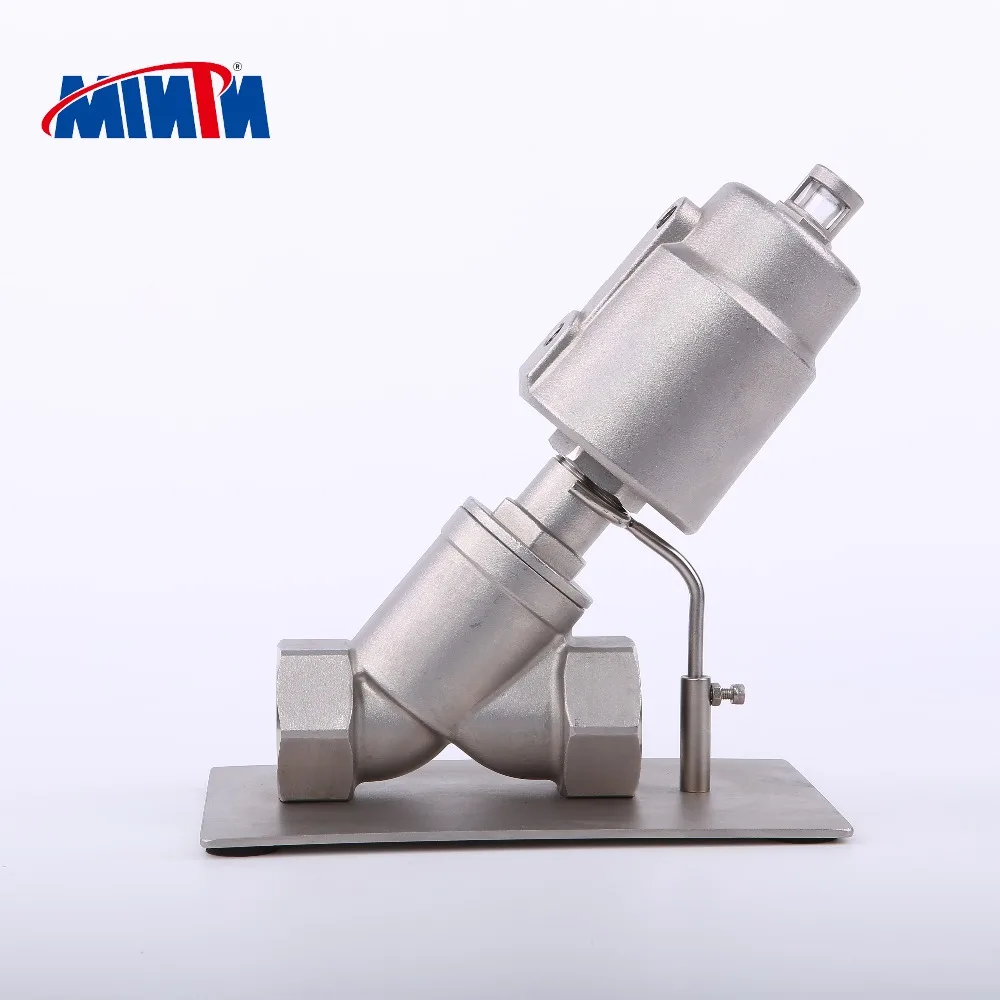

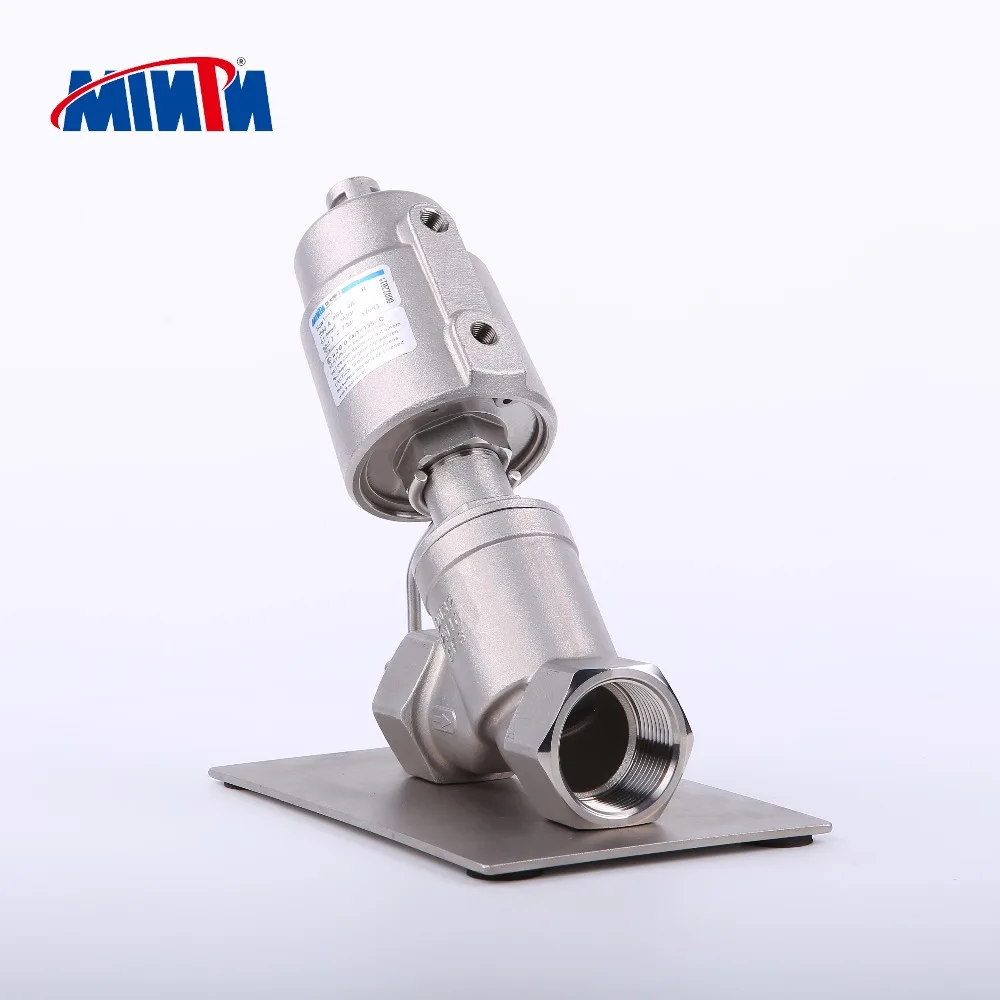

PneumaticY type angle seat valve new type SS304 SS316,BSP/NPT,BSPT

Product Overview

Description

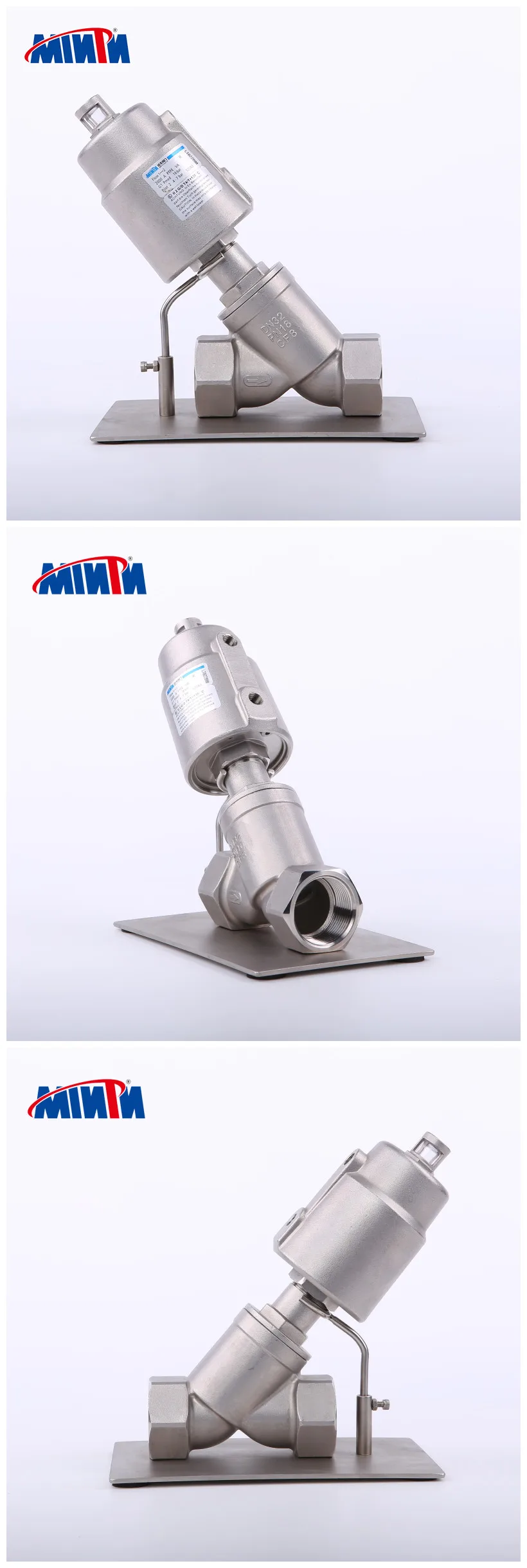

Panoramic display





Technical Data:

Fluid Pressure : Max×1.6MPa(232psi)

Control Pressure:0.3-0.8MPa(43.5-116psi)

Control Fluid:Neutral gas,Air

Actuator Size:27mm,32mm,40mm,50mm,63mm,80mm,100mm,125mm

Applicable Fluid:Water,Alcohol,Oil,Dye,Steam,Neutral gas or liquid,Organic solvent,Acid and lye

Fluid temperature:-10ºC-+180ºC,25ºC-+220ºC

Ambient temperature:-10ºC-+80ºC

Control Type:Normally closed,Normally open,Double acting

Connection: Threaded(BSP.BSPT,NPT),Welded, Flanged, Tri-clamp

Main Materials :

Body Material:CF8M(SS316),CF8(SS304)

Seals Material:PTFE

Actuator Material:CF8 (SS304)

Applications:

Beer& Drink Filling Machinery

Textile printing& Dyeing
Gas industry
Pharmacy& Medical Equipment
Chemical industry
Disinfection
Frothing Equipment
Water/sewage Disposal

Advantages:

1.Large Flux, low Resistance, No Water-hammer Y-type Shape Enlarged The Flowing Section, which Could Raise The Flux By 30% And Make Flow More Smooth
2.Super Long Life.
3.Which Help The Stem Adjust And Lubricate Itself Automatically.
4.The Cylinder Material is Stainless Steel.Lubricating Automatically,360 Rolling Freely.

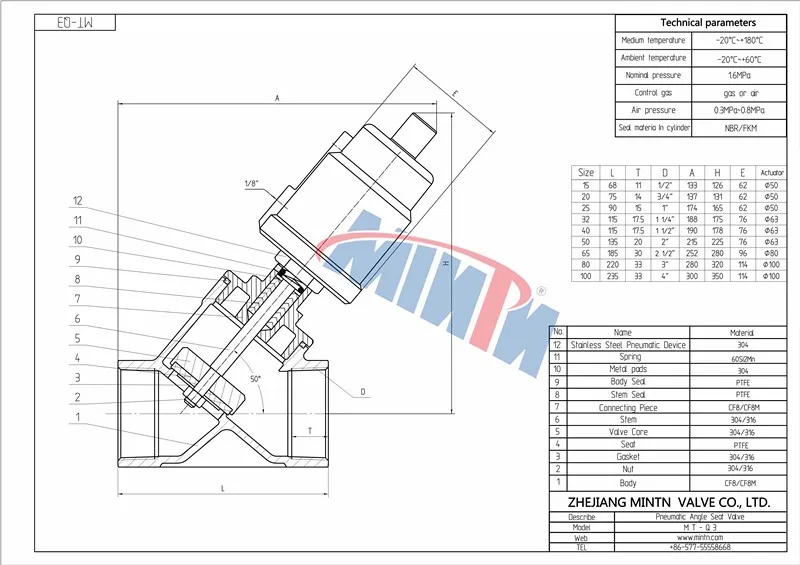

Q3-Pneumatic Angle Seat Valve-Thread Ends Drawing                                                                                     (More clear drawing, please contact us)



Packing Details





FAQ

Q: What's your business scope?

A: Our business scope is pneumatic angle seat valves , pneumatic ball valves, etc.
Q: What is the price of the product?

A: Our prices are based on the size and type of material, if you can give me the information, then we can give you an estimated price is for reference only. We can customize if need.

Q: How much is our minimum order quantity?

A: Our minimum quantity is 1 Piece.

Q: What is your terms of delivery?

A: FOB/CNF/CIF, Customers' Request, port includes NINGBO/SHANGHAI, Customers' Request.

Q: What is your Packing details?

A:Plastic Bag, Carton & Plywood Case/According to customers' requirement.

Q: What's your delivery date?

A: It depends on the quantity of orders. Delivery date is 7-30 days. If you need emergency products, we can speed up the production of the first arrangement.
