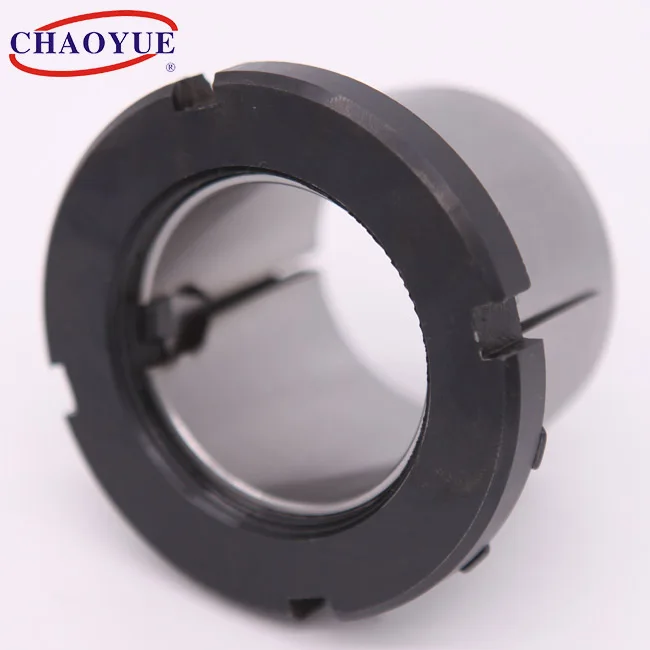

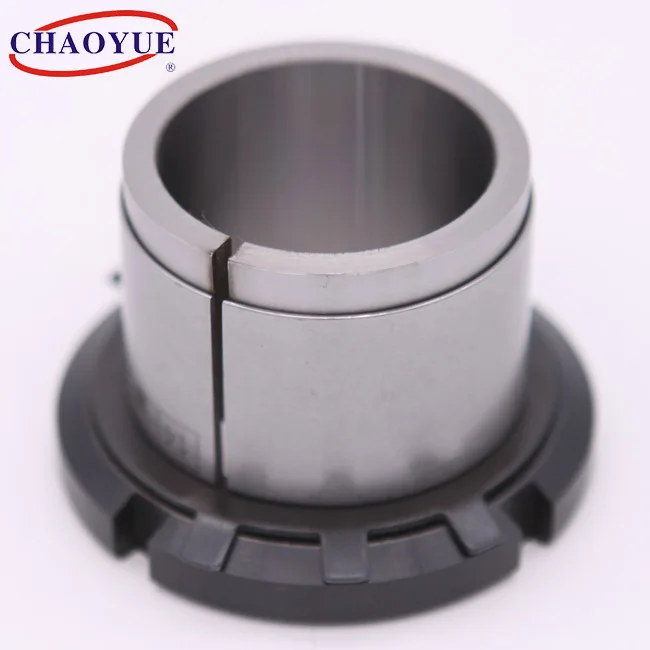

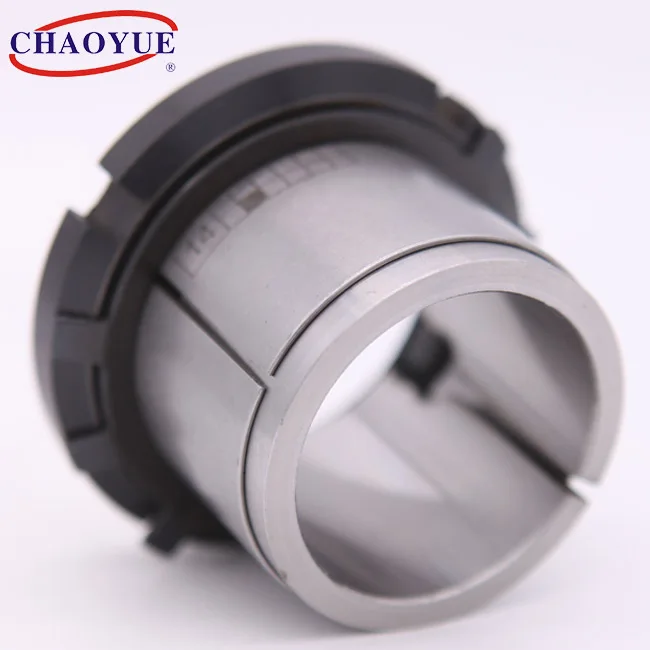

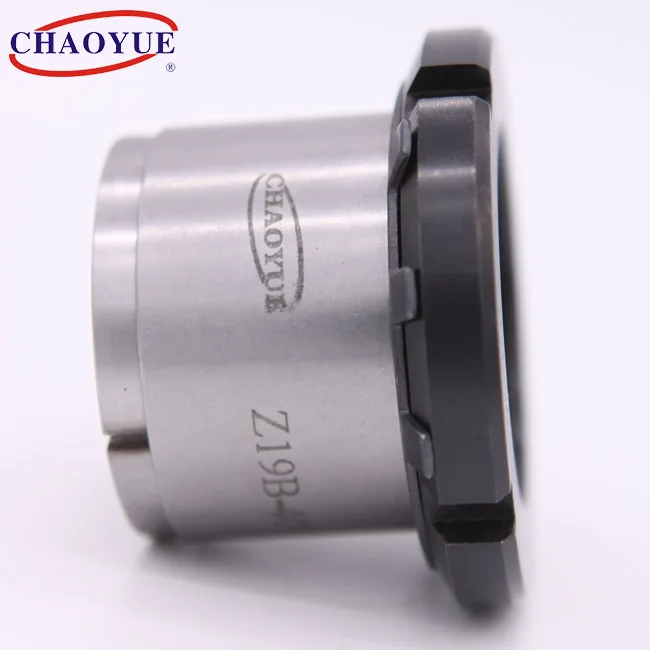

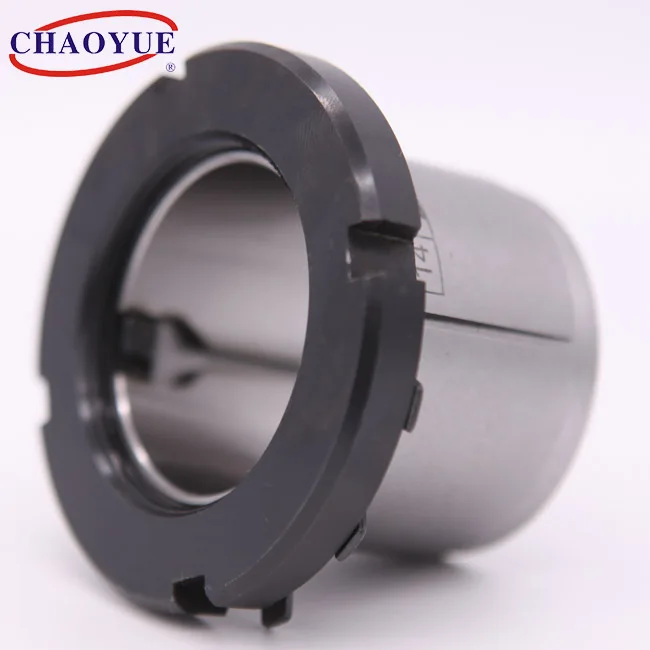

Type Z19B is a keyless shaft power lock. It can replace single keyway and spline ,in order to realize the connection between machinery parts (such as gear wheel,flywheel) and shafts,so the loading can be transmitted.Through the function of high strength of bolt when locking device is working,enormous strengh of tight holding power between hub, inner loop and shaft are produced.When bearing the weight and loading depend on connection power between locking device and machinery and additional frictional torce to transmission torsion or power on shaft.
DIMENSION
Bolt
Rated Load
Pressure
on shaft
Pf
N/mm2
Pressure
on hub
Pf'
N/mm2
Torque of
tighten
locking-bolt
MA
N·m
Weight
[Kg]
d
D
E
H
B
d1
Axial Force Ft [kN]
Torque Mt [kN·m]
14 15 16 17 18
25 25 25 25 30
32 32 32 32 32
30 30 30 32 32
20 20 20 20 20
M20x1 M20x1 M20x1 M22x1 M22x1
9.1 9.1 9.1 9.1 9.1
64 70 73 80 83
85 80 75 70 65
45 45 45 45 40
95 95 95 95 95
0.08 0.08 0.07 0.07 0.12
19 20 22 24 25
30 30 35 35 35
38 38 45 45 45
32 32 36 36 36
20 20 25 25 25
M25x1.5 M25x1.5 M30x1.5 M30x1.5 M30x1.5
11 11 14.5 14.5 14.5
105 112 163 178 185
75 70 70 65 60
45 45 45 45 45
160 160 220 220 220
0.11 0.1 0.17 0.15 0.14
28 30 32 32 35
40 40 42 45 45
52 52 55 58 58
42 42 44 44 44
30 30 30 30 30
M35x1.5 M35x1.5 M36x1.5 M40x1.5 M40x1.5
14.5 17.5 21.5 21.5 21.5
250 270 350 350 390
55 50 60 60 55
40 40 45 45 45
340 340 340 480 480
0.22 0.19 0.2 0.27 0.22
38 40 45 48 50
50 50 55 60 60
65 65 70 75 75
45 45 46 46 46
30 30 30 30 30
M45x1.5 M45x1.5 M50x1.5 M55x2 M55x2
26 26 30 35 35
500 520 680 840 880
60 60 60 60 60
45 50 50 50 50
680 680 870 970 970
0.3 0.25 0.29 0.37 0.32
55 60
65 70
80 85
46 52
30 30
M60x2 M65x2
37.5 45
1030 1360
60 65
50 55
1100 1300
0.34 0.42
Company Information
Our Advantages
Certifications
Packaging & Shipping
FAQ
Q: Are you factory or trading company ?
A : Xianyang CHAOYUE Clutch Co., Ltd was founded in 1999. We are a professional locking assembly & clutch manufacture with 20 years' experance of R&D.
Q: How to get price ?
A: Kindly info us with the product type and we will quote you ASAP.
If you are not sure about these details , pls just tell us :
Inner diameter is mm, outer diameter is mm, width is mm, torque range is kN·m,
Q: What's the MOQ ?
A: The minimum order quantity for most of our product is 1 pcs.
