Hollow fiber outside in dead end flow UF membrane 8"

Share on (60762229914):


Price:RUB 73,790.48

Quantity:


Product Overview

Description

Product Description




Hollow fiber PVDF1508 Data sheet





UF membrane model

PVDF1508

Specification of element

material

PVDF

Membrane technology

H-TIPS

Effective membrane area(m²)

50m²

Membrane Pore size

0.03 μm

Hollow fiber inner/ourside dia

0.7/1.3 μm

Material of membrane housing

White UPVC

End cap material

Gray UPVC

Seal material

epoxy resin 



Flow configuration

Outside in, dead end flow

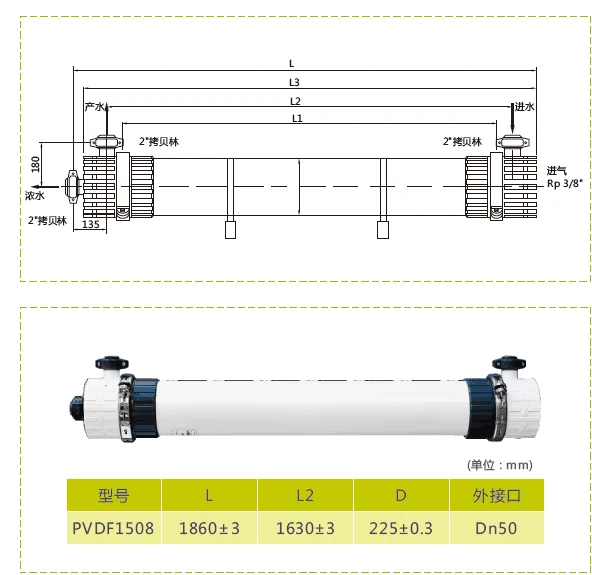

Size of element

Diameter

8

length

1860mm

Input/output connector

DN50

Weight of element

wet

65KG

dry

35KG

Cavity Volume

36L

Operate condition

Temperature of testing solution

5-45

PH range of feed water during continuous operation

3-10

PH range of feed water during chemical cleaning

1-12

Air scrubbing discharge

4-6 Nm²/H per unit

Flux design range

3-6 m³/h

Pressure drop during operate of single element

0.02-0.12 Mpa

Max flow SDI15

<5.0

Max working pressure

0.3Mpa

Max Pressure drop during operate of single element

0.15Mpa



Packaging & Shipping



--01_02--01_07

Company Information



Tianjin Kung ta materials technology co., ltd. affiliated with Tianjin Jingwu Industrial Technology Research Institute and Tianjin Polytechnic University. Membrane separation technology as the core. Specialized in R&D, production and selling. Now our mainly products are reverse osmosis membrane flatsheet and RO membrane elements for residential, commercial and industrial.



Our president Wangwei is professor of Memebrane technology and teaching in Tianjin Polytechnic University Material institute. So our R&D Team is very strong.



Tianjin Polytechnic University State Key Laboratory of Separation Membrane and Membrane Processes ro membrane team in the antimicrobial anti-fouling reverse osmosis membrane

preparation technology has made important progress in their preparation of reverse osmosis

membranes in the presence of organic pollutants, inorganic pollutants and microorganisms Under all showed good anti-pollution, and the preparation method is simple, mild conditions, advantages of

high efficiency and economy.



During 2017, we have attended Chennai Water Expo. During 2018, we will on the ASIAWATER Malaysia. Now we have customers from Australia, Pakistan, India, Turkey, Russia, Sri Lanka etc.

Look forward to be your long-term and friendly supplier.
