DC 12V One Transmitter with 1 Channel 2 Keys Smart Wireless Remote Control Switch Inching Self locking

Specifications:

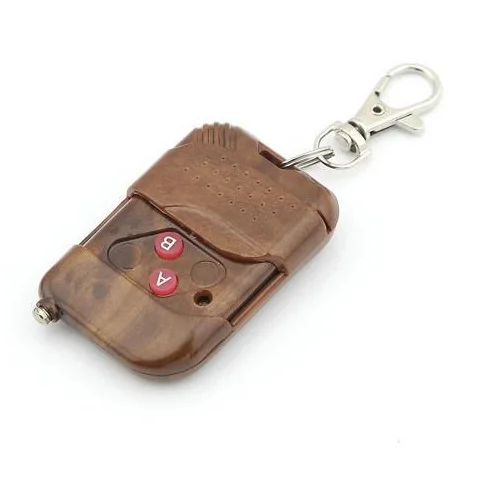

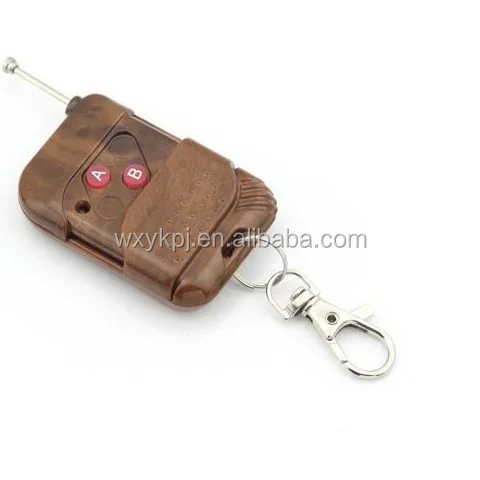

Transmitter
Operating Voltage: DC 12V
Vibration Resistance: 4.7M
Chip Type: 1527/2264
Modulation: ASK (Stable, less interference)
Encode Type: Pads
Battery Type: 12V 23A(not included)
Remote Distance: 30-50m (Theoretical value)
Product Dimension: 60x38x13mm

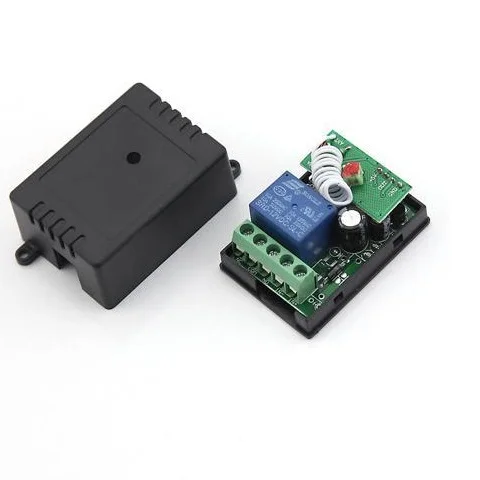

Receiver
Input Voltage: DC 12V
Operation Way: Inching, Self-locking
Coding Way: Intelligent Learning
Output Type: 1 Relay Signal Output
Factory Default: Self-locking
Board Dimension: 45x30.5x17mm

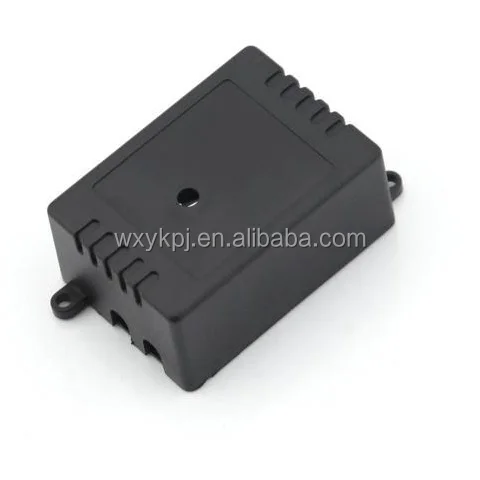

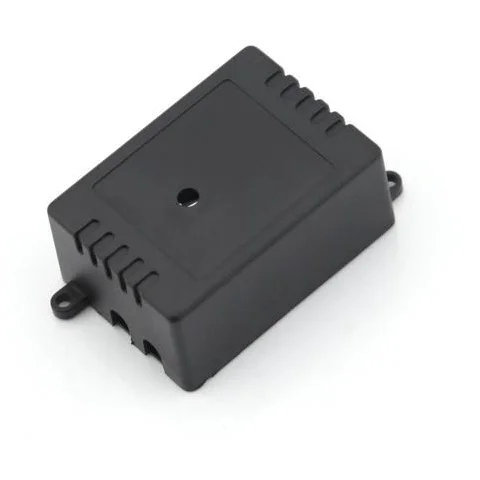

Case Dimension: 65x37x22mm

Operation Way and Steps:

Inching mode: The output relay remains on as long as the transmitter button is depressed.
Self-Locking mode: Press the button one time, the relay turns on; Press again, turns off.

Programming the control:

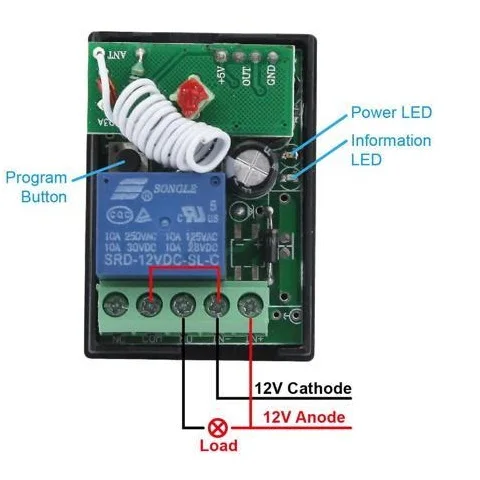

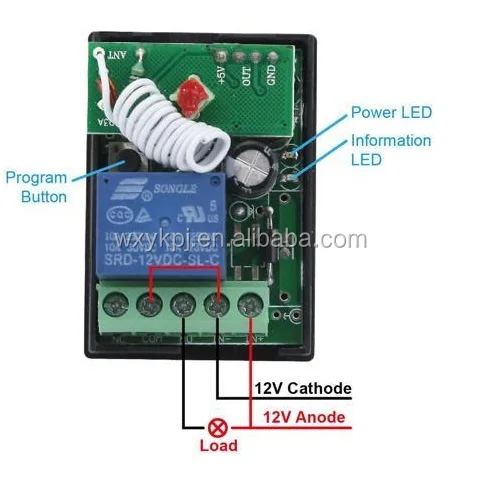

To change the mode, press and hold the button on the receiver. After one second, the red light will turn on and stay on for about 5 seconds. Then the red light will begin to flash. It will flash once, then twice, and finally three times.
For inching mode, release the button after the light flashes once.
For Self-Lock mode, release the button after the light flashes twice.

How to Link
Whenever the receiver mode is changed, the transmitter must be learned by (linked to) the receiver. This is done by pressing the button on the receiver until the red light on the receiver turns on. At that point release the button on the receiver. The red light will stay on. When you press a transmitter button, the red light will flash two long times and then rapidly flash. At this point, the transmitter and receiver are linked. When the button is released and pressed again, the associated relay on the receiver will turn on.

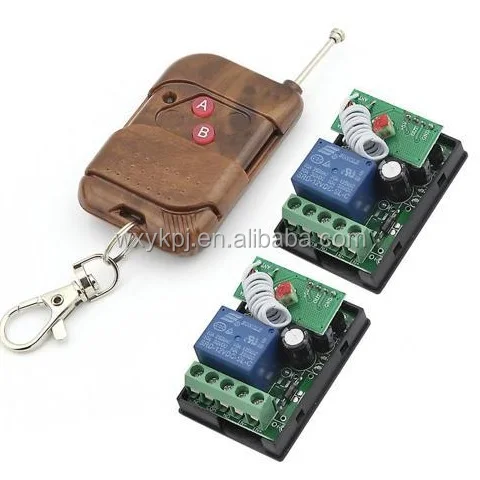

Package Includes:
1X Transmitter (Battery is not included)
2X Receivers

Packing: Plastic bag and carton or as you requested
