Product Overview

Description

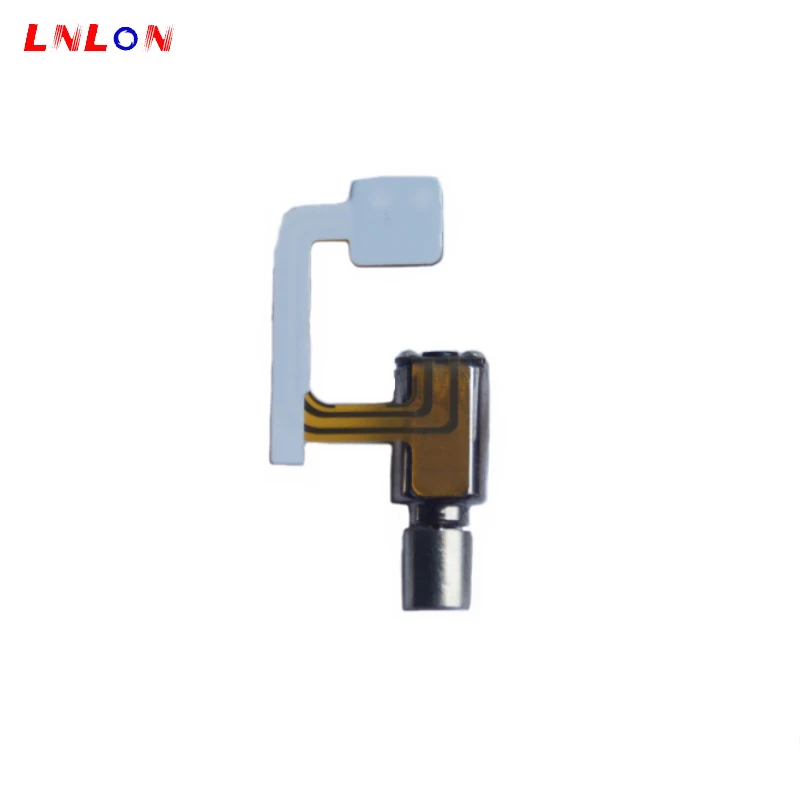

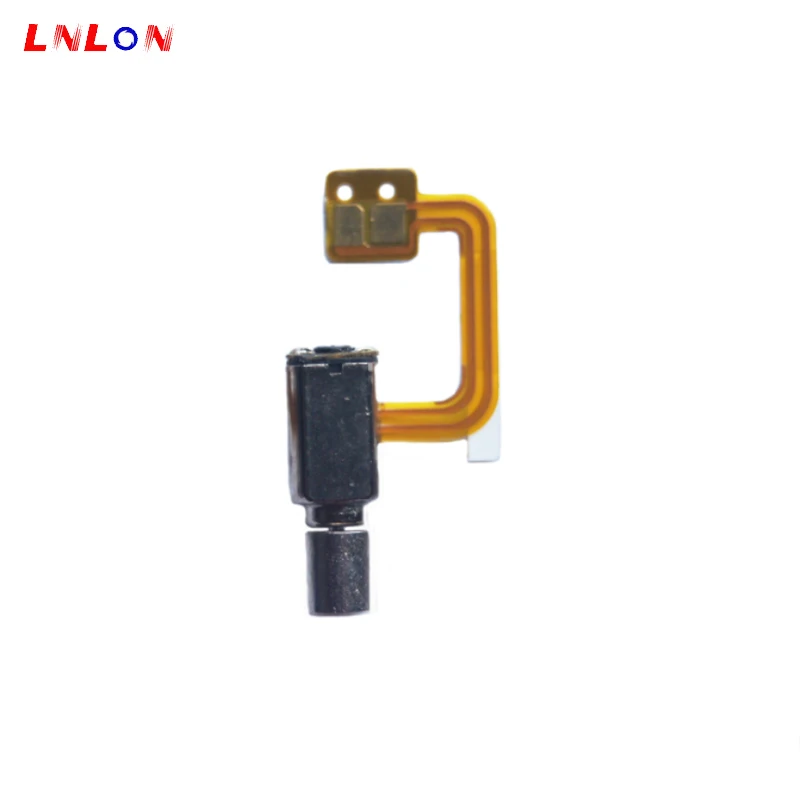

reflow solderable dc mini smt vibrating motor for for security products



Basic Parameter:
ModelS3070P-300020790-0020
size11.6*4*3.18
rated voltageDC 2.7V
starting voltage2.3V DC Max
operating voltageDC 2.3~3.2V
rated speed12500±2500rpm
rated current85mA Max
Stall current 95mA Max
vibration0.35 G
response timeabout 40mS
life2.7V,2.5S on, 2.5S off,300000 cycles
terminal resistance 33Ω±6Ω
insulation resistance1MΩ Min
mechanical noise50 db (A) Max

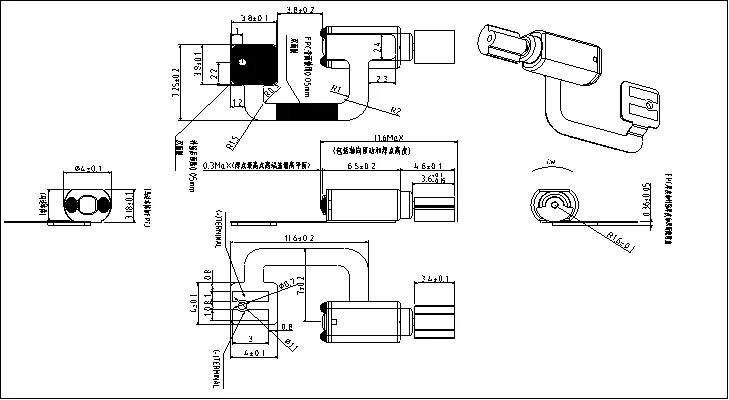

Outline drawing:

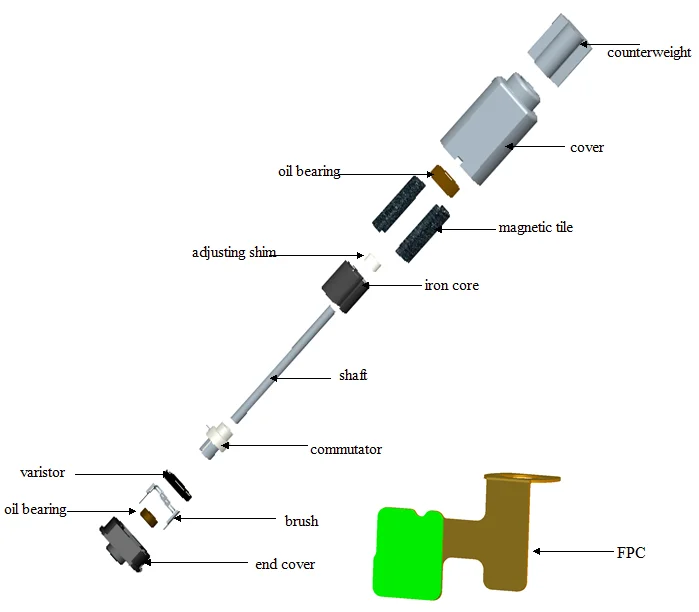

Motor structure:

.png



Application:


Certification:

ISO9001, ISO14001, GBT 28001,QC080000,RoHS

.pngAbout US:

Industy-leading manufacturer for mini vibration motor in China;

Incorporated in 2003

Gross investment of 150 million RMB

>1000 workers, 35000 square meters

Above 0.18 billion annual output

ISO&ROHS certificated

Mian Customer:Huawei, OPPO, vivo, Lenovo, MOTO, Transsion...



RohS 10mm coin 3V brush micro dc vibration motorRohS 10mm coin 3V brush micro dc vibration motor

Why choose us?

1. Quality: Product with good stability and consistency, complete quality management system, satisfying ISO9001, ISO14001, QC080000 and RoHS, strict control for incoming raw material and supply chain.

2. Technology: Independent D&R team with above 10 years’ experience of design and engineering; products with kinds of proprietaty technologies; with unique design technology for super small size and other highly difficult and customized products.

3. Process: Independent D&R team for self-developed and self-made automated production line; unique process and control methods.

4. Service: Professional service window for business, technology and quality.



Packaging & Shipping
1.  Packaging: Carton
2.  Shipping: By Air, Fedex, DHL, UPS, SF, etc for samples and batch goods, customer to pay for freight.



FAQ:
1. What is your main products?
We mainly specialize in small vibration motor, including dc coin motor, dc SMD motor, dc gear motor, dc stepper motor and ac linear motor.

2. How can I get sample or place order?
To confirm the product specification at first, then we can send you datasheet and free samples for test. You can send us order if sample without problem. You can contact us by anyway, email, skype, wechat, or phone.

3. Do you have MOQ?
We do not have MOQ limit, and accept small quanity order.

4. What is your terms for delivery and payment?
EXW, FOB, CFR, CPT for delivery; T/T, credit card or paypal for payment.



Any question or need, please contact us.
