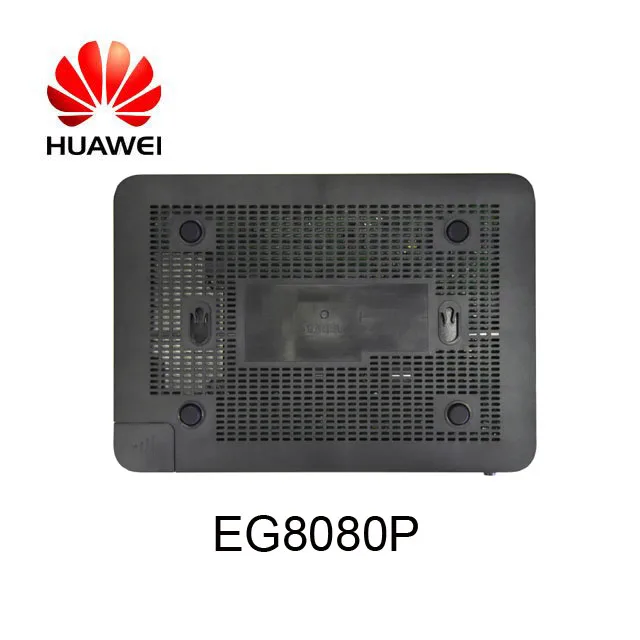

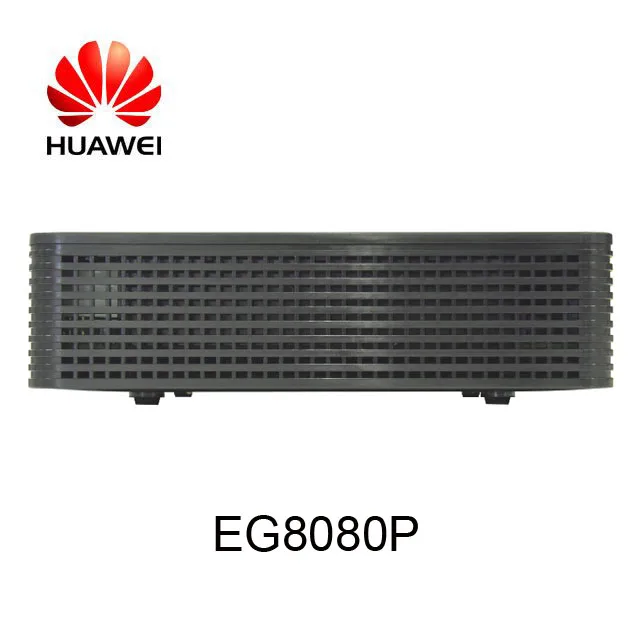

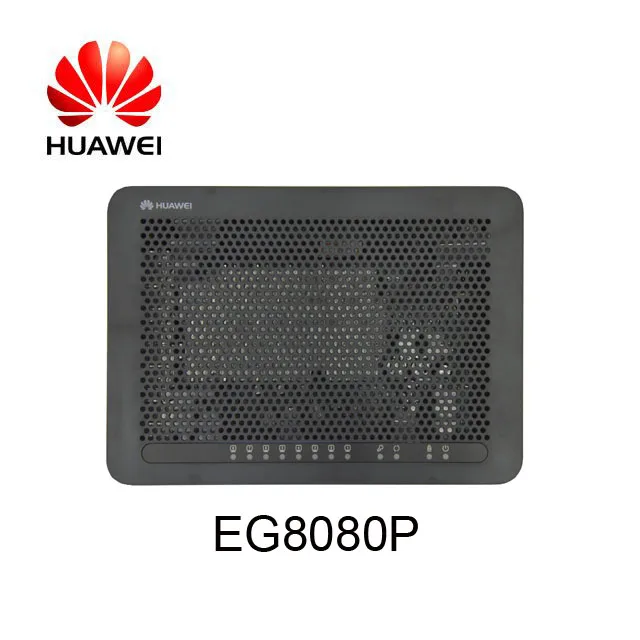

Huawei EchoLife EG8080P Gigabit Optical Access Terminal for Enterprise

The EchoLife EG8080P is an Optical Network Terminal (ONT) used in Huawei’s Agile POL Solution. The EG8080P utilizes GPON technology to provide ultra-broadband access for enterprise campuses. It also provides 8 GE ports to support Power Over Ethernet (PoE) functions. The EG8080P features high-performance service forwarding capabilities to ensure excellent experience with VOIP, Internet, and HD video services.

In summary, Huawei’s EchoLife EG8080P provides a perfect Agile POL solution experience for enterprise campuses and supports future-oriented services.

Plug-and-play functionality, power over Ethernet, and comprehensive triple play service

• Plug-and-play: Configurations are automatically delivered by the Network Management System so on-site commissioning is not required
• Power over Ethernet: The Optical Network Unit (ONU) supplies intelligent PoE to terminal devices, such as an outdoor Access Point (AP) over an Ethernet cable
• Comprehensive Triple Play Service: The ONT provides abundant ports to implement multiple access services, including home network attached storage, Internet access, and video services, providing users with comprehensive triple play service

  PON Port

  • SC/UPC connector

  • SFP optical module

  • Transmission rate (unit: Gbit/s)

  GPON: downstream 2.488 and upstream 1.244

  XG-PON: downstream 9.953 and upstream 2.488

  XGS-PON: downstream 9.953 and upstream 9.953

  • Type B single-homing

  • Type B dual-homing (supported in Layer 2 forwarding)

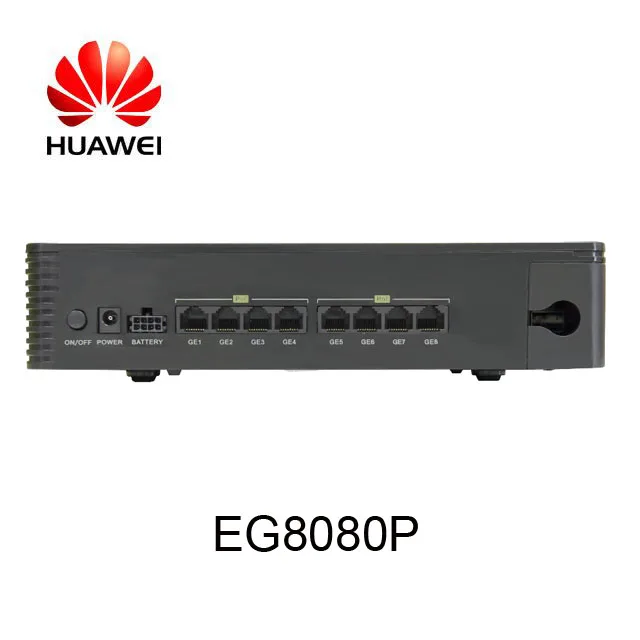

  GE Electrical Port

  • PoE and PoE+

  IEEE 802.3af and IEEE 802.3at

  • RJ-45 connector

  • Port rate autonegotiation (10/100/1000 Mbit/s)

  • Auto-MDI/MDIX

  • Configuration of the number of MAC addresses learned

  • Ethernet port-based VLAN transparent transmission and VLAN filtering

  Automatic Service Provisioning

  • Authentication exemption

  • XML/OMCI/TR069

  Smart O&M

  • XML/Web UI management

  • Y.1731

  • Rogue ONT detection and self-regulation

  • Ring network detection

  • PPPoE /DHCP emulation testing

  Layer 3 Features

  • Default/Static/Policy/Service routes

  • VLAN binding

  • ALG/UPnP/ARP

  • DDNS/DMZ/DNS/NAPT

  • PPPoE/Static IP/DHCP/DHCP option66

  • Port mapping/Port trigger

  Layer 2 Management

  • DHCP option82

  • PITP

  • BPDU transparent transmission

  • LLDP/LLDP-MED

  Multicast

  • IGMP v2/v3 snooping

  • Dynamic controllable multicast

  • MLDv1/MLDv2 snooping

  QoS

  • Ethernet port rate limitation

  • 802.1p priority

  • SP/WRR/SP+WRR

  Security

  • Filtering based on MAC/IP/URL

  • DoS/ARP anti-attacks

  • Session number restriction

  • Device access control

  • 802.1x

Packaging

1.Trade terms: FOB,CIF,CFR,etc

2.Price Terms: T/T,Western Union,PAYPAL

3.Payment Terms: T/T in advance

4.MOQ:  1 pcs

5.FOB Price:US $50-150/ Piece

6.Port: Shanghai

7.Lead time: Within 3-5 working days after receiving the full payment.

8.Shipment: Express, Air, Sea

9.Supply capability: 200 Piece/Pieces per Week

10.Sample availability: Yes( not free)

11.Package information: carton package with Grandstream original package or as customers'  requests.
