china HVAC/R precision auto ac refrigeration four way pressure manifold gauge set HMG 4 R32 II
china HVAC/R precision auto ac refrigeration four way pressure manifold gauge set HMG-4-R32-II
china HVAC/R precision auto ac refrigeration four way pressure manifold gauge set HMG-4-R32-II
china HVAC/R precision auto ac refrigeration four way pressure manifold gauge set HMG-4-R32-II

china HVAC/R precision auto ac refrigeration four way pressure manifold gauge set HMG 4 R32 II

Share on (60762424577):


Price:

Quantity:


Product Overview

Description







Model
HMG-4-R410A-II
HMG-4-R134a-II
HMG-4-R32-II
HMG-4-1234yf
Refrigerants Scale
R410A，R22，R407C，R134a
R134a，R22，
R404A，R407C
R410A，R32
R134a，
HFO-1234yf
Gauge Diameter
68mm
68mm
68mm
68mm
Pressure Scale
0~800psi；
-30~0psi，0~550psi
0~400psi；
-30~0psi，0~350psi
0~800psi；
-30~0psi，0~550psi
0~400psi；
-30~0psi，0~350psi
Connector
3×1/4”SAE-M，
1×3/8”SAE-M
3×1/4”SAE-M，
1×3/8”SAE-M
3×1/4”SAE-M，
1×3/8”SAE-M
3×1/4”SAE-M，
1×3/8”SAE-M

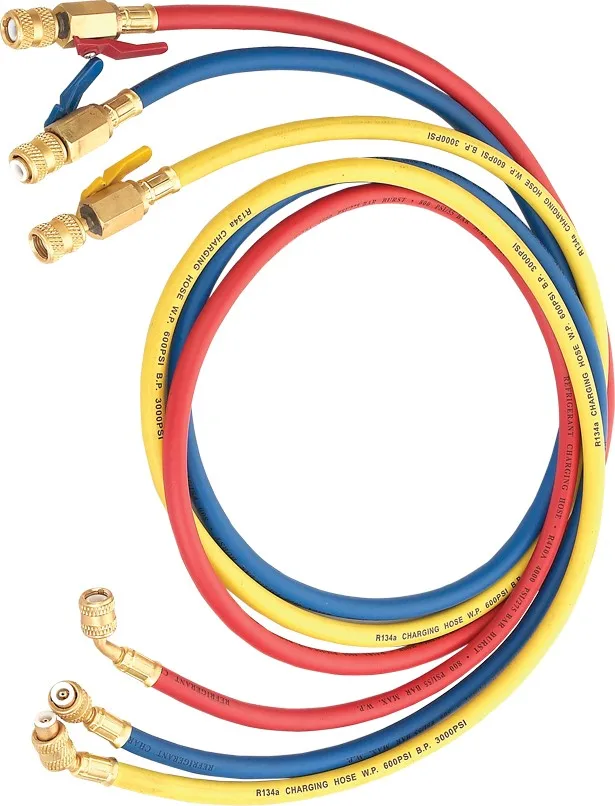

Hose
●Red-Yellow-Blue：1/4”SAE-F×1/4”SAE-F
●Red＆Blue：1/4”SAE-F×5/16”SAE-F；
Yellow：
1/4”SAE-F×1/4”SAE-F
●Red-Yellow-Blue：1/4”SAE-F×1/4”SAE-F
●Red＆Blue：1/4”SAE-F×5/16”SAE-F；
Yellow：
1/4”SAE-F×1/4”SAE-F
●Red-Yellow-Blue：1/4”SAE-F×1/4”SAE-F
●Red＆Blue：1/4”SAEF×5/16”SAE-F；
Yellow：
1/4”SAE-F×1/4”SAE-F
●Red-Yellow-Blue：1/4”SAE-F×1/4”SAE-F
●Red＆Blue：1/4”SAEF×5/16”SAE-F；
Yellow：
1/4”SAE-F×1/4”SAE-F
Standard Length
90cm
90cm
90cm
90cm

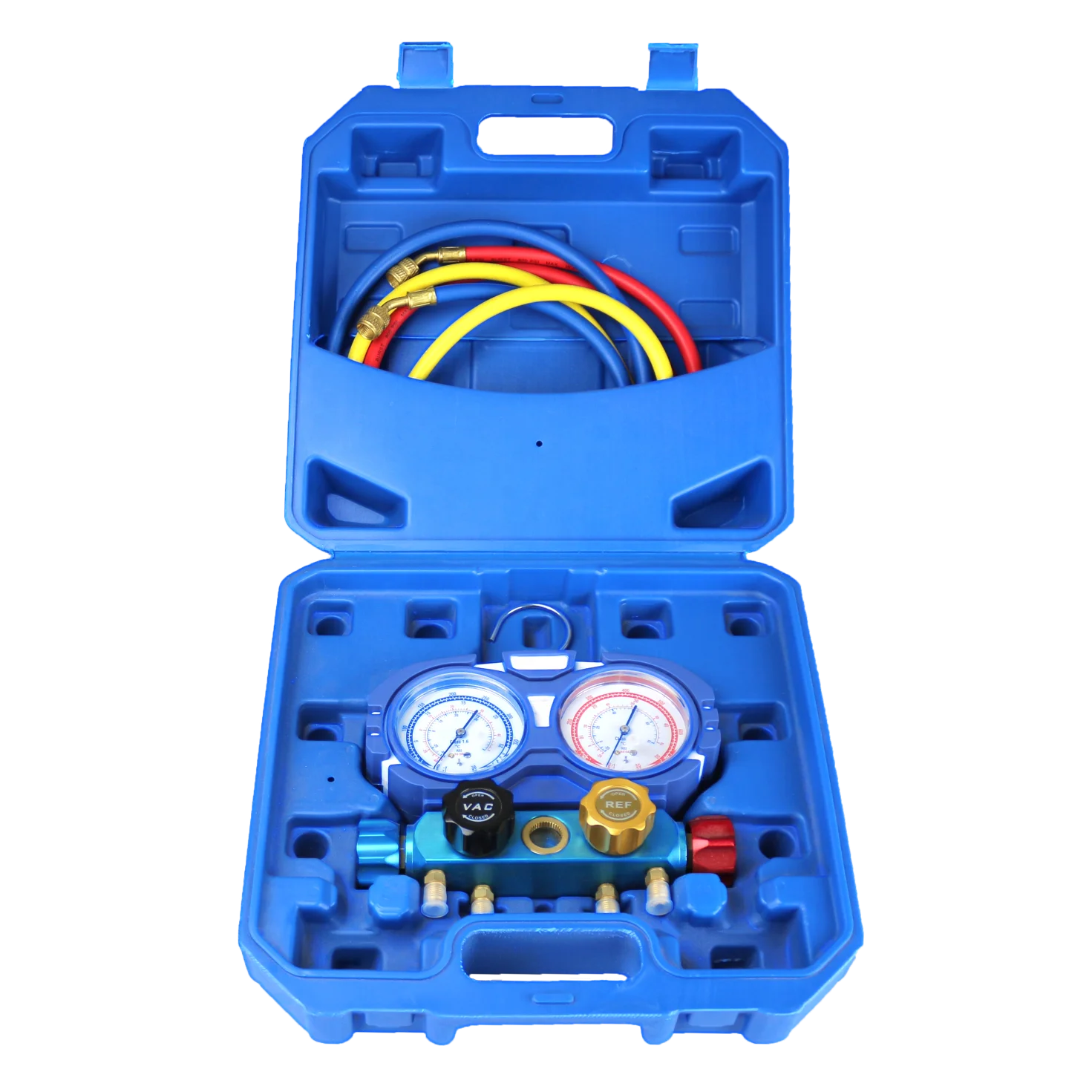

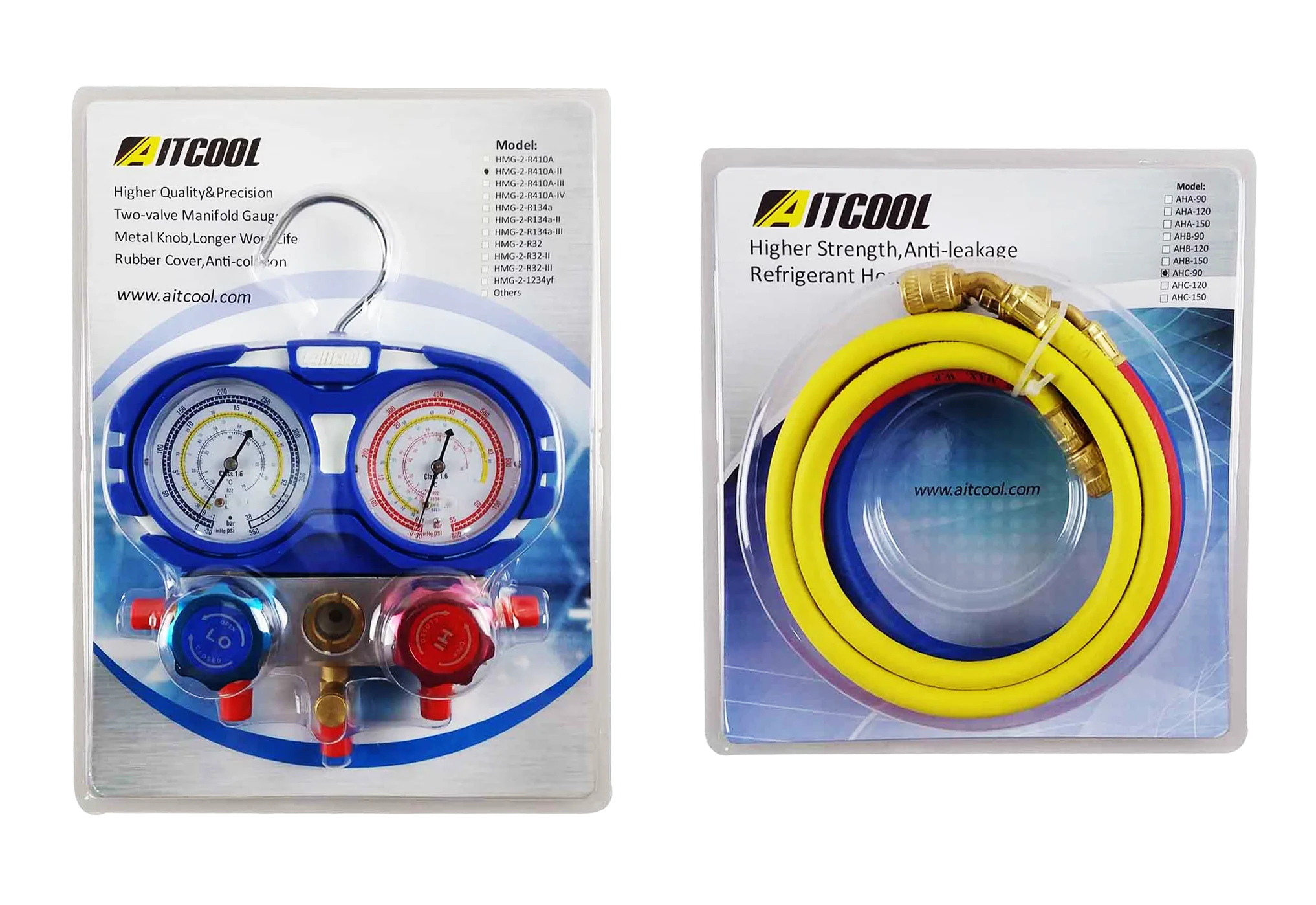

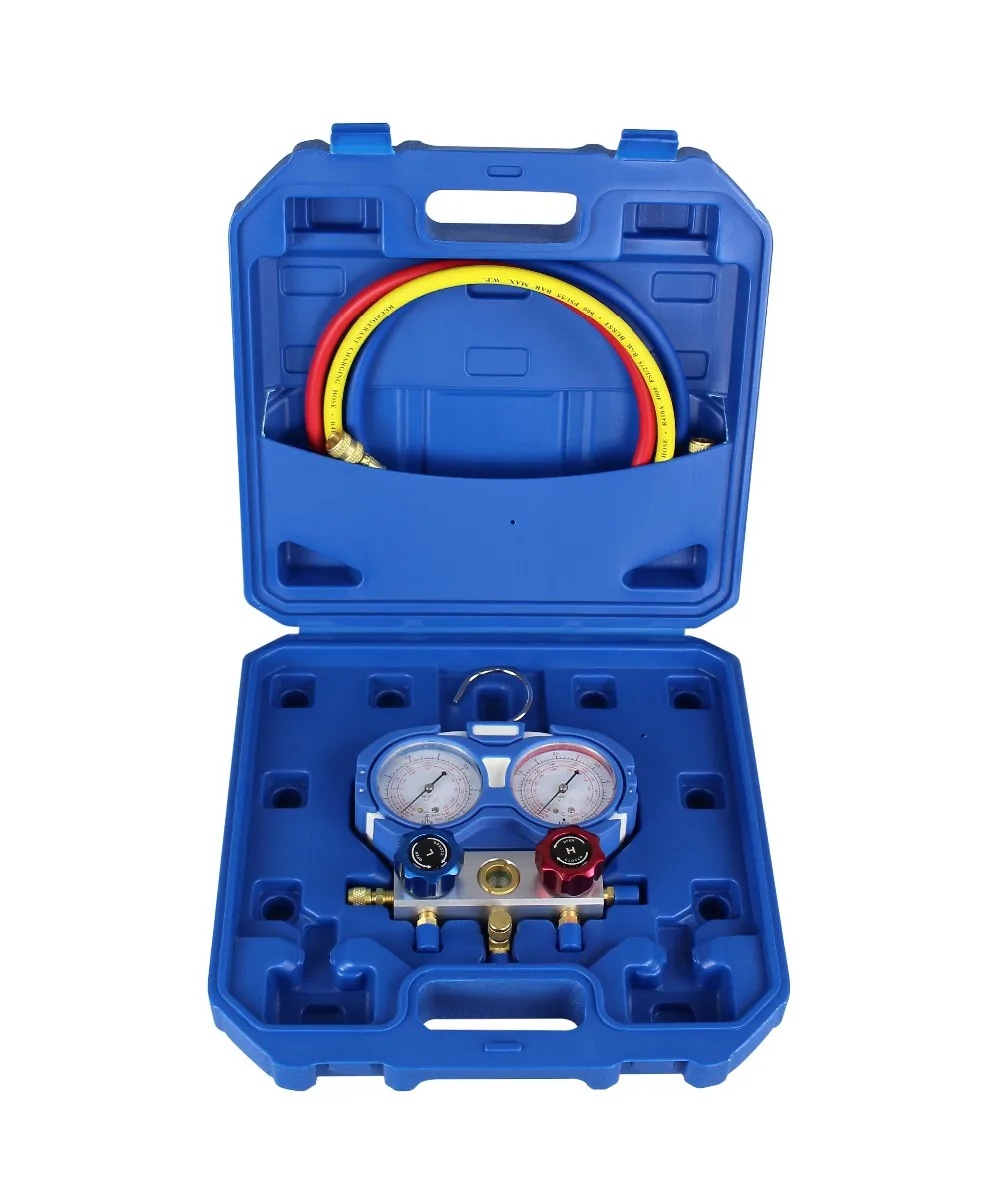

Package
Blow case / Blister packing / Box packing
Blow case / Blister packing / Box packing
Blow case / Blister packing / Box packing
Blow case / Blister packing / Box packing

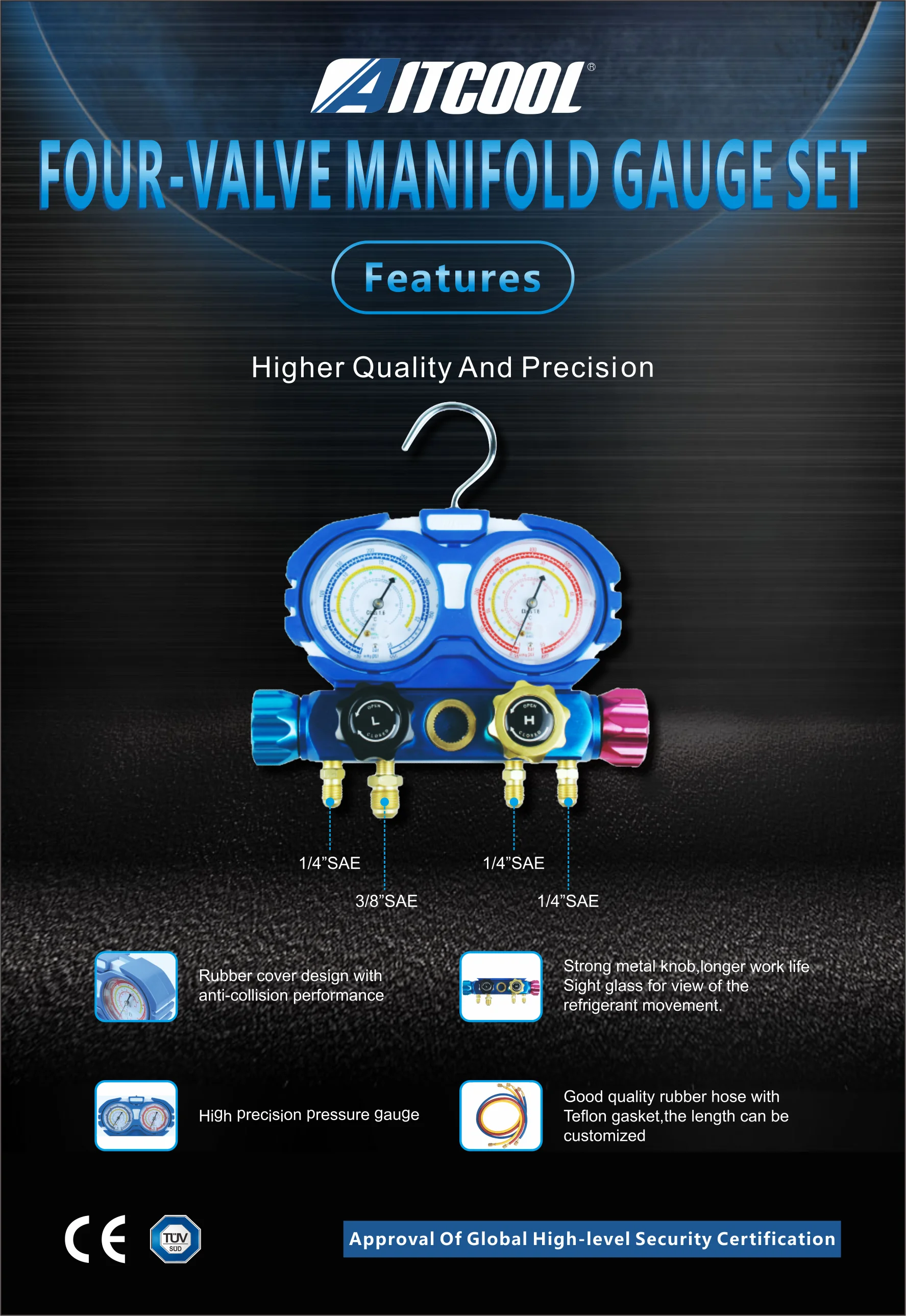

Rubber cover design with
anti-collsion performance

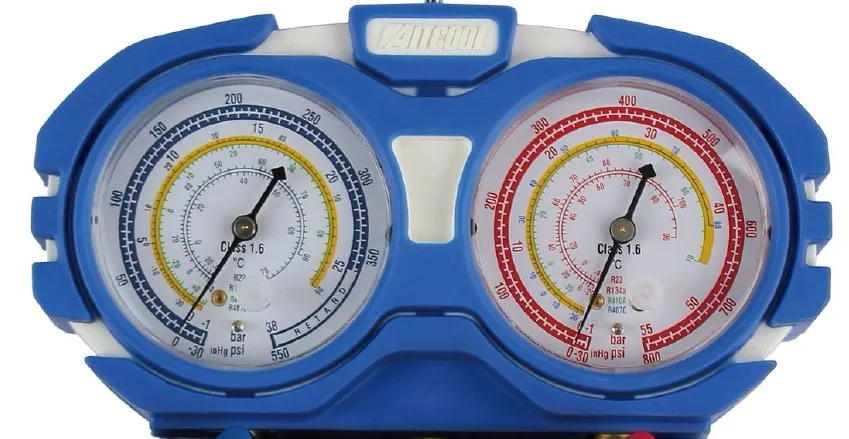

       High precision pressure gauge

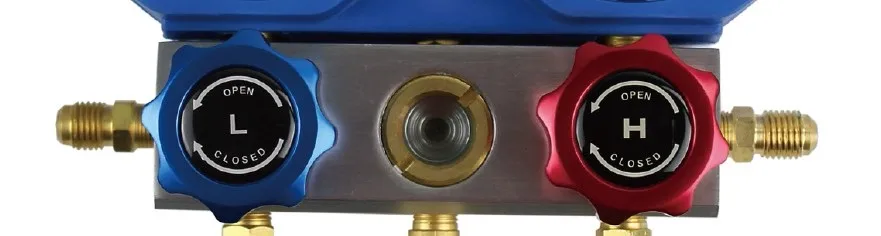

Strong metal knob，longer work life

Sight glass for view of the refrigerant movement.







       Good quality rubber hose with

       Teflon gasket，the length can         be customized



















Q1. Can I have a sample order ?

A: Yes, we welcome sample order to test and check quality. Mixed samples are acceptable.Just kind remind, the express charge is higher than samples. So pls consider before you order.


Q2. What about the lead time?
A: Sample needs 3-5 days, mass production time needs 1-2 weeks for order quantity more than

Q3. Do you have any MOQ limit ?
A: MOQ $5000.00 each order, if order less than $5000.00. we request $250.00 for extra charge.

Q4. How to proceed an order ?
A: Firstly let us know your requirements or application.
Secondly We quote according to your requirements or our suggestions.
Thirdly customer confirms the samples and places deposit for formal order.

Fourthly We arrange the production.

Q5. Is it OK to use my logo on product?
A: Yes. Please inform us formally before our production and confirm the design firstly based on our sample.

Q6: Do you offer guarantee for the products?
A: Yes, we offer 1years warranty to our products.
