High Temperature Lab Furnace 1200C 1800C Tubular Furnace with PID controller for Vacuum or Atmosphere Sintering
- Category: Laboratory Heating Equipments >>>
- Supplier: Xiamen Tmax Battery Equipments Limited
Share on (60762431836):
Product Overview
Description
Product Description

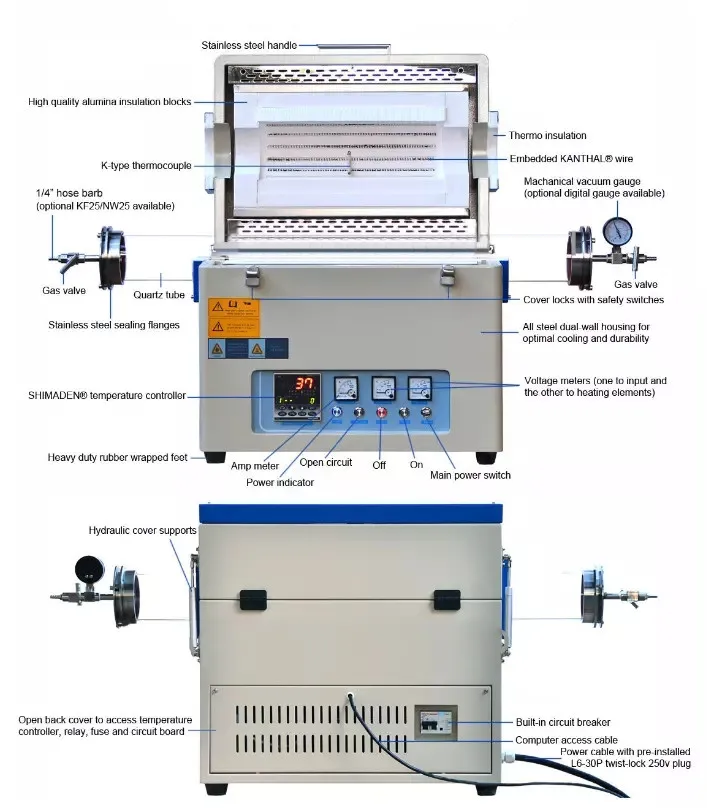

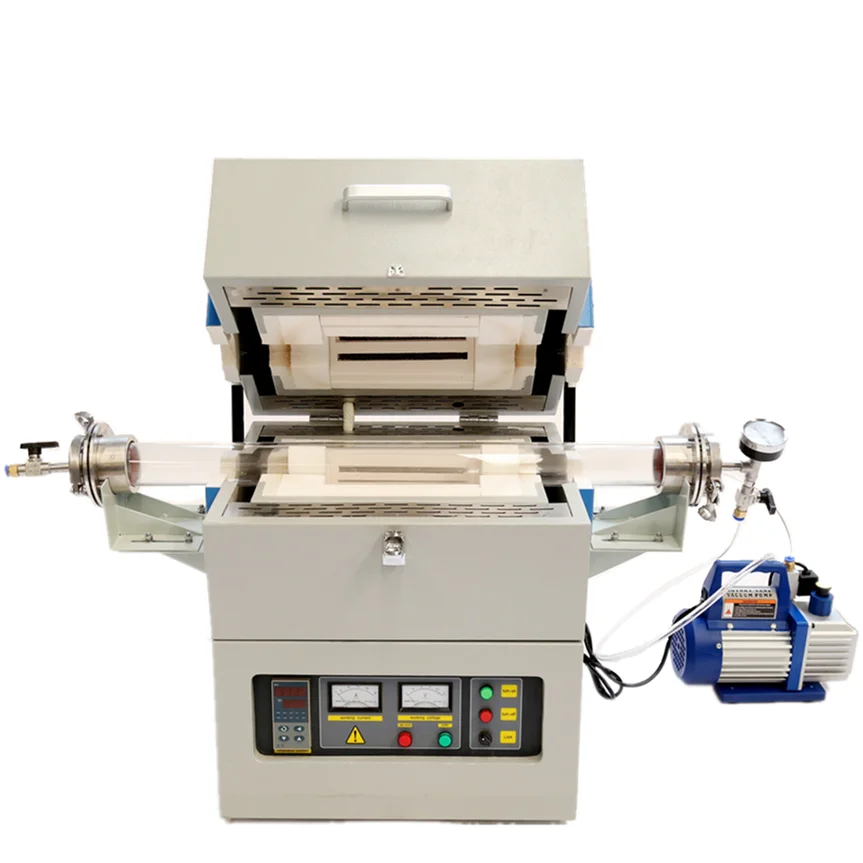

High Temperature Lab Furnace 1200C - 1800C Tubular Furnace with PID controller for Vacuum Atmosphere Sintering
This tube furnace uses resistance wire (Swedish Canthal A1) as heating element, double-layer shell structure and 30-stage program temperature control system, phase shift triggering, thyristor control, and furnace polycrystalline fiber material. It has the advantages of temperature field balance, low surface temperature, fast temperature rise and fall, energy saving, etc. It is an ideal product for high-temperature atmosphere sintering, atmosphere reduction, CVD experiment and vacuum annealing in universities, research institutes and industrial and mining enterprises.
Detailed technical parameters
Type | 1200-I | 1200-II | 1200-III | 1200-V | 1200-VI | 1200-VII |
Power | 3.5KW | 3.5KW | 3.5KW | 5KW | 6KW | 7KW |
Tube size (OD(mm) | Dia 60 X1000 | Dia80X1000 | Dia100X1000 | Dia150X1000 | Dia200X1000 | Dia250X1000 |
Dimensions | 1140X450X690 | 1140X450X690 | 1140X450X690 | 1110X530X755 | 1120X580X805 | 1314X680X905 |
Supply voltage | 220V | |||||
Phase | Single phase | |||||
Heating element | Resistance wire imported from Sweden (resistance wire guaranteed for 2 years) | |||||
Temperature control
| UAV program temperature control instrument (standard) 1, 30-stage program temperature control intelligent PID adjustment. 2. With over-temperature protection, the electric furnace heating circuit is automatically cut off when the temperature is over-temperature or broken, (when the electric furnace temperature exceeds 1200 degrees or the thermocouple is blown, the AC relay on the main circuit will be automatically disconnected, the main circuit is broken. On, the ON light on the panel is off, the OFF light is on, and the limited protection electric furnace). 3, with 485 communication interface (standard when purchasing software) 4, with power-off protection function, that is, when the power is turned on after the power is turned off, the program does not start from the starting temperature, but the furnace temperature rises from the time of power failure. 5, the meter has the function of temperature self-tuning (you need to pay extra for the replacement of imported instruments, optional) FP93 temperature controller (shimashima, Japan) European instrument Touch screen instrument | |||||
Chamber material
| 1. High-quality high-purity alumina polycrystalline fiber curing furnace formed by vacuum suction filtration. 2. Formed by Japanese technology. 3. The spacing and pitch of the resistance wires in the furnace are all arranged according to the best thermal technology in Japan, and the temperature field is simulated by the thermal software. | |||||

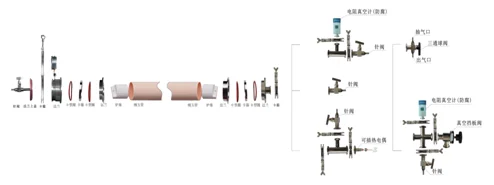

Valve and flange | | |||||
60/80/100 top view | | |||||
Temperature calibration (optional) | Regular temperature calibration of the tube furnace maintains the accuracy and uniformity of the furnace temperature. You can purchase a simple calibration tool from the company to assist you with this work. The complete calibration kit includes a standard thermocouple S-type, temperature calibrator.
| |||||
Control accuracy | +/- 1 ℃ | |||||
Trigger | Phase-shifted trigger | |||||
Electric appliance | Zhejiang chint | |||||
Silicon controlled | 106/16E SEMIKRON | |||||
Maximum temperature | 1200 ℃ | |||||
Rated temperature | 1150 ℃ | |||||
Heating rate | ≤30 ℃/ Min (it can be modified as required) | |||||
Recommended rate of temperature rise | ≤15 ℃/ Min | |||||
Thermocouple Type | K Type | |||||
Heating length | 400-440mm | |||||
Constant temperature length | 150mm | |||||
Temperature field curve |
| |||||
Peripheral surface temperature | ≤45℃ | |||||
Open cover protection system | When the furnace cover is opened, the relay will automatically cut off the main power supply, effectively ensuring the safety of the user. | |||||
Our Company & Team
Certifications
Cooperative Partner
Packaging & Shipping
PACKAGE:
1 Standard exported package: Internal anticollision protection, external export wooden box packaging.
2 Shipping by express, by air, by sea according to customers' requirements to find the most suitable way.
3 Responsible for the damage during the shipping process, will change the damage part for you for free.
DELIVERY TIME:15-20 days after confirming order,detail delivery date should be decided according to production season and order quantity.
