Большая камера для измерения влажности и постоянной температуры

Product Overview

Description

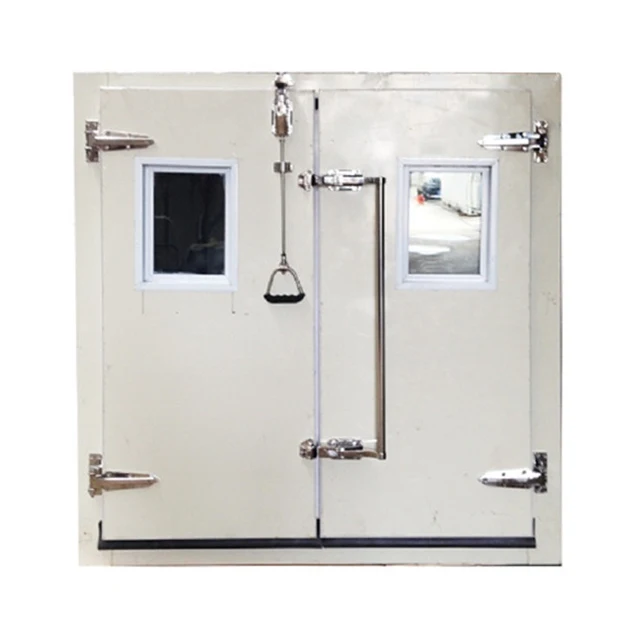

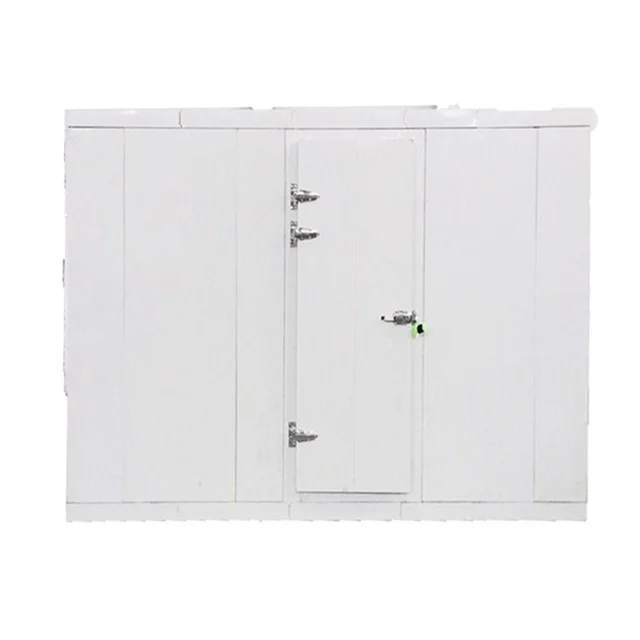

 Large walk-in constant temperature humidity  test chamber environment chamber

Temperature humidity chamber
	THS-100UA	THS-150UA	THS-250UA	THS-500UA	THS-010UA
Workroom Dimensions(cm)	50*40*50	50*50*60	60*60*70	80*70*90	100*100*100
Inner chamber volume(v)	100L	150L	252L	504L	1000L
Outer Diemension W*D*H(cm)	98*95*160	98*105*170	108*112*180	128*125*200	148*155*210
Packing Size	113*110*175	113*120*185	123*127*195	133*140*215	163*160*225
G.W(kg)	360	390	450	480	620
Temperature Range	A:-20℃-150℃     B:-40℃-150℃     C:-60℃-150℃       D:-70℃-150℃  E: -100-ambient (no humidity for E)
Temperature Fluctuation	≤ ±0.5℃ (standard) / ≤ ±0.2℃ (optional)
Temperature Evenness	≤ ±2℃
Temperature Deviation	≤ 1℃
Accuracy	0.1℃ ,1.5%R.H (standard) /0.01℃ ,1.5%R.H (optional)
Humidity range	20%~98%R.H/ 10%~98%R.H (optional)
Humidity Deviation	± 2%R.H
Temperature Rise Speed	1.0℃~3.0℃/min
Temperature Down Speed	0.7℃~1.2℃/min
Time needed for heating	RT℃~150℃≤30min
Time needed for cooling	RT℃~-40℃≤60min
The machine noise	≤72dB(A)
Equipment installed power	~3.25KW	~3.55KW	~3.95KW	~5.5KW	~6.25KW
Material	Inner Chamber:# SUS304 stainless steel		The outer wall:A3 carbon steel plate with plastic spray/ #SUS304
Wind Cycling Way	Centrifugal fan-broadband type forced air ciruculation
Refrigeration Way	Single stage compression refrigeration
Refrigerater	French Tecumseh
Refrigerats	R404A USA Dupont environment protection refrigerant
Condesing Way	Air-cooled or water-cooled
Heater	Nickel Chorme Heating Wire Heater
Hunidifier	Semi-closed steam and wet
Water supplying way	Automatic cycling water supply
Standard Accessories parts	1 Observe window(double-deck cavity toughened glass), 50mm testing hole, PL inner chamber, partition plate, wet and dry bull gauze, 3 fues, 1 power line

FQA

Q 1: Are you manufacturer?
A: Yes, we are manufacturer with more than 10 years' experience.
Q 2:  What are your Price Terms and depart port?
A  : Trade term: FOB, CFR, or CIF, etc. Shipping port: Shanghai normally.
Q 3: What are your Payment Terms?
A: Payment shall be made by T/T, L/C, or D/P, etc., it varies considerably according to the region that you are in.
Q4: What's your Minimum Order Quantity?
A: Any order quantity is warmly welcomed.
Q 5: Do you have English Manual for each machinery?
A: Yes. The instruction manual,the test report and other Data Sheets related shall be provided by us.
Q 6: Can you customize the machine for me ?
A: Yes, we can customize according to customer's requirements.
Q 7: What shall we do if  breakdown occurs?
A: Please informed us at once. We shall handle it by the on-line services to make one-one explanation or arrange the personnel to the site see as the requirements.
Q8: Do you support overseas installtion and debugging?
A: Yes, normally we will despatch a profesional team with translater to the field to complete the whole project.
