JIMI X3 waterproof mini Gps tracking device with RFID and Fuel sensor
- Category: >>>
- Supplier: Shenzhen Jimi IOT Co. Ltd.
Share on (60762473557):
Product Overview
Description
JIMI Fleet Management Solutions
Optimize your fleet and keep costs down
Dynamic growth of automotive branch enables greater access to means of transport. Most companies have, smaller or larger, vehicle fleet to carry out various tasks. Understanding costs related to the vehicle maintenance, fuel consumption, driver performance, insurance and service is an important function for any business.
HARDWARE

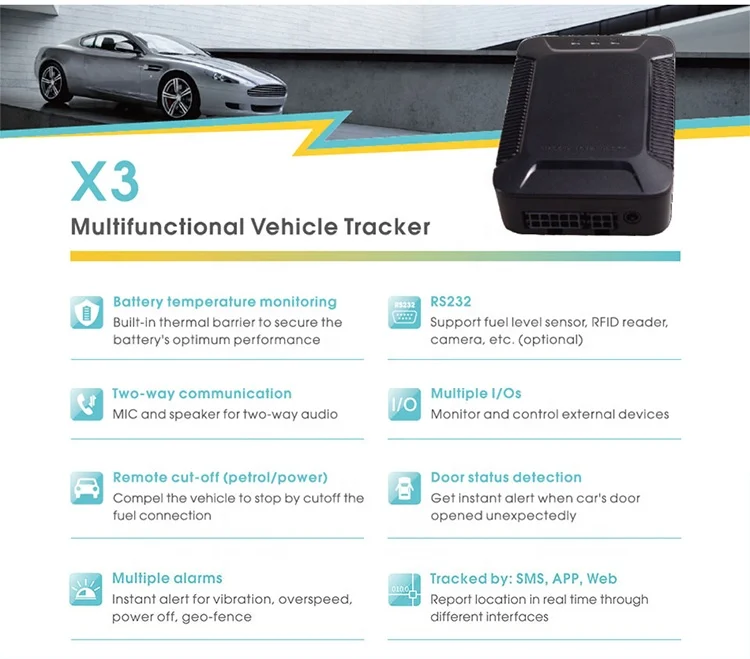

X3 Multifunctional Vehicle Tracker
The X3, a multifunctional GPS tracker, is optimized for vehicle tracking. It provides accurate real-time location, two-way
communication and driving behavior reports. The X3 also features a G-sensor, a door-sensor, and includes I/O ports to support multiple external types of equipment for various applications. X3 is an excellent GPS tracking device for fleet management and security monitoring deployment.
communication and driving behavior reports. The X3 also features a G-sensor, a door-sensor, and includes I/O ports to support multiple external types of equipment for various applications. X3 is an excellent GPS tracking device for fleet management and security monitoring deployment.

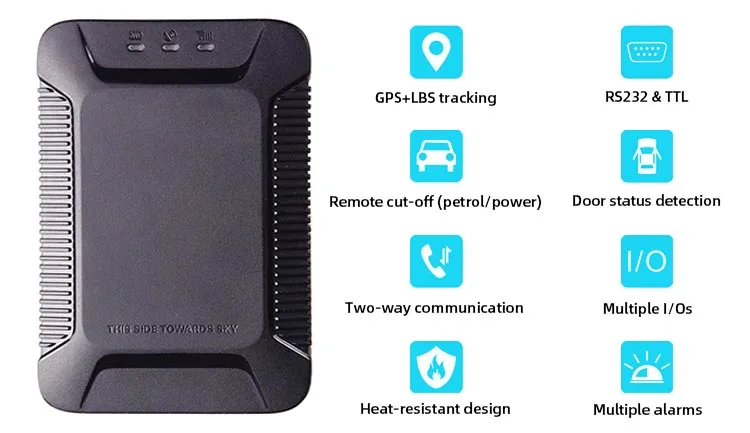

Features:
●GPS & LBS positioning
Allow the location to be pinpointed in real time or periodically
●Remote cut-off (fuel/power)
Allow the location to be pinpointed in real time or periodically
●Remote cut-off (fuel/power)
Compel the vehicle to stop by cut off the fuel connection
●Two-way communication
●Two-way communication
With MIC and speaker connected, it's easy to realize voice-monitor or two-way audio
●Heat-resistant design
●Heat-resistant design
Special structure provides excellent heat dissipation
●Multiple I/O for sensors/peripherals
●Multiple I/O for sensors/peripherals
Monitor and control external devices
●RS232 & TTL serial port
●RS232 & TTL serial port
Support fuel level sensor, temperature sensor, RFID, etc
Specifications:
GSM Specification | ||
GSM frequency | 850/900/1800/1900 MHz | |
GPRS | Class 12, TCP/IP | |
Memory | 32+32Mb | |
Phase error | RMSPE<5,PPE<20 | |
Max output | GSM850/GSM900:33±3dBm GSM1800/GSM1900:30±3Bm | |
Max frequency error | ±0.1ppm | |
GPS Specification | ||
GPS chipset | MTK high sensitivity GPS chip | |
Frequency | L1,1575.42MHz C/A code | |
GPS channel | Built-in, 25*25*4mm | |
Location accuracy | <10 meters | |
Tracking sensitivity | -162dBm | |
Acquisition sensitivity | -148dBm | |
TTFF (open sky) | Avg. hot start≤1sec Avg. cold start≤35sec | |
Others | ||
Voice monitor range | ≤5meters | |
Battery | 450mAh/3.7V Li-Poiymer battery | |

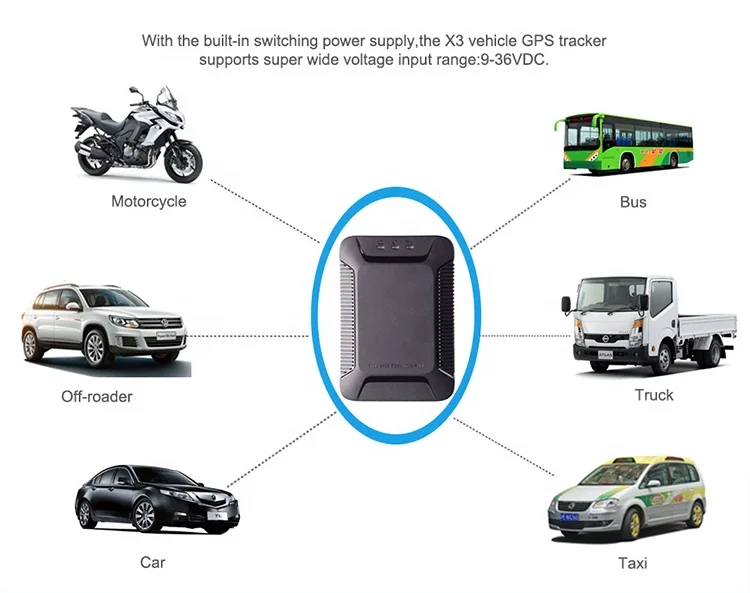

Working Voltage/current | 9-36VDC/45mA(12VDC), 28mA(24VDC) | |
Operating Temperature | -20℃～ 70℃ | |
Dimension | 80(L) ×55.8.0 (W) ×23.4 (H) mm | |
Weight | 95g | |
Certificates:
CE FCC
