72 core fiber optic joint closure box joint optical fiber splice closure
- Category: >>>
- Supplier: Shenzhen 3C-Link Opto Co. Ltd.
Share on (60762493888):
Product Overview
Description
Description

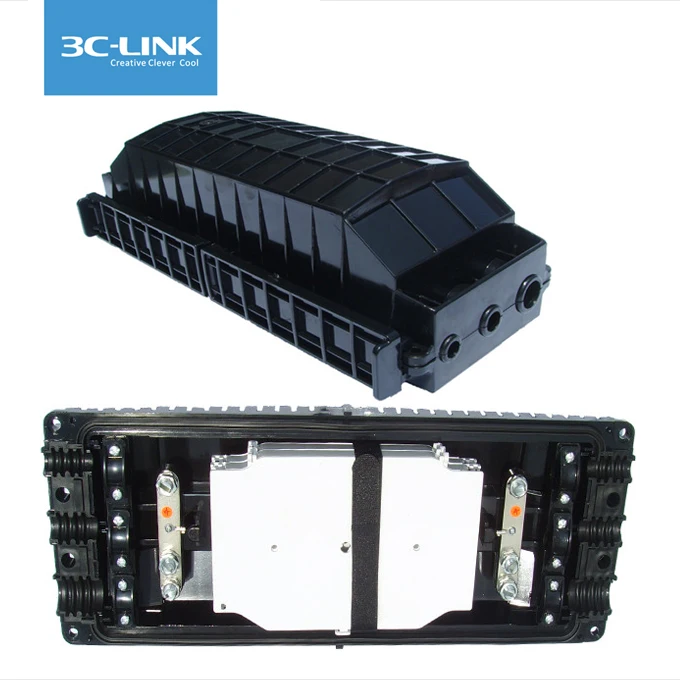

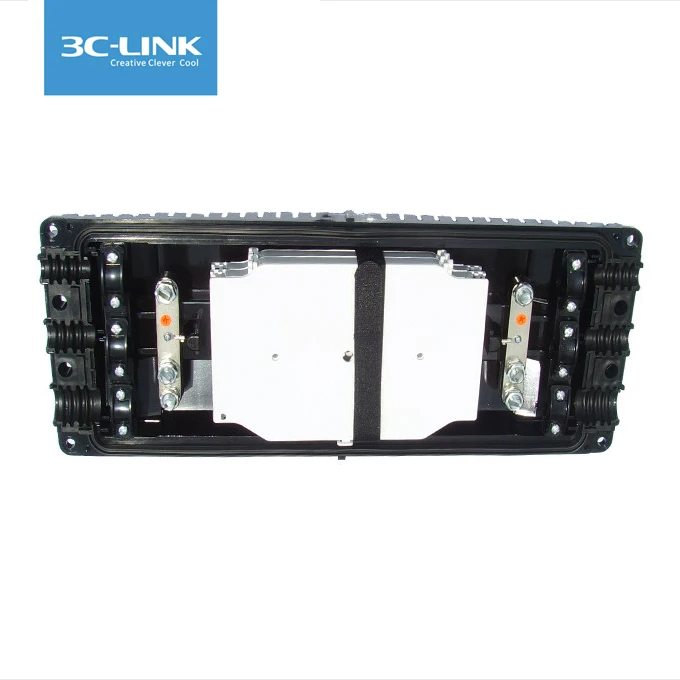

Inline splice closure
Fiber optic splicing closure enable splicing and branching of optical cable coming from Telecommunication Central Office and cable from detached one family houses.
3C-LINK offers wide range of splice closures with different capacities from 12 to 288 cores.
Feature
Maximum excellent capability of 144 cores to adapt to natural conditions.
The seal way is Rubber ring.
It can endure harsh conditions such as vibration,impact,tensile cable distortion and strong temperature changes.
It is equipped with a good airtight waterproof performance.
Easy to install and open the duplicete.
The scope of aplication:aerial ,direct-buried,wall-mounting,duct-mounting.
The application of temperature :40 °C ~65 °C
The seal way is Rubber ring.
It can endure harsh conditions such as vibration,impact,tensile cable distortion and strong temperature changes.
It is equipped with a good airtight waterproof performance.
Easy to install and open the duplicete.
The scope of aplication:aerial ,direct-buried,wall-mounting,duct-mounting.
The application of temperature :40 °C ~65 °C
Specification
Product Name | Inline splice closure |
Product outlook size | 450*216*160 |
Product Material | PC |
Product Weight | Approximately 3kg |
Suitable Dia of cable | 8-23mm |
Fibers/Tray | 12 or 24 |
Max capacity(F) | 144 |
Outside box size | 470*460*670mm |
Each packing quantity | 8 pieces |

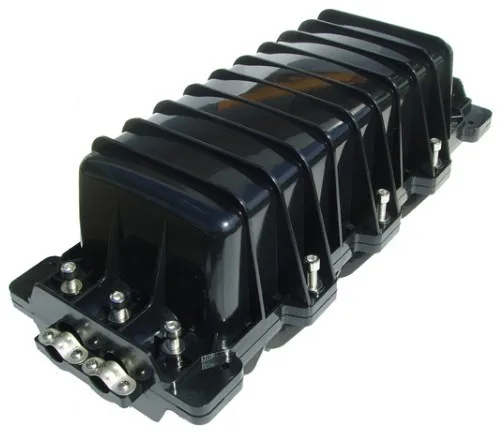

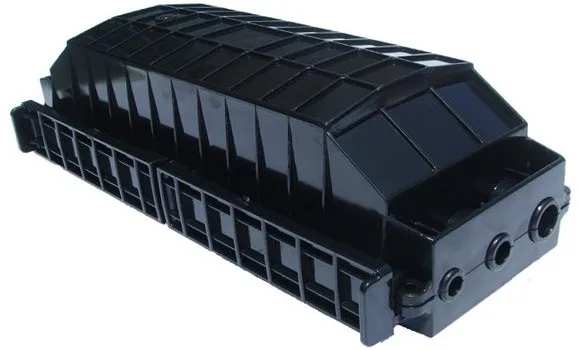

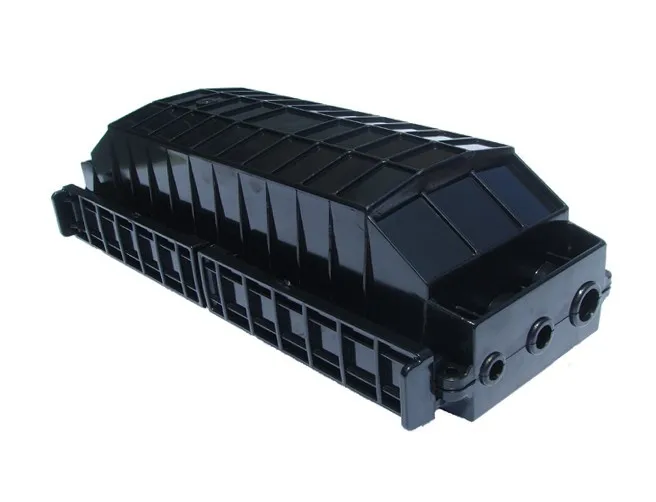

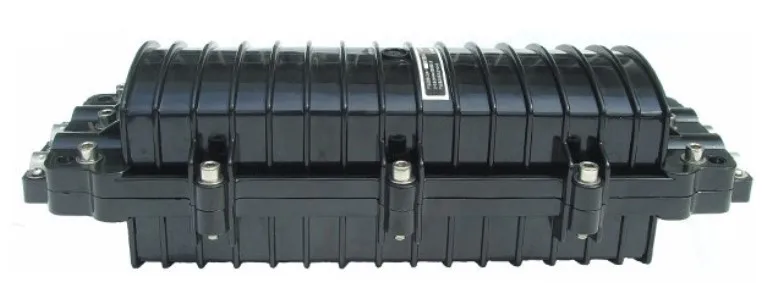

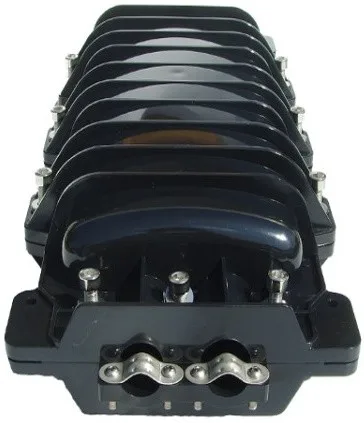

Detailed Images
Related Products
3C-FOSC-09-1 Fiber optic splice closure is a fiber management product typically used with outdoor fiber optical cables. It provides space and protecton for the fiber optic cable splicing and joint.
Fiber splice closure is used for aerial, strand-mount FTTH locations where drop cables are spliced to disribution cables.
With different kinds of ports types, the products can fit different fiber optic core numbers.
3C-FOSC-09-16 use of reusable components to open seal in order to ensure a good airtight waterproof performance.
Does not require special tools, easy to install and open the duplicate.
The scope of application : aerial, direct-buried, wall-mounting, duct-mounting.
3C-FOSC-09-17 use of high-strength engineering plastic shell that can endure harsh conditions such as vibration, impact, tensile cable distortion and strong temperature changes
The use of reusable components to open seal in order to ensure a good airtight waterproof performance.
Does not require special tools, easy to install and open the duplicate.
The scope of application : aerial, direct-buried, wall-mounting, duct-mounting,
Excellent capability to withstand earthquake, pressure, stretch.
3C-FOSC-09-12 use of high-strength engineering plastic shell that can endure harsh conditions such as vibration, impact, tensile
cable distortion and strong temperature changes
The use of reusable components to open seal in order to ensure a good airtight waterproof performance.
Does not require special tools, easy to install and open the duplicate.
The scope of application : aerial, direct-buried, wall-mounting, duct-mounting,
3C-FOSC-09-6 Fiber Optic Splice Closure is a fiber management product typically used with outdoor fiber optical cables. It provides space and protection for the fiber optic cable splicing and joint.
Fiber optic splicing closure enable splicing and branching of optical cable coming from Telecommunication Central Office and cable from detached one family houses.
3C-FOSC-09-4 Fiber Optic Splice Closure is a fiber management product typically used with outdoor fiber optical cables. It provides space and protection for the fiber optic cable splicing and joint.
Fiber splice closure is used for aerial, strand-mount FTTH "tap" locations where drop cables are spliced to distribution cables.
3C-FOSC-08-1 use of high-strength engineering plastic shell that can endure harsh conditions such as vibration, impact, tensile
cable distortion and strong temperature changes
The use of reusable components to open seal in order to ensure a good airtight waterproof performance.
Does not require special tools, easy to install and open the duplicate.
The scope of application : aerial, direct-buried, wall-mounting, duct-mounting..
3C-FOSC-08-10 Fiber Optic Splice Closure is a fiber management product typically used with outdoor fiber optical cables. It provides space and protection for the fiber optic cable splicing and joint . Fiber splice closure is used for aerial, strand-mount FTTH locations where drop cables are spliced to distribution cables. With different kinds of ports types, the products can fit different fiber optic core numbers. It is suitable for protecting optical fiber splices in straight through and branching applications, and can be used in aerial, duct and direct buried fiber optic cable projects.
3C-FOSC-08-7 Maximum excellent capability of 288 cores to adapt to natural conditions.
The seal way is Rubber ring.
It can endure harsh conditions such as vibration,impact,tensile cable distortion and strong temperature changes.
It is equipped with a good airtight waterproof performance.
Easy to install and open the duplicete.
The scope of aplication:aerial ,direct-buried,wall-mounting,duct-mounting.

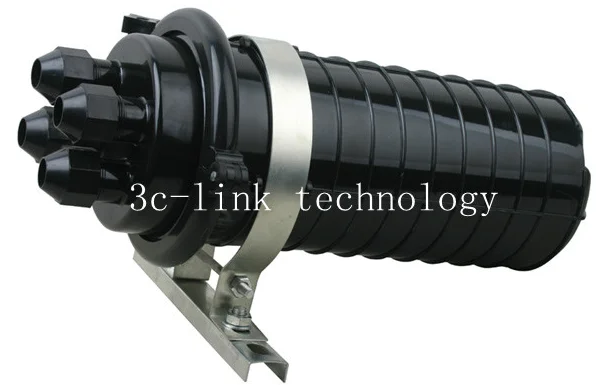

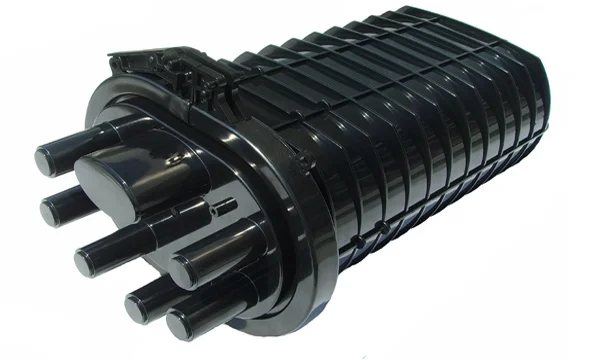

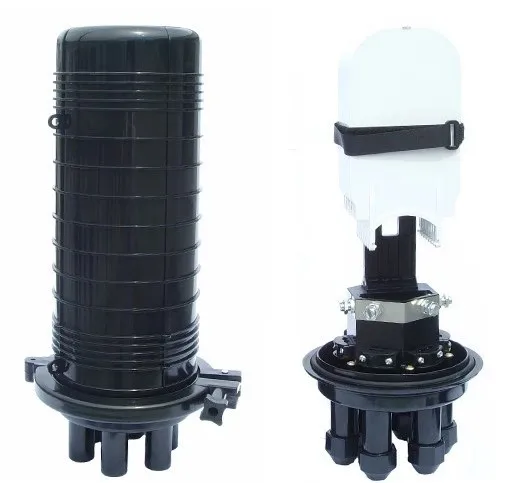

Vertical fiber optic splice closure | ||||||||
Model | Qty of Fiber Cores | Material | Dimension(mm) | Weight (kg) | ||||
3C-FOSC-08-1 | 96( 2 in 2out) | PC | 410(L)* 140( Diameter) | 2.6 | ||||
3C-FOSC-08-2 | 96( 2 in 2out) | PC | 440(L)* 140( Diameter) | 2.6 | ||||
3C-FOSC-08-3 | 60( 2 in 2out) | ABS | 375(L)* 120( Diameter) | 2.3 | ||||
3C-FOSC-08-4 | 144( 2 in 2out) | ABS | 470(L)* 160( Diameter) | 3.0 | ||||
3C-FOSC-08-6 | 96( 4 in 4out) | PC | 440(L)* 140( Diameter) | 3.0 | ||||
3C-FOSC-08-7 | 288( 4 in 4out) | PC | 500(L)* 250( Diameter) | 3.5 | ||||
3C-FOSC-08-8 | 288( 2 in 2out) | PC | 410(L)* 140( Diameter) | 2.6 | ||||
3C-FOSC-08-9 | 144( 3 in 3out) | PC | 450(L)* 240( Diameter) | 3.0 | ||||
3C-FOSC-08-10 | 144( 3 in 3out) | PC | 450(L)* 240( Diameter) | 3.0 | ||||
3C-FOSC-08-10 | 96( 2 in 2out) | PC | 410(L)* 140( Diameter) | 2.6 | ||||
Horizontal fiber optic splice closure | ||||||||
3C-FOSC-09-1 | 96( 2 in 2out) | PC | 465(L)*180(W)*122(H) | 2.5 | ||||
3C-FOSC-09-2 | 96( 2 in 2out) | PC | 400(L)* 200(W)*122(H) | 2.6 | ||||
3C-FOSC-09-4 | 288( 4 in 4out) | PC | 555(L)* 240(W)*123(H) | 3.5 | ||||
3C-FOSC-09-6 | 96( 4 in 4out) | PC | 400(L)* 200(W)*122(H) | 3.0 | ||||
3C-FOSC-09-7 | 144( 2 in 2out) | PC | 450(L)* 216(W)*160(H) | 2.5 | ||||
3C-FOSC-09-8 | 48( 2 in 2out) | PC | 450(L)* 216(W)*110(H) | 3.5 | ||||
3C-FOSC-09-9 | 144( 3 in 3out) | PC | 450(L)* 216(W)*110(H) | 2.5 | ||||
3C-FOSC-09-10 | 48( 3 in 3out) | PC | 450(L)* 216(W)*110(H) | 2.5 | ||||
3C-FOSC-09-11 | 96( 2 in 2out) | PC | 370(L)* 185(W)*145(H) | 2.5 | ||||
3C-FOSC-09-12 | 96( 3 in 3out) | PC | 370(L)* 185(W)*145(H) | 2.5 | ||||
3C-FOSC-09-13 | 96( 2 in 2out) | ABS | 465(L)* 180(W)*122(H) | 2.5 | ||||
3C-FOSC-09-14 | 96( 2 in 2out) | PC | 465(L)* 180(W)*122(H) | 2.5 | ||||
3C-FOSC-09-15 | 96( 2 in 2out) | PC | 250(L)* 190(W)*75(H) | 2.3 | ||||
3C-FOSC-09-16 | 96( 2 in 2out) | PC | 520(L)* 200(W)*120(H) | 2.5 | ||||
3C-FOSC-09-17 | 96( 2 in 2out) | PC | 520(L)* 200(W)*180(H) | 2.8 | ||||
3C-FOSC-09-18 | 96( 3 in 3out) | PC | 520(L)* 200(W)*120(H) | 2.5 | ||||
3C-FOSC-09-19 | 96( 3 in 3out) | PC | 520(L)* 200(W)*180(H) | 2.8 | ||||
3C-FOSC-09-20 | 96( 2 in 2out) | PC | 380(L)* 175(W)*80(H) | 1.8 | ||||
