Z23 Power lock device locking assembly for food machinery

It can replace single keywey and spline ,in order to realize the connection between machinery parts (such as gear wheel,flywheel) and shafts,so the loading can be transmitted.Through the function of high strength of bolt when locking device is working,enormous strengh of tight holding power between hub ,inner loop and shaft are produced.When bearing the weight and loading depend on connection power between locking device and machinery and additional frictional torce to transmission torsion or power on shaft .

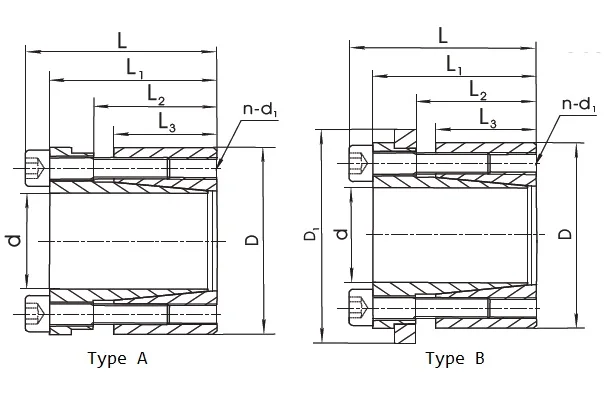

Parameter of Z23 Power lock device locking assembly for food machinery

Fundametal Dimension [mm]							Bolt		Rated Load		Torque of Tighten Locking-Bolt MA [N · m]	Weight [kg]
d	D	L	L1	L2	L₃	D1	d1	n	Force Ft [kN]	Torque Mt [kN · m]	Torque of Tighten Locking-Bolt MA [N · m]	Weight [kg]
19	47	45	39	30	26	53	M6	6	54	0.54	17	0.35
20	47	45	39	30	26	53	M6	6	54	0.6	17	0.36
22	47	45	39	30	26	53	M6	6	54	0.6	17	0.44
24	50	45	39	30	26	56	M6	6	54	0.65	17	0.47
25	50	45	39	30	26	56	M6	6	54	0.68	17	0.48
28	55	45	39	30	26	61	M6	6	54	0.78	17	0.55
30	55	45	39	30	26	61	M6	6	54	0.82	17	0.76
32	60	45	39	30	26	66	M6	9	82	1.31	17	0.79
35	60	45	39	30	26	66	M6	9	82	1.44	17	0.81
38	65	45	39	30	26	71	M6	9	82	1.52	17	0.87
40	65	45	39	30	26	71	M6	9	82	1.64	17	0.94
42	75	55	47	35	30	81	M8	6	101	2.13	41	1.02
45	75	55	47	35	30	81	M8	6	101	2.28	41	1.06
48	80	55	47	35	30	86	M8	6	101	2.43	41	1.7
50	80	55	47	35	30	86	M8	6	101	2.53	41	1.76
55	85	55	47	35	30	91	M8	9	152	4.18	41	1.89
60	90	55	47	35	30	96	M8	9	152	4.5	41	1.98
65	95	55	47	35	30	101	M8	9	152	4.96	41	2.15
70	110	77	67	46	40	116	M10	7	186	6.5	83	2.24
75	115	77	67	46	40	121	M10	7	186	7	83	3.07
80	120	77	67	46	40	126	M10	7	186	7.4	83	3.35
85	125	77	67	46	40	131	M10	8	213	9	83	3.59
90	130	77	67	46	40	436	N10	8	213	8.6	83	5.04
95	135	77	67	46	40	141	M10	10	167	12.6	83	5.38
100	145	89	77	52	46	151	M12	7	270	13.3	145	5.81
110	155	89	77	52	46	161	M12	7	270	14.7	145	6.06
120	165	89	77	52	46	171	M12	8	309	18.4	145	7.61
130	180	89	77	52	46	186	M12	10	342	20.5	145	8.32
140	190	98	84	59	51	196	M14	8	373	26.1	230	9.6
150	200	98	84	59	51	206	M14	10	467	35.1	230	10.15
160	210	98	84	59	51	216	M14	10	467	37.4	230	11.23
170	225	98	84	59	51	231	M14	12	560	47.6	230	12.45
180	235	98	84	59	51	241	M14	12	560	50.4	230	13.68
