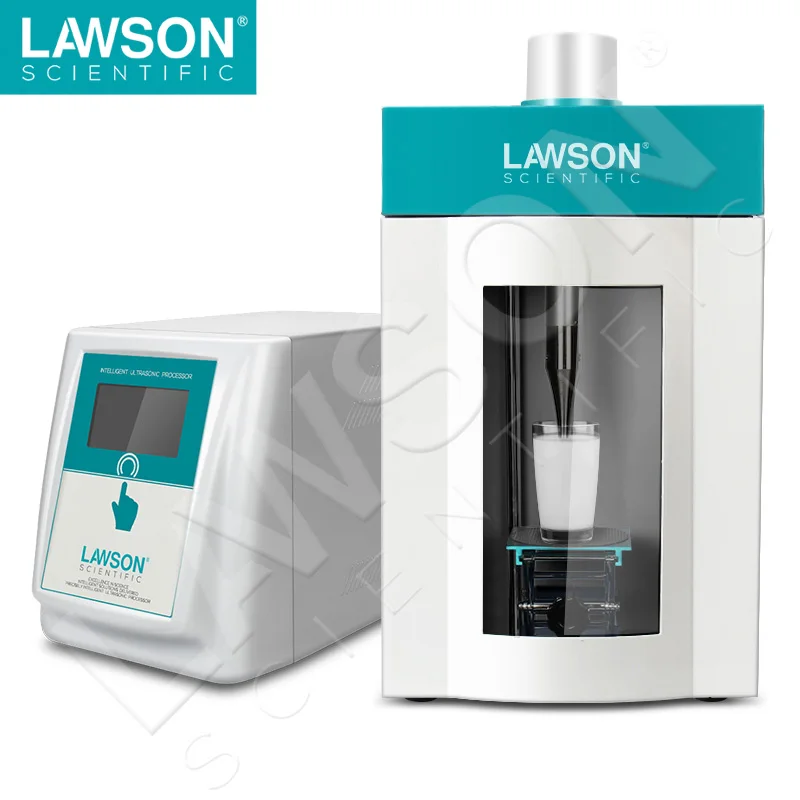

Ultrasonic Liquid Processor DH96 IIN Manufacturer homogenizer Cell Crusher

Product Overview

Description



Features:

Ultrasonic Liquid Processor are controlled by microcomputers
The microcomputer regulates the ultrasonic frequency for more reliable operation
The machine will automatically give a warning signal if it malfunctions

Protective container prevents contamination and keeps noise level low during operation

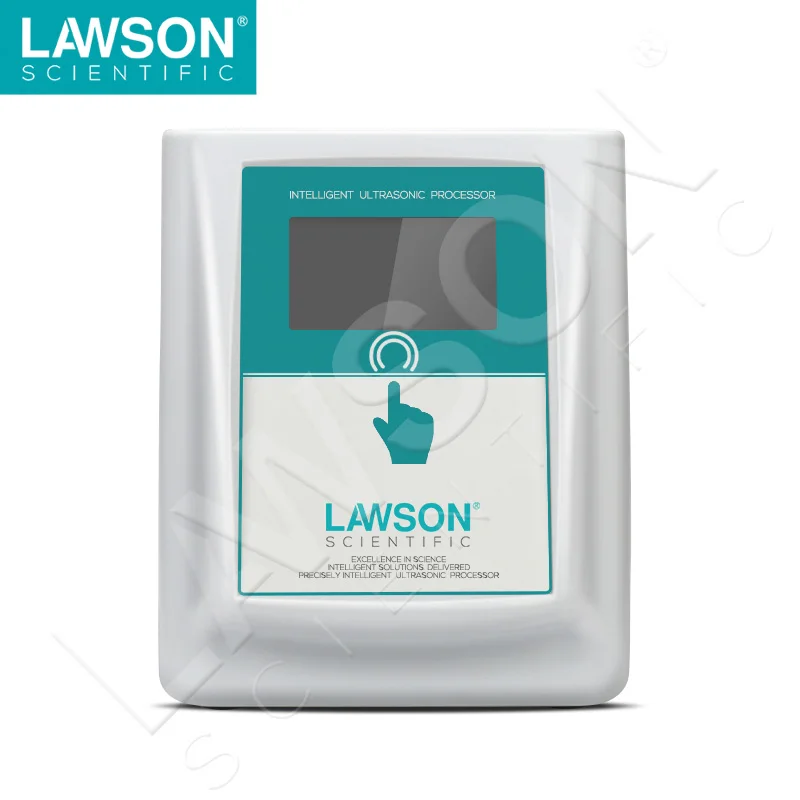

Large touch screen (TFT) is easy to read
Very wide range for power adjustment: the power level can be set between 1 and 99.9%, giving users control for more sensitive applications

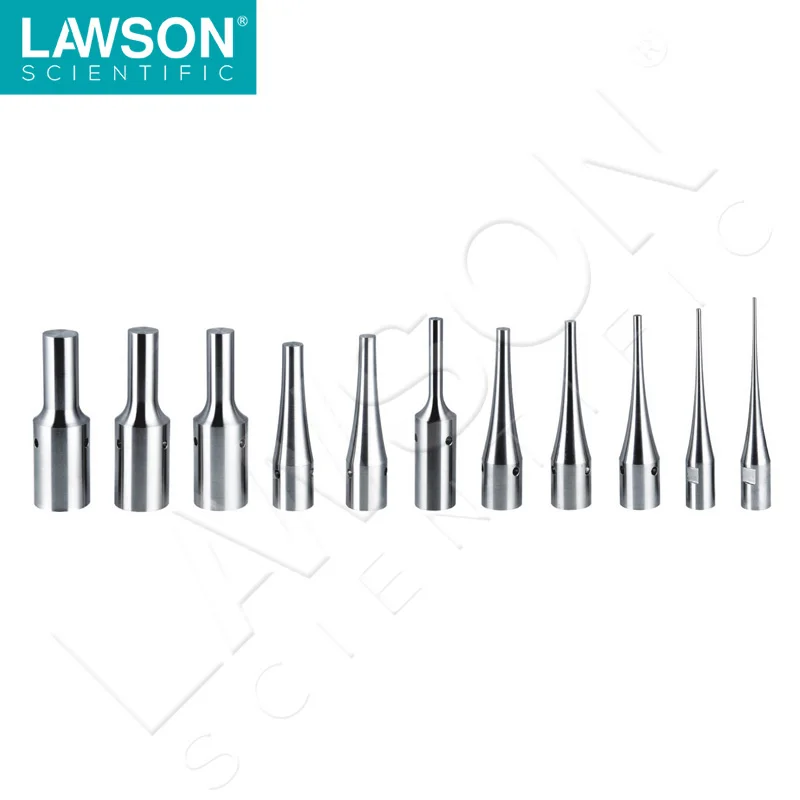

Various sizes of ultrasonic poles can be purchased: very small-diameter probes can concentrate the power in very small volume samples (excellent for cell disruption of very small samples); larger-diameter probes are necessary for larger samples (especially useful for forming homogenous mixtures of larger volumes)



model(Ultrasonic Liquid Processor)	DH96-IIN
Frequency (KHz)	19.5~20.5KHz
Power(W)	150W
Stochastic Rangechangeable Pole (ø)	Φ3
Range-changeable Pole (ø)	Φ2,3,6
Crash Capacity (ML)	0.5~100
Duty ratio	1~99%
Voltage (V)	220/110V 50Hz/60Hz
Mainframe Weight(kg)	12.1
Total package weight(kg)	14.5
supply chassis Size(mm)	400*280*220
Packing Size(mm)	534*295*435

Ultrasonic generator	single
Vibration System (Transducer Assembly)	single
Soundproof box	single

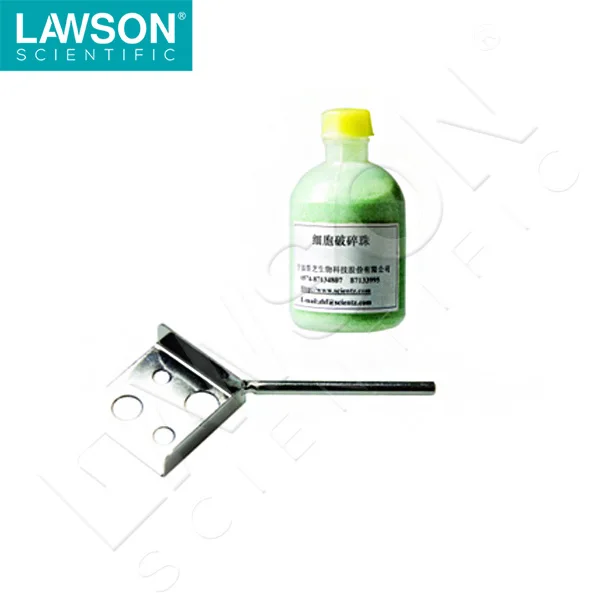

Cross clamp (in soundproof box)	single
Test tube clip (in soundproof box)	single
power cable	root
Special wrench (for disassembling the horn)	set
fuse	8A and 5A double
user's Guide	a part
Certification	a part
Warranty Card	a part

Preparing Laboratory Samples:
Cell disruption (lysis) breaks open cell walls for study of cell contents
Power can be controlled precisely for disrupting more delicate cells/subcellular membranes



Destroying Pathogens on Medical Equipment:
cell disruption and heat destroy bacteria and other pathogens for safe, sterile medical equipment



Emulsifying and Homogenizing Solutions of Insoluble Liquids:
powerful ultrasonic waves achieve very small particle size



Creating and Homogenizing Solutions and Suspensions:
Very powerful cell dispersion and deagglomeration ensures that the suspension will not settle out for a long time



And many other applications involving cell disruption, dispersion, deagglomeration, homogenization, or emulsification in many different fields such as biology, physics, pharmaceutics, zoology and many others
