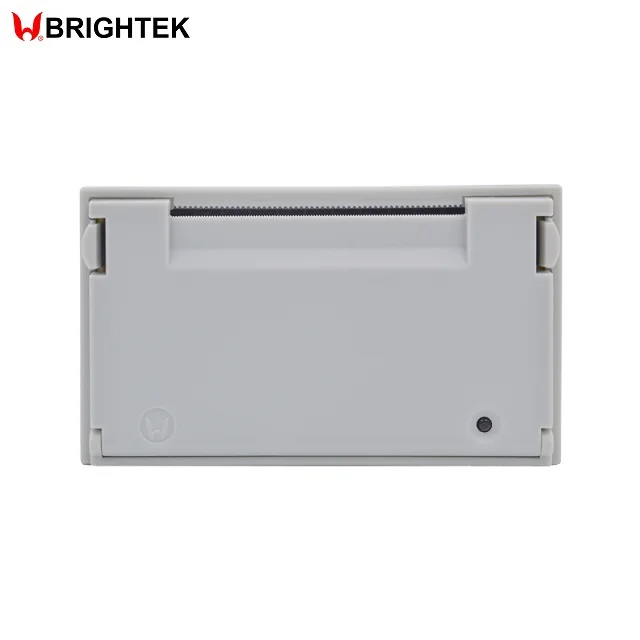

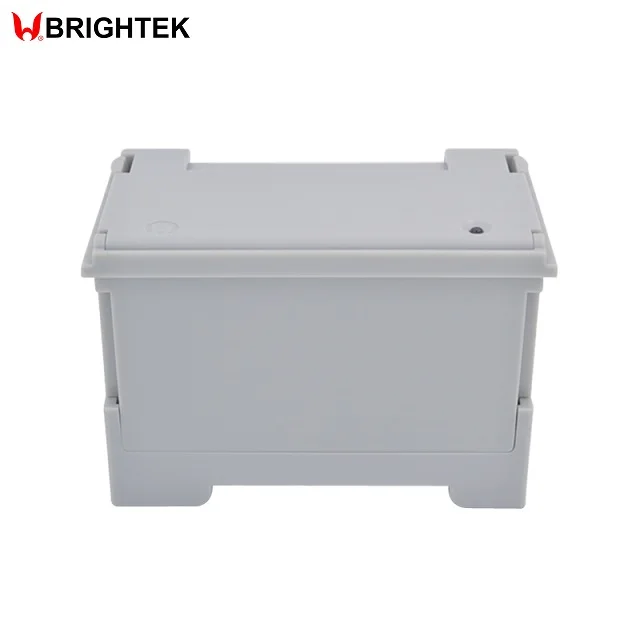

Dot Matrix Printer WH E36

Product Overview

Description

Features:

- Dot matrix printer
- Stylish, delicate and elegant appearance
- Copy function of LCD
- Serial RS-232, 485,TTL / Parallel/ USB interface
- Abundant figure/ curves/ characters print function
- Plot rotation printing for expanded letter character set



Specification:

Item	Specification
Printing method	Dot matrix printing method
Print width	44mm/57mm
Print width	32mm/48mm
Resolution ration	96dots/line,144dots/line,240dots/line
Character per line	16/24/40
Printing speed	1line/ sec,0.7line/sec,0.4line/sec
Character size	6*8dots,6*12dots,8*16dots
Chinese character library	GB2312,12*12dots,16*16dots
Outline dimension	107.4mm*61.4mm*66.2mm
Installation dimension	102.4mm*56.4mm
Paper supplied	Plain paper(44mm/57mm,30mmΦ)
Interface	Serial RS-232,485,TTL/ Parallel/ USB
Input power	DC 5V,10W/ DC 9-24V,30W
Operation temperature	0℃~ 50℃
Storage temperature	-20℃~ 60℃
Operation humidity	10% ~ 85%
Storage humidity	10% ~ 90%
