VGA 1xHDMI 6xCOM 6xUSB Intel Pentium P8600 CPU Mini PC Win 7 Support WiFi Linux System Industrial Computer
- Category: >>>
- Supplier: Shenzhen Lingjiang Computer Technology Co. Ltd.
Share on (60762637153):
Product Overview
Description
Welcome To Shenzhen Ling Jiang Computer Technology Co., Ltd Store
We are factory store.We also support wholesale price for large order.If you need.just contact with us.We can do for you.

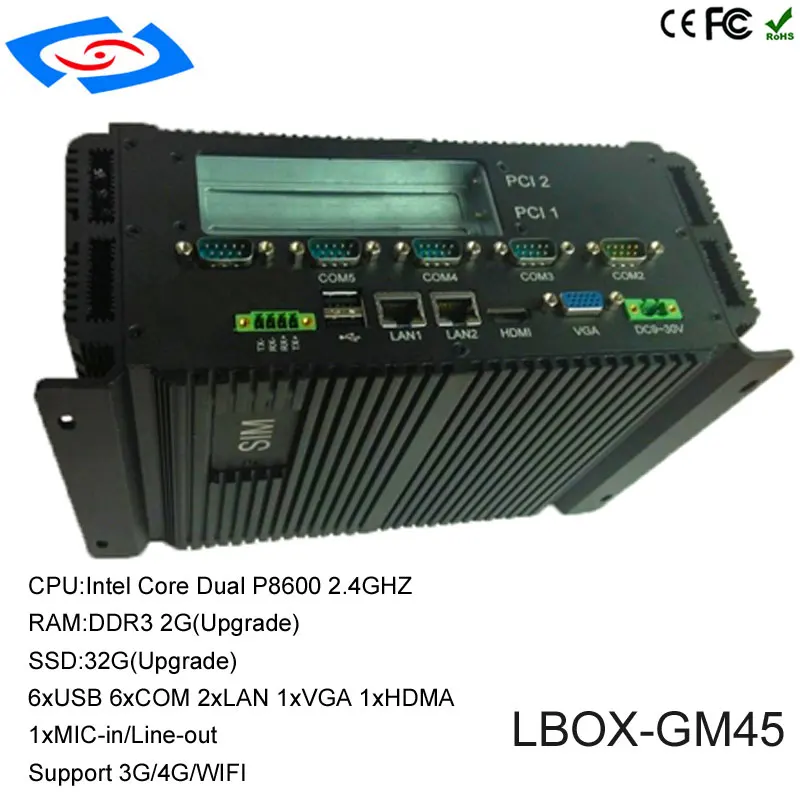

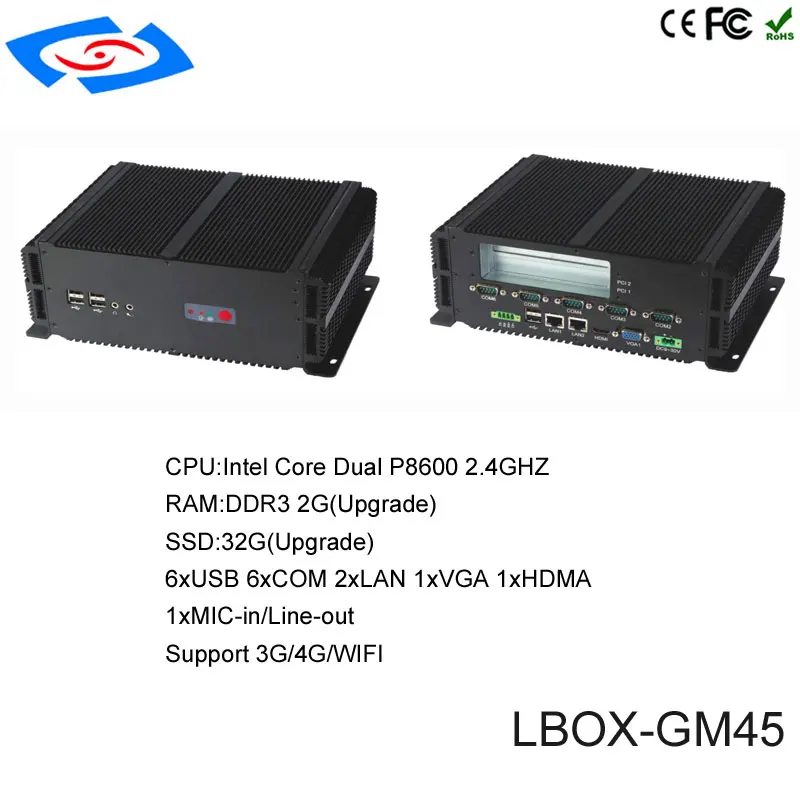

100% Well Tested Intel Pentium P8600 Mini Computer Windows 7 2.4Ghz Mini PC Support 3G And WiFi Linux System Embedded Box PC
Product Description
1. The Fanless industrial pc was made of brushed aluminum in beautiful shape,no cable design is good at shockproof, and high performance at low power consumption,can be used in hard environments. It supports wireless 3G and WIFI.
2.With the shockproof, moisture-proof, waterproof and dustproof (meet the NEMA IP65 standard), high temperature resistant, multisolt and easy to expand characteristics, so it iswidely used in industrial control,vehicle control, environmental control ,Miliary control,Network security,Digital signage,Date storge and other automation applications.
| Features | |
| Model Name | LBOX-GM45 |
| Mechanical | |
| Shell Material | Aluminum Alloy |
| Color | Black |
| IP Grade | IP63 |
| Net weight | 2.65kg |
| Thermal methods | Fanless |
| System | |
| CPU | Intel Core2 Dou P8600CPU,2.4GHZ, CPU Power Consumption 25W(Optional P8700 CPU) |
| Chipset | Intel GM45+ICH9M |
| Memory | RAM Onboard 4Gb ram, Optional DDR3 Max 8Gb |
| Storage | SSD 64GB,Optional SSD 512G/128G/256G, Optional 2.5 Inch SATA HDD320G/500G/1TB etc |
| System | XP/Win7/Win 8/Win 10/Linux |

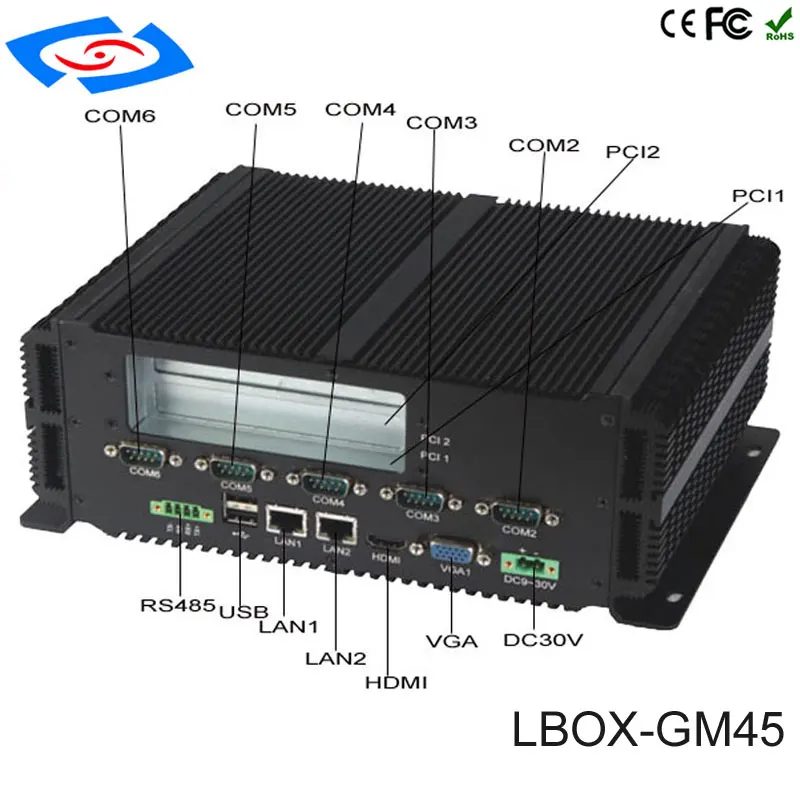

| I/O | |
| Lan | 2×10/100/1000Mbps RJ45 Gigabit Ethernet, Integrated RTL8111E Gigabit Ethernet |
| Serial Port | COM1×RS232/485/422( Defaults to RS485); COM2-COM5×RS232/RS485(Defaults to RS232);COM6×RS232 |
| USB | 6×USB 2.0 Port |
| Display | 1×VGA,( Optional2 VGA)Integrated Intel GMA X4500 Chip, |
| Audio | 1×MIC-in,1×Line-out,Graphics Integrated ALC662 |
| Others | 2×PCI,1×8 Bits GPIO (Optional),1×LPT(Optional),1×PS/2 (Optional) |
| Consumption | Less Than 35W |
| Whatchdog Timer | 1-255s,Programmable |
| Expansion | 1×SIM, 2×Min-Pcie (Optional Wifi module.3G module) |
| Working Temp. | Working Temp -20℃-80℃,Working Humidity 5%-90% (Non-condensing) |
| Storage Temp. | Storage Temp -20℃-80℃,Working Humidity 5%-90% (Non-condensing) |
| Power | Wide voltage 9V~25V,12V8A Power Adapter |
| Switch ON/OFF | Thin-film switch |

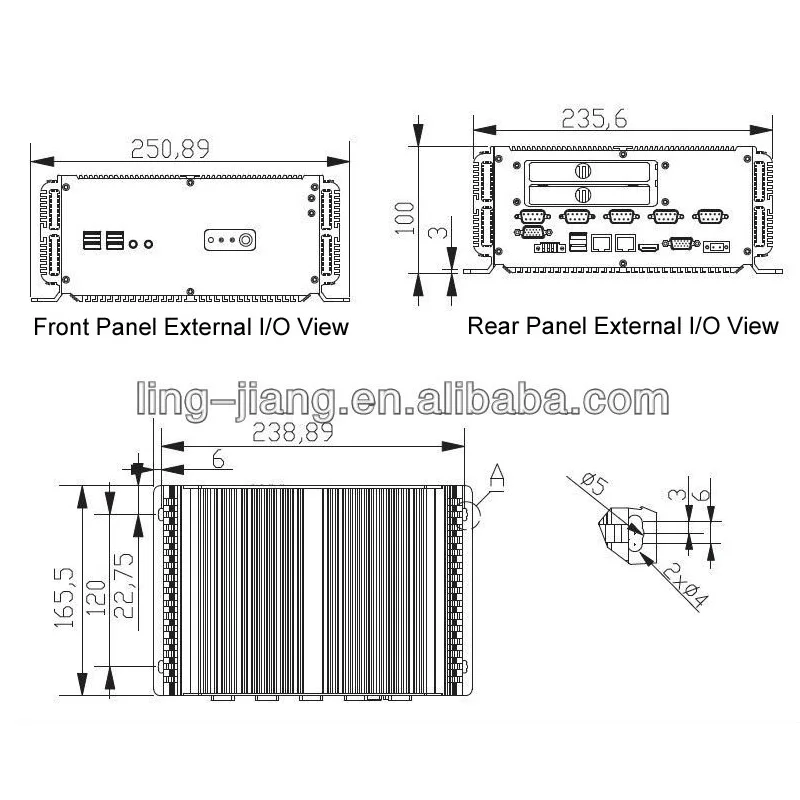

| Dimensions | 235.5×165.5×100(mm) |
| Hole Size | 238.9×120(mm) |
| Warranty | |
| Warranty | 12 months |
| Order information | |
| Model Name | LBOX-GM45 |
| Standard Configuration | Intel Core2 Dou P8600 CPU/2.4GHZ/RAM 4G / 64G SSD (Win7 32 Bits OEM) /1xVGA/2xLAN /1MIC-in/Line-out /6xUSB/6xCOM |
| Standard Accessories | 12V/8A Power Adapter,RS485 Connector |
| Optional | Intel Core2 Dou P8700CPU /RAM 4G/ SSD 64G/128G/256G HDD 320G/500G LPT/PS2/GPIO/WiFi/3G/Built-in Speaker/2xVGA |
