OMR Scanner /exam equipment /Optical Mark Reader

Product Overview

Description





Optical Mark Reader(OMR) is a high-tech data input device which is integrated with optical and electrical technique. OMR solves entirely the bottleneck problem of data input. It is a powerful tool for speedy automatic data capture. The speed is several hundreds of times faster than that of manpower; especially the machine can work for a long time without break. So nothing else can instead OMR so far. It can be used in all kinds of standard examination and students’ information statistics.









Model: OMR86FS

Reading mode: Single-face and read one time

Feeding mode: Automatic

Speed: 8000PCS/hour (based on A4)

Form size: 130mm× 50mm-300mm× 210mm

Form weight: 70-150G/M2

Track spacing: 5.08mm

Marking tools: No. 2 or softer pencils, carbon pens

Mark shapes: Rectangles, ovals and circles

Error rate: ≤ 1× 10-7

Mark choice: Single choice, multiple choice and BCD code

Format: 26 kinds, each has 255 commands at most

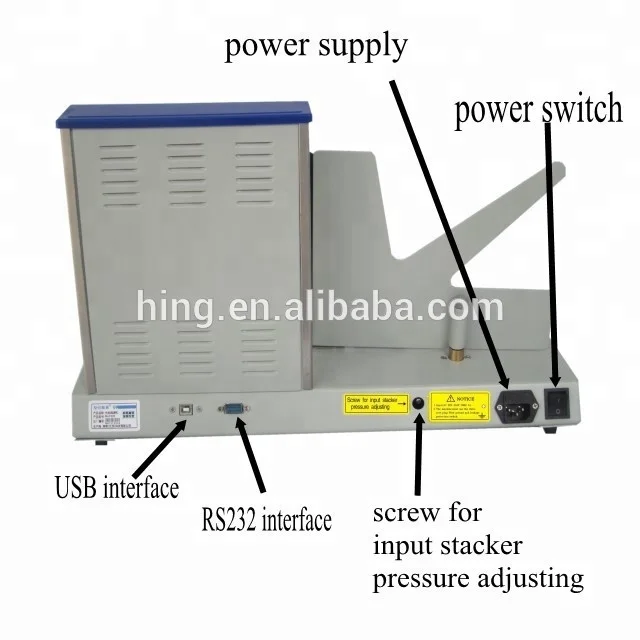

Interface: RS232, USB

Host: PC, Laptop

Weight: 8kg

Operating system: Win2000, Win2003, Win XP

Power supply: AC100-240V, 50-60Hz

Dimensions: 560mm× 170mm× 400mm

Operating condition: Temperature 0-40° C, humidity≤ 90%, no erosive gas
