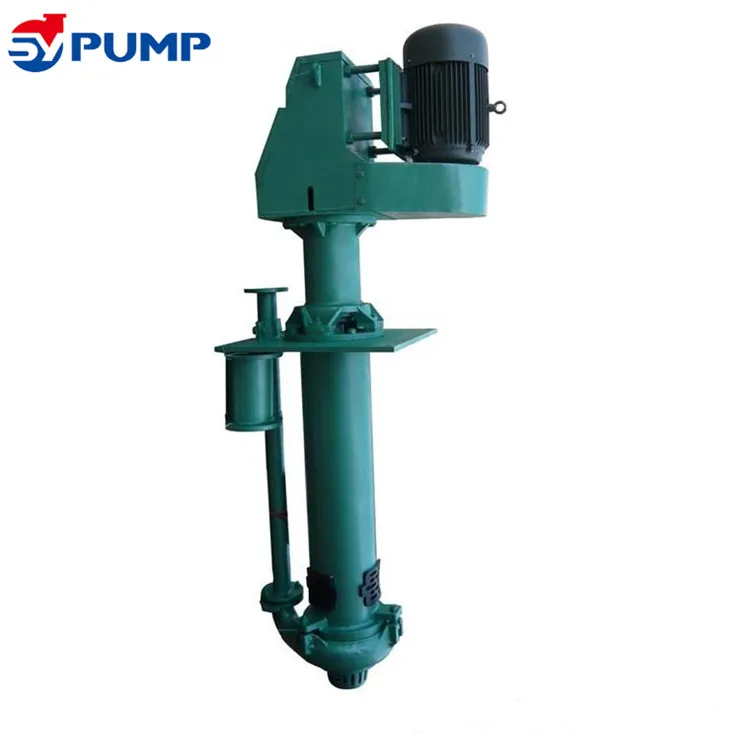

Type SP/SP(R) pumps are vertical, centrifugal slurry pumps which are submerged in sump to work. They are designed for delivering abrasive, large particle and high density slurries. These pumps do not need any shaft seal and sealing water. They can also be operated normally for insufficient suction duties.
Wet parts of type SP pumps are made of abrasion-resistant metal.
All parts of type SP(R) pump immersed in liquid are lined with rubber. They are suited to transport the slurry which contains non-edge and acid/abrasive particle .

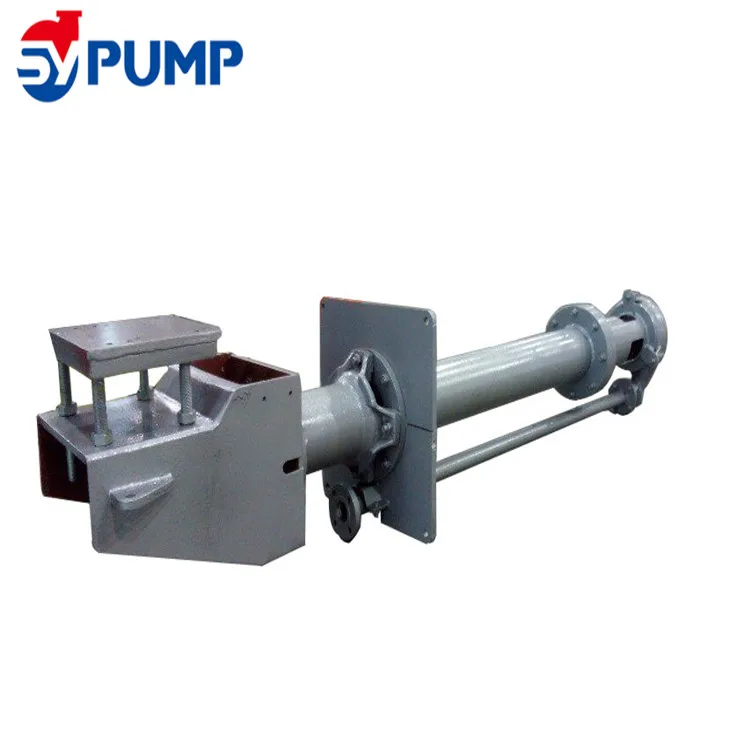

The type with “L” is series of sump pump with extended shaft , which is suited for the working condition of deeper level. The guide bearing construction is added to the pump on the basis of the standard pump, so the pump is with both more steady operation and wider application range, but flushing water should be attached to the guide bearing.
Features
– Metal or rubber lined wet parts.
– Vertical construction, less Installation Space.
– Equipped with replaceable shaft protection sleeve.
– Special materials or casting for specific liquid
Application
Sump pumps are mainly used for handing corrosive, coarse particles and high density slurries, and are widely used in sewage treatment, metallurgy, mining, mineral processing, dredging, dewatering, water treatment, coal washing, mill, cyclone feed, tailing, power, building material…etc. various industrial sites.

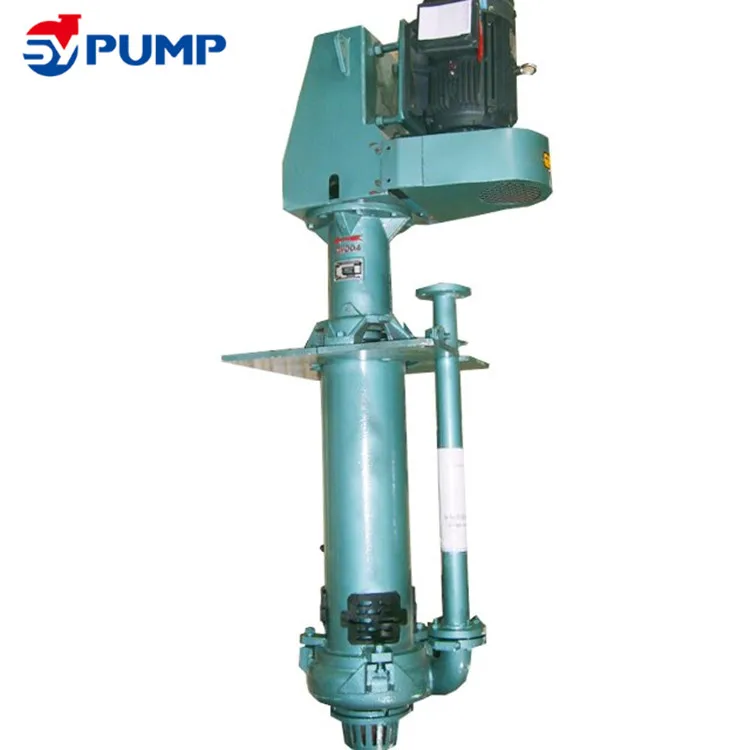

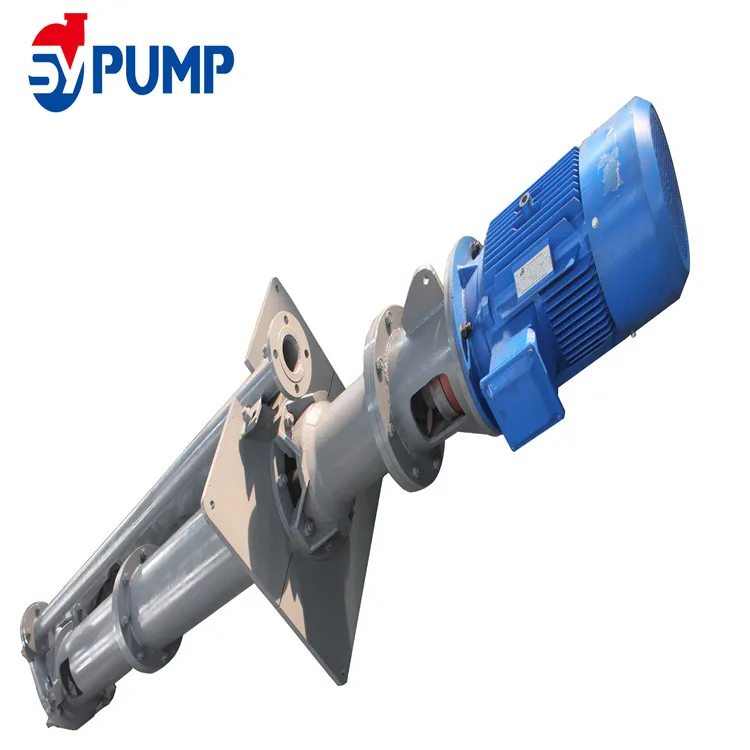

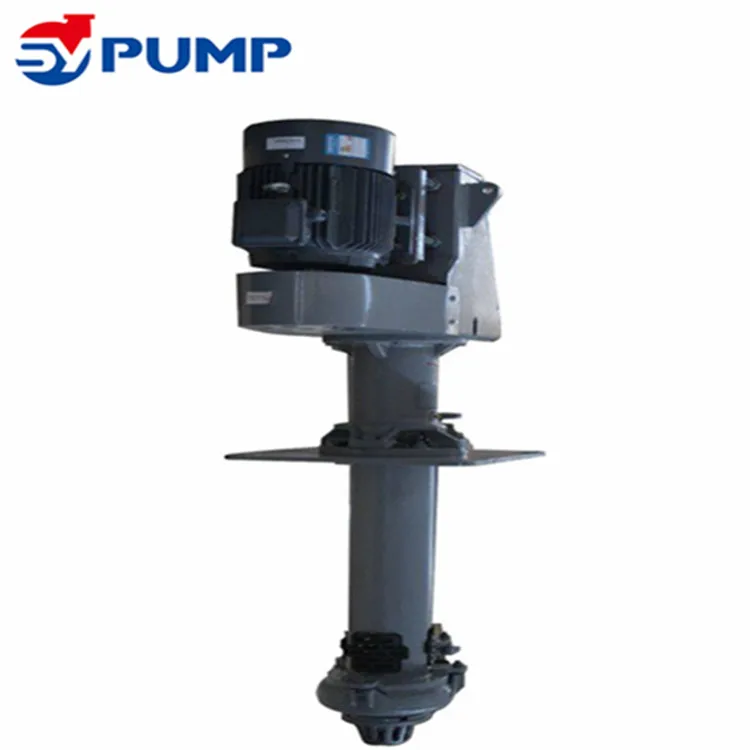

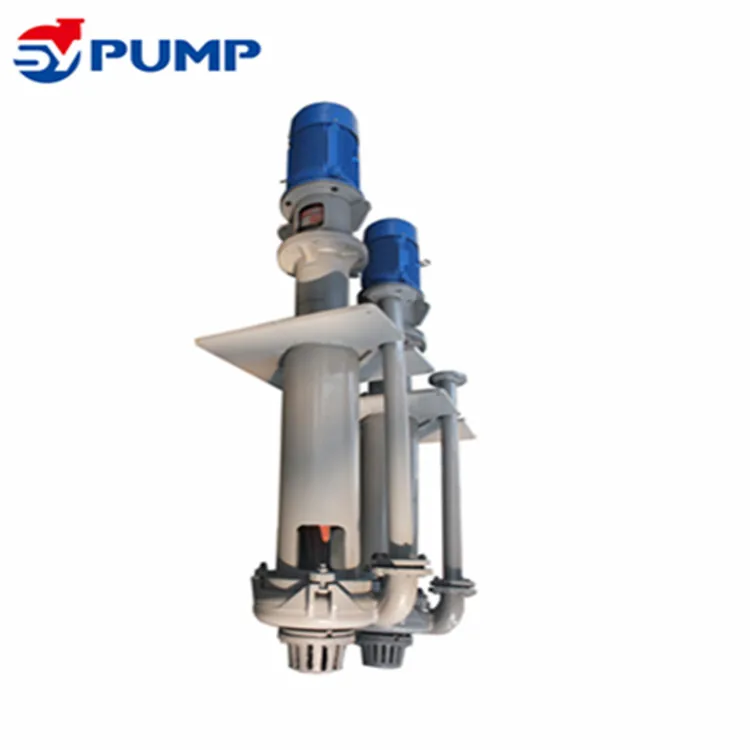

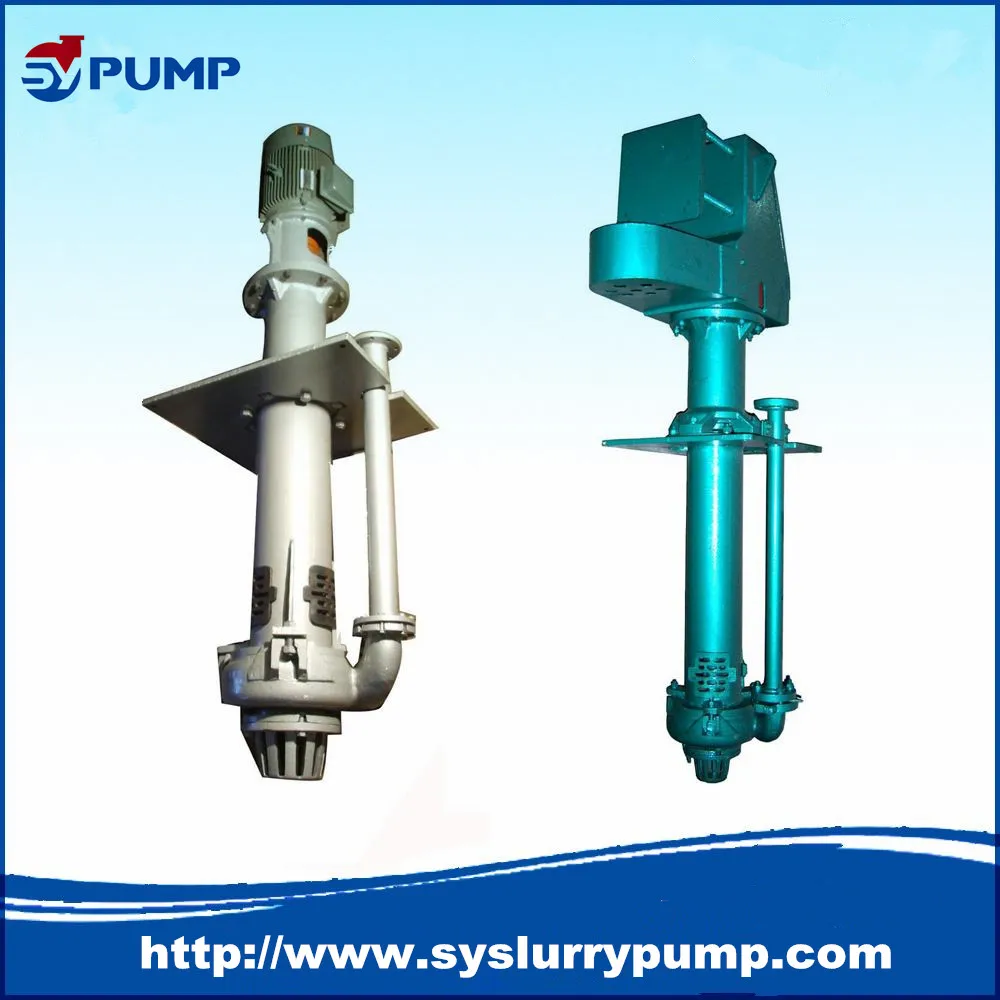

Display
Product Parameter

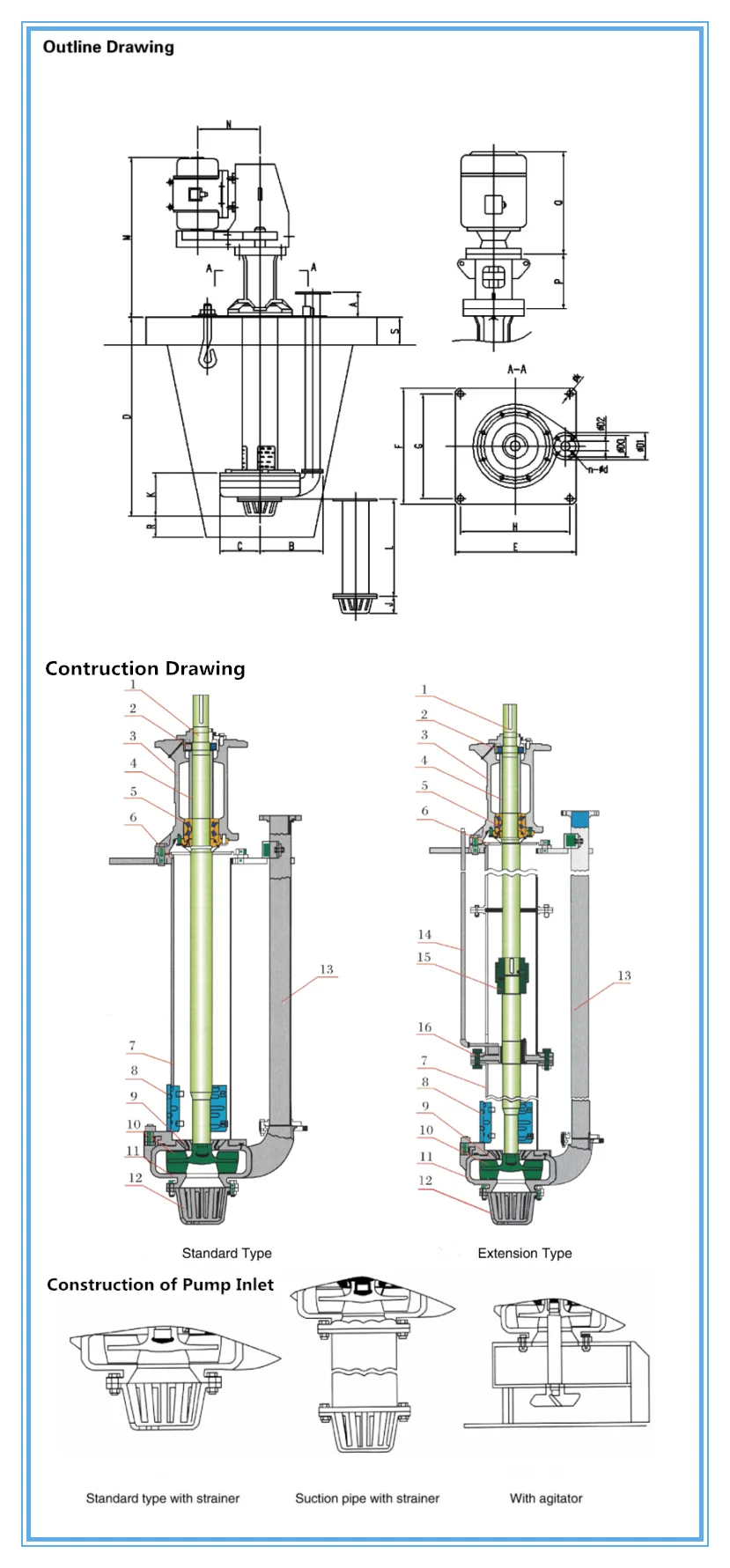

Outline&Contruction Drawing
NO.
Parts Name
NO.
Parts Name
1
Shaft
9
Back Liner
2
Bearing
10
Impeller
3
Bearing Housing
11
Pump Casing
4
Bearing Spacer
12
Lower Strainer
5
Bearing
13
Discharge Pipe
6
Shim
14
Flushing Pipe
7
Column
15
Coupling Part
8
Strainer
16
Middle Support Part
Technical Parameters
Pump Model
AllowableMax.Power(kw)
Clear Water Performance
Capacity Q
HeadH(m)
Speed n (r/min)
Max.Eff. (%)
Impeller Dia. (mm)
m3/h
40PV-SP
15
19.44-43.2
4.5-28.5
1000-2200
40
188
40PV-SPR
17.28-39.6
4–26
1000-2200
40
188
65QV-SP
30
23.4-111
5-29.5
700-1500
50
280
65QV-SPR
22.5-105
5.5-30.5
700-1500
51
280
100RV-SP
75
54-289
5-35
500-1200
56
370
100RV-SPR
64.8-285
7.5-36
600-1200
62
370
150SV-SP
110
108-479.16
8.5-40
500-1000
52
450
200SV-SP
110
189-891
6.5-37
400-850
64
520
250TV-SP
200
261-1089
7.5-33.5
400-750
60
575
300TV-SP
200
288-1267
6.5-33
350-700
50
610
Type Notation
For example: 40 PV (L) - SP (SPR)
40 stands for discharge diameter(mm)
PV stands for support type
L stands for extension Type
SP stands for sump pump
SPR stands for rubber lined

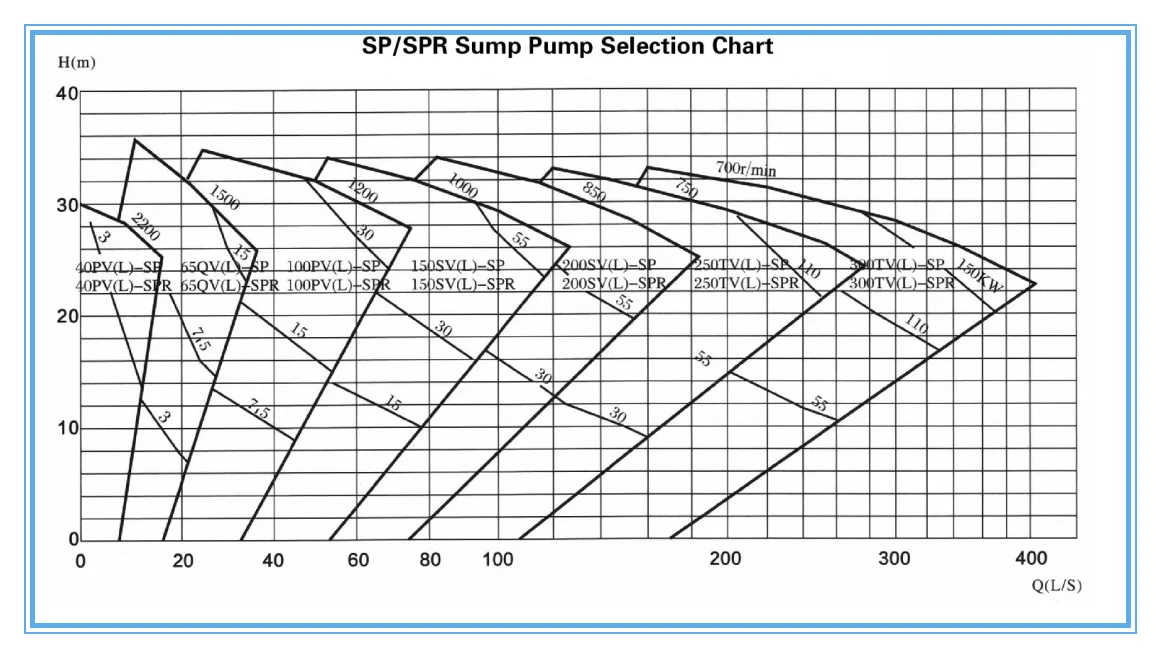

Selection Chart
Packaging & Shipping
We could provide Express (DHL/FedEx/TNT/EMS), sea or air transportation according to your requirement.
