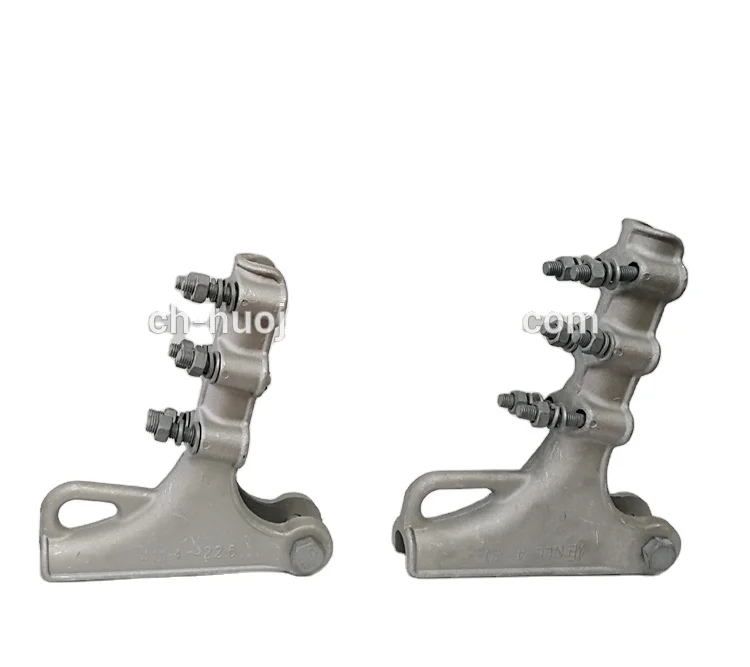

Aluminum Alloy For Overhead Line Accessories Bolted Tension Cable Clamp

Banner

Product Description

1) Be suitable for distribution wire up to 10KV, fixing insulated aluminum conductor or naked aluminum conductor on the rotate angle or insulator of terminal strain pole, to fix and tighten the aerial conductor.

2) Material: body, keeper - aluminum alloy, split pin - stainless steel, others - hot-dip galvanized steel.

3) Grip strength of the clamp is more than 95% break strength of the conductor.

4) Insulation cover and strain clamp used together for insulation protection

NLL Aluminum Alloy Bolted Strain Clamp and Insulation Cover
Cat.No.	Conductor Section(mm2)	Conductor Range(mm2)	Overall Dia.(mm)	U-Bolts		Failure Load(kn)	Insulation Cover Type
Cat.No.	Conductor Section(mm2)	Conductor Range(mm2)	Overall Dia.(mm)	No.	Size	Failure Load(kn)	Insulation Cover Type
NLL-1(19)	16-70	5.1-11.4	7.6-16.2	2	M12	40	NLL-1(19)
NLL-2(22)	50-95	8.5-13.8	8.5-19.6	2	M12	40	NLL-2(22)
NLL-3(29)	70-150	11.4-17.1	11.4-22.6	2	M12	70	NLL-3(29)
NLL-3(29)	70-150	11.4-17.1	11.4-22.6	3	M12	70	NLL-3(29)
NLL-4(32)	120-240	13-18.9	13-26.4	3	M12	70	NLL-4(32)
NLL-5(35)	150-300	17.1-23.8	16.2-29.0	4	M12	70	/
NLL-6	400-630	26.9-34.8	28.5-40	5	M12	70	/

Note:1.Meaning of letters: N-strain clamp, L-aluminum alloy, L- bolted type; Numbers -serial number of the type.
2.Material: Body, Keeper-aluminum alloy, Split Pin-stainless steel, others-hot-dip galvanized steel.
3. Grip strength of the clamp shall be more than 65% of conductor breaking strength
