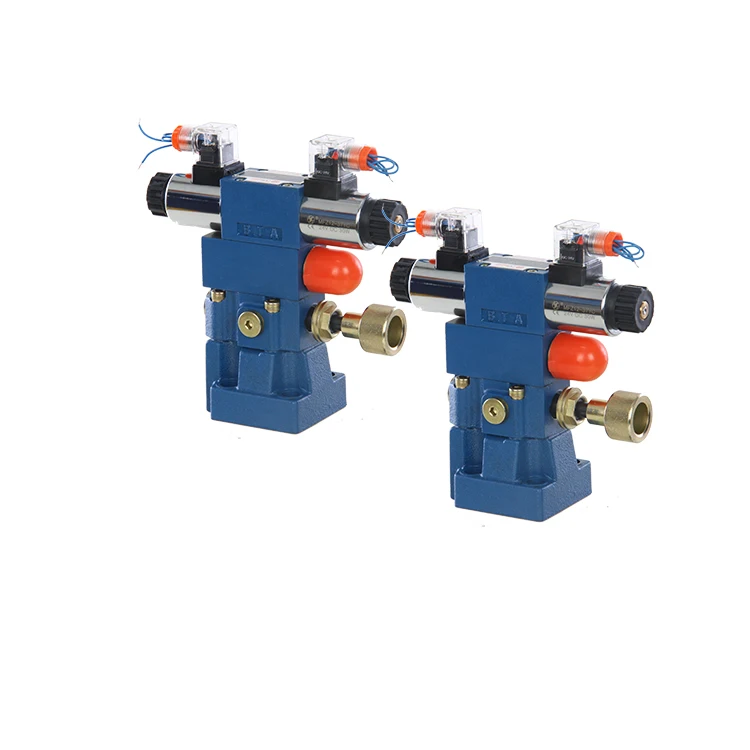

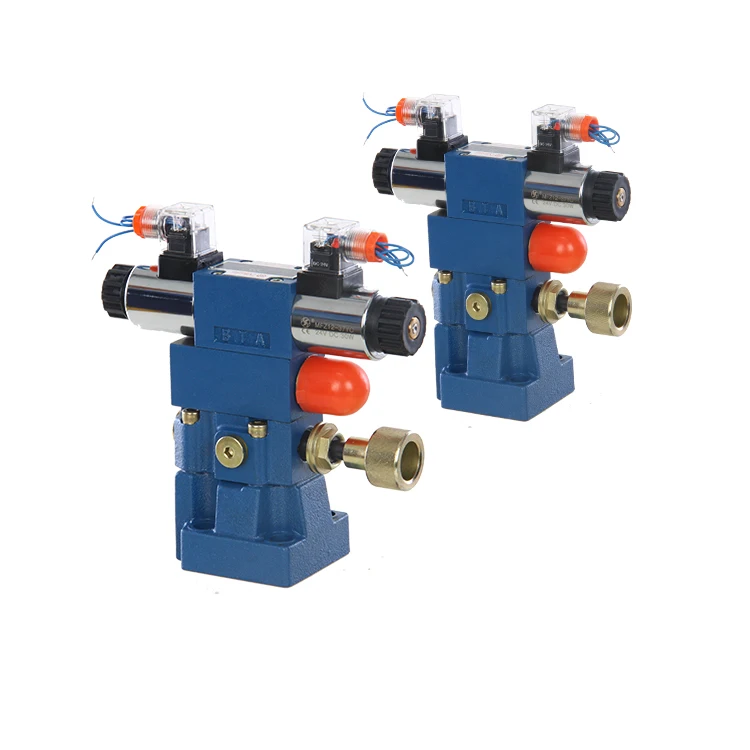

DB2U type subplate mounting adjustable pressure relief valve

Pressure control valve refers to a valve used to control and regulate the pressure of liquid flow in a hydraulic system. This type of valve works by balancing the liquid pressure and spring force acting on the spool.It can be divided into three categories: relief valve, relief valve and sequence valve.

Relief valves, also known as safety valves, pressure cut-off valves, etc., from the pressure limit safety protection.

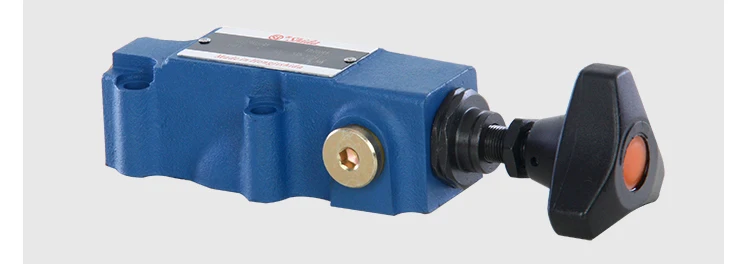

DBT/DBWT

Features:

-Long distance remote control

-Subplate mounting

-Three adjustment elements:

  Rotary knob

  Hex.head screw with protective cap

  Lockable rotary knob with scale

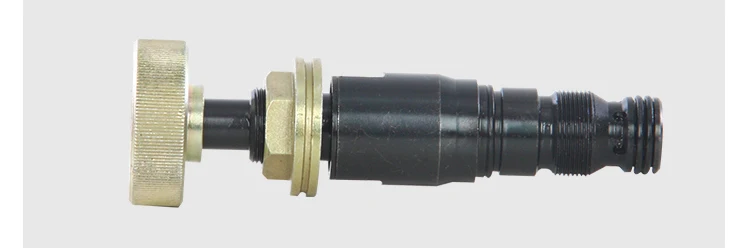

DBD

Features:

-As cartridge valve

-For threaded connections

-For subplate mounting

-3 pressure adjustment elements, optional:

  Rotary knob

  Hex. head screw with protective cap

  Lockable rotary knob with scale

ZDB

Features:

-Sandwich plate valve

-4 pressure ranges

-5 circuit options

-With one or two pressure relief cartridges

-4 adjustment elements:

 Rotary knob

 Sleeve with hexagon and protective cap

 Lockable rotary knob with scale

 Lockable rotary knob

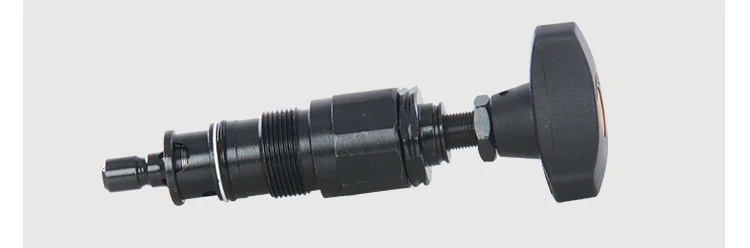

DB-K

Features:

-As Cartridge valve

-4 pressure ranges

-4 adjustment elements:

 Rotary knob

 Sleeve with hexagon and protective cap

 Lockable rotary knob with scale

 Rotary knob with scale

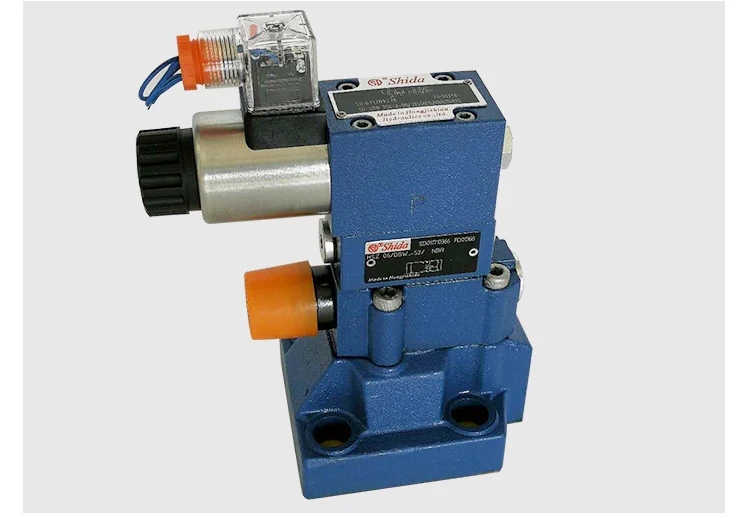

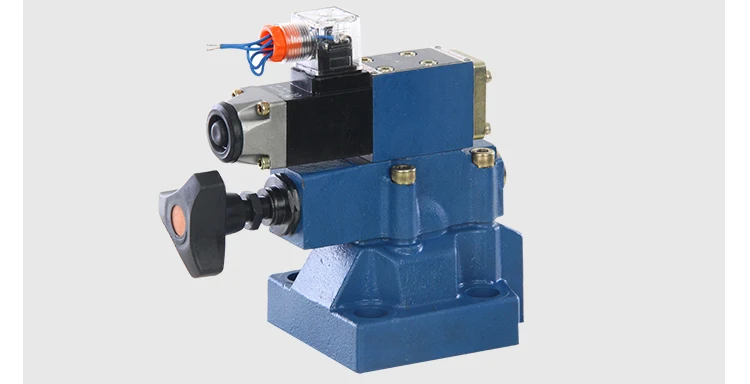

DB/DBW-30

Features:

-Subplate mounting

-Pipe connection

-Insert connection

-Three adjustment elements:

 Rotary knob

 Hex.head screw with protective cap

 Lockable rotary knob with scale

-Solenoid operated unloading via a built-in directional spool valve

DB/DBW-50

Features:

-Subplate mounting

-Porting pattern to DIN 24 340, form E,ISO6264 and CETOP-RP 121H

-Pipe connection

-Insert connection

-Three adjustment elements:

 Rotary knob

 Hex.head screw with protective cap

 Lockable rotary knob with scale

-Solenoid operated unloading via built-indirctional spool valve

DB2U

Features:

-Subplate mounting

-Threaded connection

-3 adjustment elements:

Rotary knob

Screw with internal hexagon and protective cap

Rotary knob with scale

-Solenoid operated control via mounted directional valve

DB3U

Features:

-Subplate mounting

-Threaded connection

-Installation in manifolds

-3 adjustment elements:

 Rotary knob

 Screw with internal hexagon and protective cap

 Rotary knob with scale

-Solenoid operated control via mounted directional valve
